Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter: 100 mm
• 2 speed motor with thermal overload protection and shaft turning in ball bearings, coupled to a forward-bladed centrifugal impeller.
• Minimum air flow: 20 m3/h
Maximum air flow 43 m3/h
• Non-return damper fitted to outlet port.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • CE CE
  • EAC EAC

Technical Data Sheet

  • Absorbed power 1st speed (W)
    5
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    25
  • Max. absorbed Current at max. speed (A)
    0,04
  • Max. absorbed Current at min. speed (A)
    0,02
  • Max. absorbed power at max speed (W)
    8
  • Ø Discharge Hole (mm)
    97
  • Voltage (V)
    230
  • Weight (Kg)
    1,2
  • Delivery 1st speed (l/s)
    5,6
  • Delivery 1st speed (m³/h)
    20
  • Max delivery at max speed (l/s)
    11,9
  • Max delivery at max speed (m³/h)
    43

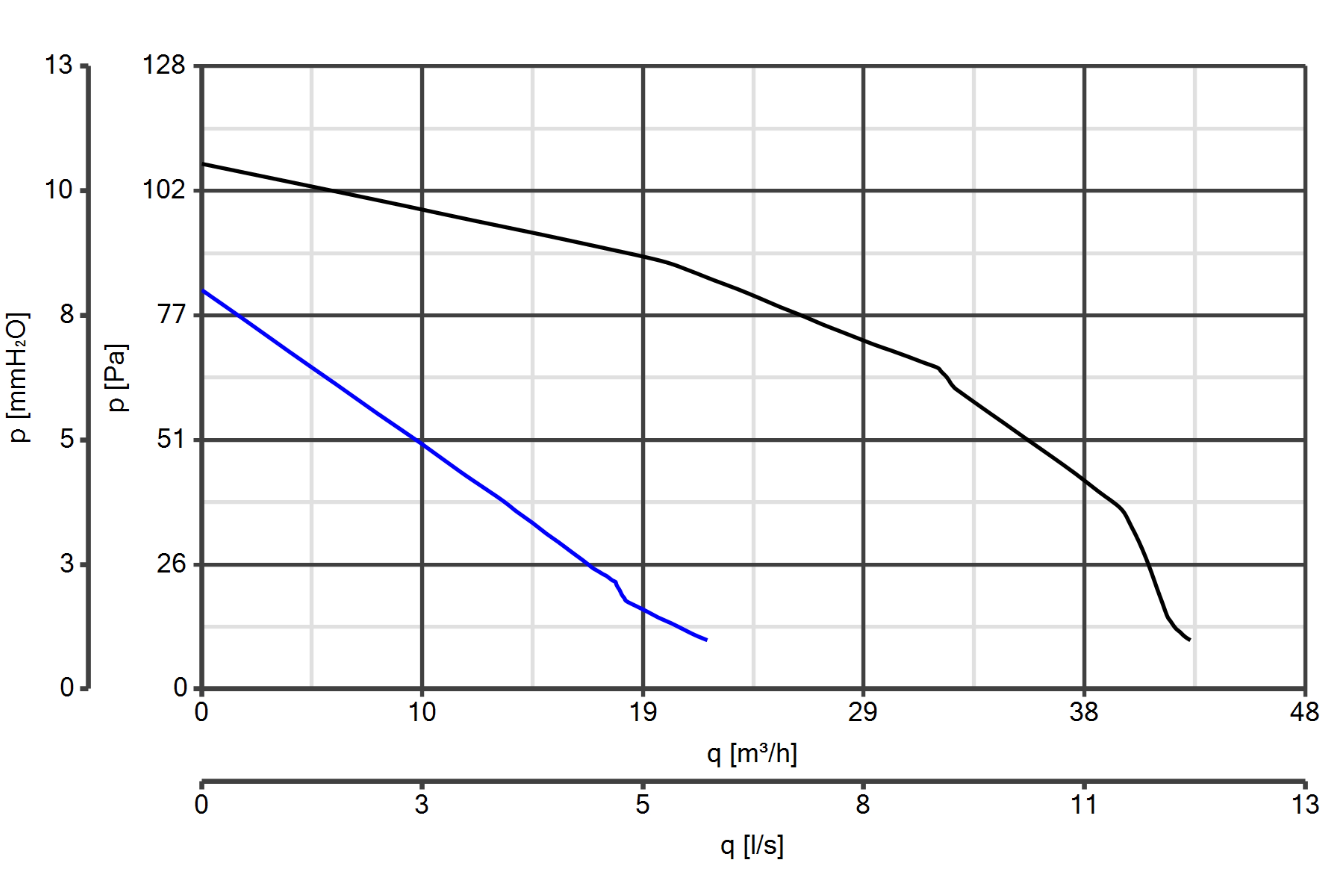

  • Pressure - 1st speed (mmH20)
    8
  • Pressure - 1st speed (Pa)
    78
  • Pressure max - max speed (mmH20)
    10
  • Pressure max - max speed (Pa)
    98
  • RPM max
    1870
  • RPM min
    1260
  • Sound pressure level Lp [dB (A)] 1m - max speed
    41,5
  • Sound pressure level Lp [dB (A)] 1m - min speed
    30
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -4,2
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -17,6
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    3,5
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    39
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    8,2
  • Sound power level LWA [dB(A)]
    53
  • Reference flow rate [m3/s]
    0,0076
  • Reference pressure difference [Pa]
    60
  • SPI [W/(m3/h)]
    0,28353
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    391
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632
  • Size A (mm)
    156
  • Size B (mm)
    123
  • Size C (mm)
    25
  • Size D (mm)
    97
  • Size E (mm)
    60
  • Size F (mm)
    60
