Description

• Model designed for flush wall-mounted installation.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight)
• Nominal diameter 300 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,41
  • Absorbed Power max (W)
    75
  • Frequency (Hz)
    50/60
  • Inlet
    Automatico
  • Insulation Class
    II°
  • IP
    X4
  • Max absorbed Power at 60Hz (W)
    90
  • Max ambient temperature for continuous operation (°C)
    50
  • Max ambient temperature for continuous operation 60Hz (°C)
    40
  • Ø Discharge Hole (mm)
    435 ÷ 440
  • Voltage (V)
    220-240
  • Weight (Kg)
    7,20
  • Delivery max - Extract (l/s)
    486,1
  • Delivery max - Extract (m3/h)
    1750
  • Delivery max - Intake (l/s)
    277,7
  • Delivery max - Intake (m3/h)
    1000
  • Delivery max (m³/h)
    1750
  • RPM
    1230
  • Rpm - Exhaust
    1230
  • Rpm - Supply
    1310
  • Sound Pressure level Lp [dB (A)] 3m
    53,5
  • Ø wall hole
    435/440
  • Size A (mm)
    495
  • Size B (mm)
    10,5
  • Size C (mm)
    11,5
  • Size D (mm)
    210
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

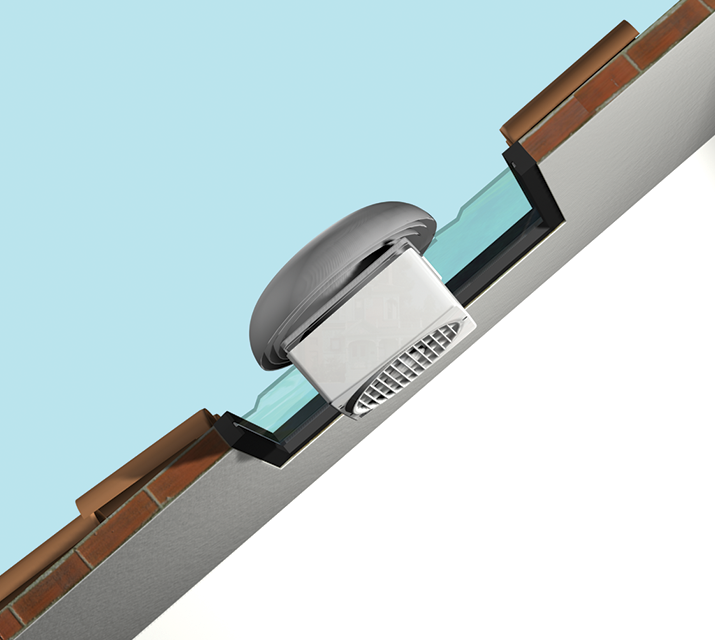

KIT TE 300/12"                (TORRETTA)
KIT TE 300/12" (TORRETTA)
• Roof cowl/wind baffle kit.

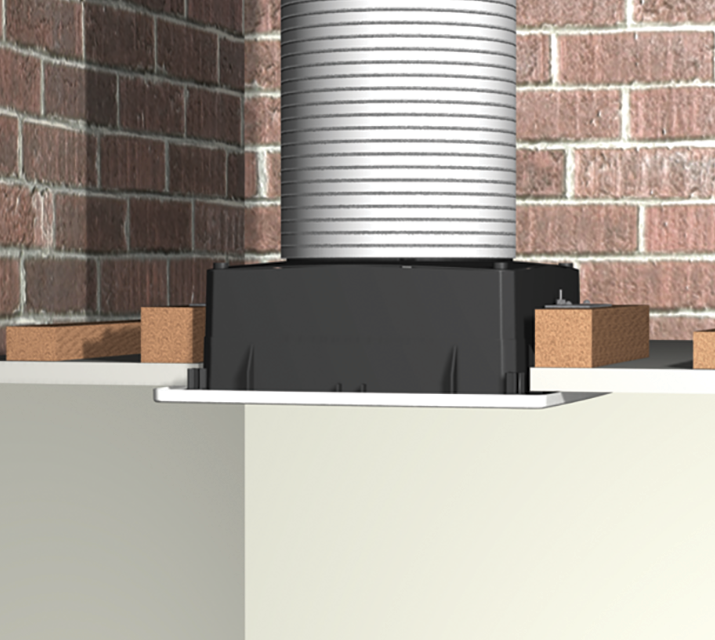

KIT SO 300/12"                (SOFFITTO)
KIT SO 300/12" (SOFFITTO)
• Ceiling, false ceiling and panel kit.

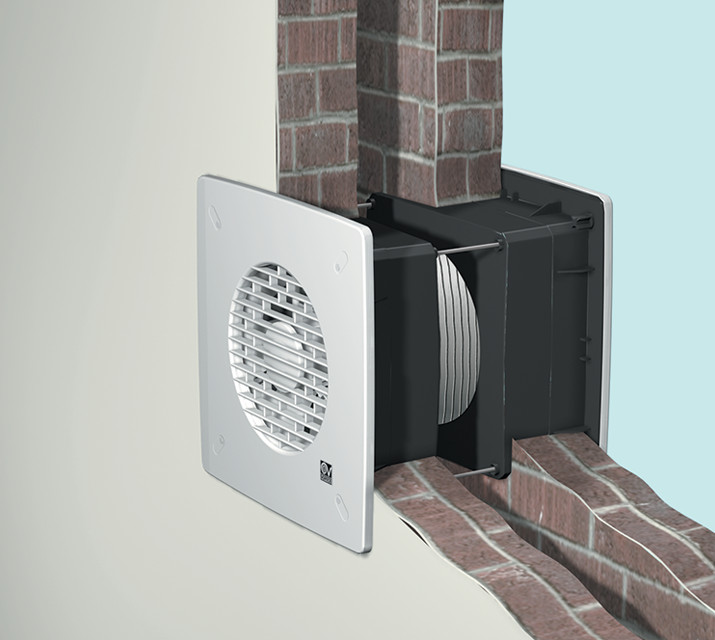

KIT ML 300/12"              (MURO LARGO)
KIT ML 300/12" (MURO LARGO)
• Deep wall installation kit.
KIT TC 300/12"      (TETTO CON CONDOTTO)
KIT TC 300/12" (TETTO CON CONDOTTO)
CR5N
CR5N
• Reversibile 5 speed controller.
• Natural Ventilation.
• Maximum load 100 W.
CREN
CREN
• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
