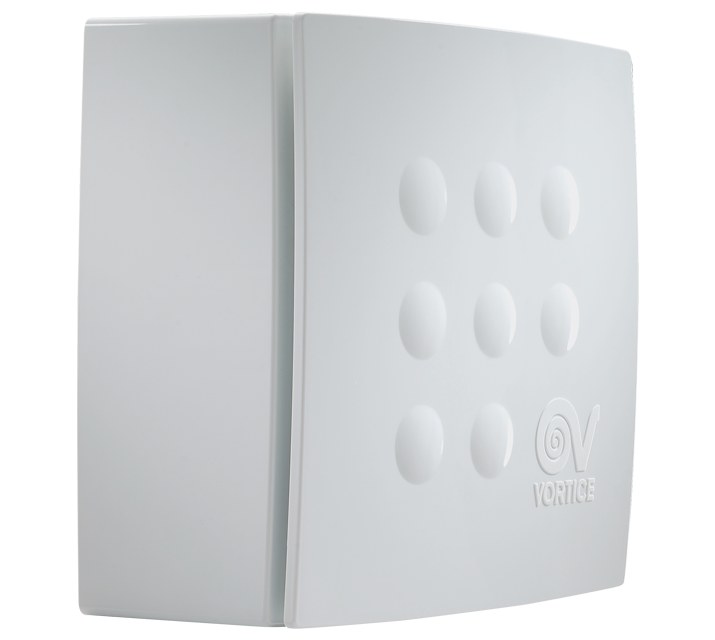

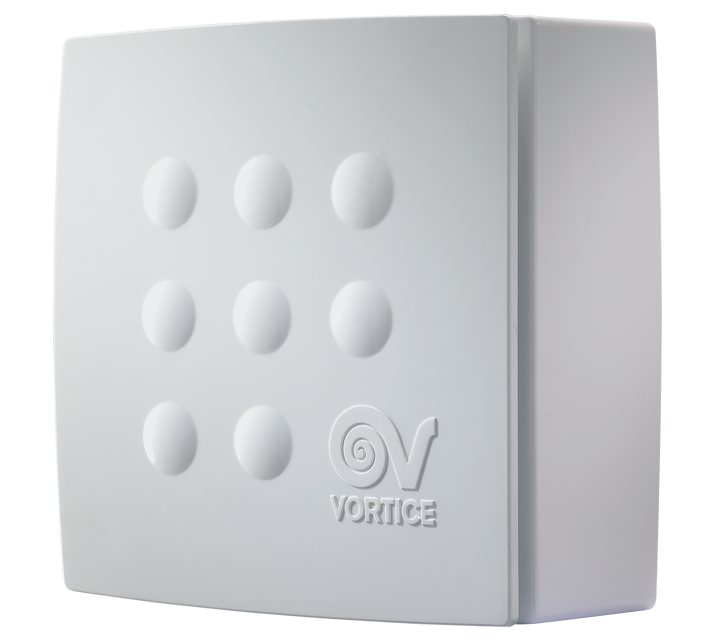

Description

• Material: white ABS plastic
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller. Equipped with thermal overload cutout and self-lubricating bushings.
• Nominal diameter 100 mm.
• Minimum air flow 65 m3/h
Maximum air flow: 90 m3/h
• IMQ SAFETY and IMQ PERFORMANCE certifications.
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed power 1st speed (W)
    20
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,13
  • Max. absorbed Current at min. speed (A)
    0,10
  • Max. absorbed power at max speed (W)
    28
  • Nominal Diameter (mm)
    100

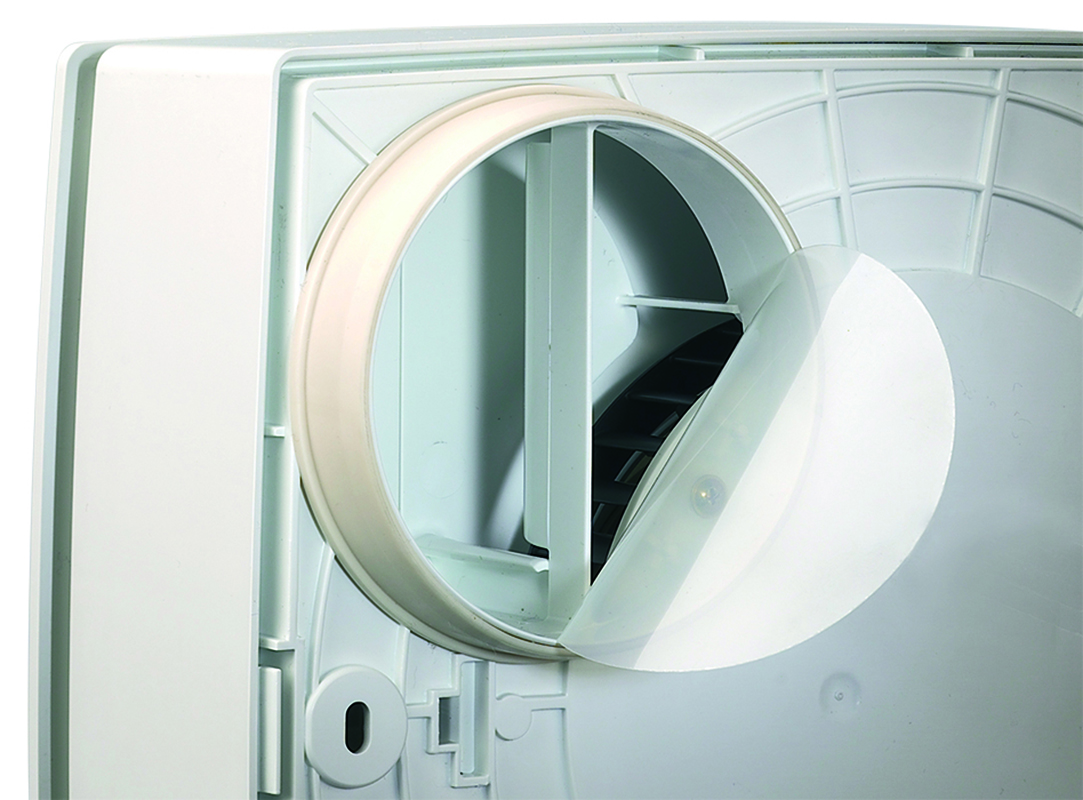

  • Ø Discharge Hole (mm)
    92,5/97
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,80
  • Delivery 1st speed (l/s)
    18
  • Delivery 1st speed (m³/h)
    65
  • Max delivery at max speed (l/s)
    25
  • Max delivery at max speed (m³/h)
    90

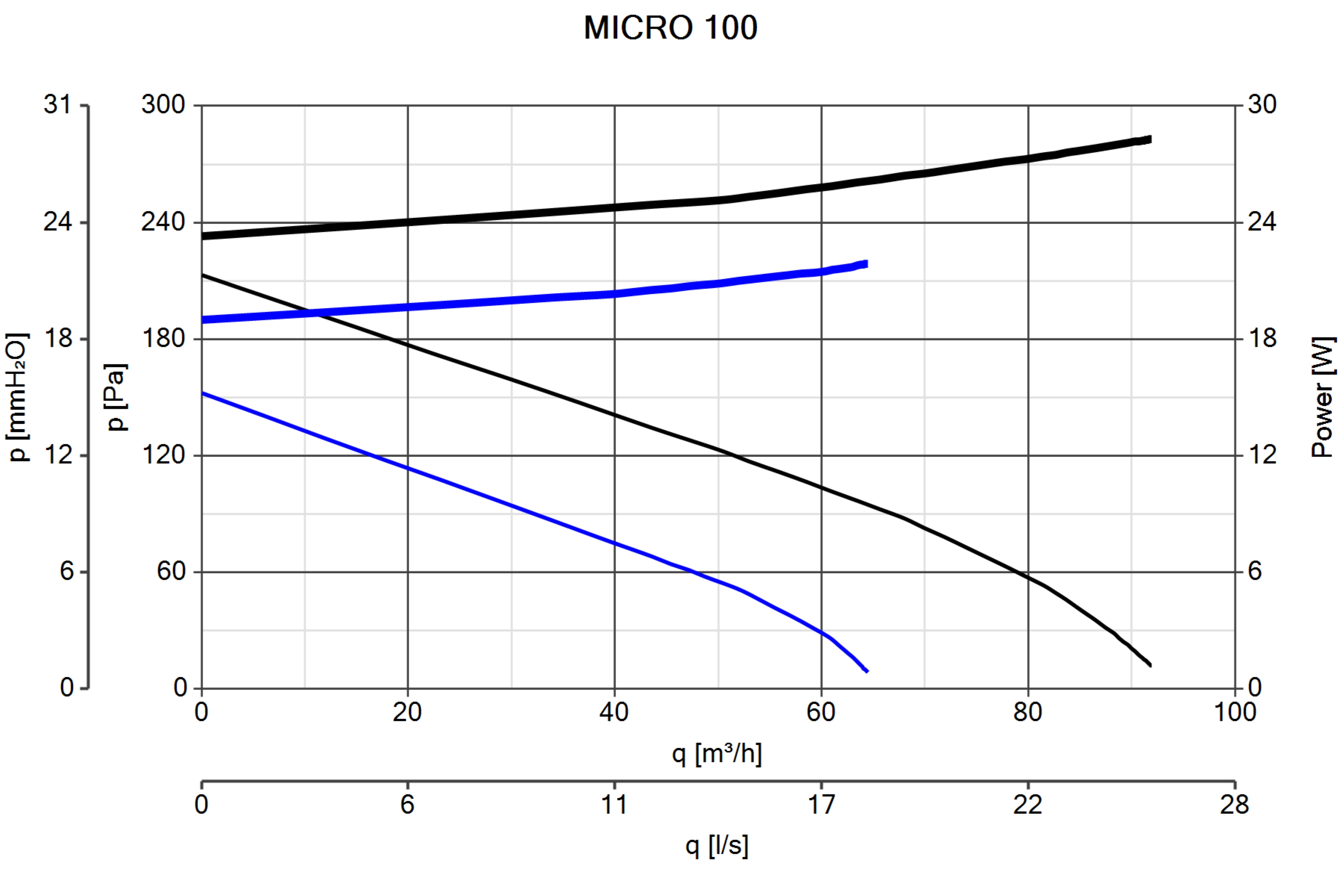

  • Pressure - 1st speed (mmH20)
    16
  • Pressure - 1st speed (Pa)
    157
  • Pressure max - max speed (mmH20)
    22
  • Pressure max - max speed (Pa)
    216
  • RPM max
    1600
  • RPM min
    1180
  • Sound pressure in free air conditions [dB(A)] 3m
    32,3
  • Sound pressure level Lp [dB (A)] 3m - max speed
    39,2
  • Sound pressure level Lp [dB (A)] 3m - min speed
    32,3
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    0,0
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -13,3
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    7,7
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    92
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    28,1
  • Sound power level LWA [dB(A)]
    60
  • Reference flow rate [m3/s]
    0,0179
  • Reference pressure difference [Pa]
    96
  • SPI [W/(m3/h)]
    0,40683
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    561
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632

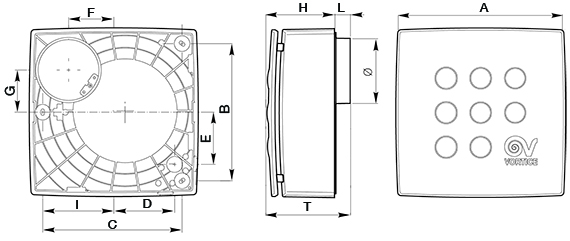

  • Size A (mm)
    239
  • Size B (mm)
    195
  • Size C (mm)
    197
  • Size D (mm)
    85
  • Size E (mm)
    74
  • Size F (mm)
    64
  • Size G (mm)
    60
  • Size H (mm)
    97
  • Size I (mm)
    100
  • Size L (mm)
    20
  • Size T (mm)
    117
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
SCNRB SCAT.COM.NON REV.INCASSO
SCNRB SCAT.COM.NON REV.INCASSO
• Non-reversible electronic speed controller. • Built-in.
DEVIATORE DI FLUSSO M 10/4
DEVIATORE DI FLUSSO M 10/4
• For fitting to the delivery side of extractor fans to direct the air flow in any required direction within 360°.
