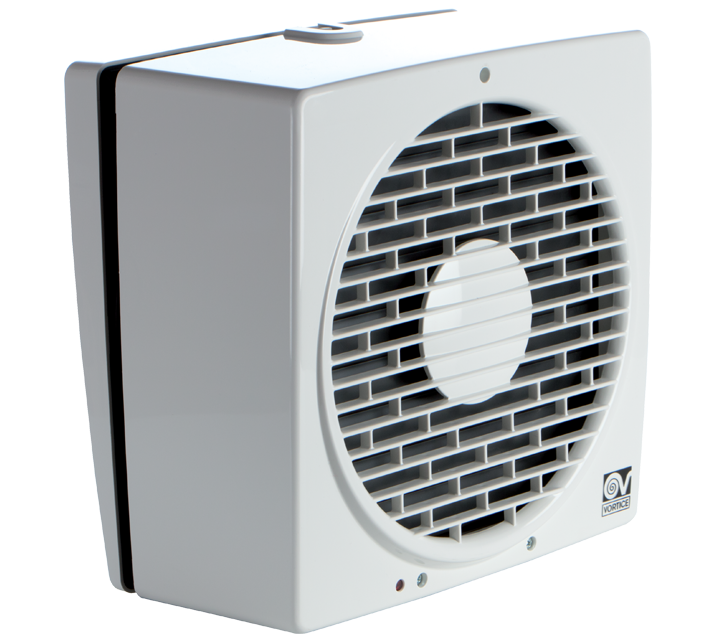

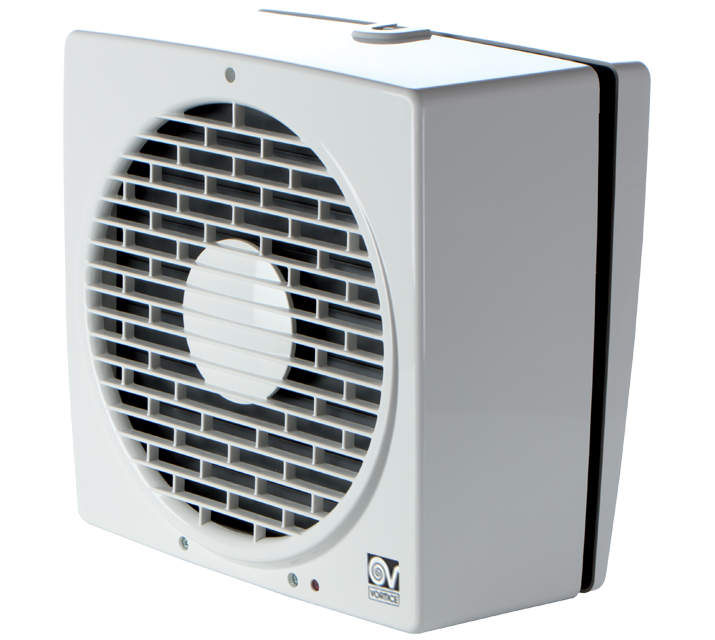

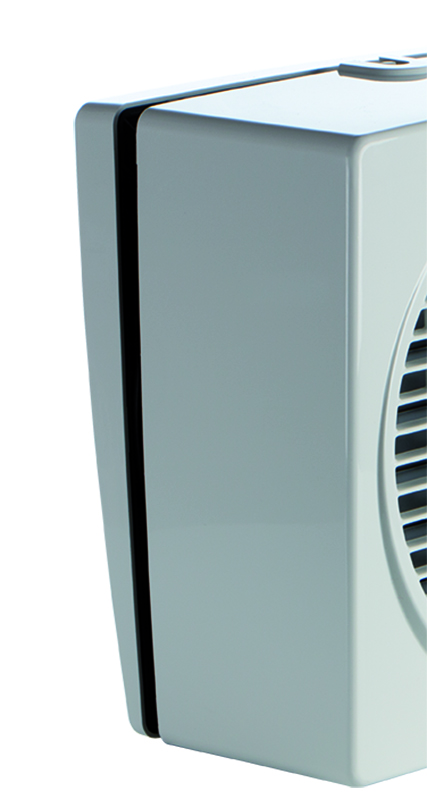

Description

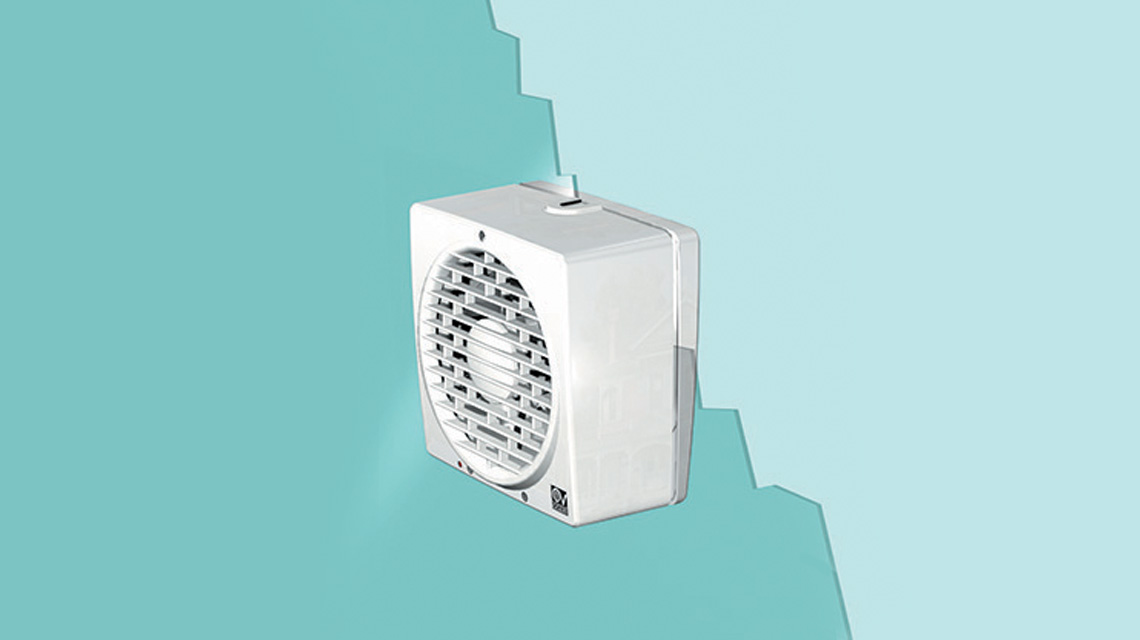

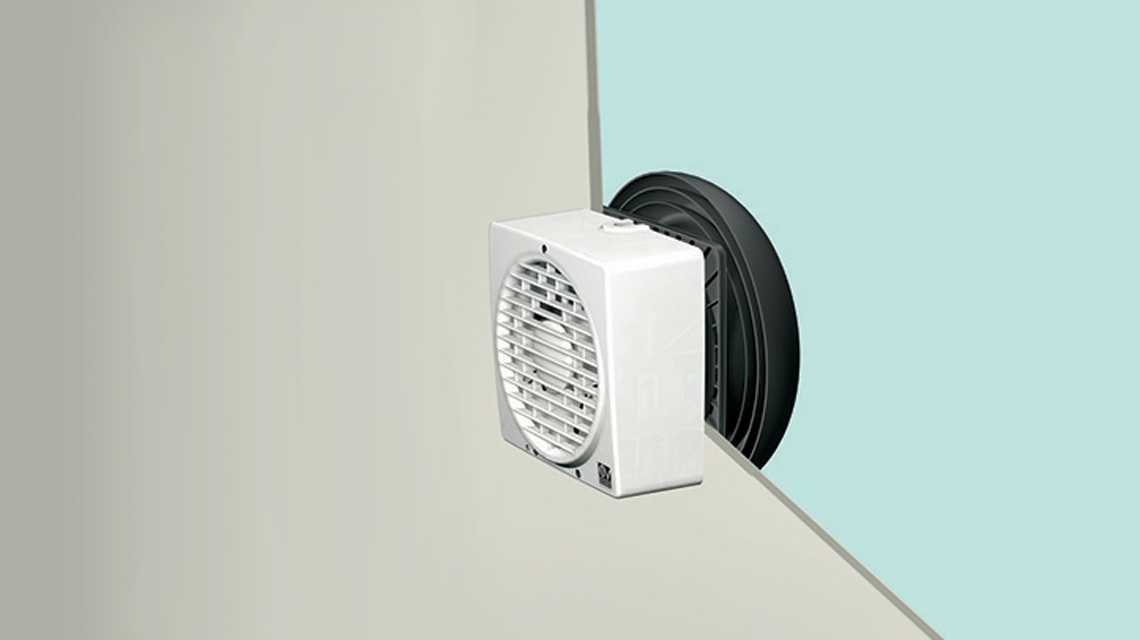

• Model designed for window/wall mounted installation.

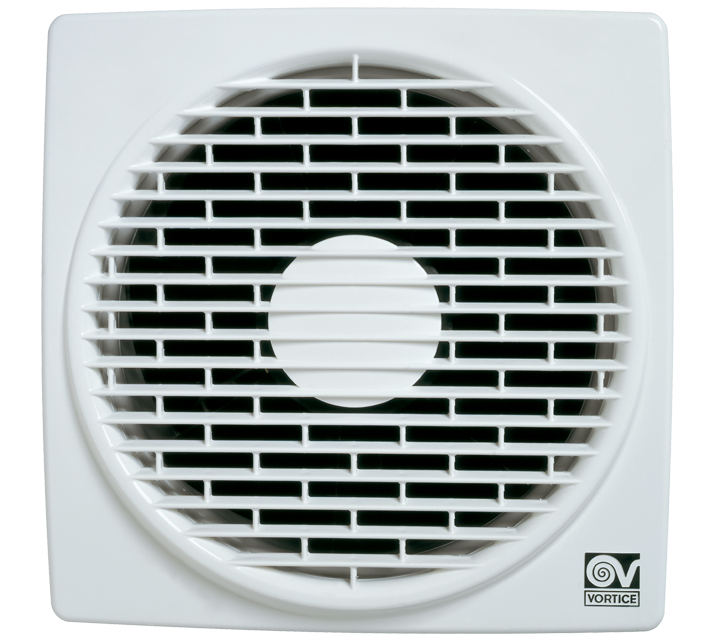

• Version with built-in switch operated by pullcord mounted to edge of grille.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 150 mm.

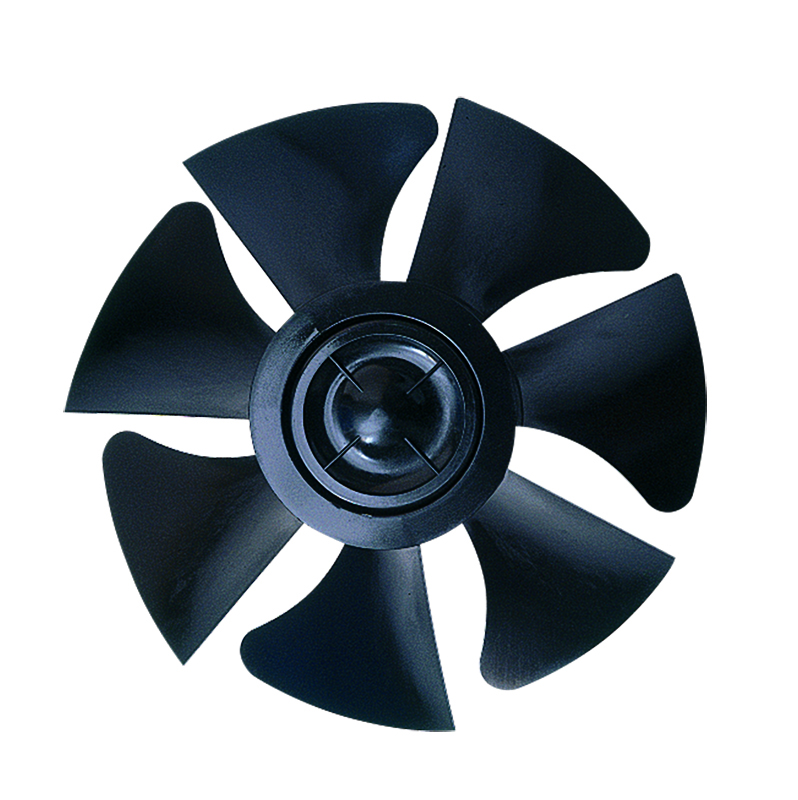

• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,10
  • Absorbed Power max (W)
    18
  • Frequency (Hz)
    50/60
  • Insulation Class
    II°
  • IP
    X4
  • Max absorbed Power at 60Hz (W)
    18
  • Max ambient temperature for continuous operation (°C)
    50
  • Max ambient temperature for continuous operation 60Hz (°C)
    50
  • Ø Discharge Hole (mm)
    150
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,07
  • Delivery max - Extract (l/s)
    65,3
  • Delivery max - Extract (m3/h)
    235
  • Delivery max (m³/h)
    235
  • RPM
    1340
  • Sound Pressure level Lp [dB (A)] 3m
    37,5
  • Ø glass hole
    185/190
  • Ø wall hole
    185/190
  • Size A (mm)
    215
  • Size B (mm)
    218
  • Size C (mm)
    31
  • Size D (mm)
    97,5
  • Size E (mm)
    2/38
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

KIT TE 150/6"                 (TORRETTA)
KIT TE 150/6" (TORRETTA)
• Roof cowl/wind baffle kit.
KIT MU                            (MURO)
KIT MU (MURO)

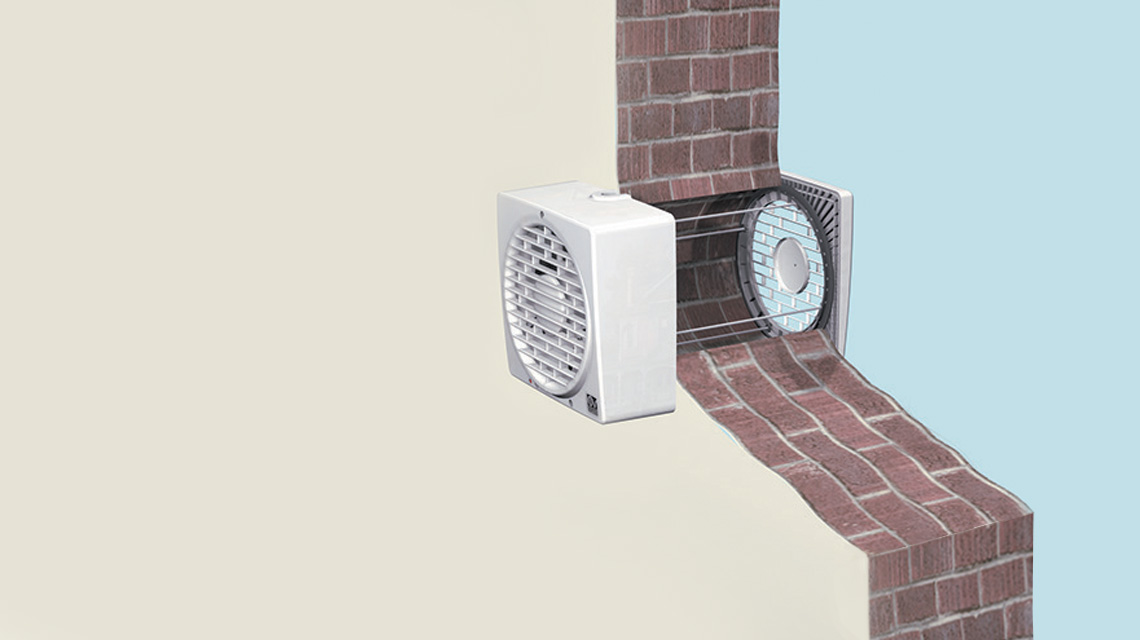

• Wall mounting kit with rods.
KIT VV 150/6"              (DOPPI VETRI)
KIT VV 150/6" (DOPPI VETRI)
• Double opening window, secondary-glazed kit.
