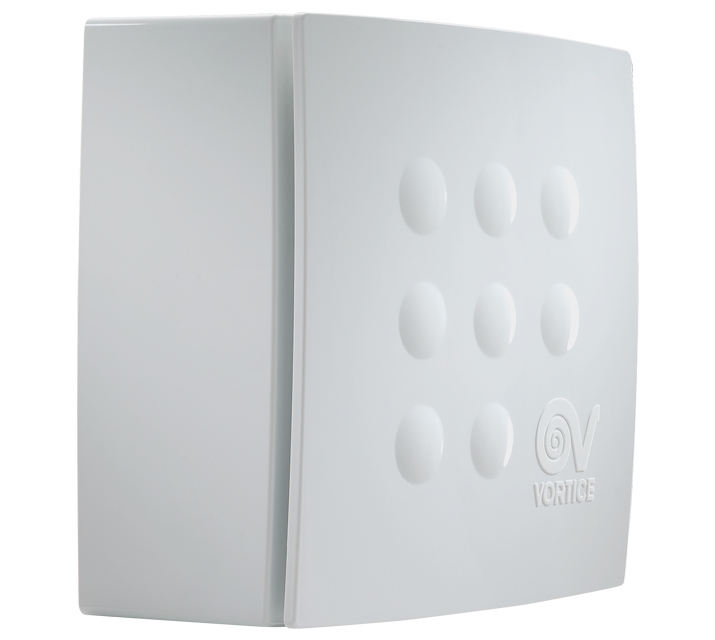

Description

• Material: white ABS plastic
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller. Equipped with thermal overload cutout and self-lubricating bushings.

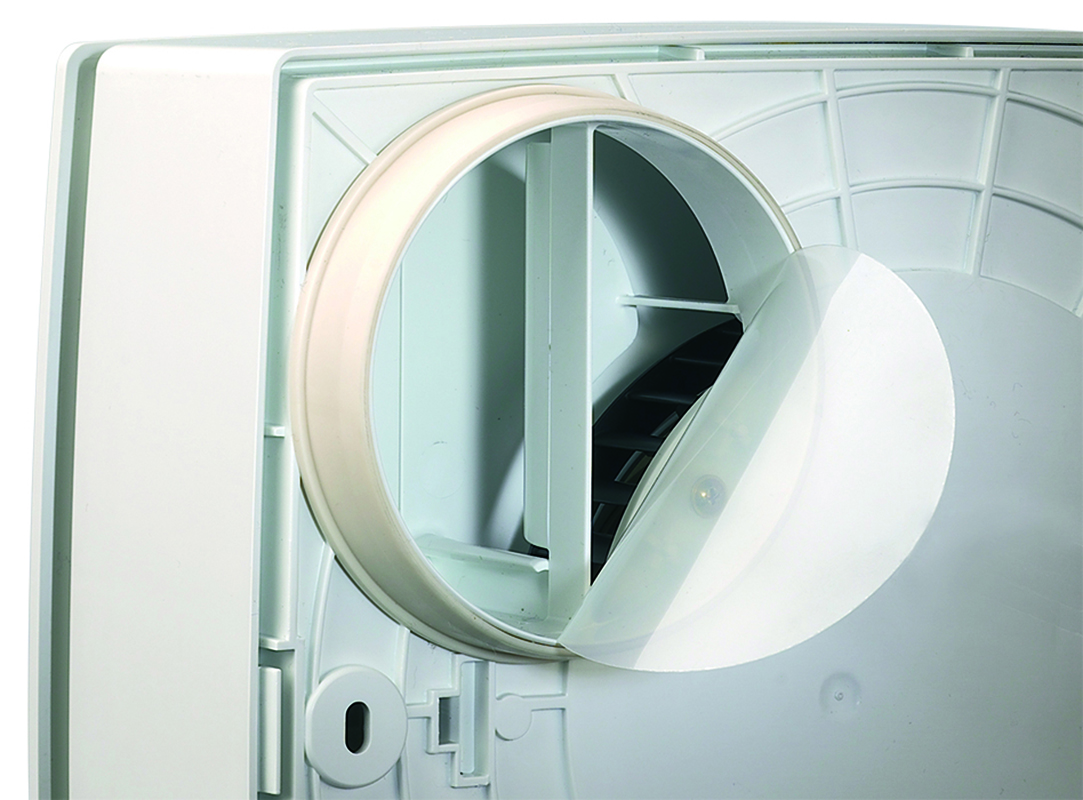

• Nominal diameter 100 mm.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • IMQ Performance IMQ Performance
  • EAC EAC

Technical Data Sheet

  • Absorbed power 1st speed (W)
    25
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,18
  • Max. absorbed Current at min. speed (A)
    0,14
  • Max. absorbed power at max speed (W)
    29
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    97
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,5

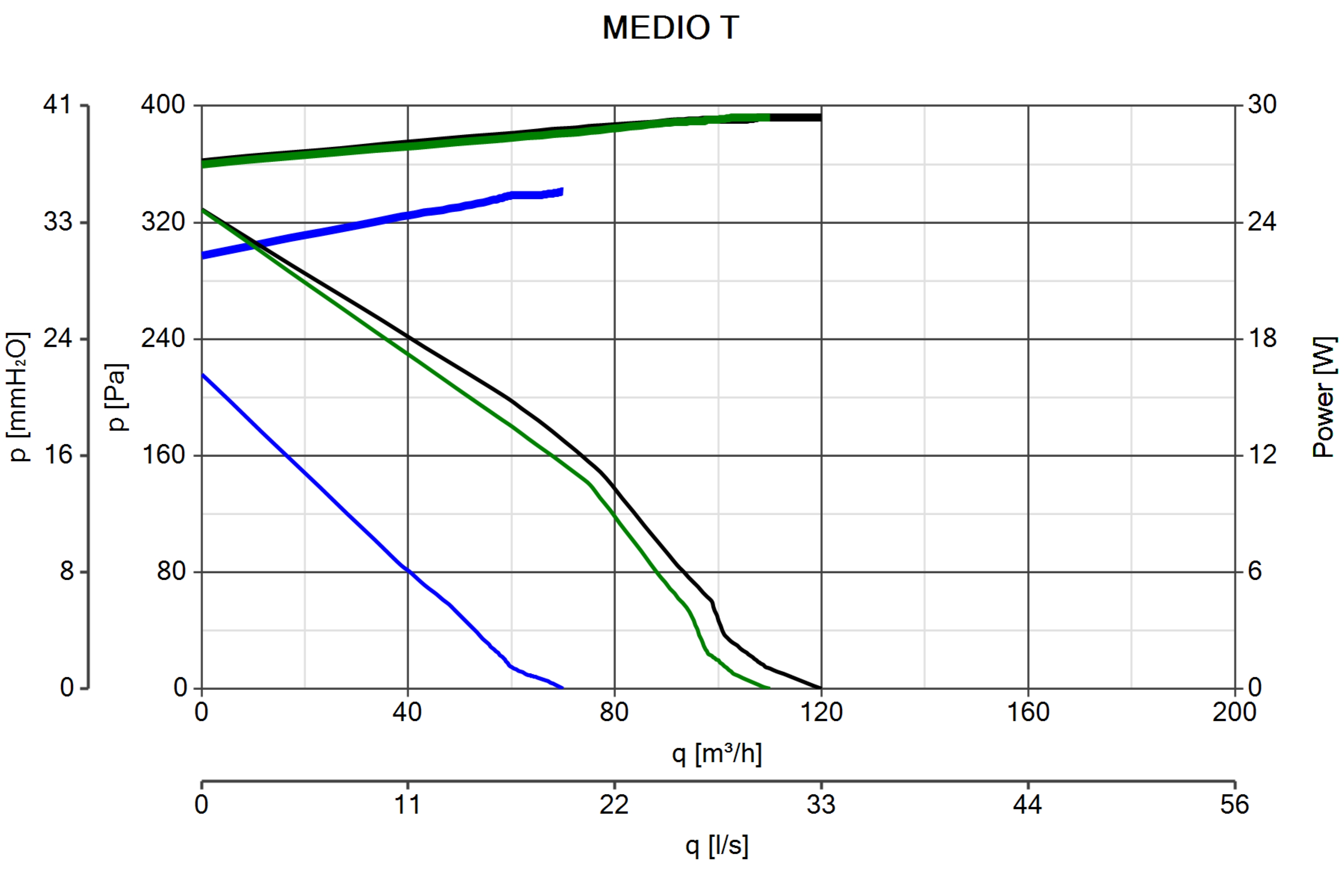

  • Delivery 1st speed (l/s)
    19
  • Delivery 1st speed (m³/h)
    70
  • Max delivery at max speed (l/s)
    33
  • Max delivery at max speed (m³/h)
    120
  • Pressure - 1st speed (mmH20)
    22
  • Pressure - 1st speed (Pa)
    216
  • Pressure max - max speed (mmH20)
    34
  • Pressure max - max speed (Pa)
    329
  • RPM max
    1890
  • RPM min
    1150
  • Sound pressure in free air conditions [dB(A)] 3m
    36,7
  • Sound pressure level Lp [dB (A)] 3m - max speed
    43,4
  • Sound pressure level Lp [dB (A)] 3m - min speed
    36,7
  • Supplier's name or trade mark
    Vortice
  • Type of heat recovery system HRS
    assente
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    velocità multiple: VM
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -14
  • Specific Energy Consumption class SEC average [kWh/m2a]
    0
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    7
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    103
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    29,4
  • Sound power level LWA [dB(A)]
    64
  • Reference flow rate [m3/s]
    0,0286
  • Reference pressure difference [Pa]
    141
  • SPI [W/(m3/h)]
    0,398
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    0,10
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    549
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632

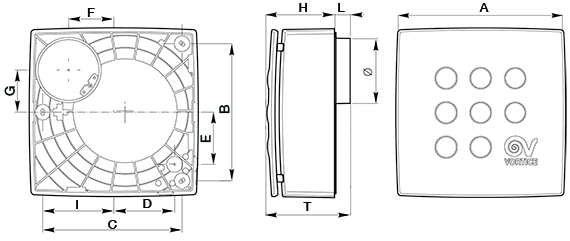

  • Size A (mm)
    261
  • Size B (mm)
    212
  • Size C (mm)
    215
  • Size D (mm)
    95
  • Size E (mm)
    82
  • Size F (mm)
    75
  • Size G (mm)
    69
  • Size H (mm)
    119
  • Size I (mm)
    110
  • Size L (mm)
    20
  • Size T (mm)
    138
