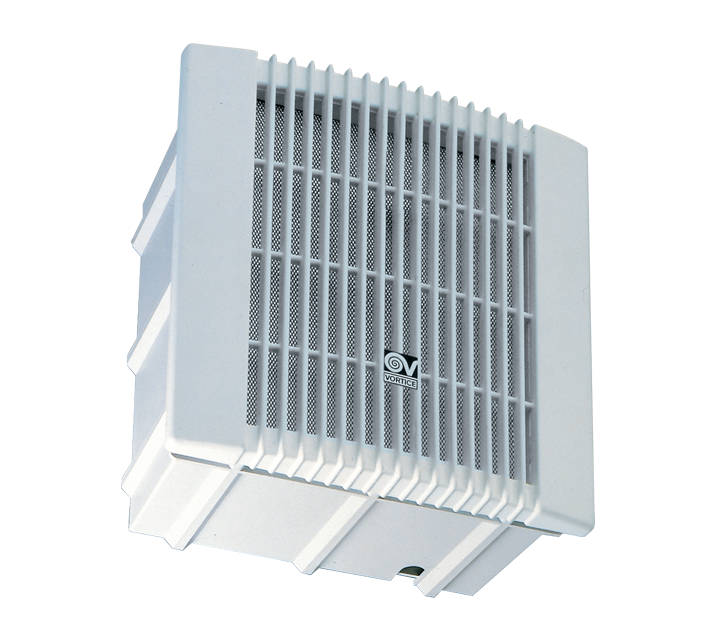

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm
• 2 speed motor with thermal overload protection and shaft turning in ball bearings.

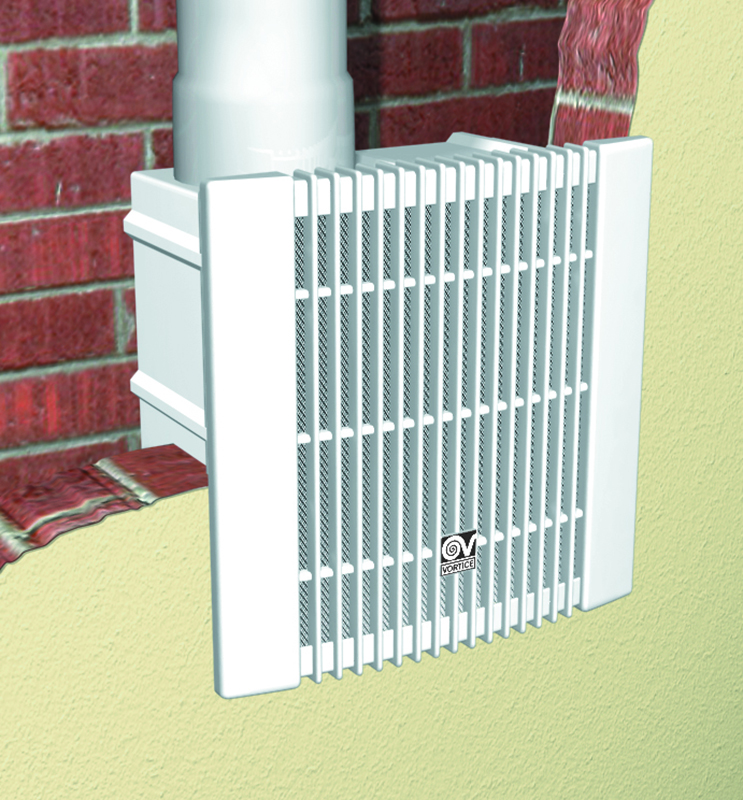

• Minimum air flow, rear outlet: 55 m3/h
Maximum air flow, rear outlet: 118 m3/h

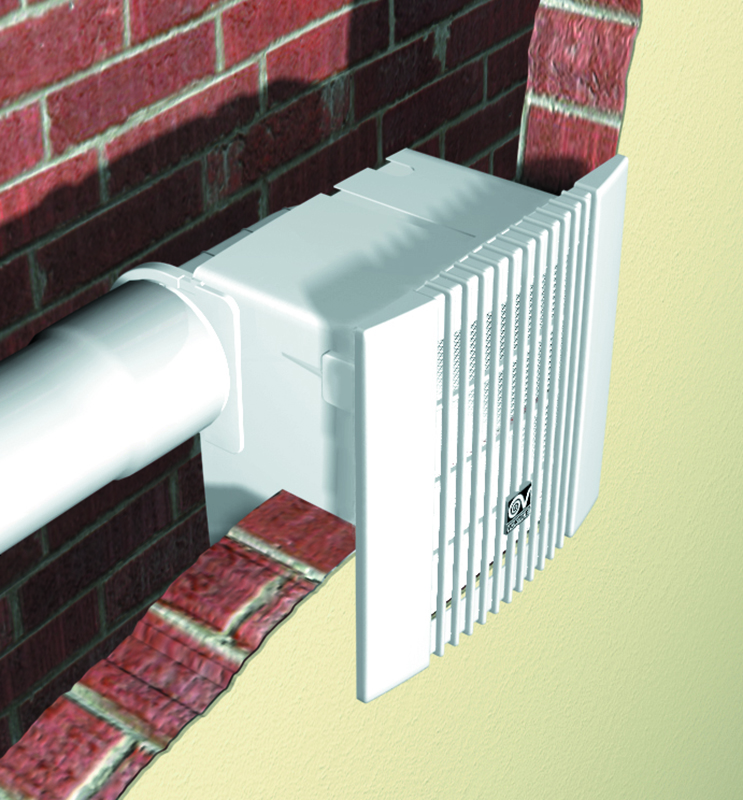

• Minimum air flow, side outlet: 67 m3/h
Maximum air flow, side outlet: 140 m3/h
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.

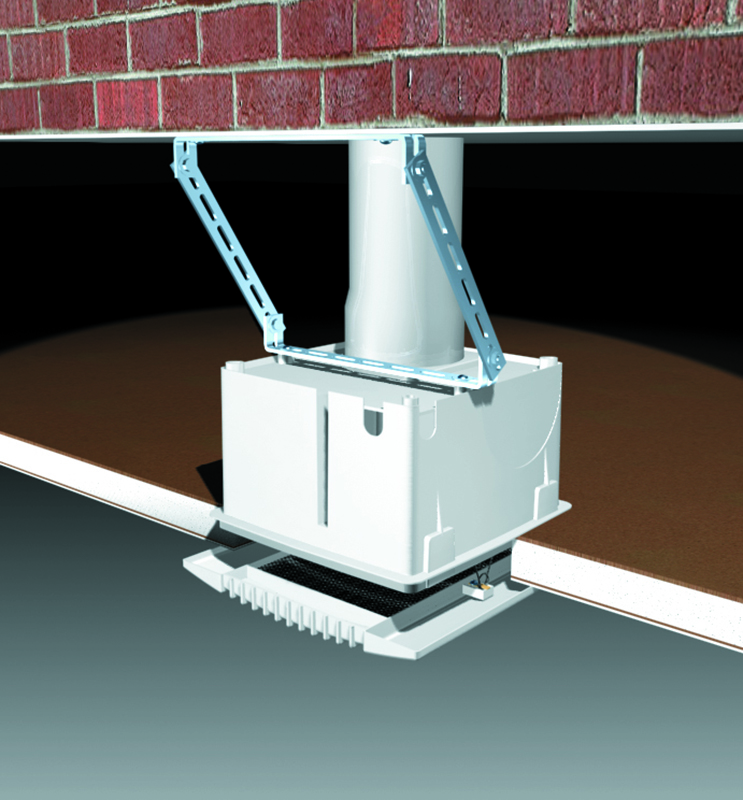

• Supplied with front grille mounting springs, suitable for any kind of false ceiling (65 mm max).
• Removable and washable metal mesh filter.
• Outlet port equipped with non-return damper.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed power 1st speed (W)
    16
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    40
  • Max. absorbed Current at max. speed (A)
    0,1
  • Max. absorbed Current at min. speed (A)
    0,05
  • Max. absorbed power at max speed (W)
    27
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    97
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,9
  • Delivery 1st speed (l/s)
    15,3
  • Delivery 1st speed (m³/h)
    55
  • Max delivery at max speed (l/s)
    32,8
  • Max delivery at max speed (m³/h)
    118
  • Max delivery of side outlet at max speed (l/s)
    38,9
  • Max delivery of side outlet at max speed (m³/h)
    140
  • Max delivery of side outlet at min speed (l/s)
    18,6
  • Max delivery of side outlet at min speed (m³/h)
    67
  • Max pressure at side outlet - max speed (mmH2O)
    22
  • Max pressure at side outlet - min speed (mmH2O)
    8
  • Max pressure at side outlet - min speed (Pa)
    78
  • Max pressure at side outlet (Pa)
    216
  • Pressure - 1st speed (mmH20)
    8
  • Pressure - 1st speed (Pa)
    78
  • Pressure max - max speed (mmH20)
    22
  • Pressure max - max speed (Pa)
    216
  • RPM max
    1130
  • RPM min
    594
  • RPM side air outlet - max speed
    829
  • RPM side air outlet - min speed
    450
  • Sound pressure level Lp [dB (A)] 3m - max speed
    38
  • Sound pressure level Lp [dB (A)] 3m - min speed
    30
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -5,8
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -19,2
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    1,8
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    133
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    23,5
  • Sound power level LWA [dB(A)]
    59
  • Reference flow rate [m3/s]
    0,0259
  • Reference pressure difference [Pa]
    88
  • SPI [W/(m3/h)]
    0,23631
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    326
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632
  • Size A (mm)
    28
  • Size B (mm)
    65
  • Size C (mm)
    284
  • Size D (mm)
    300
  • Size E (mm)
    133
  • Size F (mm)
    28,5
  • Size G (mm)
    Ø 97
  • Size H (mm)
    62
  • Size I (mm)
    71,5
