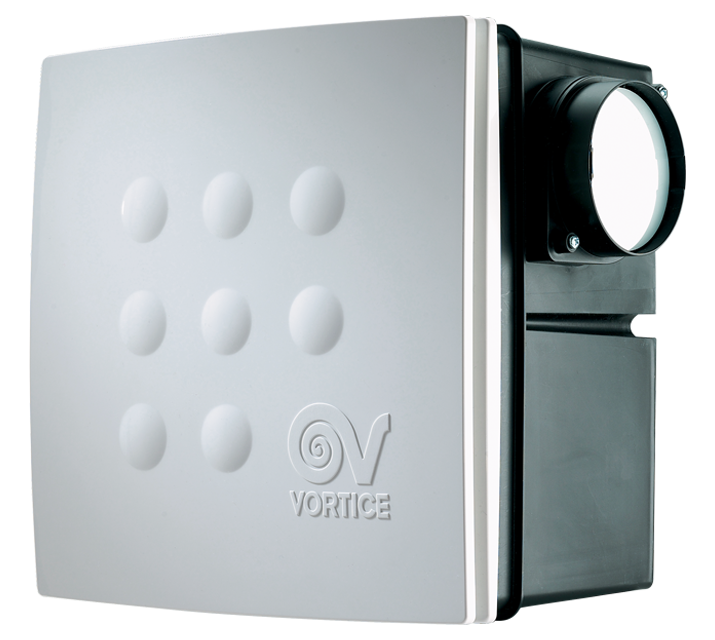

Description

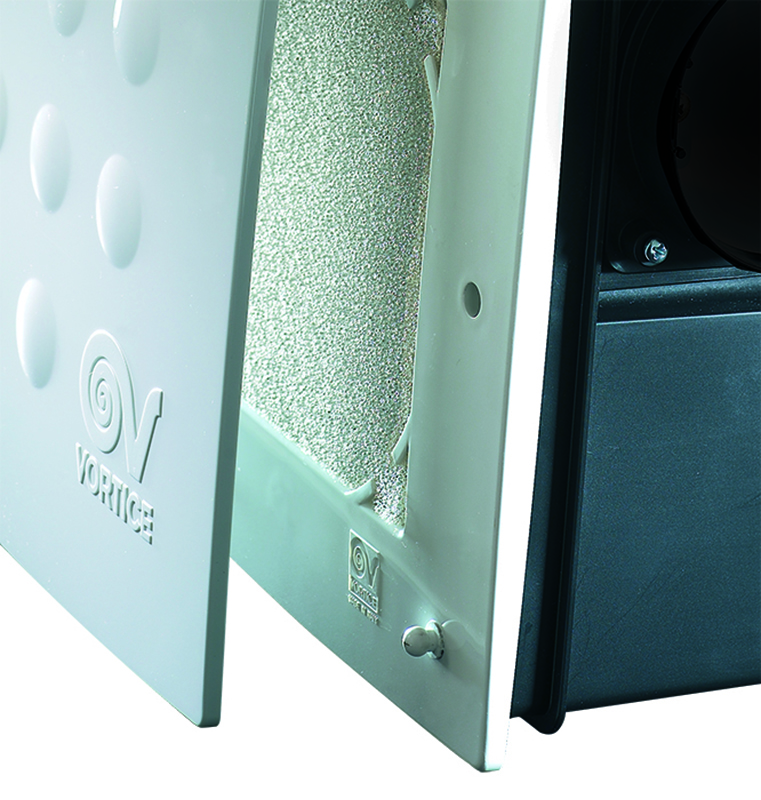

• Material used for parts not recessed into wall: white ABS plastic.
• Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
• Nominal diameter 100 mm.
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller, with thermal overload cutout and self-lubricating bushings.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
• Vortice speed controller.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • IMQ Performance IMQ Performance
  • CCC CCC
  • EAC EAC

Technical Data Sheet

  • Absorbed power 1st speed (W)
    25
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,18
  • Max. absorbed Current at min. speed (A)
    0,14
  • Max. absorbed power at max speed (W)
    29
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    97
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,8
  • Delivery 1st speed (l/s)
    19
  • Delivery 1st speed (m³/h)
    70
  • Max delivery at max speed (l/s)
    34
  • Max delivery at max speed (m³/h)
    122
  • Pressure - 1st speed (mmH20)
    21
  • Pressure - 1st speed (Pa)
    206
  • Pressure max - max speed (mmH20)
    34
  • Pressure max - max speed (Pa)
    331
  • RPM max
    1890
  • RPM min
    1150
  • Sound pressure level Lp [dB (A)] 3m - max speed
    41,2
  • Sound pressure level Lp [dB (A)] 3m - min speed
    35,9
  • Sound pressure level side extraction [dB(A)] 3m - max speed
    39,6
  • Sound pressure level side extraction [dB(A)] 3m - min speed
    33,4
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    velocità multiple: VM
  • Type of heat recovery system HRS
    assente
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -1
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -14
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    7
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    106
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    29,6
  • Sound power level LWA [dB(A)]
    62
  • Reference flow rate [m3/s]
    0,02944
  • Reference pressure difference [Pa]
    196
  • SPI [W/(m3/h)]
    0,384
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    0,06
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    529
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632
  • Size A (mm)
    287
  • Size C (mm)
    37
  • Size D (mm)
    97
  • Size E (mm)
    103
  • Size F (mm)
    72
  • Size G (mm)
    69
  • Size H (mm)
    130
  • Size L (mm)
    26
