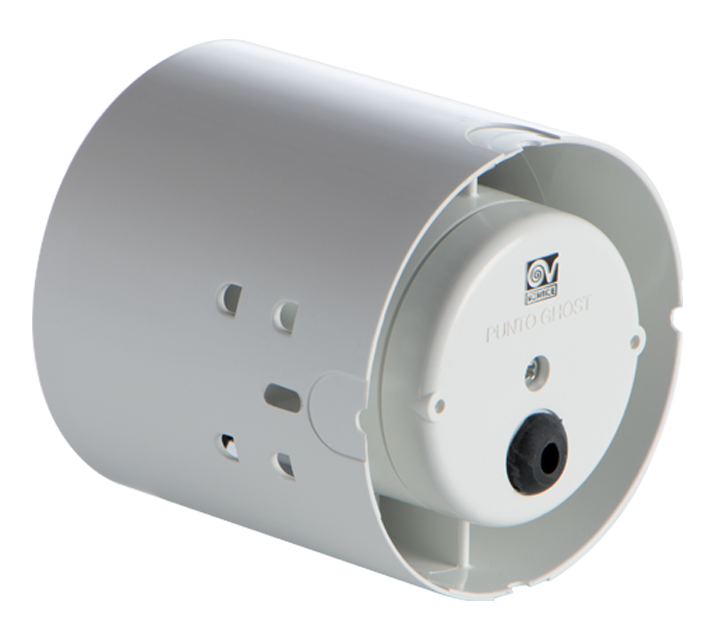

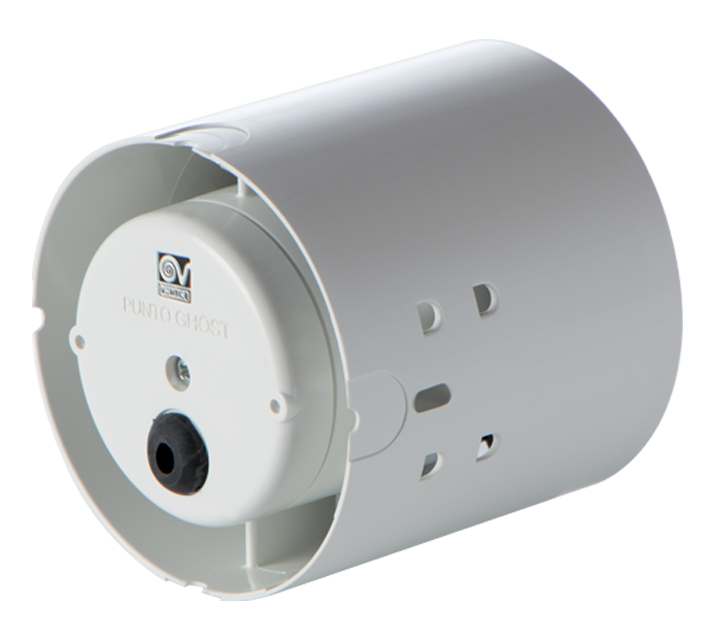

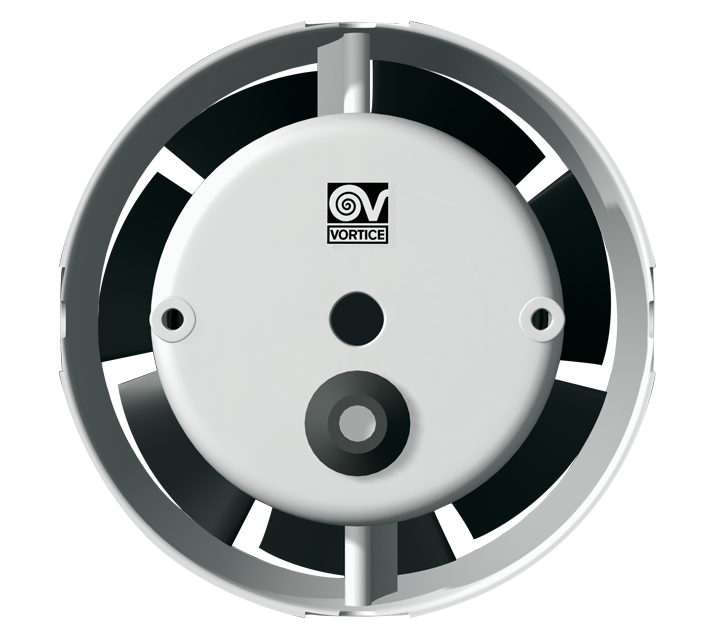

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings (LL),coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 80 m3/h.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controllers.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • CE CE
  • IMQ Performance IMQ Performance
  • EAC EAC
  • G-Mark G-Mark

Technical Data Sheet

  • Absorbed Current max (A)
    0,10
  • Absorbed Power max (W)
    18
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    40
  • Voltage (V)
    220-240
  • Weight (Kg)
    0,43
  • Delivery max (l/s)
    22,2
  • Delivery max (m³/h)
    80
  • Pressure max (mmH2O)
    2,6
  • Pressure max (Pa)
    25
  • RPM
    2415
  • Sound Pressure level Lp [dB (A)] 3m
    39
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -5,4
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -18,8
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    2,2
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    77
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    13,7
  • Sound power level LWA [dB(A)]
    60
  • Reference flow rate [m3/s]
    0,0150
  • Reference pressure difference [Pa]
    14
  • SPI [W/(m3/h)]
    0,24861
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    343
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632

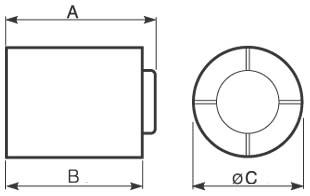

  • Size A (mm)
    Ø 99
  • Size B (mm)
    96,5
  • Size C (mm)
    89
