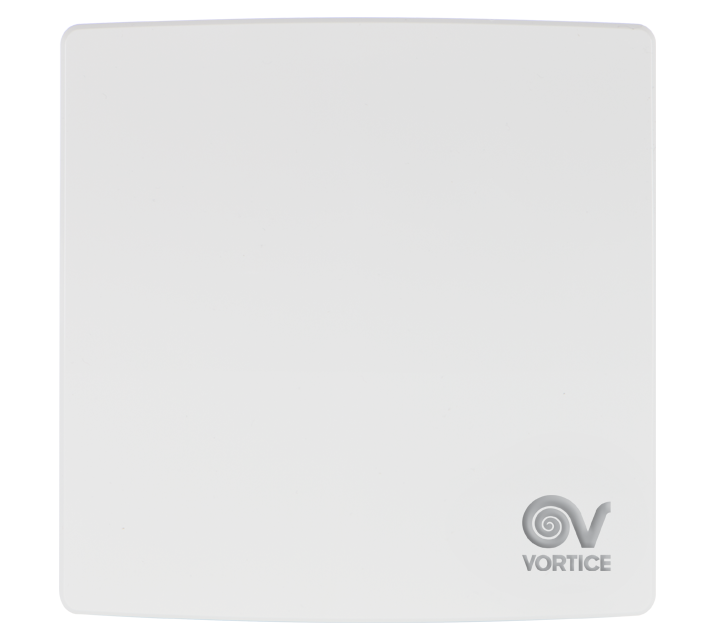

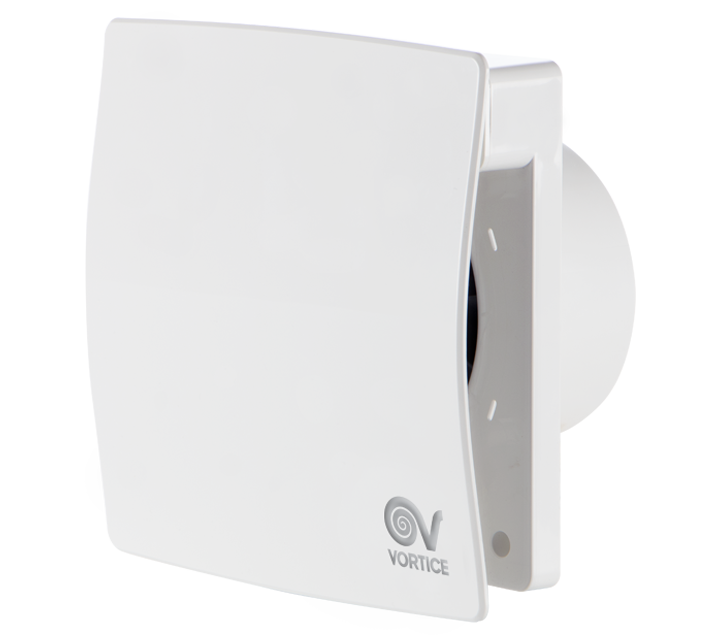

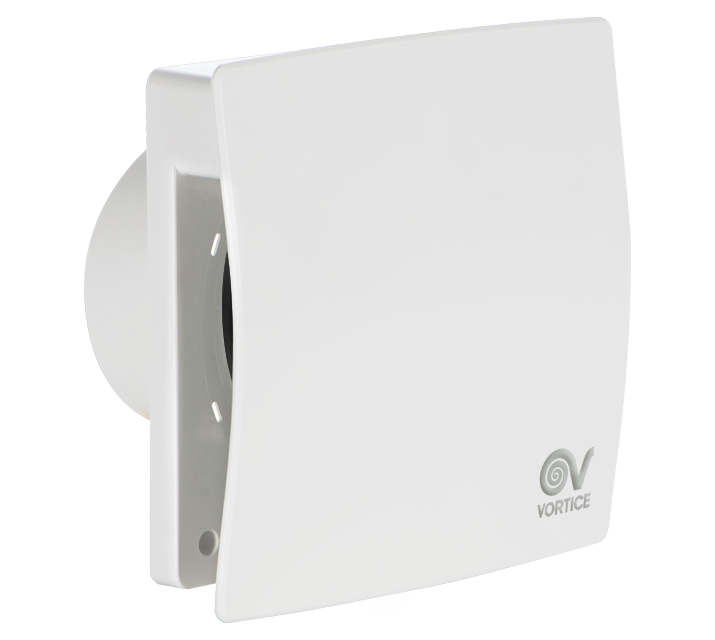

Description

• Housings made of shockproof and UV resistant white ABS.
• Nominal diameter 120 mm.
• AC motor equipped with long-life ball-bearings, mixed-flow impellers made of PP resistant to aggressive substances.
• Maximum air flow 175 m3/h.

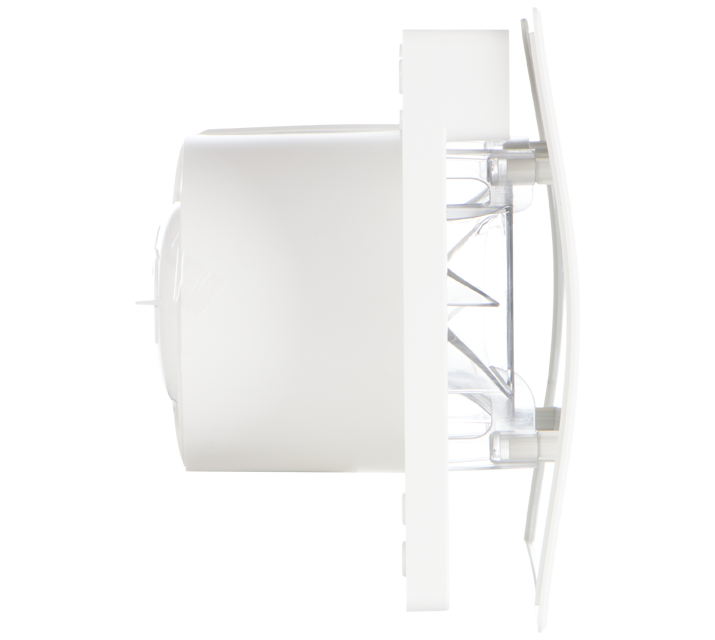

• Integrated butterfly back-draught shutter designed to prevent unwanted air inflows when the appliance is switched-off.
• Protection rating IP45, suitable for installation in Zone 1 of bathrooms, as defined by international standard IEC 60364-7.
• IMQ safety certification.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    45
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,095
  • Max. absorbed power at max speed (W)
    13
  • Nominal Diameter (mm)
    120
  • Voltage (V)
    220-240
  • Weight (Kg)
    0,77
  • Max delivery at max speed (l/s)
    48,6
  • Max delivery at max speed (m³/h)
    175
  • Pressure max - max speed (mmH20)
    5
  • Pressure max - max speed (Pa)
    49,04
  • RPM max
    2075
  • Sound power Lw [dB(A)] - max speed
    52,8
  • Sound pressure level Lp in free field [dB(A)] 3 m max speed
    32,3
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -10,0
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -23,4
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    -2,4
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    168
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    14,1
  • Sound power level LWA [dB(A)]
    53
  • Reference flow rate [m3/s]
    0,0327
  • Reference pressure difference [Pa]
    19
  • SPI [W/(m3/h)]
    0,11480
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    158
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632

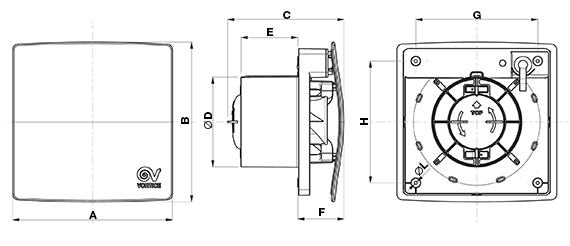

  • Size A (mm)
    193
  • Size B (mm)
    193
  • Size C (mm)
    138
  • Size D (mm)
    Ø 119
  • Size E (mm)
    71
  • Size F (mm)
    53
  • Size G (mm)
    152
  • Size H (mm)
    152
  • Size L (mm)
    Ø 3,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
