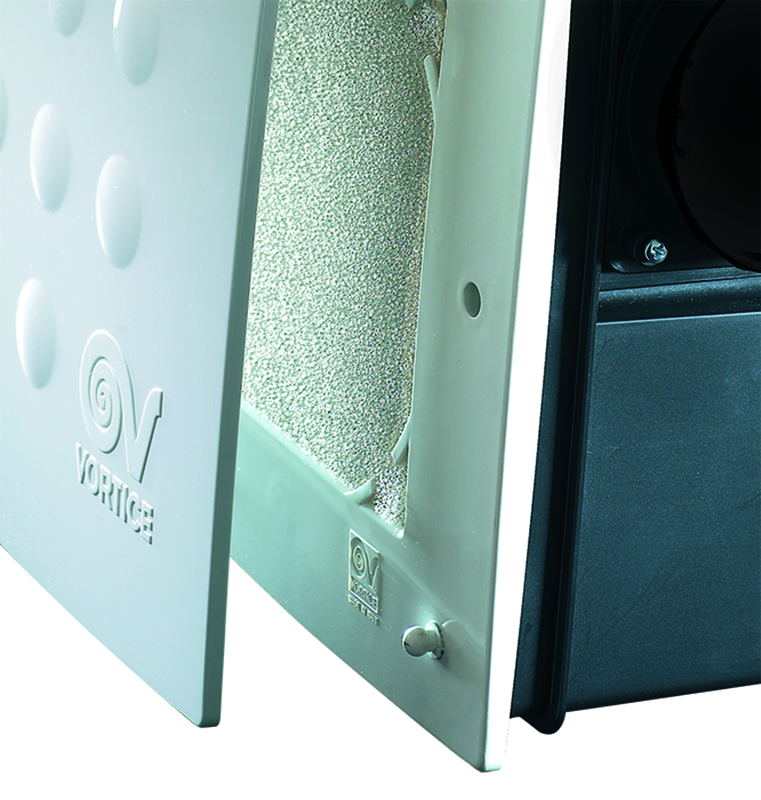

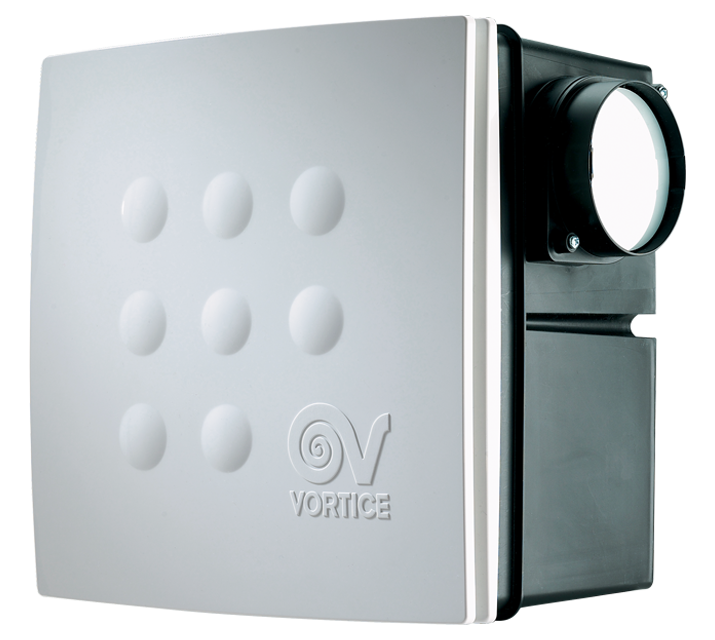

Description

• Material used for parts not recessed into wall: white ABS plastic.
• Material used for parts recessed into wall: talc-filled black plastic (PP) giving added strength.
• Nominal diameter 100 mm.
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller, with thermal overload cutout and self-lubricating bushings.
• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed power 1st speed (W)
    20
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,12
  • Max. absorbed Current at min. speed (A)
    0,10
  • Max. absorbed power at max speed (W)
    27
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    73,5
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,93

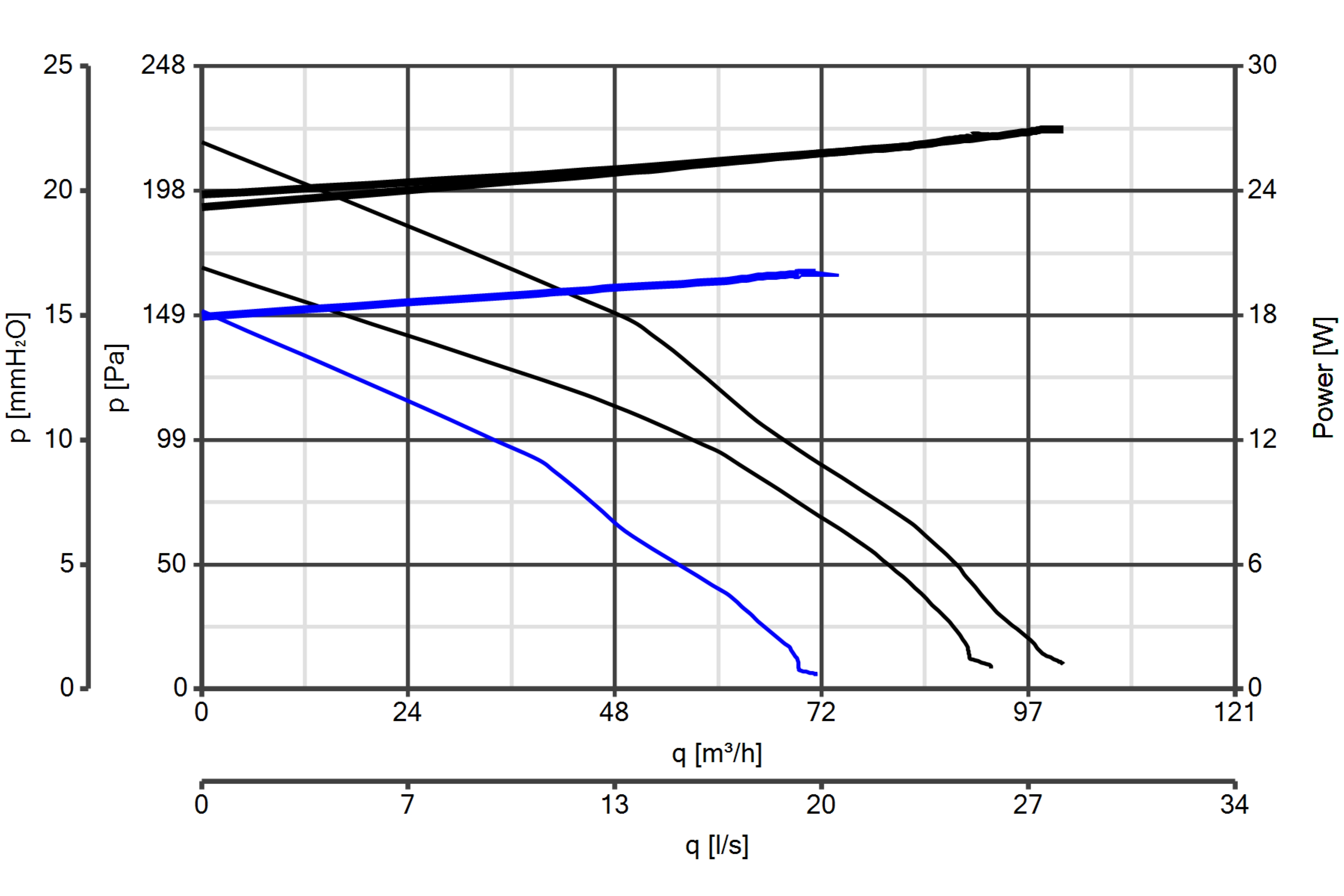

  • Delivery 1st speed (l/s)
    21
  • Delivery 1st speed (m³/h)
    75
  • Max delivery at max speed (l/s)
    31
  • Max delivery at max speed (m³/h)
    110
  • Pressure - 1st speed (mmH20)
    20
  • Pressure - 1st speed (Pa)
    196
  • Pressure max - max speed (mmH20)
    25
  • Pressure max - max speed (Pa)
    245
  • RPM max
    1450
  • RPM min
    1010
  • Sound pressure level Lp [dB (A)] 3m - max speed
    34,3
  • Sound pressure level Lp [dB (A)] 3m - min speed
    26,3
  • Sound pressure level side extraction [dB(A)] 3m - max speed
    33,5
  • Sound pressure level side extraction [dB(A)] 3m - min speed
    25,9
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -1,7
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -15,0
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    6,0
  • Declared typology
    UVR-U: unidirezionale
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    100
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    27,0
  • Sound power level LWA [dB(A)]
    54
  • Reference flow rate [m3/s]
    0,0194
  • Reference pressure difference [Pa]
    95
  • SPI [W/(m3/h)]
    0,35714
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    492
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632
  • Size A (mm)
    258
  • Size C (mm)
    34
  • Size D (mm)
    92
  • Size E (mm)
    90
  • Size F (mm)
    64
  • Size G (mm)
    60
  • Size H (mm)
    118
  • Size L (mm)
    26
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

DEVIATORE DI FLUSSO M 10/4
DEVIATORE DI FLUSSO M 10/4
• For fitting to the delivery side of extractor fans to direct the air flow in any required direction within 360°.

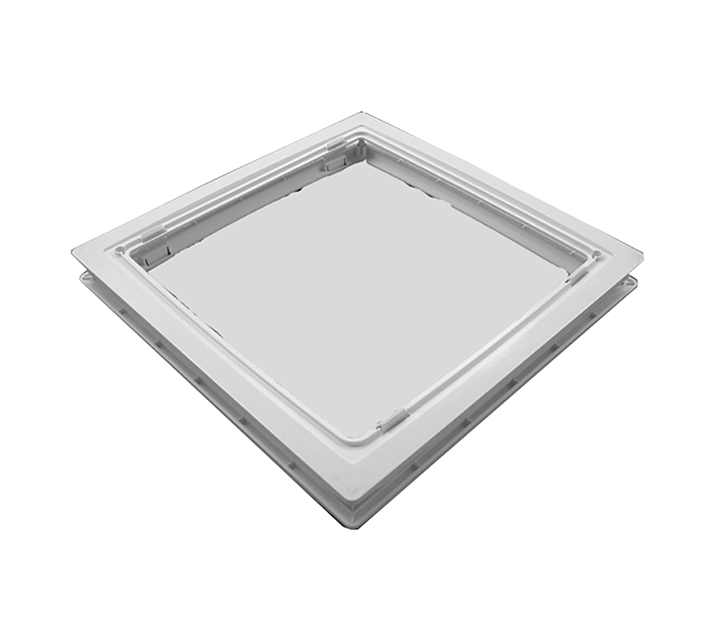

KIT SOFFITTO MICRO
KIT SOFFITTO MICRO
Kit for ceiling mounting of Quadro built-in models.
