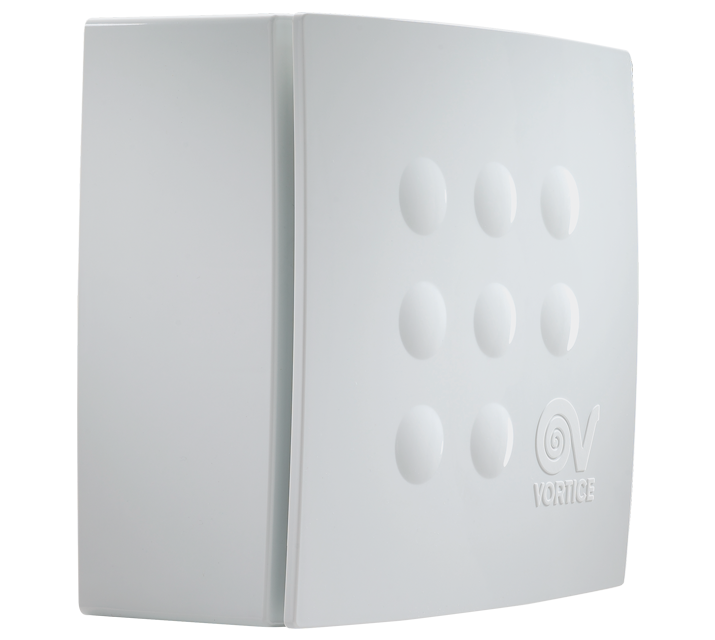

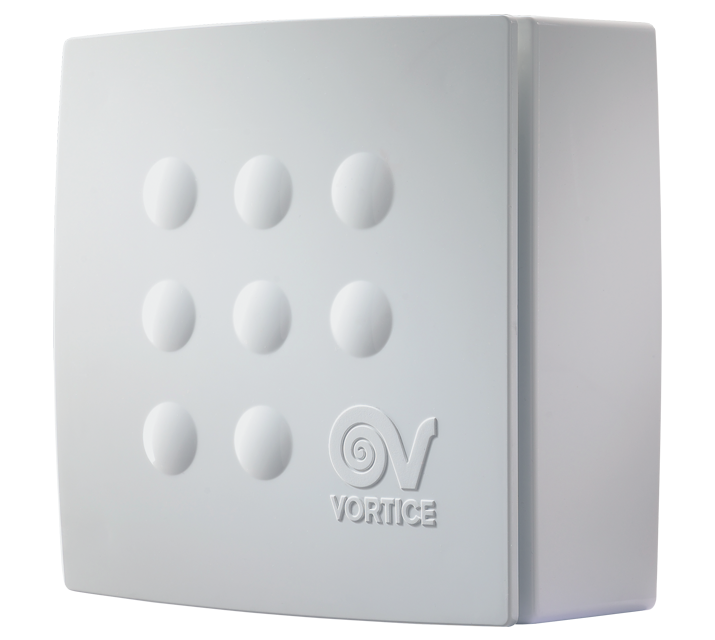

Description

• Material: white ABS plastic
• Capacitor start 2-speed induction motor coupled to a forward bladed centrifugal impeller. Equipped with thermal overload cutout and self-lubricating bushings.
• Nominal diameter 100 mm.
• Electronic pcb with humidistat function piloted by RH% sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • IMQ Performance IMQ Performance
  • EAC EAC

Technical Data Sheet

  • Absorbed power 1st speed (W)
    25
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,18
  • Max. absorbed Current at min. speed (A)
    0,14
  • Max. absorbed power at max speed (W)
    29
  • Nominal Diameter (mm)
    100

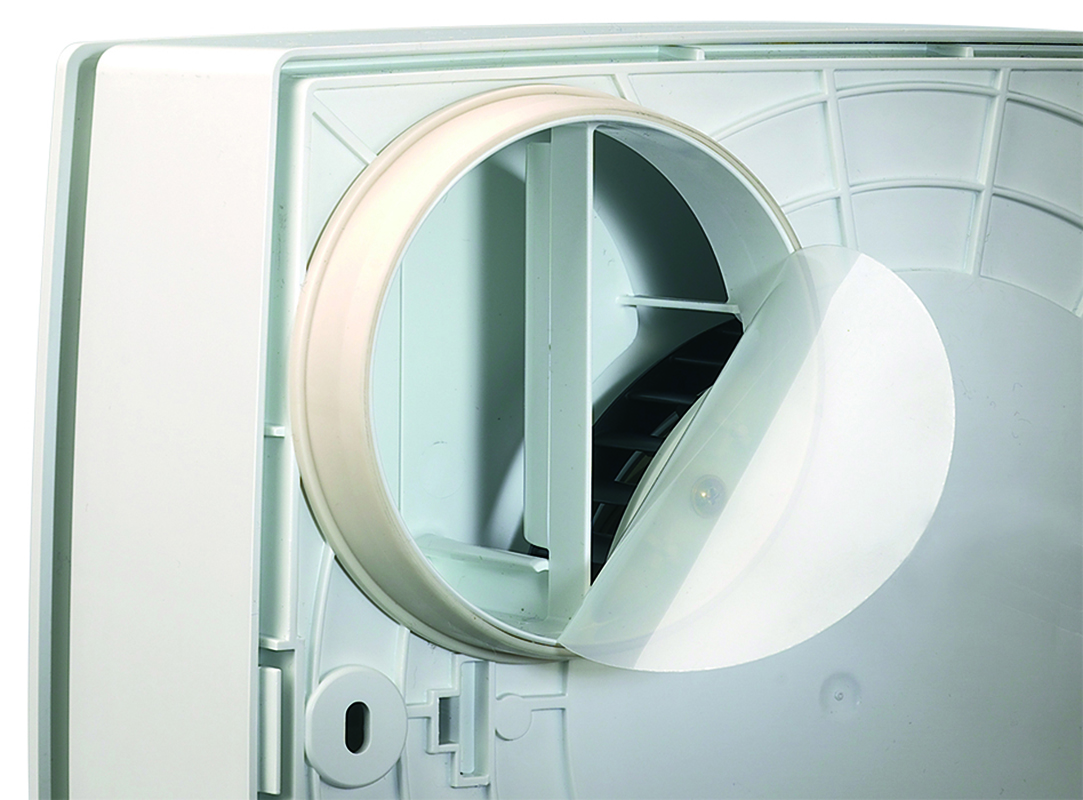

  • Ø Discharge Hole (mm)
    97
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,5

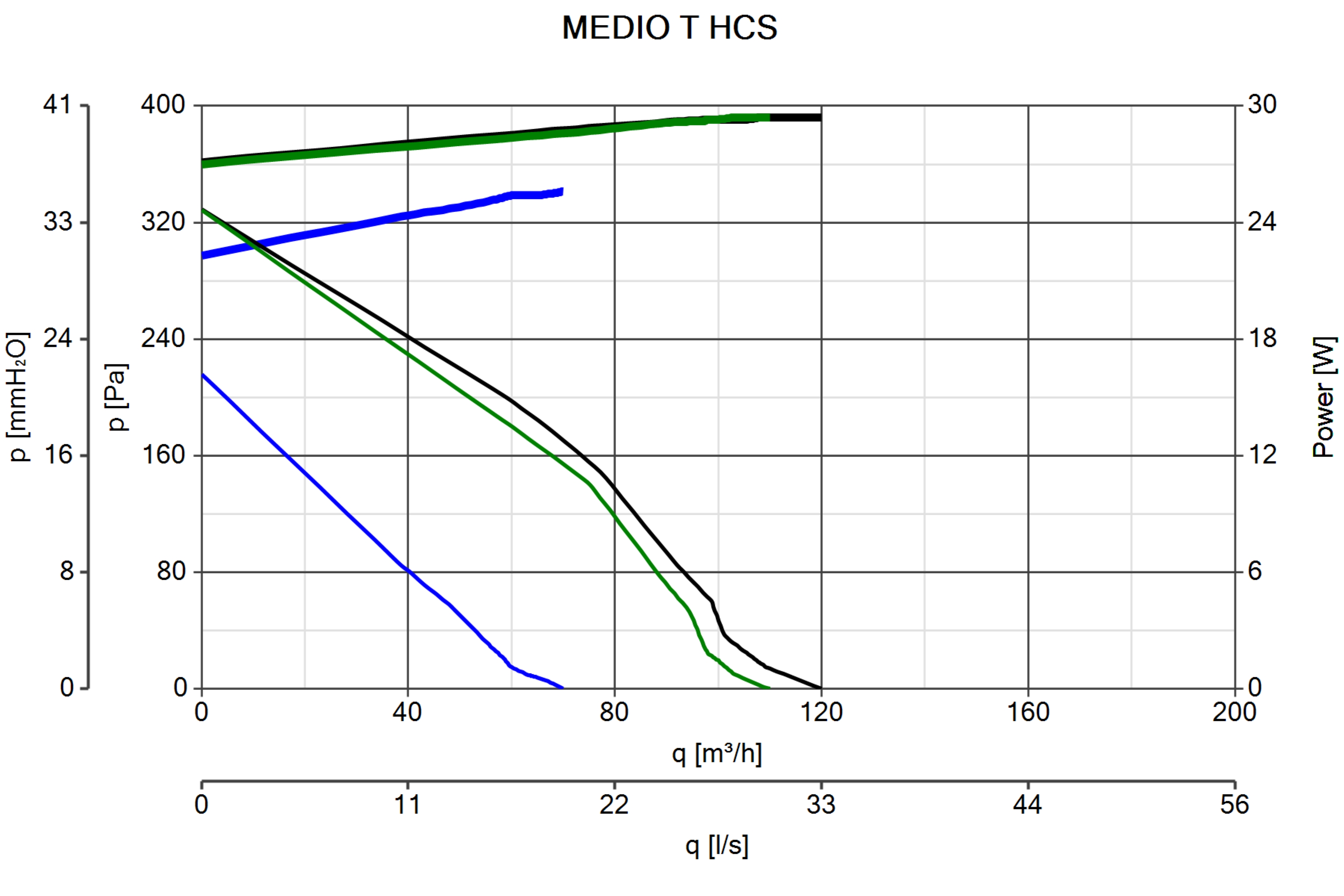

  • Delivery 1st speed (l/s)
    19
  • Delivery 1st speed (m³/h)
    70
  • Max delivery at max speed (l/s)
    33
  • Max delivery at max speed (m³/h)
    120
  • Pressure - 1st speed (mmH20)
    22
  • Pressure - 1st speed (Pa)
    216
  • Pressure max - max speed (mmH20)
    34
  • Pressure max - max speed (Pa)
    329
  • RPM max
    1890
  • RPM min
    1150
  • Sound pressure level Lp [dB (A)] 3m - max speed
    43,4
  • Sound pressure level Lp [dB (A)] 3m - min speed
    36,7
  • Supplier's name or trade mark
    Vortice
  • Type of heat recovery system HRS
    assente
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    velocità multiple: VM
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -14
  • Specific Energy Consumption class SEC average [kWh/m2a]
    0
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    7
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    103
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    29,4
  • Sound power level LWA [dB(A)]
    64
  • Reference flow rate [m3/s]
    0,0286
  • Reference pressure difference [Pa]
    141
  • SPI [W/(m3/h)]
    0,398
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    0,10
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    549
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632

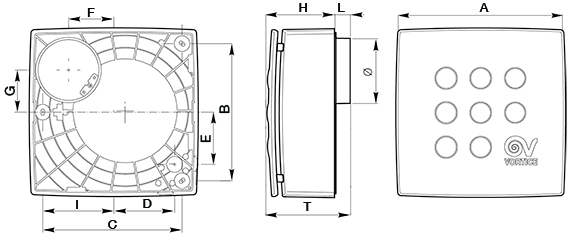

  • Size A (mm)
    261
  • Size B (mm)
    212
  • Size C (mm)
    215
  • Size D (mm)
    95
  • Size E (mm)
    82
  • Size F (mm)
    75
  • Size G (mm)
    69
  • Size H (mm)
    119
  • Size I (mm)
    110
  • Size L (mm)
    20
  • Size T (mm)
    138
