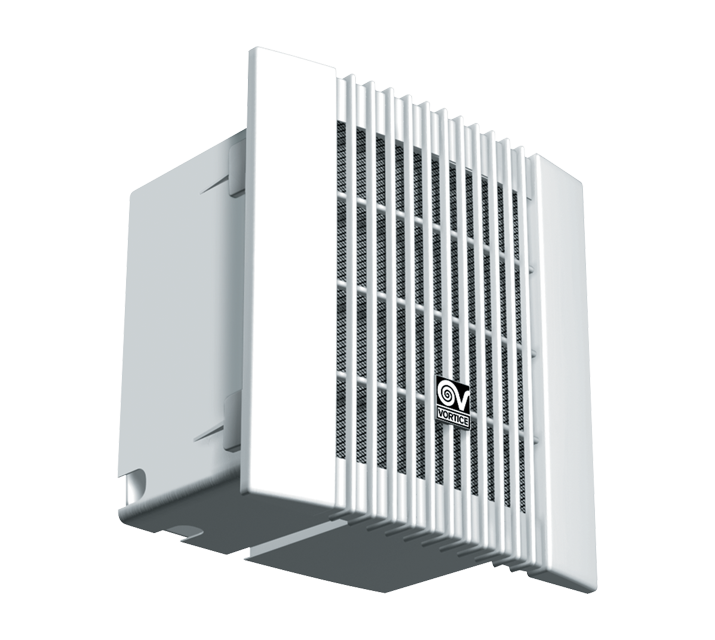

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter: 100 mm
• Motor with thermal overload protection and shaft turning in ball bearings.
• Maximum air flow, rear: 80 m3/h
• Maximum air flow, side: 70 m3/h
• Vertical outlet port supplied as standard with spigot positionable horizontally by means of diverter.
• Rear outlet port equipped with non-return damper.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,13
  • Absorbed Power max (W)
    19
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    40
  • Max. absorbed power at max speed (W)
    19
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    96,5
  • Voltage (V)
    230
  • Weight (Kg)
    1,9
  • Delivery max (l/s)
    uscita:posteriore 22,2 laterale 19,4
  • Delivery max (m³/h)
    80

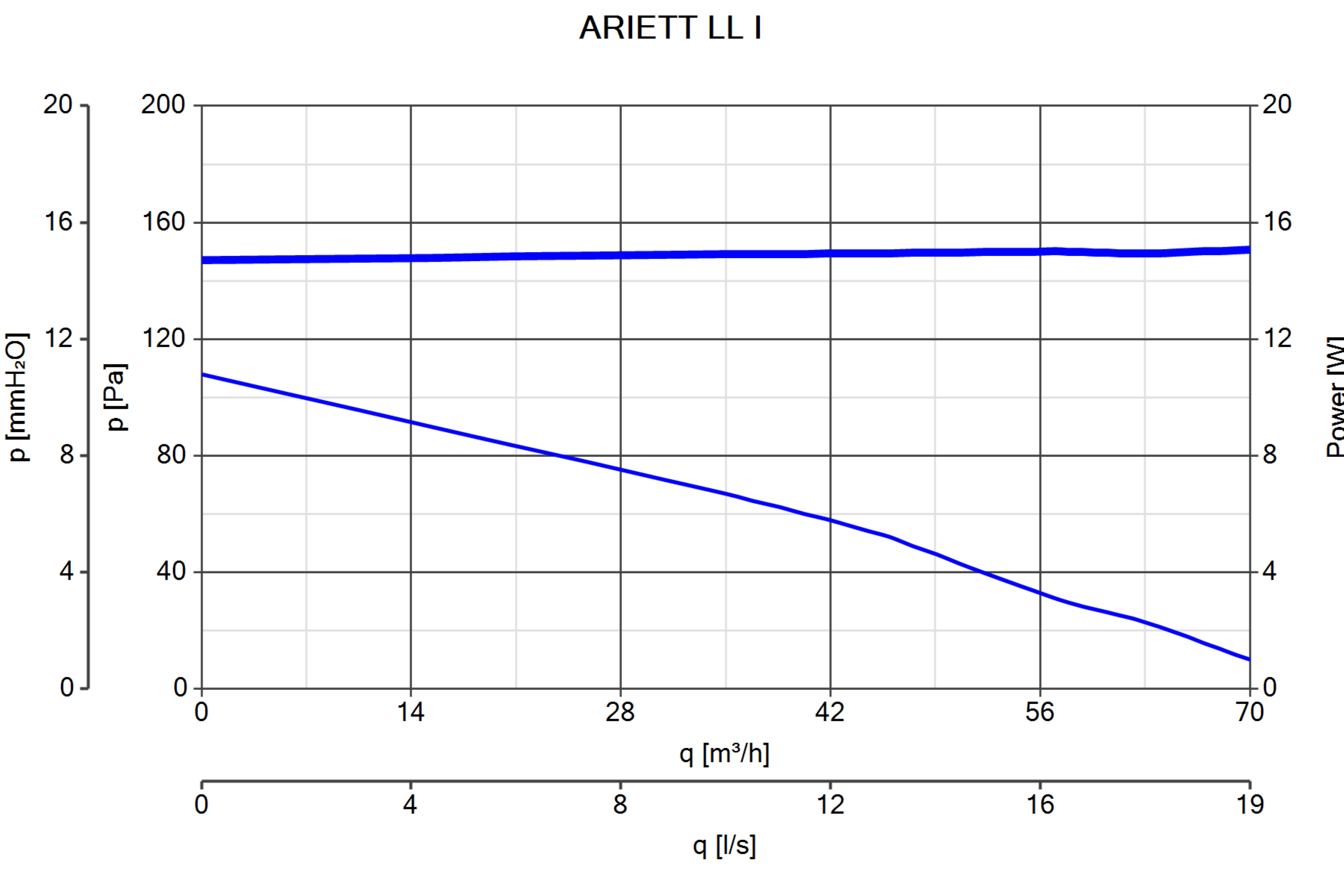

  • Pressure max (mmH2O)
    11
  • Pressure max (Pa)
    108
  • RPM
    2360
  • RPM side air outlet - max speed
    2460
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -5,3
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -18,6
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    2,4
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    72
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    13,5
  • Sound power level LWA [dB(A)]
    64
  • Reference flow rate [m3/s]
    0,0140
  • Reference pressure difference [Pa]
    72
  • SPI [W/(m3/h)]
    0,25198
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    347
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632
  • Size A (mm)
    252
  • Size B (mm)
    23
  • Size C (mm)
    65
  • Size D (mm)
    214,5
  • Size E (mm)
    228
  • Size F (mm)
    135,3
  • Size G (mm)
    31,5/76,7
  • Size H (mm)
    Ø 96,5
  • Size I (mm)
    180
  • Size L (mm)
    92
  • Size M (mm)
    76
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
SCNRB SCAT.COM.NON REV.INCASSO
SCNRB SCAT.COM.NON REV.INCASSO
• Non-reversible electronic speed controller. • Built-in.
KIT CONTROSOFFITTATURE
KIT CONTROSOFFITTATURE
Kit for false ceiling installations (max height 40 cm).
RACCORDO ORIZZONTALE ALTO
RACCORDO ORIZZONTALE ALTO
Horizontal outlet – High profile.
DEVIATORE DI FLUSSO M 10/4
DEVIATORE DI FLUSSO M 10/4
• For fitting to the delivery side of extractor fans to direct the air flow in any required direction within 360°.
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
