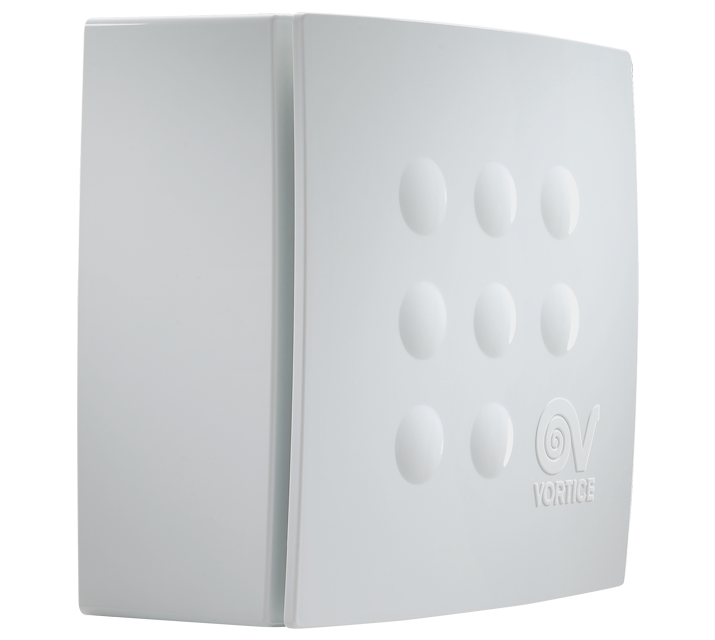

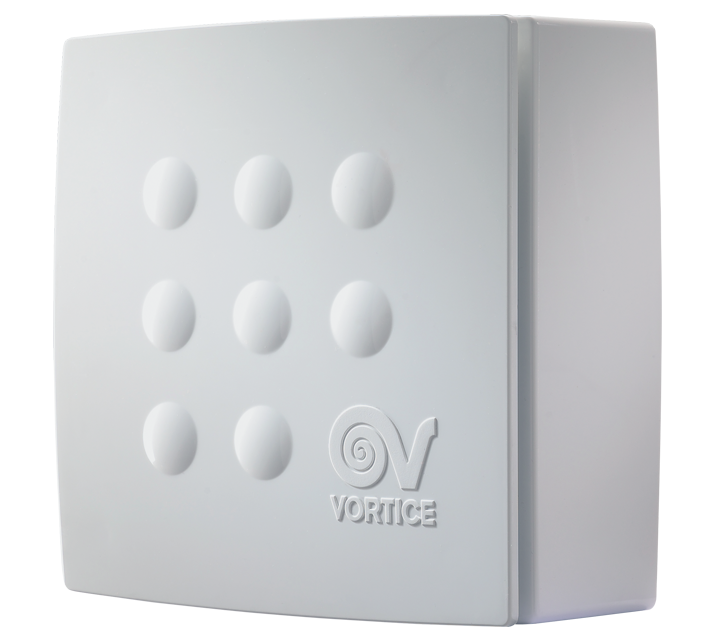

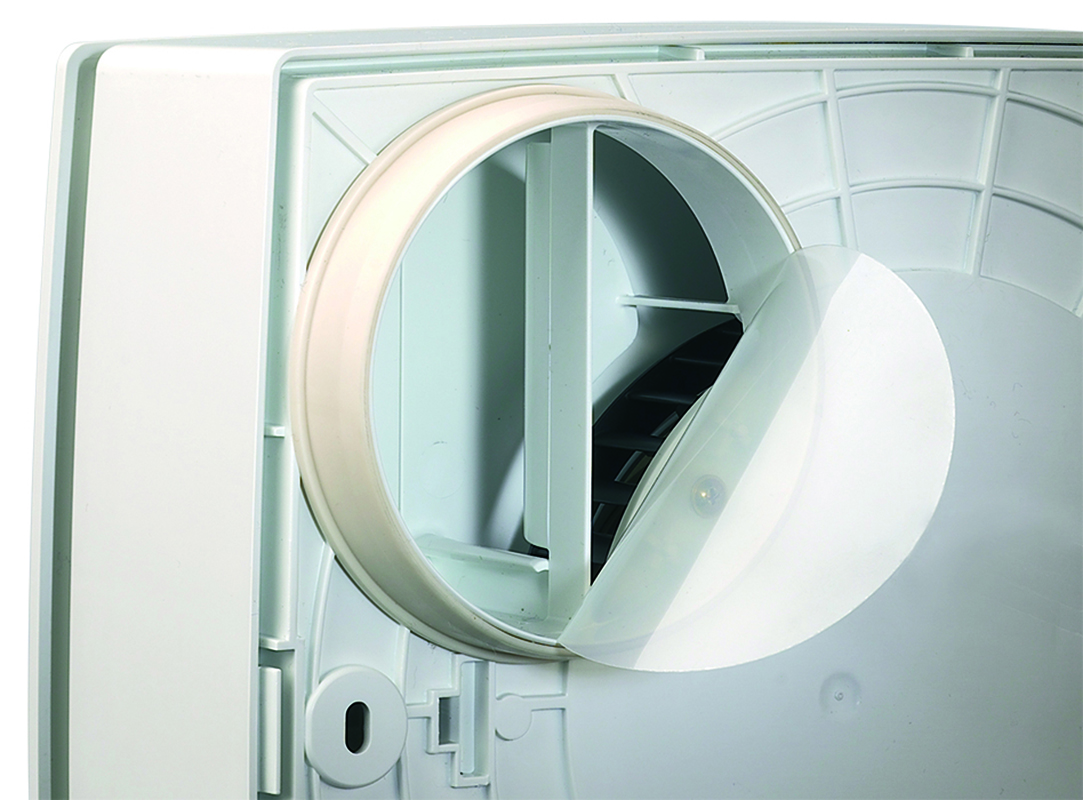

Description

• Material: white ABS plastic
• 3 speed fan through optional TRIO-S controller (code 12871), consisting of:
• capacitor start induction motor equipped with thermal overload cutout and self-lubricating bushings,
• forward centrifugal impeller.
• Nominal diameter 100 mm.
• Electronic pcb with humidistat function piloted by RH% sensor (4 preset thresholds: 60%, 70%, 80%, 90%, selectable during installation), designed to switch on the fan automatically. The pcb incorporates an electronic timer that shuts off the motor automatically when relative humidity returns below the threshold value. The timer setting is selectable during installation in the range 3’-20’ (default setting 3’).
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • IMQ Performance IMQ Performance
  • EAC EAC

Technical Data Sheet

  • Absorbed power 1st speed (W)
    50
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,5
  • Max. absorbed Current at min. speed (A)
    0,36
  • Max. absorbed power at max speed (W)
    105
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    97
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,77

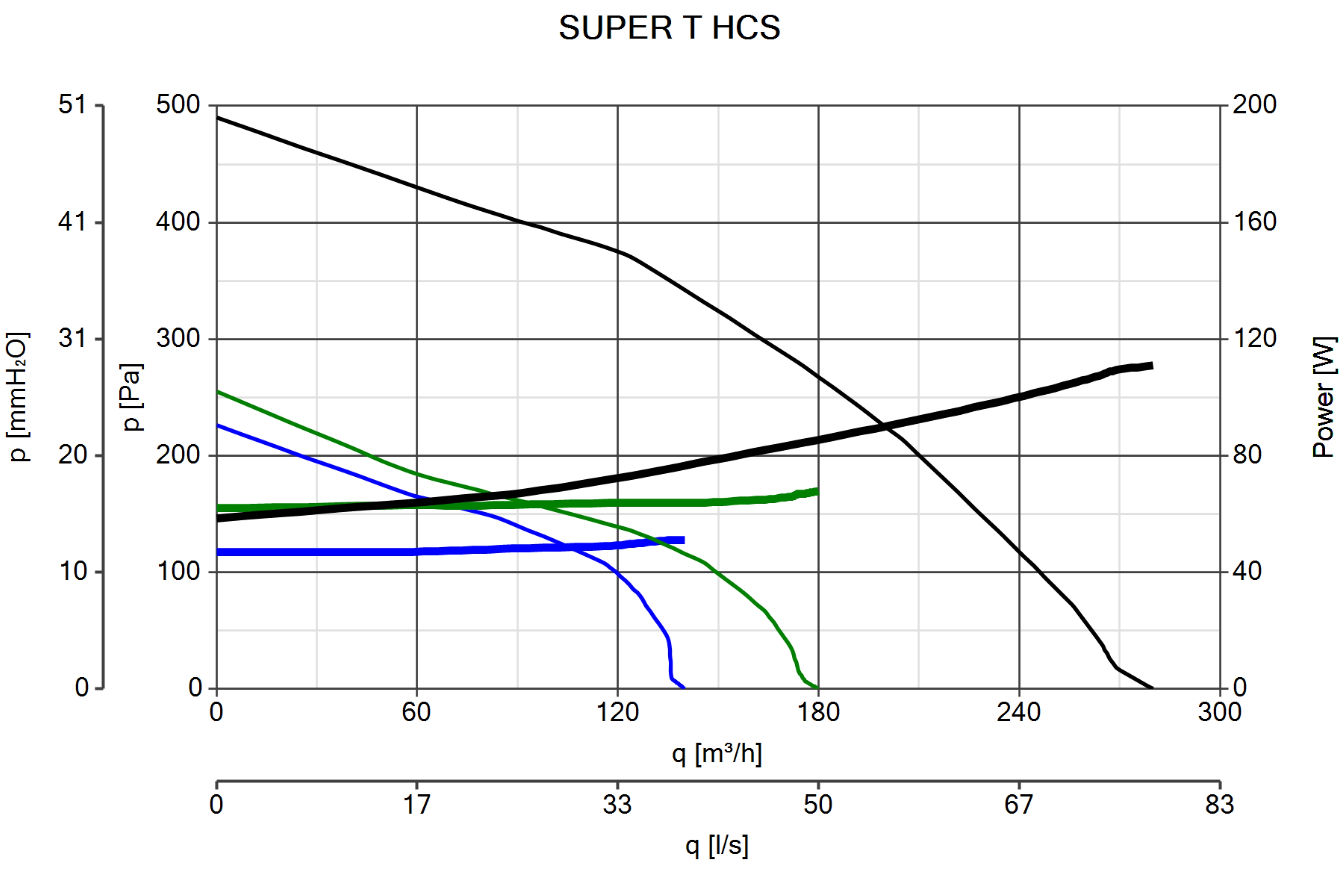

  • Delivery 1st speed (l/s)
    38
  • Delivery 1st speed (m³/h)
    140
  • Max delivery at max speed (l/s)
    77
  • Max delivery at max speed (m³/h)
    280
  • Pressure - 1st speed (mmH20)
    23
  • Pressure - 1st speed (Pa)
    226
  • Pressure max - max speed (mmH20)
    50
  • Pressure max - max speed (Pa)
    490
  • RPM max
    2200
  • RPM min
    1400
  • Sound pressure level Lp [dB (A)] 3m - max speed
    48,6
  • Sound pressure level Lp [dB (A)] 3m - min speed
    41,9
  • Supplier's name or trade mark
    Vortice
  • Declared typology
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of heat recovery system HRS
    nessuno
  • SFPint [W/m3/s]
    NA
  • Thermal efficiency of heat recovery [%]
    NA
  • Nominal NRVU flow rate [m3/s]
    0,05556
  • Effective electic power input [kW]
    0,090
  • Face velocity at design flow rate [m/s]
    7,528
  • Nominal external pressure (?ps, ext) [Pa]
    200
  • Internal pressure drop of ventilation components (?ps,int) [Pa]
    245
  • Internal pressure drop of non-ventilation components (?ps,add) [Pa]
    0
  • Static efficiency of fans used in accordance with Regulation (EU) No 327/2011 [%]
    27,5
  • Declared maximum internal leakage rate of the casing of ventilation units [%]
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]
    NA
  • Energy performance energy or classification of the filters
    NA
  • Description of visual filter warning
    NA
  • Casing sound power level (LWA) [dB(A)]
    69

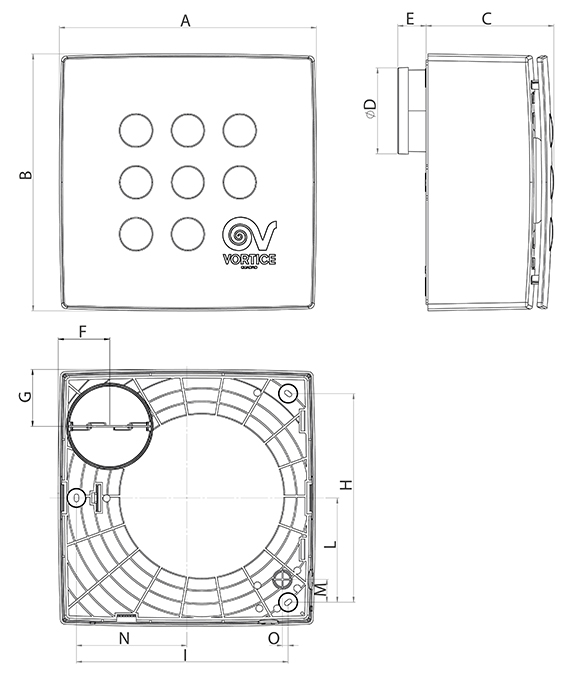

  • Size A (mm)
    290
  • Size B (mm)
    290
  • Size C (mm)
    144
  • Size D (mm)
    ø 97
  • Size E (mm)
    31
  • Size F (mm)
    58
  • Size G (mm)
    64
  • Size H (mm)
    236
  • Size I (mm)
    239
  • Size L (mm)
    118
  • Size M (mm)
    26
  • Size N (mm)
    125
  • Size O (mm)
    6,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

DEVIATORE DI FLUSSO M 10/4
DEVIATORE DI FLUSSO M 10/4
• For fitting to the delivery side of extractor fans to direct the air flow in any required direction within 360°.

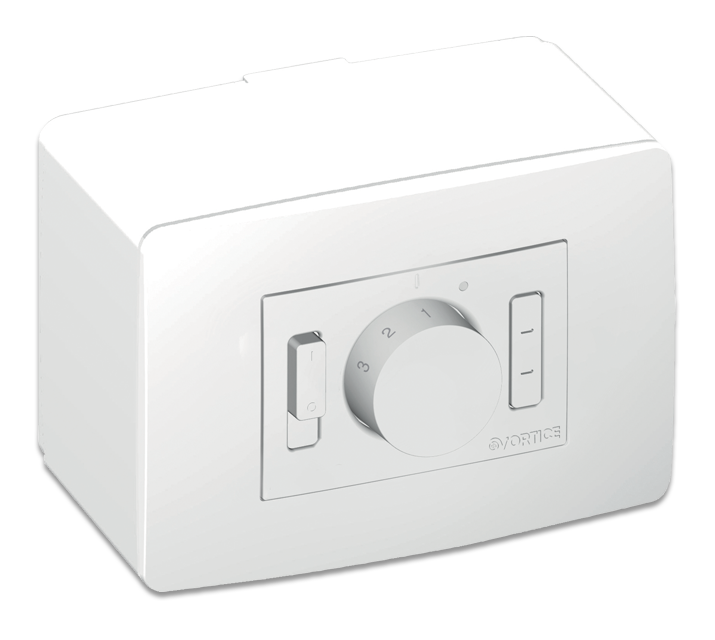

TRIO-S
TRIO-S
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
