Description

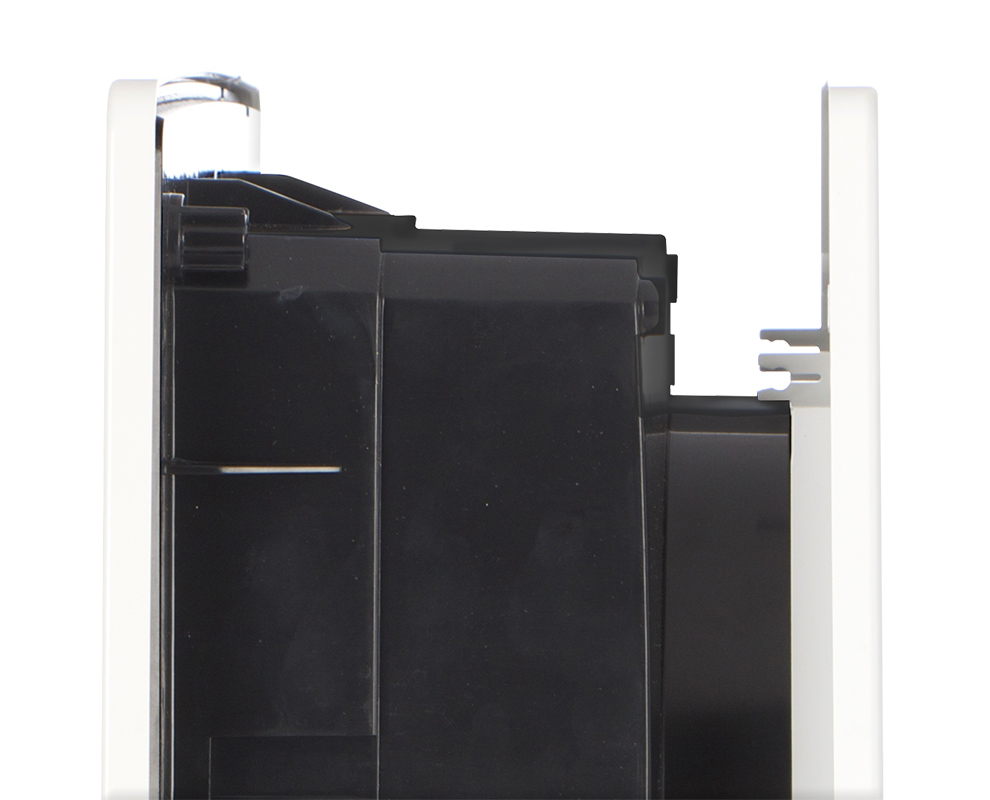

• Model designed for installation recessed into wall.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight)
• Nominal diameter 300 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • CE CE
  • IMQ Performance IMQ Performance
  • C Tick Mark C Tick Mark
  • EAC EAC
  • G-Mark G-Mark

Technical Data Sheet

  • Absorbed Current max (A)
    0,21
  • Absorbed Power max (W)
    45
  • Frequency (Hz)
    50/60
  • Insulation Class
    II°
  • IP
    X4
  • Max absorbed Power at 60Hz (W)
    45
  • Max ambient temperature for continuous operation (°C)
    50
  • Max ambient temperature for continuous operation 60Hz (°C)
    40
  • Ø Discharge Hole (mm)
    300
  • Voltage (V)
    220-240
  • Weight (Kg)
    7,2
  • Delivery max - Extract (l/s)
    333,3
  • Delivery max - Extract (m3/h)
    1200
  • Delivery max - Intake (l/s)
    236,1
  • Delivery max - Intake (m3/h)
    850
  • Delivery max (m³/h)
    1200
  • RPM
    850
  • Rpm - Exhaust
    850
  • Rpm - Supply
    1150
  • Sound Pressure level Lp [dB (A)] 3m
    40,7
  • Ø glass hole
    324/329
  • Ø wall hole
    435/440
  • Size A (mm)
    495
  • Size B (mm)
    10,5
  • Size C (mm)
    11,5
  • Size D (mm)
    210
  • Size E (mm)
    2/38
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

KIT TE 300/12"                (TORRETTA)
KIT TE 300/12" (TORRETTA)
• Roof cowl/wind baffle kit.
KIT SO 300/12"                (SOFFITTO)
KIT SO 300/12" (SOFFITTO)
• Ceiling, false ceiling and panel kit.
KIT ML 300/12"              (MURO LARGO)
KIT ML 300/12" (MURO LARGO)
• Deep wall installation kit.
KIT TC 300/12"      (TETTO CON CONDOTTO)
KIT TC 300/12" (TETTO CON CONDOTTO)
CR5N
CR5N
• Reversibile 5 speed controller.
• Natural Ventilation.
• Maximum load 100 W.
CR5
CR5
• Reversibile 5 speed controller.
• Maximum load 100 W.
CREN
CREN
• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
