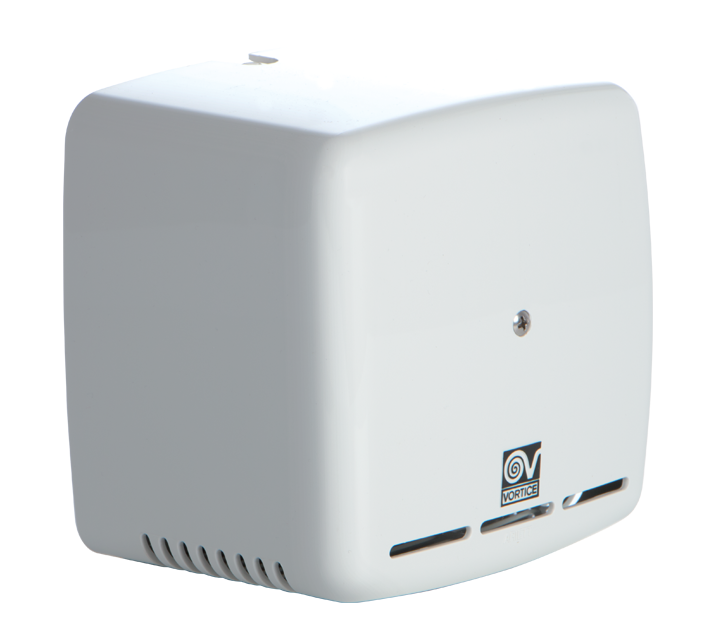

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter: 100 mm

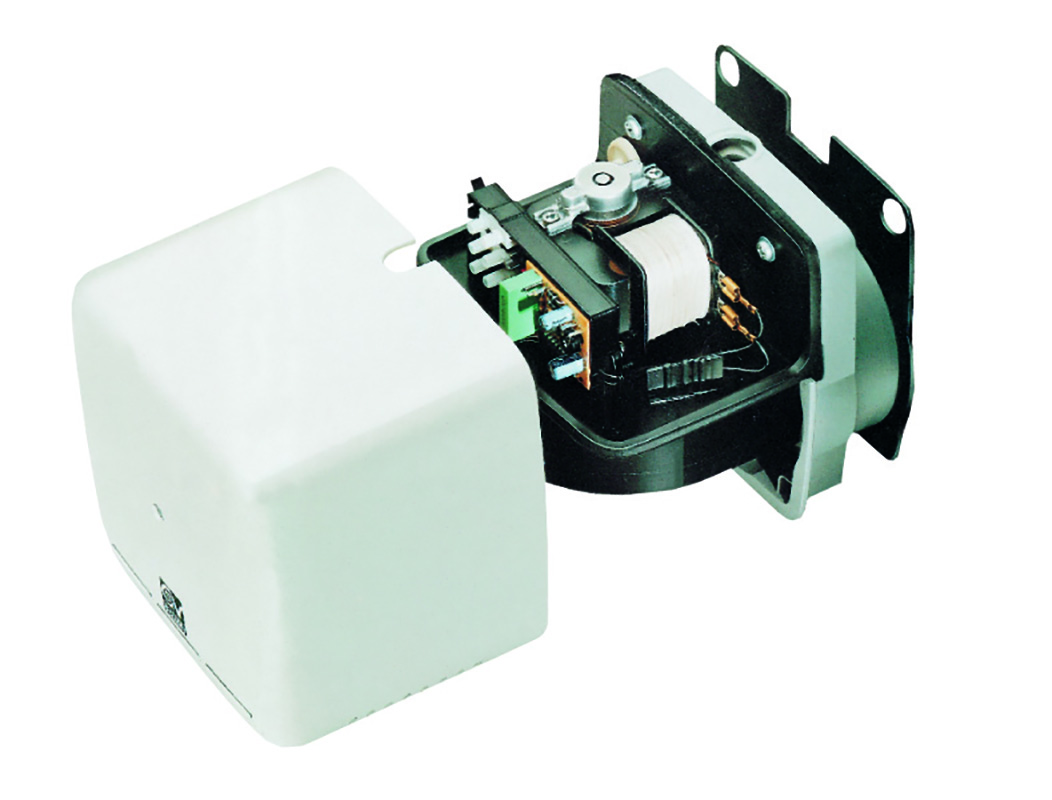

• Motor with thermal overload protection and shaft turning in ball bearings.
• Maximum air flow 70 m3/h

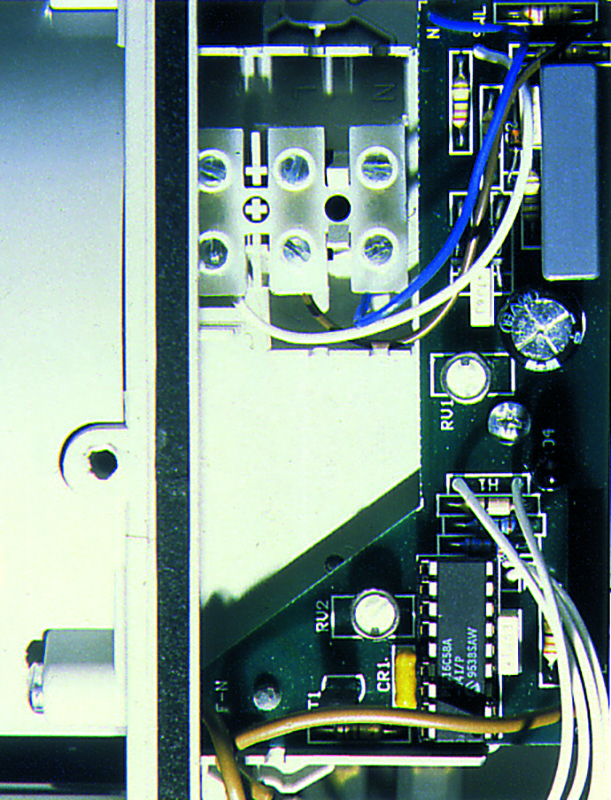

• Equipped with electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’).

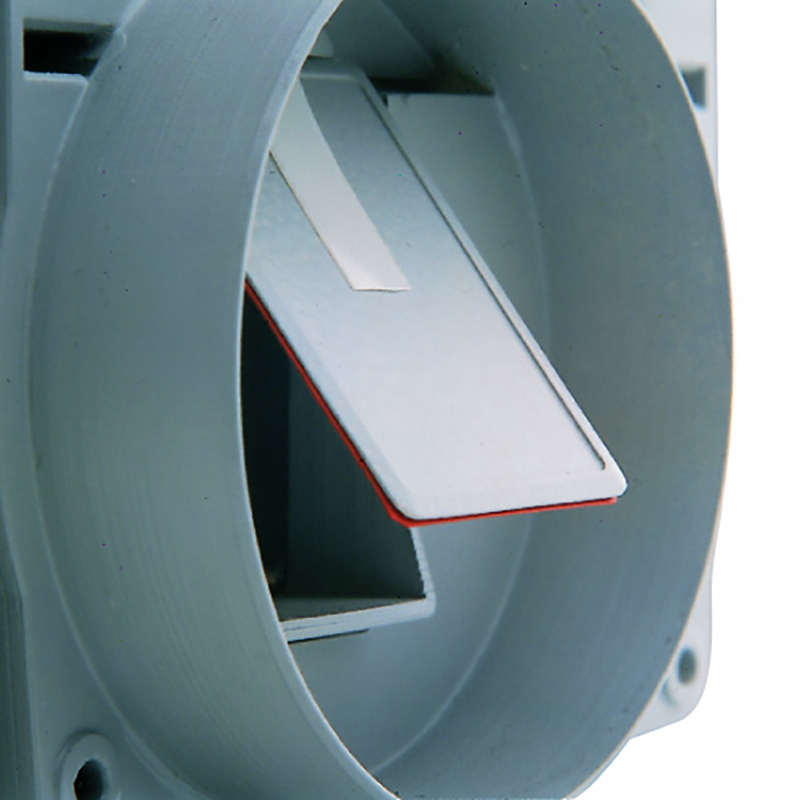

• Non-return damper fitted to outlet port.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,14
  • Absorbed Power max (W)
    18
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    40
  • Max. absorbed power at max speed (W)
    18
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    97
  • Voltage (V)
    230
  • Weight (Kg)
    1,47
  • Delivery max (l/s)
    19,4
  • Delivery max (m³/h)
    70

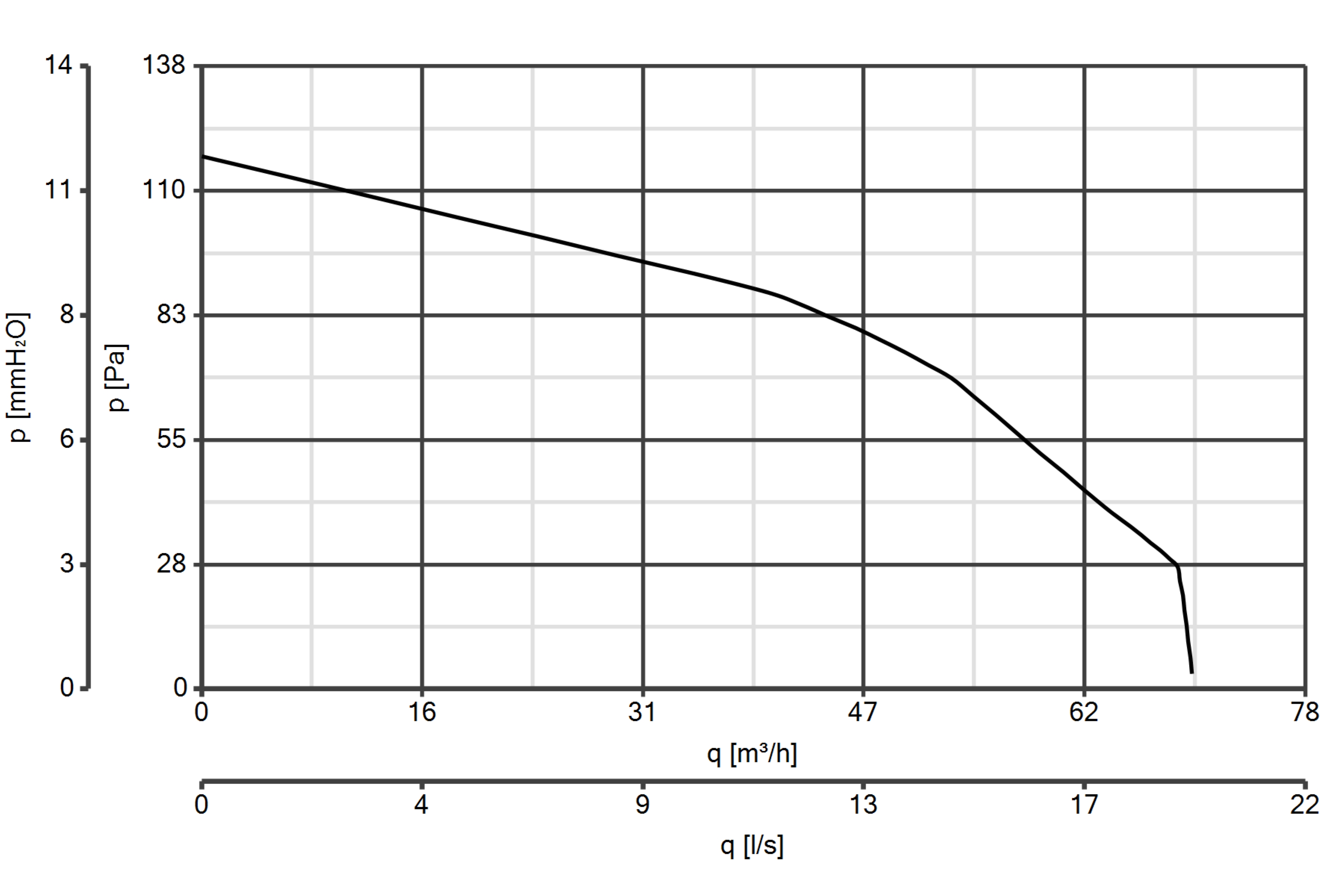

  • Pressure max (mmH2O)
    12
  • Pressure max (Pa)
    118
  • RPM
    2315
  • Sound Pressure level Lp [dB (A)] 3m
    40
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -5,5
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -18,9
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    2,1
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    71
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    13,7
  • Sound power level LWA [dB(A)]
    61
  • Reference flow rate [m3/s]
    0,0138
  • Reference pressure difference [Pa]
    77
  • SPI [W/(m3/h)]
    0,24547
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    338
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632

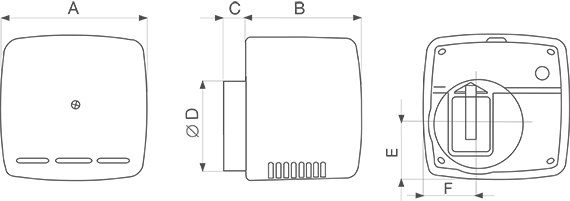

  • Size A (mm)
    156
  • Size B (mm)
    123
  • Size C (mm)
    25
  • Size D (mm)
    Ø 97
  • Size E (mm)
    60
  • Size F (mm)
    60
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

DEVIATORE DI FLUSSO M 10/4
DEVIATORE DI FLUSSO M 10/4
• For fitting to the delivery side of extractor fans to direct the air flow in any required direction within 360°.
