Description

• Version powered by safe low voltage supply (SELV - 12V) requiring transformer, purchased separately
• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 90 m3/h.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • CE CE
    Download
  • IMQ Performance IMQ Performance
  • C Tick Mark C Tick Mark
  • EAC EAC

Technical Data Sheet

  • Absorbed Current max (A)
    0,1
  • Absorbed Power max (W)
    18
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    99
  • Voltage (V)
    12
  • Weight (Kg)
    0,6
  • Delivery max (l/s)
    25
  • Delivery max (m³/h)
    90
  • Pressure max (mmH2O)
    3
  • Pressure max (Pa)
    29
  • RPM
    2300
  • Sound Pressure level Lp [dB (A)] 3m
    37,5
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -6,6
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -20,0
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    1,0
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    89
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    13,7
  • Sound power level LWA [dB(A)]
    58
  • Reference flow rate [m3/s]
    0,0174
  • Reference pressure difference [Pa]
    23
  • SPI [W/(m3/h)]
    0,21253
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    293
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632
  • Size A (mm)
    159
  • Size B (mm)
    160
  • Size C (mm)
    100
  • Size D (mm)
    47
  • Size E (mm)
    Ø 99
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

GA 12V
GA 12V
• 12V Power supply transformer.
• Standard version.
GA 12V T
GA 12V T
• 12V Power supply transformer.
• Timer version.
F 100/4"
F 100/4"

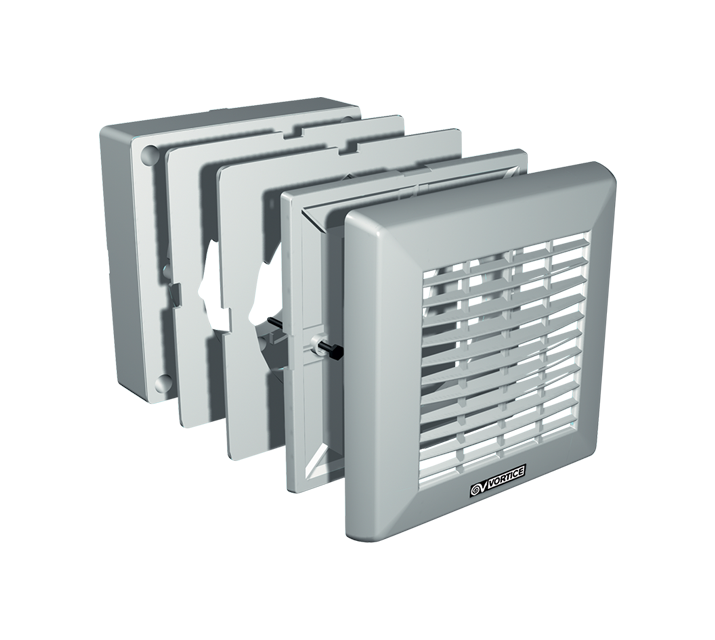

• Window mounting kit.
S 100/4
S 100/4

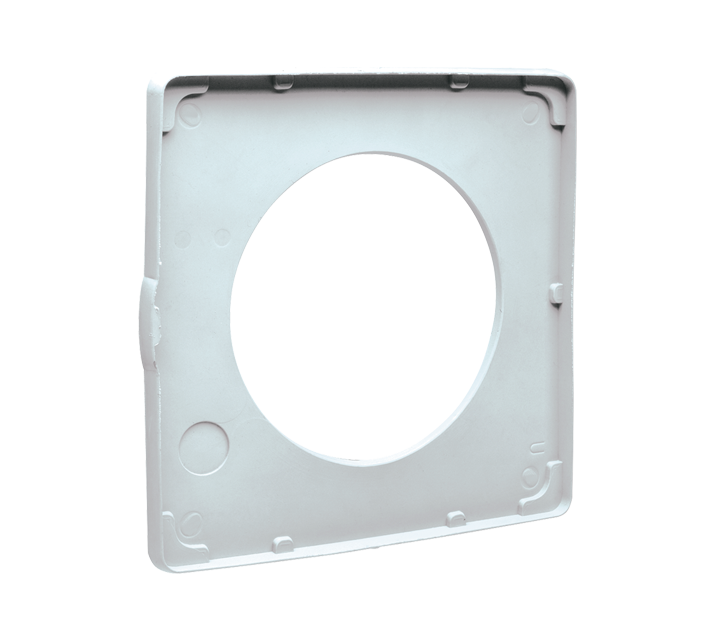

• Ceiling kit made of soft rubber to prevent water infiltration and to maintain IPX4 protection on all surfaces.
