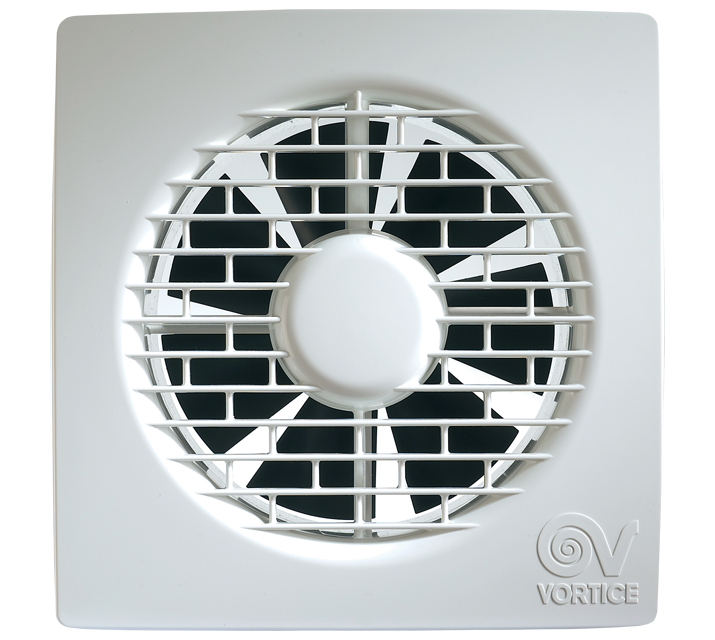

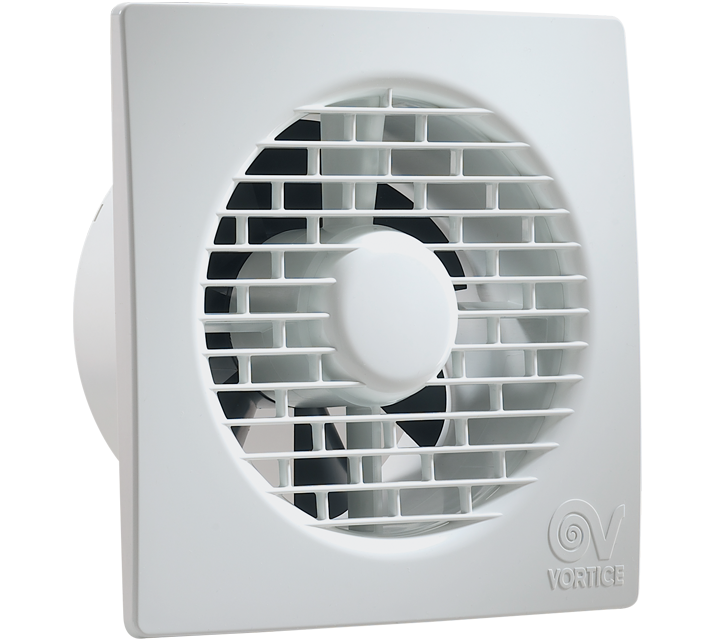

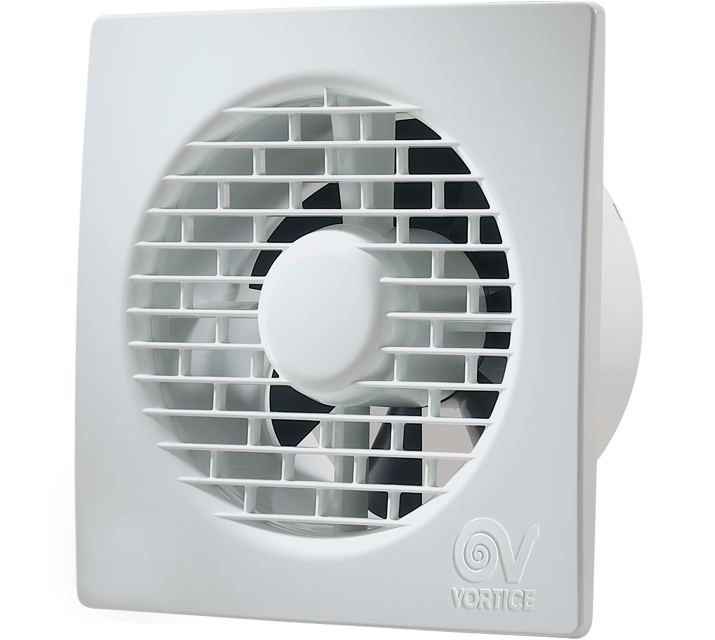

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 120 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
• Maximum air flow: 175 m3/h.
• Incorporates electronic presence detector with infrared sensor, and electronic timer designed to shut off the motor automatically after a set interval, selectable during installation in the range 3’-20’ (default setting 3’), after the room has been vacated.

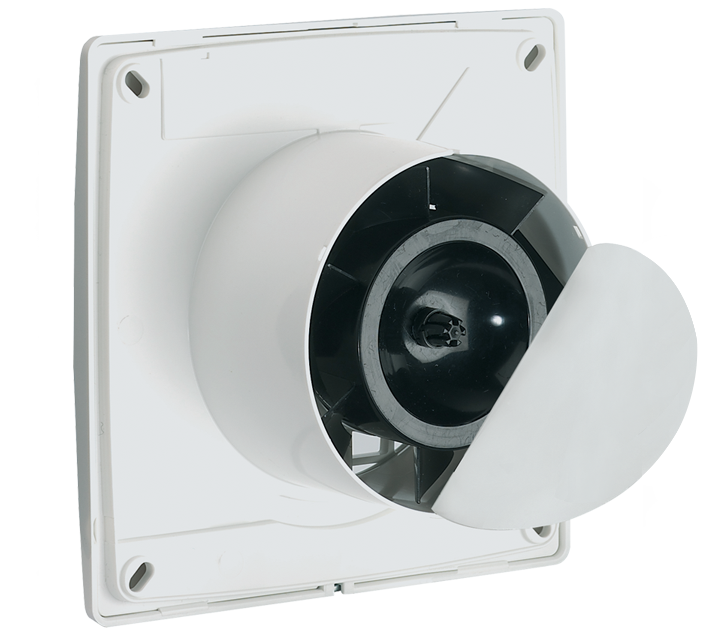

• Non-return damper fitted to outlet port.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,12
  • Absorbed Power max (W)
    20
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed power at max speed (W)
    20
  • Ø Discharge Hole (mm)
    119
  • Voltage (V)
    220-240
  • Weight (Kg)
    0,61
  • Delivery max (l/s)
    49
  • Delivery max (m³/h)
    175

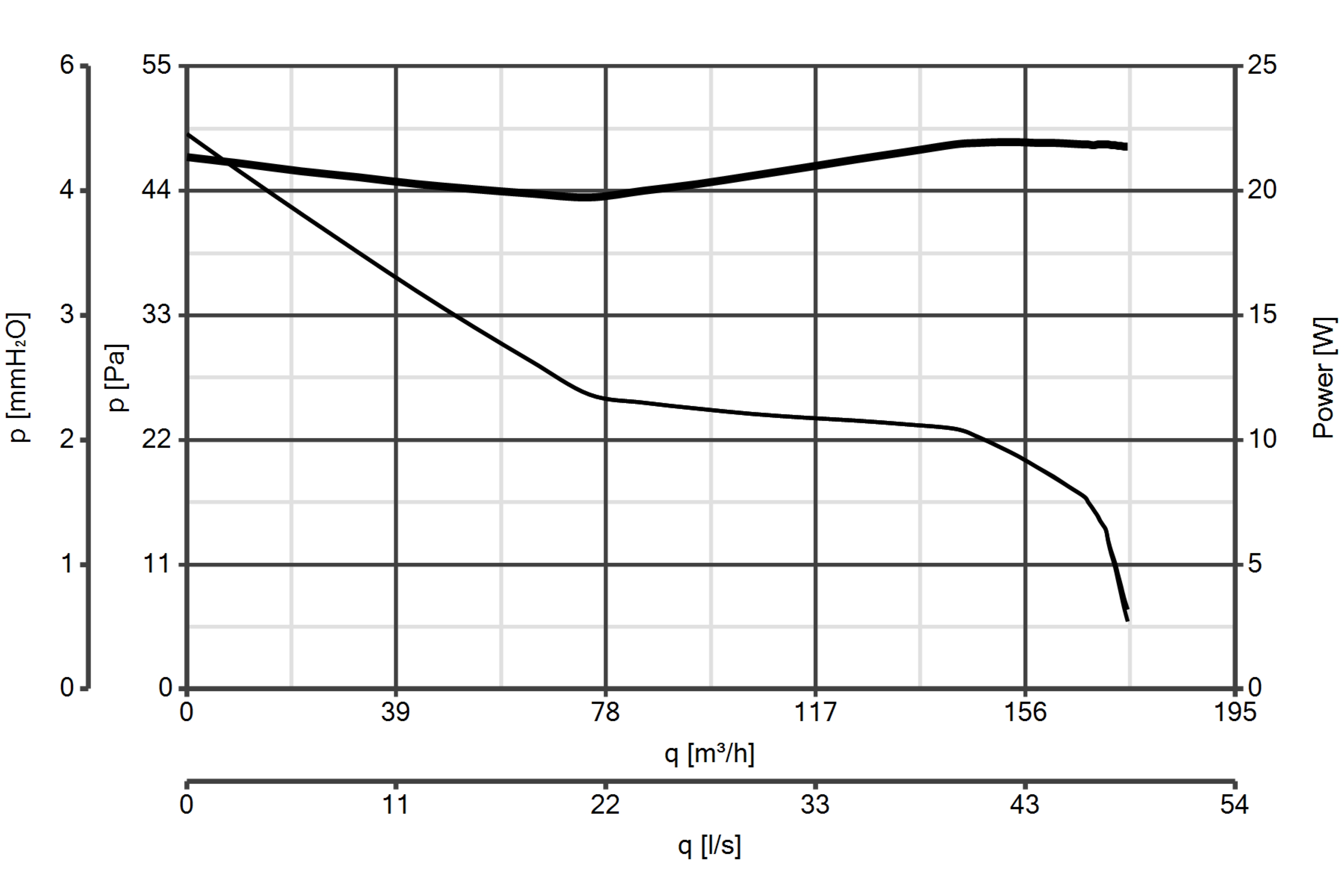

  • Pressure max (mmH2O)
    5
  • Pressure max (Pa)
    49
  • RPM
    2150
  • Sound Pressure level Lp [dB (A)] 3m
    34,4
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -8,8
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -22,1
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    -1,1
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    173
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    21,4
  • Sound power level LWA [dB(A)]
    60
  • Reference flow rate [m3/s]
    0,0336
  • Reference pressure difference [Pa]
    24
  • SPI [W/(m3/h)]
    0,15111
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    208
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632
  • Etichetta Energetica
    NO

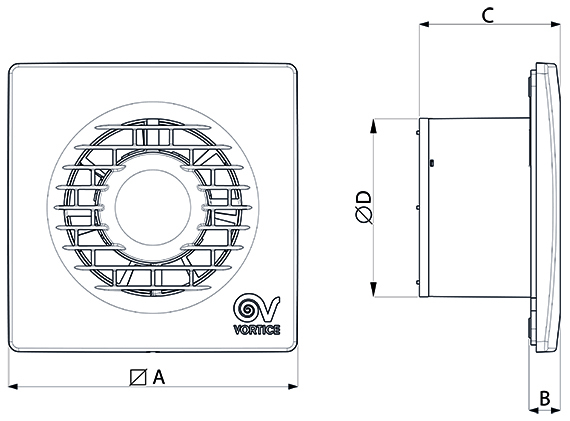

  • Size A (mm)
    179
  • Size B (mm)
    17
  • Size C (mm)
    89
  • Size D (mm)
    119
