Description

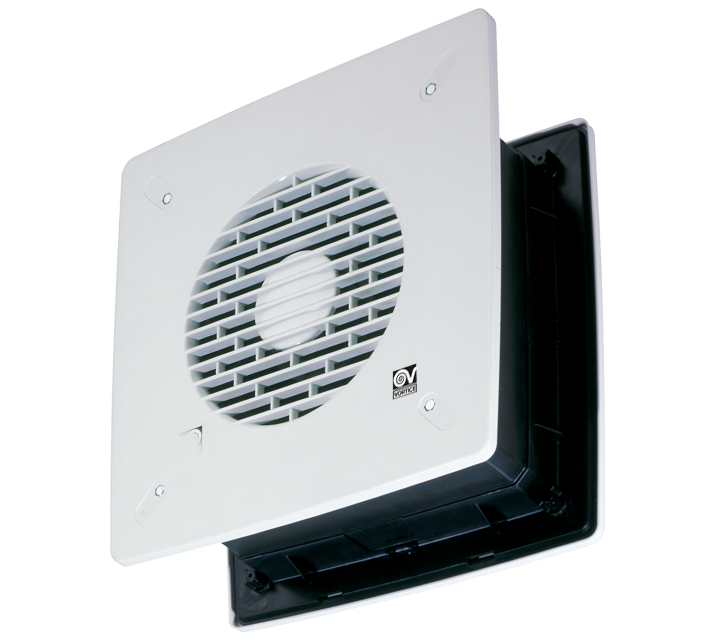

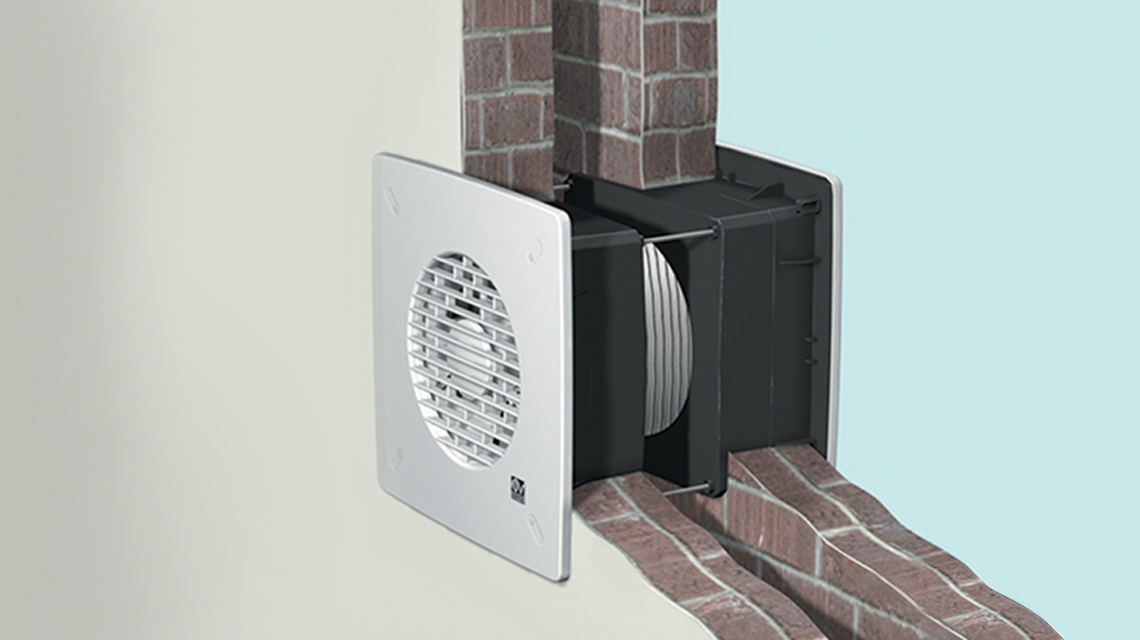

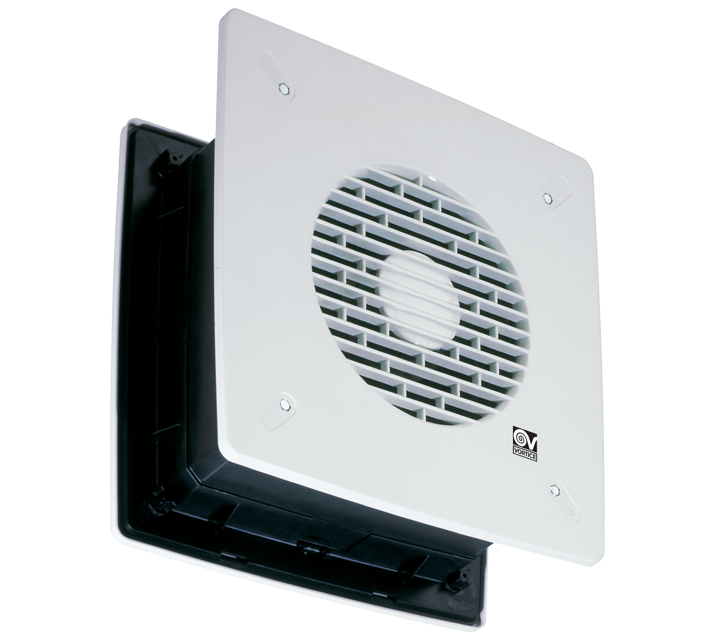

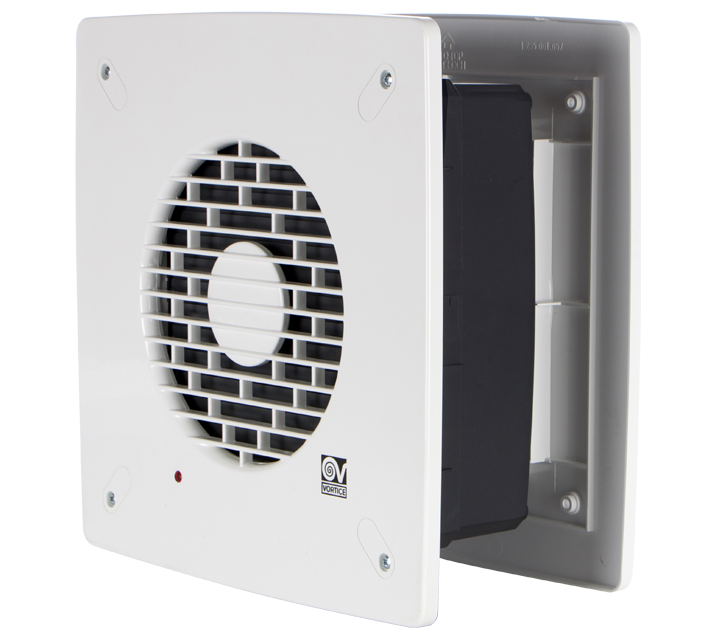

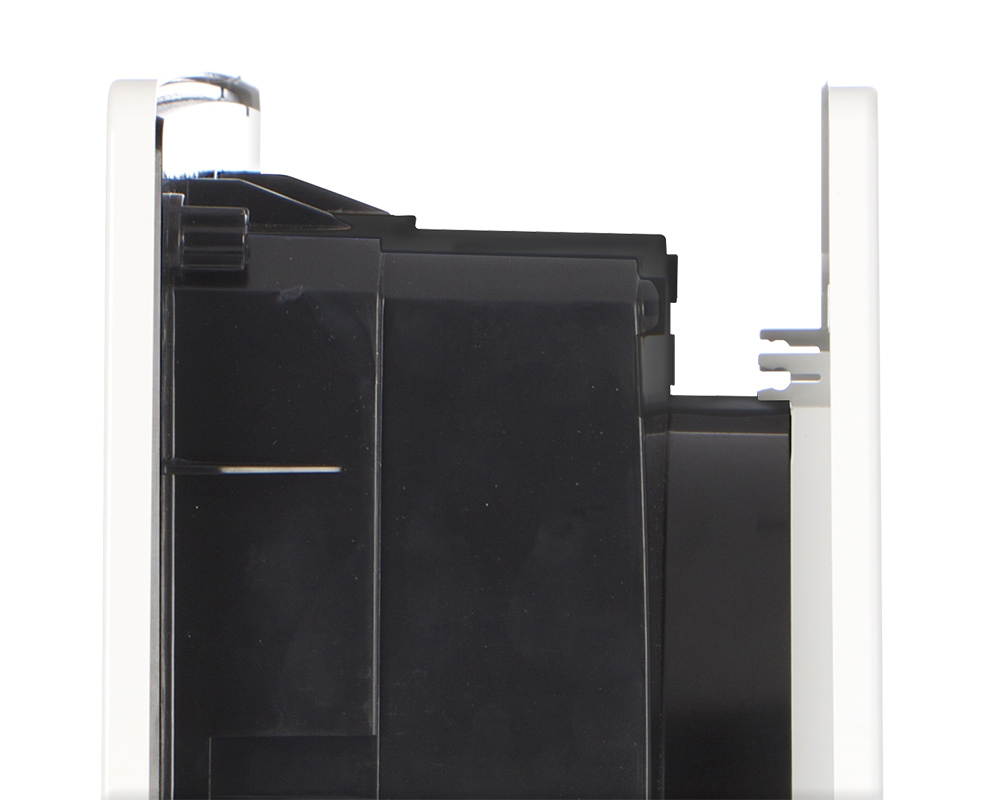

• Model designed for installation recessed into wall.
• Reversibility function (intake or extraction).
• Automatic shutter: prevents the entry of cold air and bad smells when the appliance is switched off.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight)
• Nominal diameter 150 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings, coupled to screw type thermoplastic impeller with wing profile blades.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,17
  • Absorbed Power max (W)
    35
  • Frequency (Hz)
    50/60
  • Inlet
    Automatico
  • Insulation Class
    II°
  • IP
    X4
  • Max absorbed Power at 60Hz (W)
    35
  • Max ambient temperature for continuous operation (°C)
    50
  • Max ambient temperature for continuous operation 60Hz (°C)
    50
  • Ø Discharge Hole (mm)
    260 ÷ 265
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,52
  • Delivery max - Extract (l/s)
    97,2
  • Delivery max - Extract (m3/h)
    350
  • Delivery max - Intake (l/s)
    55,6
  • Delivery max - Intake (m3/h)
    200
  • Delivery max (m³/h)
    350
  • RPM
    2080
  • Rpm - Exhaust
    2080
  • Rpm - Supply
    2460
  • Sound Pressure level Lp [dB (A)] 3m
    49,1
  • Supplier's name or trade mark
    NA
  • Ø wall hole
    260/265
  • Size A (mm)
    300
  • Size B (mm)
    9,5
  • Size C (mm)
    10,5
  • Size D (mm)
    135
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

KIT TE 150/6"                 (TORRETTA)
KIT TE 150/6" (TORRETTA)
• Roof cowl/wind baffle kit.
KIT SO                        (SOFFITTO)
KIT SO (SOFFITTO)

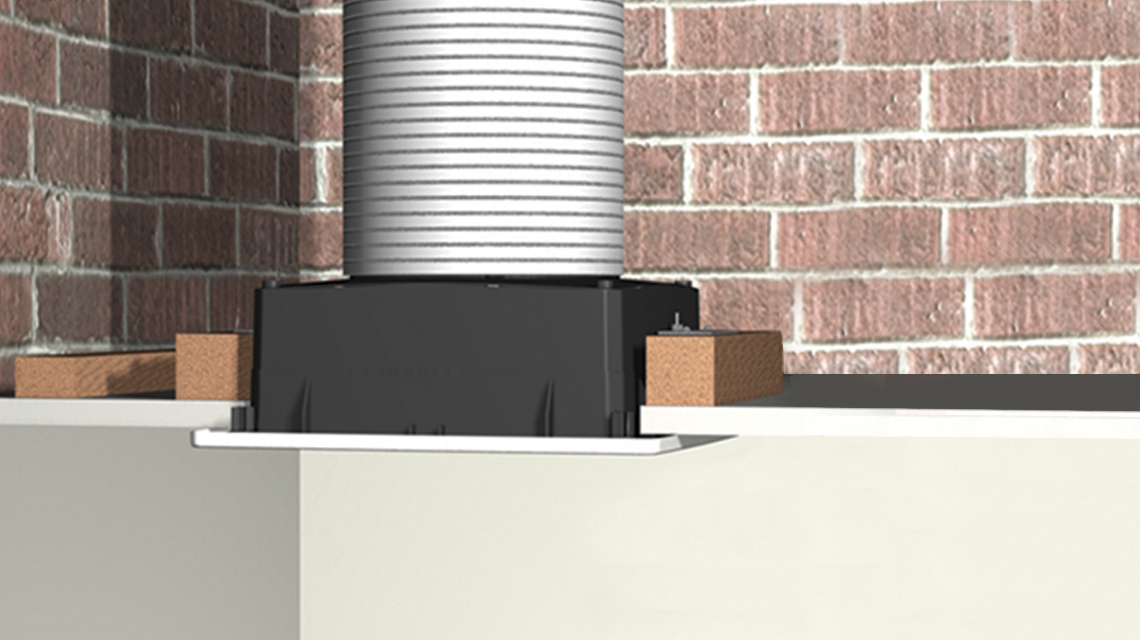

• Ceiling, false ceiling and panel kit.
KIT ML 150/6"               (MURO LARGO)
KIT ML 150/6" (MURO LARGO)

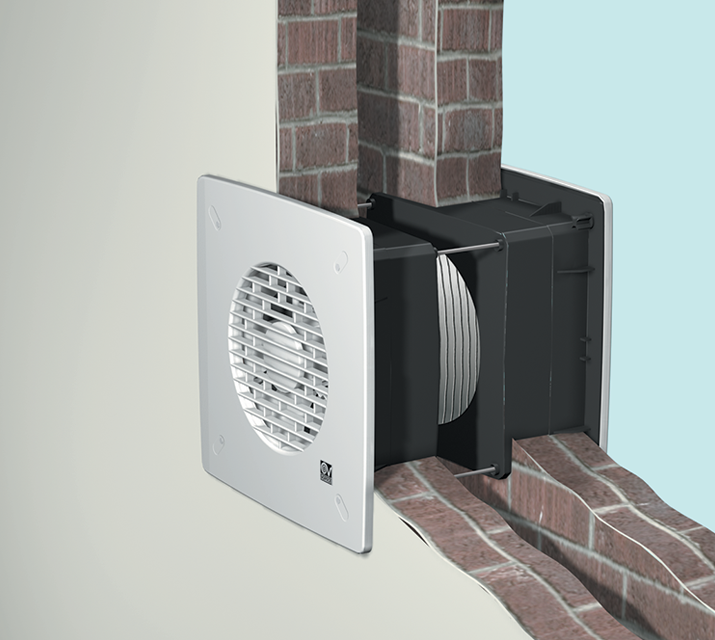

• Deep wall installation kit.
KIT TC 150/6"       (TETTO CON CONDOTTO)
KIT TC 150/6" (TETTO CON CONDOTTO)
• Spigot plate for remote application.
CR5N
CR5N
• Reversibile 5 speed controller.
• Natural Ventilation.
• Maximum load 100 W.
CREN
CREN
• Variable electronic speed controller.
• Reversible.
• Natural Ventilation.
• Maximum load 1,2 A.
C PIR
C PIR
• Passive infrared sensor.
C TIMER
C TIMER
• Adjustable over-run timer.
C TEMP
C TEMP
Environmental sensor for temperature control.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.
