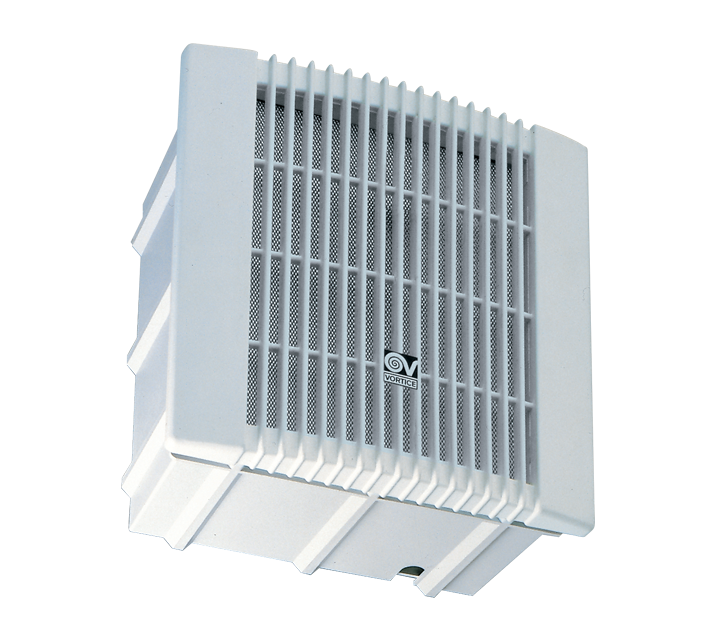

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm
• 2 speed motor with thermal overload protection and shaft turning in ball bearings.

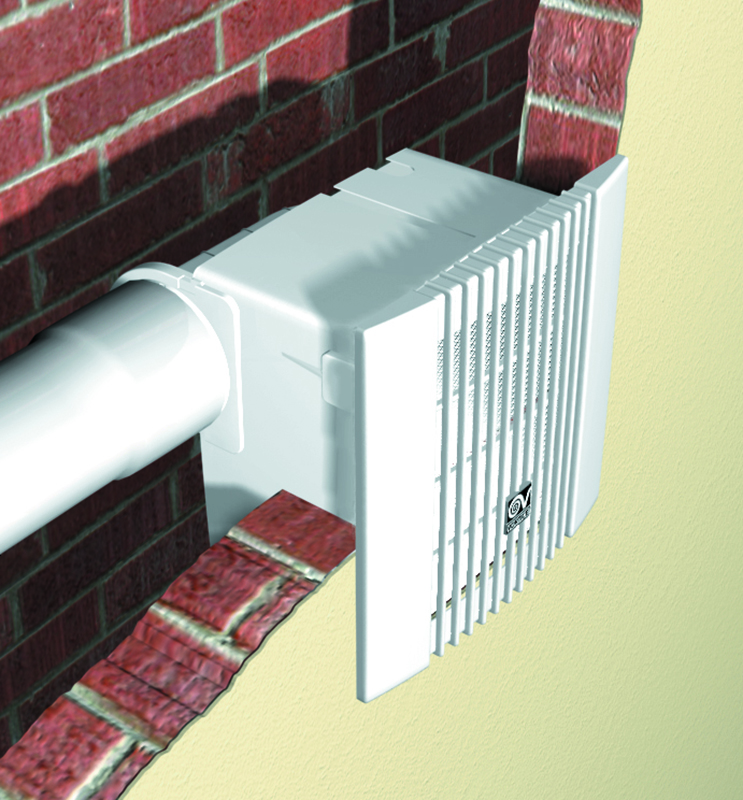

• Minimum air flow, rear outlet: 60 m3/h
Maximum air flow, rear outlet: 120 m3/h

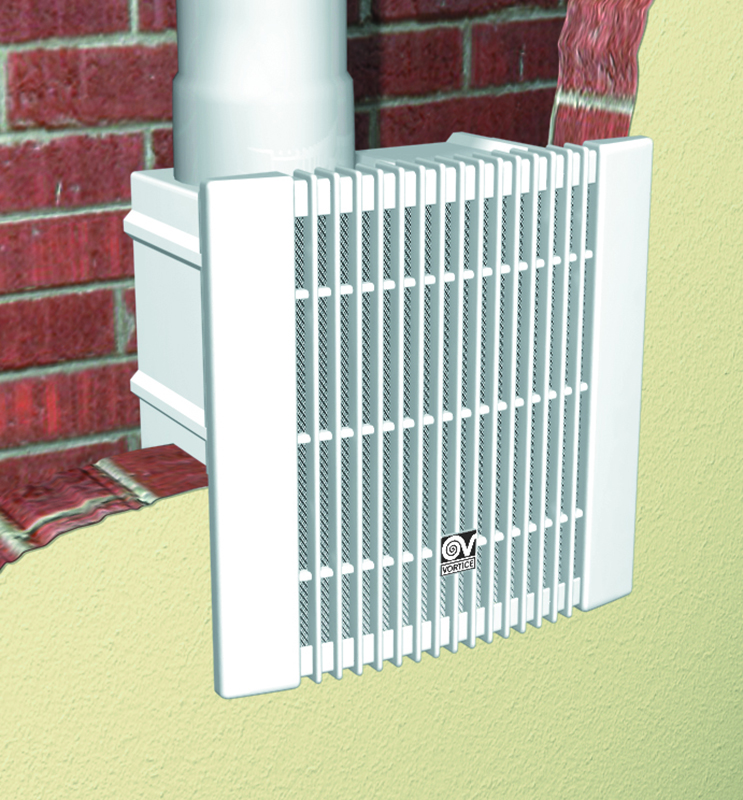

• Minimum air flow, side outlet: 50 m3/h
Maximum air flow, side outlet: 100 m3/h
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.

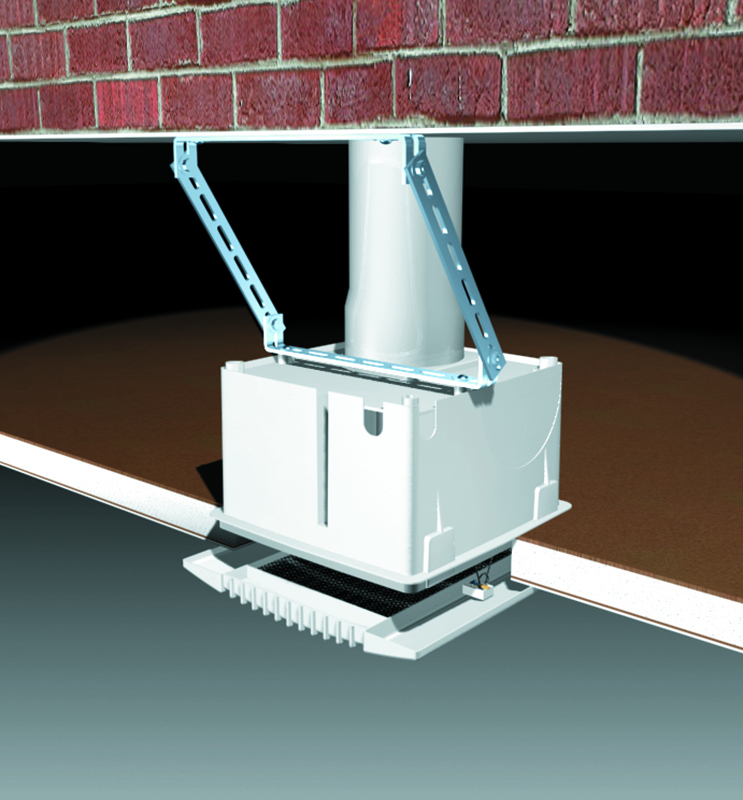

• Supplied with front grille mounting springs, suitable for any kind of false ceiling (65 mm max).
• Removable and washable metal mesh filter.
• Outlet port equipped with non-return damper.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed power 1st speed (W)
    12
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    40
  • Max. absorbed Current at max. speed (A)
    0,18
  • Max. absorbed Current at min. speed (A)
    0,07
  • Max. absorbed power at max speed (W)
    24
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    96,5
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,1
  • Delivery 1st speed (l/s)
    16,7
  • Delivery 1st speed (m³/h)
    60
  • Max delivery at max speed (l/s)
    33,3
  • Max delivery at max speed (m³/h)
    120
  • Max delivery of side outlet at max speed (l/s)
    27,8
  • Max delivery of side outlet at max speed (m³/h)
    100
  • Max delivery of side outlet at min speed (l/s)
    13,9
  • Max delivery of side outlet at min speed (m³/h)
    50
  • Max pressure at side outlet - max speed (mmH2O)
    13,5
  • Max pressure at side outlet - min speed (mmH2O)
    8,3
  • Max pressure at side outlet - min speed (Pa)
    81
  • Max pressure at side outlet (Pa)
    132
  • Pressure - 1st speed (mmH20)
    8,9
  • Pressure - 1st speed (Pa)
    87
  • Pressure max - max speed (mmH20)
    14,5
  • Pressure max - max speed (Pa)
    142
  • RPM max
    1720
  • RPM min
    970
  • RPM side air outlet - max speed
    1980
  • RPM side air outlet - min speed
    1090
  • Sound pressure level Lp [dB (A)] 3m - max speed
    41
  • Sound pressure level Lp [dB (A)] 3m - min speed
    30
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -5,1
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -18,5
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    2,5
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    117
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    23,1
  • Sound power level LWA [dB(A)]
    62
  • Reference flow rate [m3/s]
    0,0228
  • Reference pressure difference [Pa]
    66
  • SPI [W/(m3/h)]
    0,25641
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    353
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632
  • Size A (mm)
    252
  • Size B (mm)
    23
  • Size C (mm)
    65
  • Size D (mm)
    214,5
  • Size E (mm)
    228
  • Size F (mm)
    135,3
  • Size G (mm)
    31,5/76,7
  • Size H (mm)
    Ø 96,5
  • Size I (mm)
    180
  • Size J (mm)
    92
  • Size K (mm)
    76
  • Size L (mm)
    92
  • Size M (mm)
    76
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
SCNRB SCAT.COM.NON REV.INCASSO
SCNRB SCAT.COM.NON REV.INCASSO
• Non-reversible electronic speed controller. • Built-in.
KIT CONTROSOFFITTATURE
KIT CONTROSOFFITTATURE
Kit for false ceiling installations (max height 40 cm).

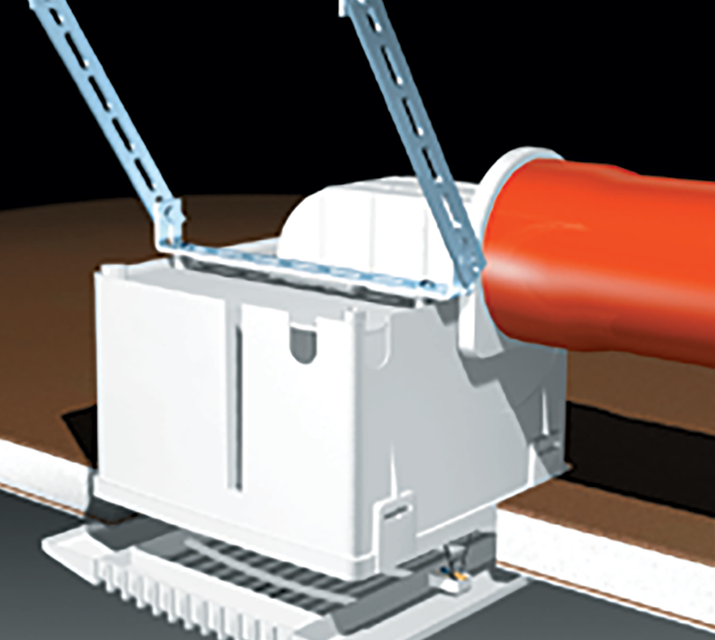

RACCORDO ORIZZONTALE ALTO
RACCORDO ORIZZONTALE ALTO
Horizontal outlet – High profile.
RACCORDO ORIZZONTALE BASSO
RACCORDO ORIZZONTALE BASSO
Horizontal outlet – Low profile.
