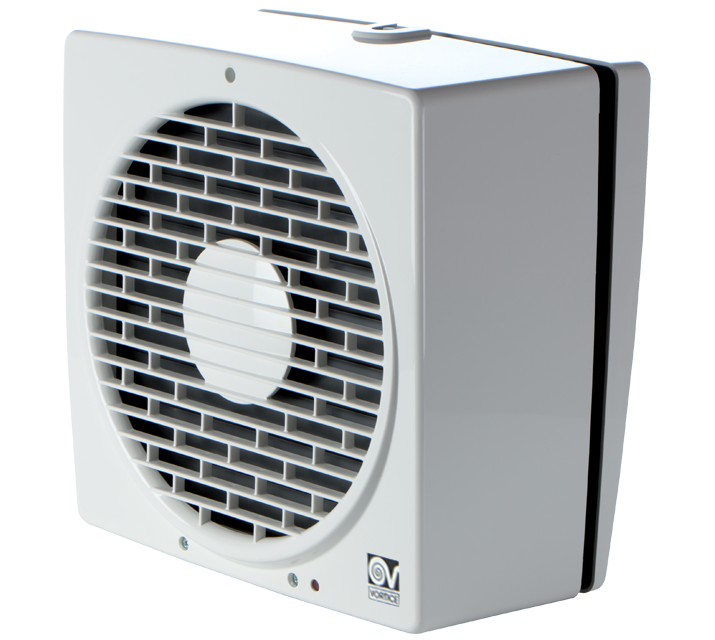

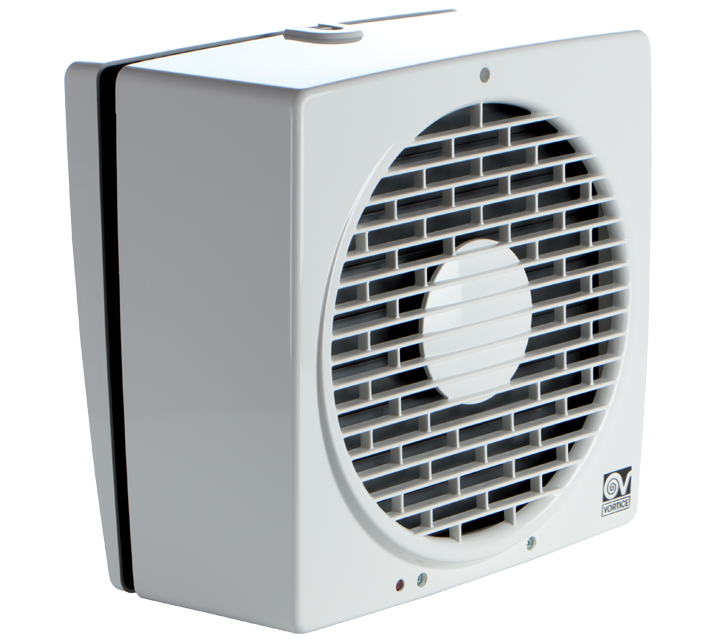

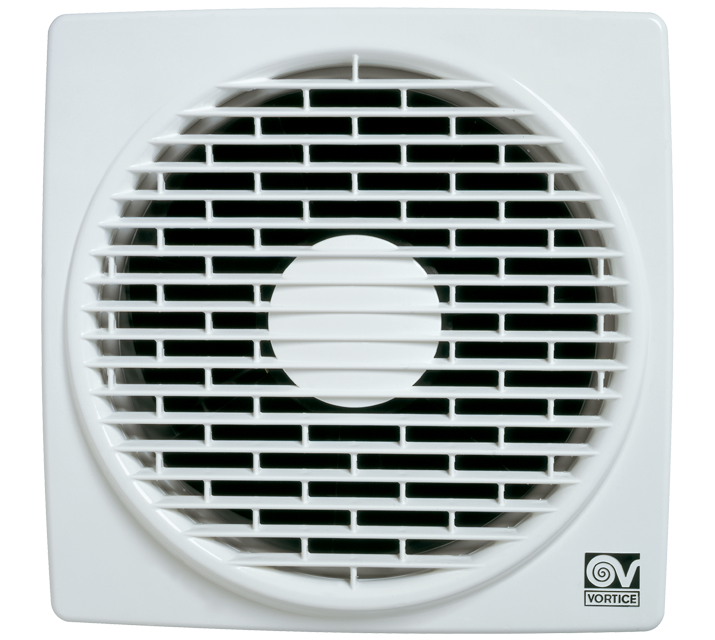

Description

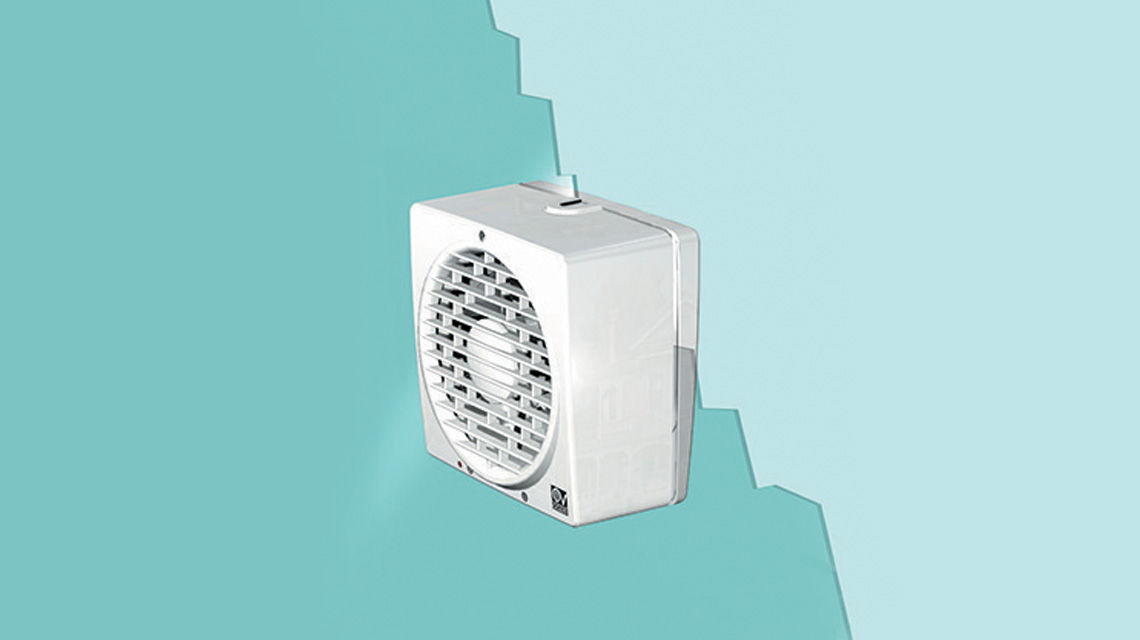

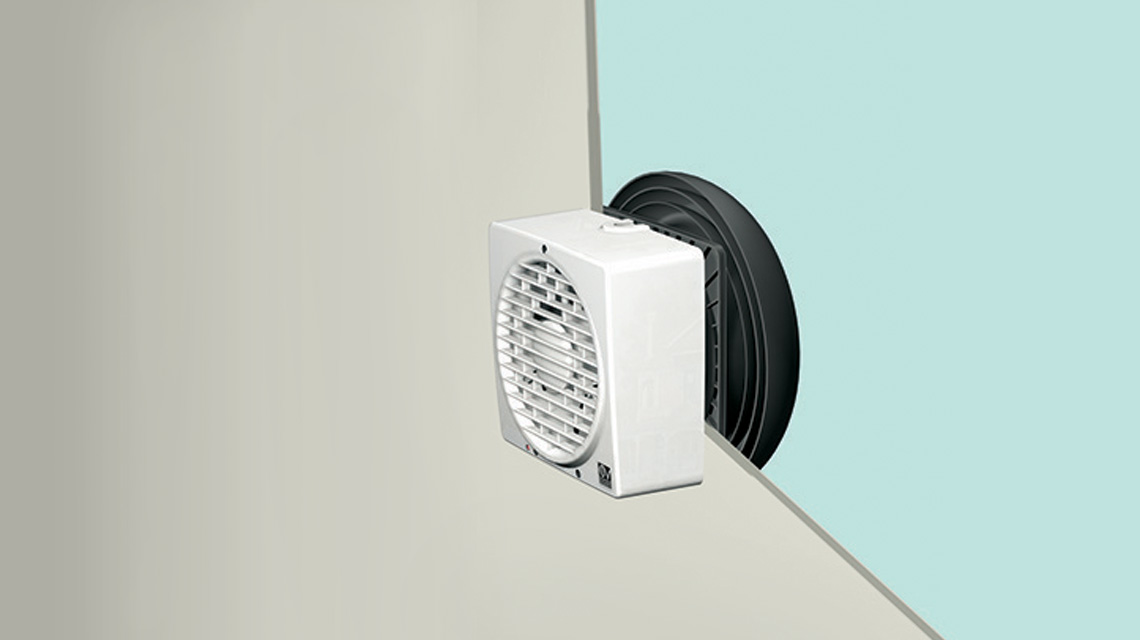

• Model designed for window/wall mounted installation.
• Version with built-in switch operated by pullcord mounted to edge of grille.
• Material: UV resistant ABS plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 230 mm.

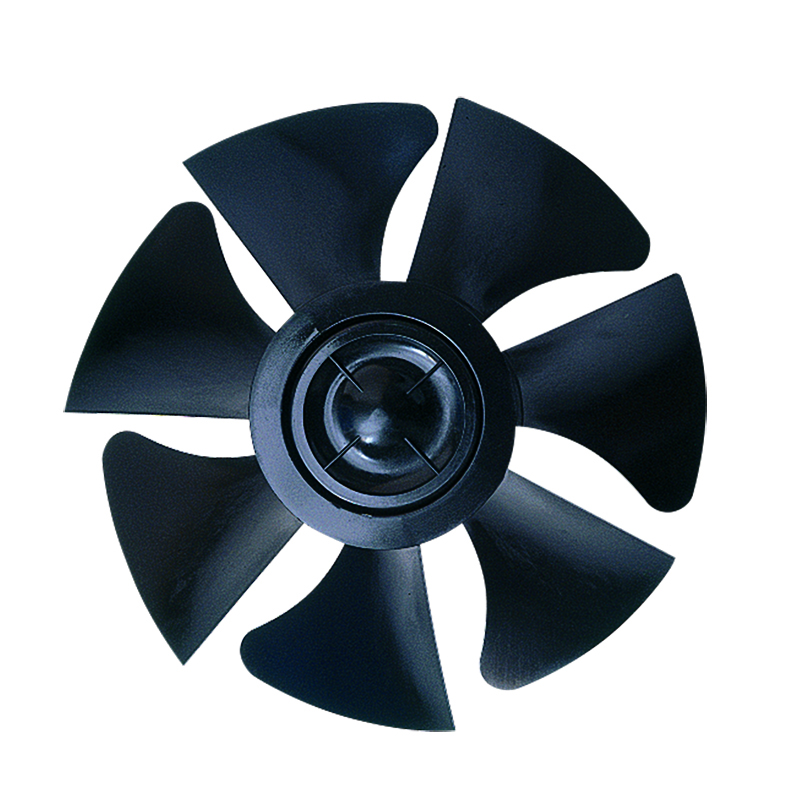

• Motor protected against thermal overload, with shaft turning in self-lubricating bushings, coupled to screw type thermoplastic impeller with wing profile blades.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,10
  • Absorbed Power max (W)
    22
  • Frequency (Hz)
    50/60
  • Insulation Class
    II°
  • IP
    X4
  • Max absorbed Power at 60Hz (W)
    22
  • Max ambient temperature for continuous operation (°C)
    50
  • Max ambient temperature for continuous operation 60Hz (°C)
    50
  • Max. absorbed power at max speed (W)
    22
  • Ø Discharge Hole (mm)
    230
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,45
  • Delivery max (l/s)
    133
  • Delivery max (m³/h)
    480
  • RPM
    790
  • Sound Pressure level Lp [dB (A)] 3m
    35,6
  • Ø glass hole
    257/262
  • Ø wall hole
    257/262
  • Size A (mm)
    294
  • Size B (mm)
    297
  • Size C (mm)
    31
  • Size D (mm)
    130
  • Size E (mm)
    2/38
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

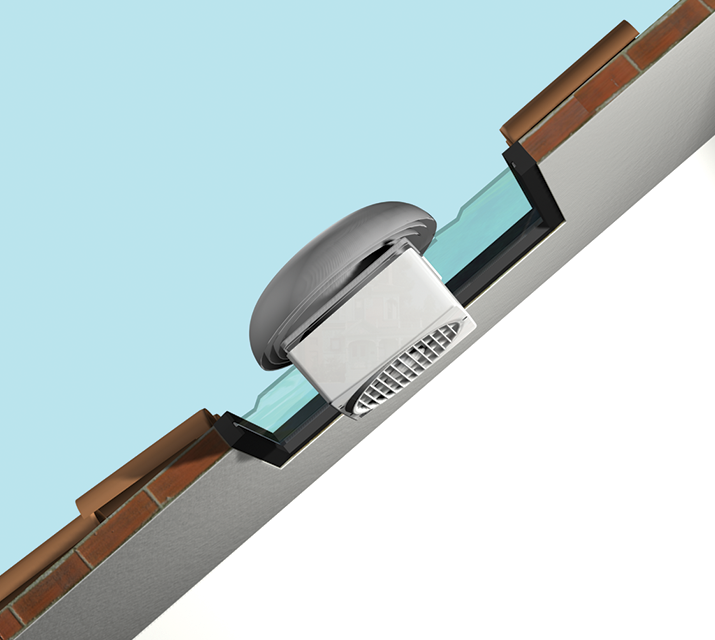

KIT TE 230/9"                 (TORRETTA)
KIT TE 230/9" (TORRETTA)
• Roof cowl/wind baffle kit.

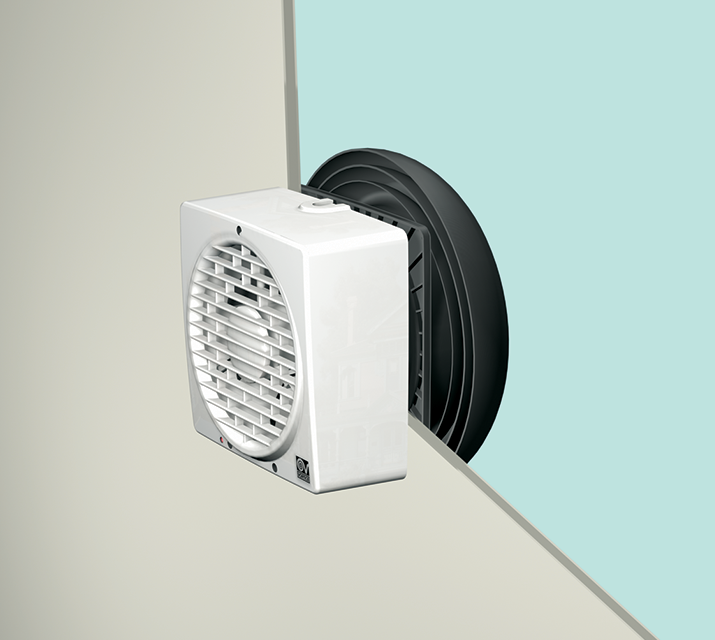

KIT SA 230/9"         (SCHERMO ANTILUCE)
KIT SA 230/9" (SCHERMO ANTILUCE)
• Darkroom cowl kit.

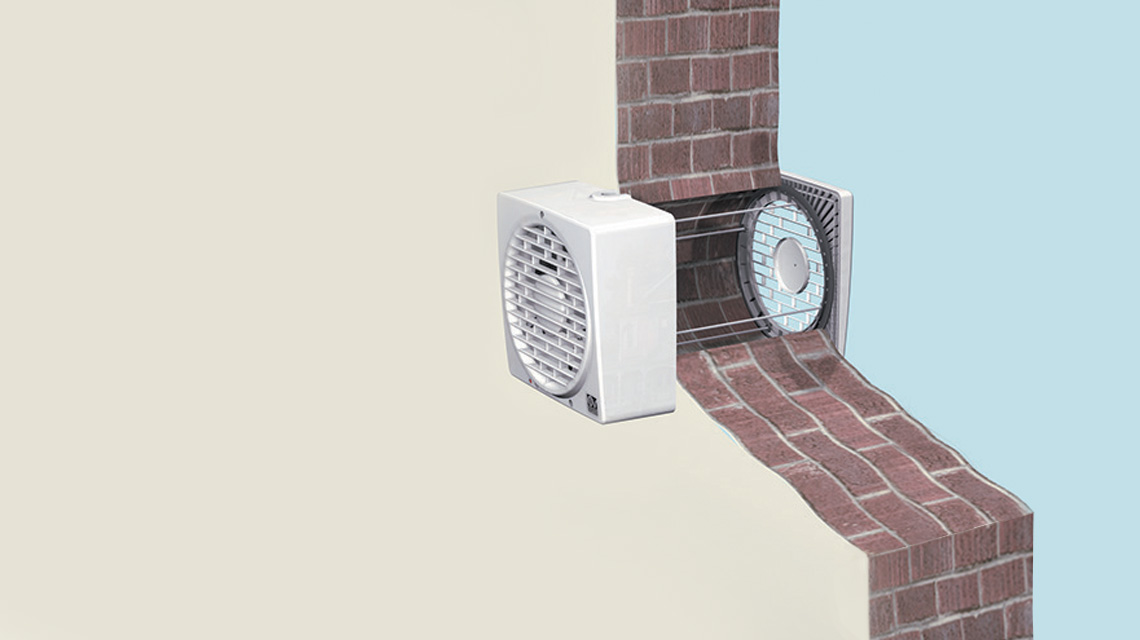

KIT MU                            (MURO)
KIT MU (MURO)
• Wall mounting kit with rods.

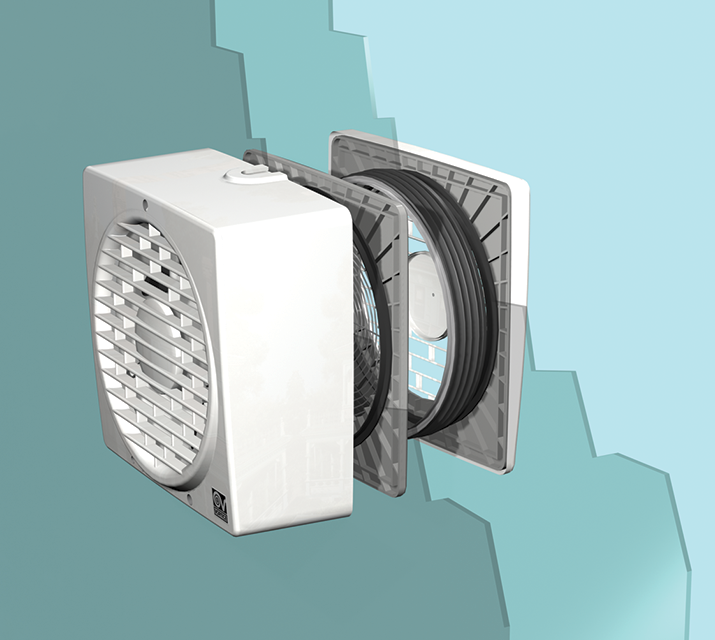

KIT VV 230/9"              (DOPPI VETRI)
KIT VV 230/9" (DOPPI VETRI)
• Double opening window, secondary-glazed kit.

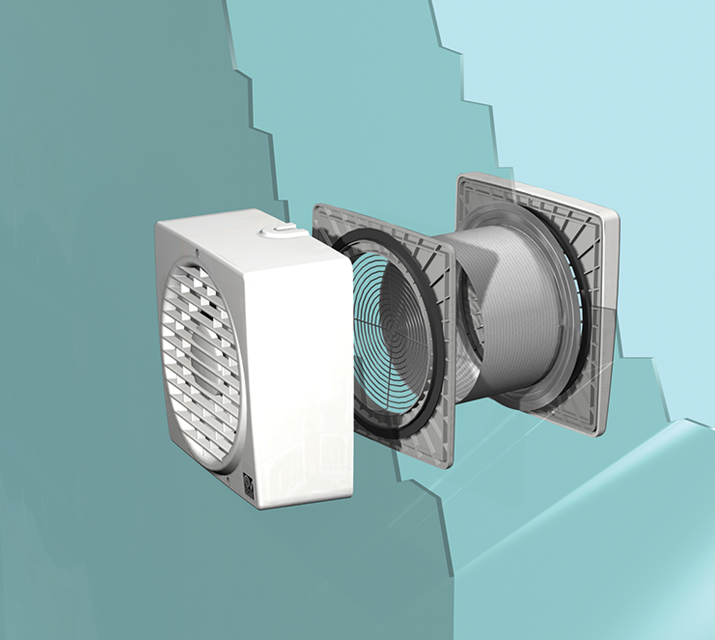

KIT FF 230/9"          (DOPPIA FINESTRA)
KIT FF 230/9" (DOPPIA FINESTRA)
• Double opening window kit.
