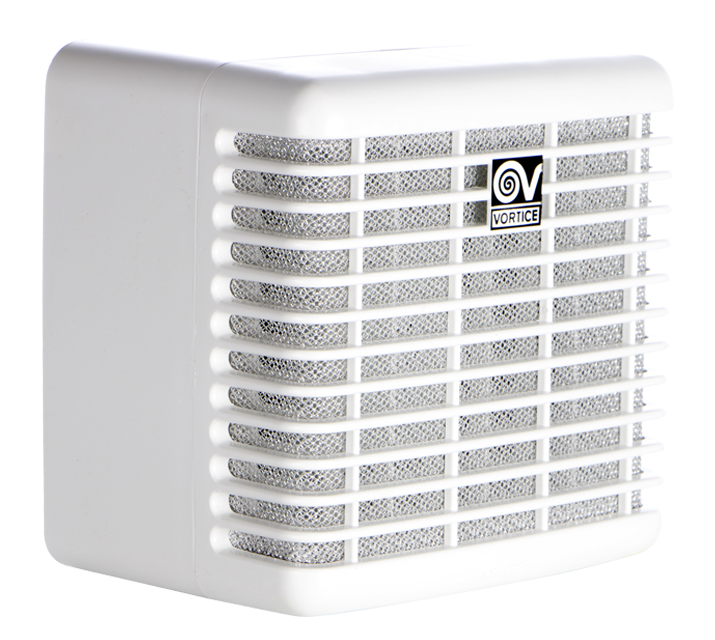

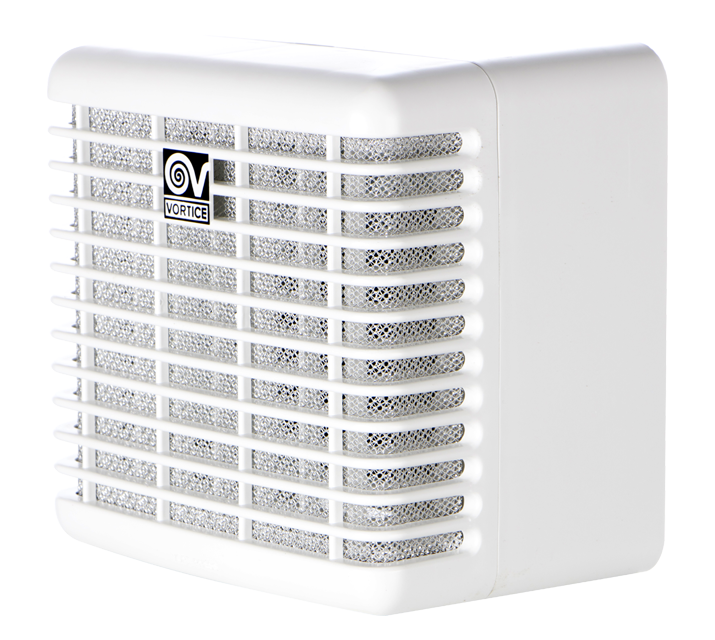

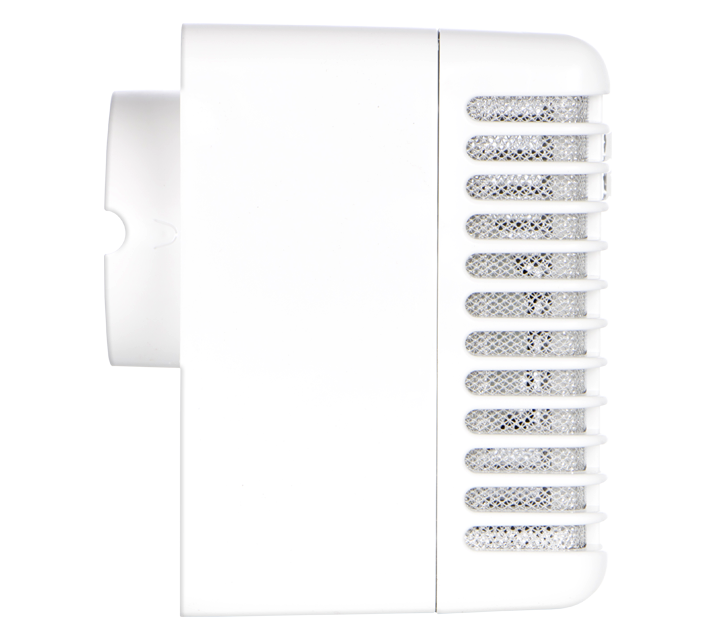

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm
• 2 speed motor with shaft turning in ball bearings, coupled to a forward-bladed centrifugal impeller.
• Minimum air flow: 55 m3/h
Maximum air flow: 110 m3/h
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.
• Removable and washable metal mesh filter (dishwasher safe).
• Closure with silicone diaphragm designed to prevent backdraughts when the appliance is off.
• Vertical outlet port supplied as standard with spigot positionable horizontally by means of diverter.

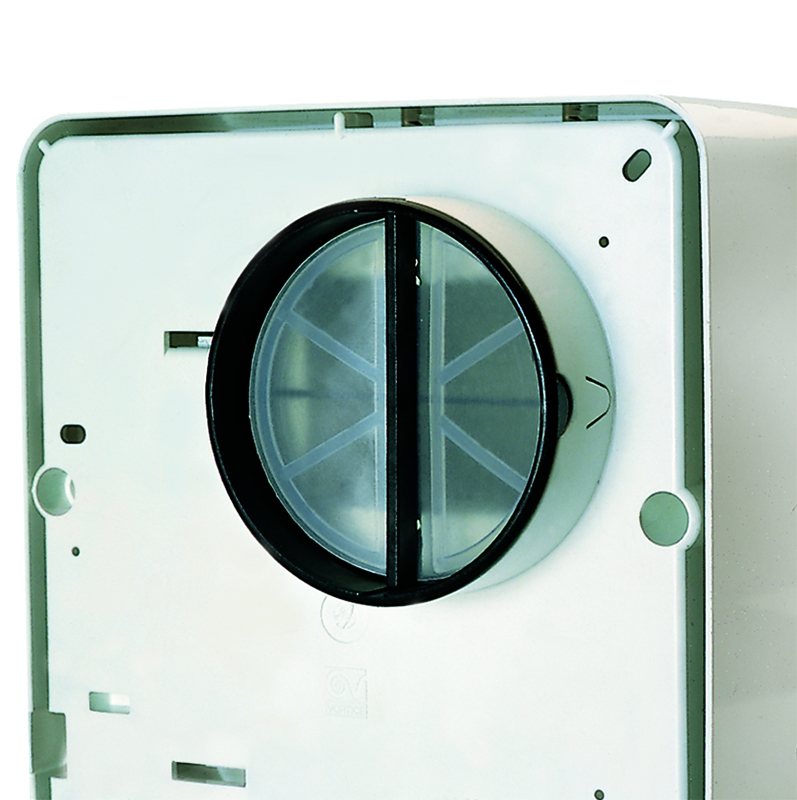

• Outlet port equipped with non-return damper.
• IMQ SAFETY and IMQ PERFORMANCE certifications
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed power 1st speed (W)
    12
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    40
  • Max. absorbed Current at max. speed (A)
    0,22
  • Max. absorbed Current at min. speed (A)
    0,07
  • Max. absorbed power at max speed (W)
    24
  • Nominal Diameter (mm)
    100
  • Ø Discharge Hole (mm)
    97
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,95
  • Delivery 1st speed (l/s)
    15,3
  • Delivery 1st speed (m³/h)
    55
  • Max delivery at max speed (l/s)
    30,6
  • Max delivery at max speed (m³/h)
    110
  • Pressure - 1st speed (mmH20)
    10
  • Pressure - 1st speed (Pa)
    98
  • Pressure max - max speed (mmH20)
    16
  • Pressure max - max speed (Pa)
    157
  • RPM max
    1760
  • RPM min
    925
  • Sound pressure level Lp [dB (A)] 3m - max speed
    41
  • Sound pressure level Lp [dB (A)] 3m - min speed
    30
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -2,7
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -16,0
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    5,0
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    109
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    29,0
  • Sound power level LWA [dB(A)]
    62
  • Reference flow rate [m3/s]
    0,0212
  • Reference pressure difference [Pa]
    95
  • SPI [W/(m3/h)]
    0,32765
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    451
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632

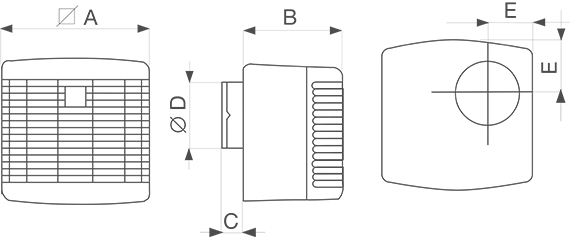

  • Size A (mm)
    202
  • Size B (mm)
    147
  • Size C (mm)
    30
  • Size D (mm)
    Ø 97
  • Size E (mm)
    73
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.

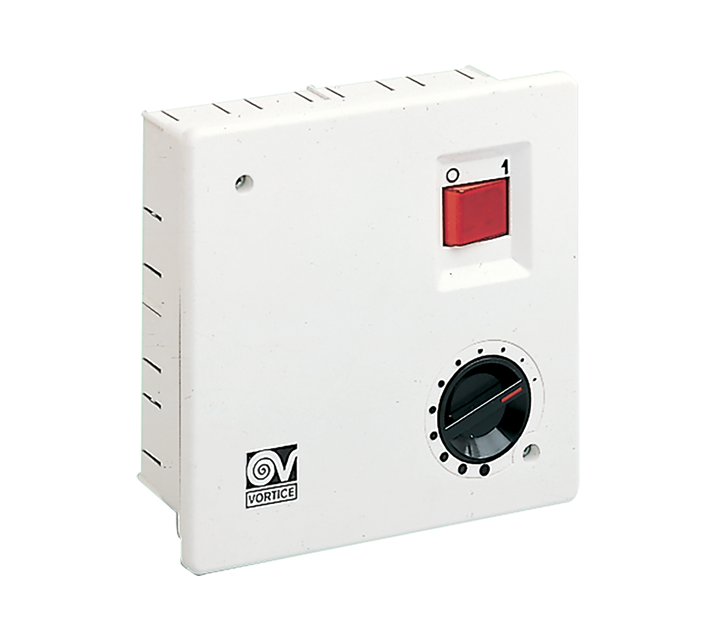

SCNRB SCAT.COM.NON REV.INCASSO
