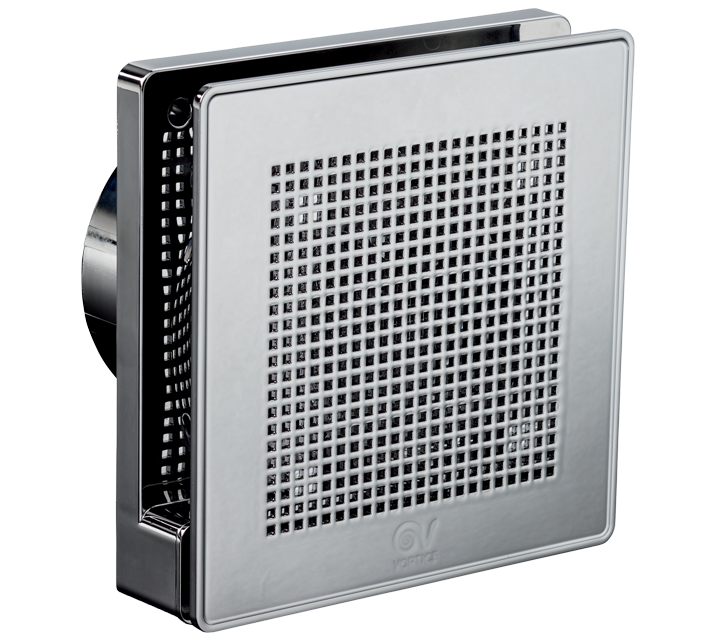

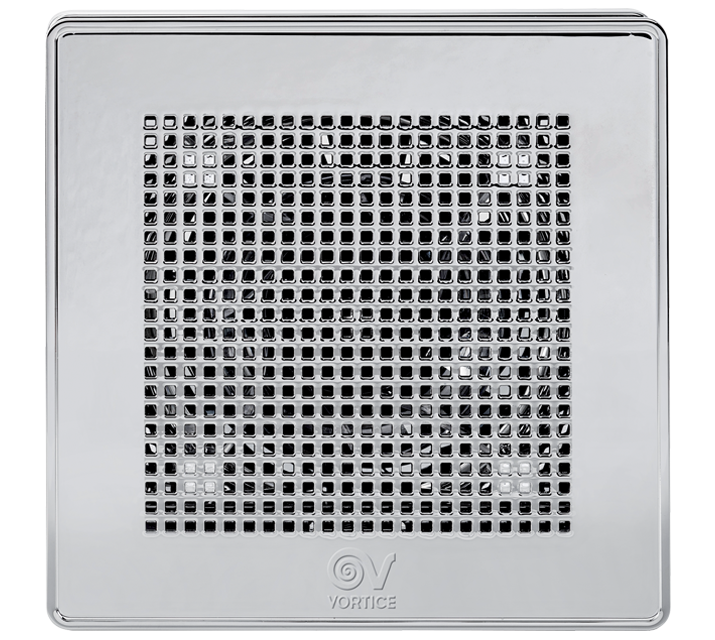

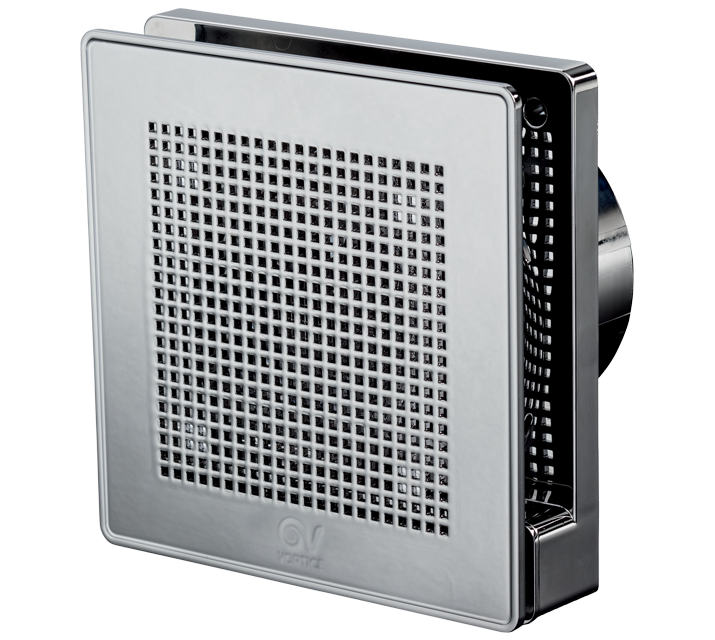

Description

• Material: WHITE GOLD UV resistant plastic (prevents ageing caused by exposure to sunlight), with colouring obtained by way of treatment using nano technologies.
• Nominal diameter 100 mm.
• Motor protected against thermal overload, with shaft turning in ball bearings; 2 operating speeds controlled electronically from pcb.
• Air flow between 65 m3/h and 95 m3/h.
• Equipped with non-return damper preventing unwanted backdraught when the fan is off.
• IMQ safety and IMQ Performance certifications.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed power 1st speed (W)
    5
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    45
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,052
  • Max. absorbed Current at min. speed (A)
    0,039
  • Max. absorbed power at max speed (W)
    9
  • Nominal Diameter (mm)
    100
  • Voltage (V)
    230
  • Weight (Kg)
    0,6
  • Delivery 1st speed (l/s)
    18,1
  • Delivery 1st speed (m³/h)
    65
  • Max delivery at max speed (l/s)
    26,4
  • Max delivery at max speed (m³/h)
    95

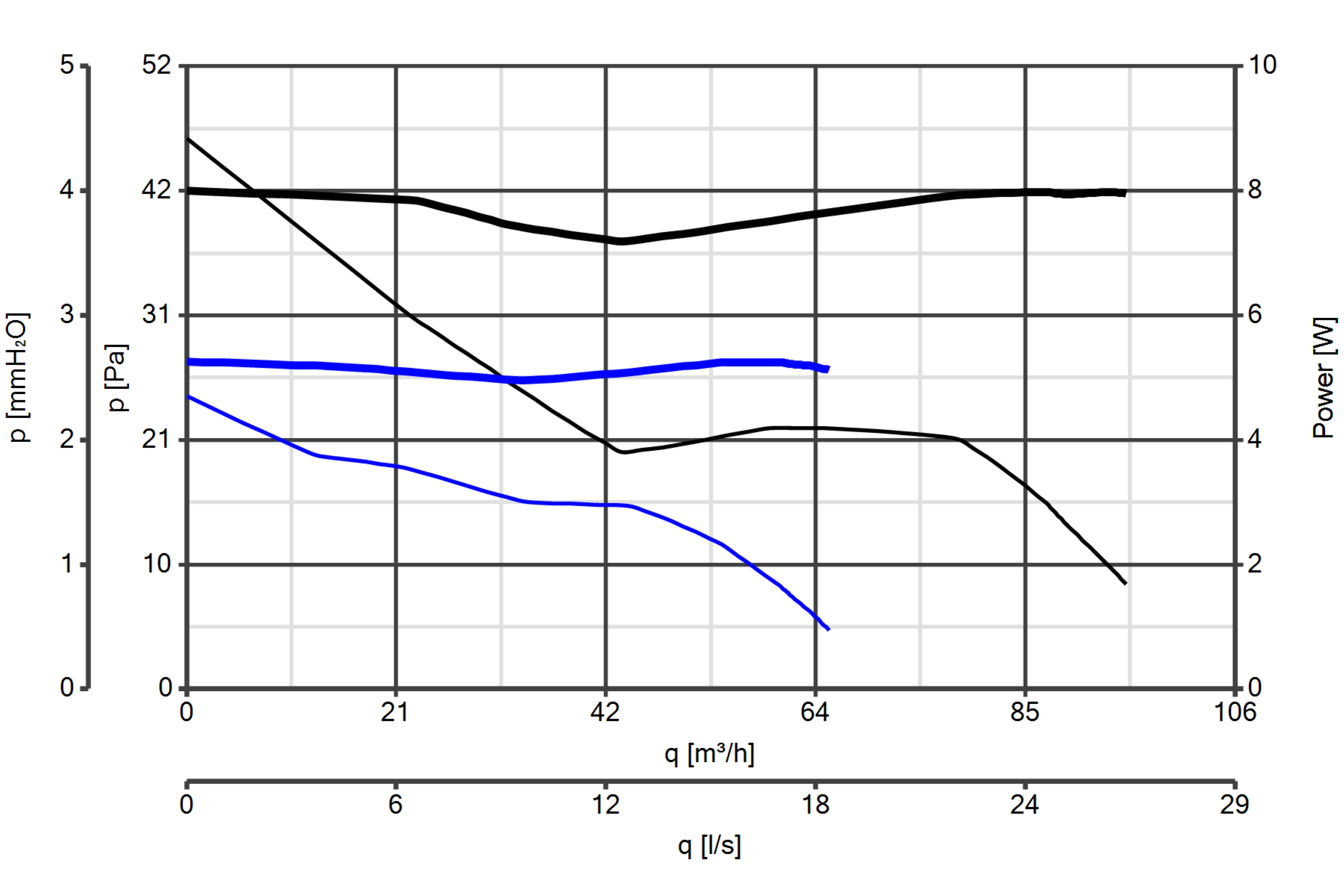

  • Pressure - 1st speed (mmH20)
    2,5
  • Pressure - 1st speed (Pa)
    24,52
  • Pressure max - max speed (mmH20)
    4,7
  • Pressure max - max speed (Pa)
    46,09
  • RPM max
    2240
  • RPM min
    1700
  • Sound power Lw [dB(A)] - min speed
    41,3
  • Sound power Lw [dB(A)] - max speed
    47,4
  • Sound pressure level Lp in free field [dB(A)] 3 m max speed
    26,9
  • Sound pressure level Lp in free field [dB(A)] 3 m min speed
    20,8
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption class SEC in average climate zone
    NA
  • Specific Energy Consumption class SEC average [kWh/m2a]
    -9,9
  • Specific Energy Consumption class SEC cold [kWh/m2a]
    -23,2
  • Specific Energy Consumption class SEC warm [kWh/m2a]
    -2,2
  • Declared typology
    UVR-U: unidirezionale
  • Type of drive
    NA
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference air flow [%]
    NA
  • Maximum flow rate [m3/h]
    93
  • Electric power input of the fan drive, including any motor control equipment, at maximum flow rate [W]
    8,1
  • Sound power level LWA [dB(A)]
    68
  • Reference flow rate [m3/s]
    0,0181
  • Reference pressure difference [Pa]
    22
  • SPI [W/(m3/h)]
    0,11828
  • Control factor CTRL
    1
  • Control typology
    manuale
  • Maximum internal leakage rates [%]
    NA
  • Maximum external leakage rates [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/a]
    163
  • AHS average Annual heating saved [kWh primary energy/a]
    1397
  • AHS cold Annual heating saved [kWh primary energy/a]
    2732
  • AHS warm Annual heating saved [kWh primary energy/a]
    632

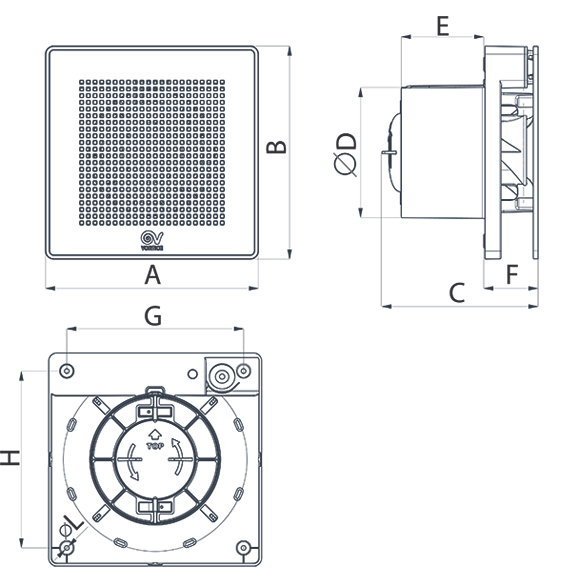

  • Size A (mm)
    159
  • Size B (mm)
    159
  • Size C (mm)
    116,5
  • Size D (mm)
    ø 98
  • Size E (mm)
    61,5
  • Size F (mm)
    40,5
  • Size G (mm)
    132
  • Size H (mm)
    132
  • Size L (mm)
    ø 3,5
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.
