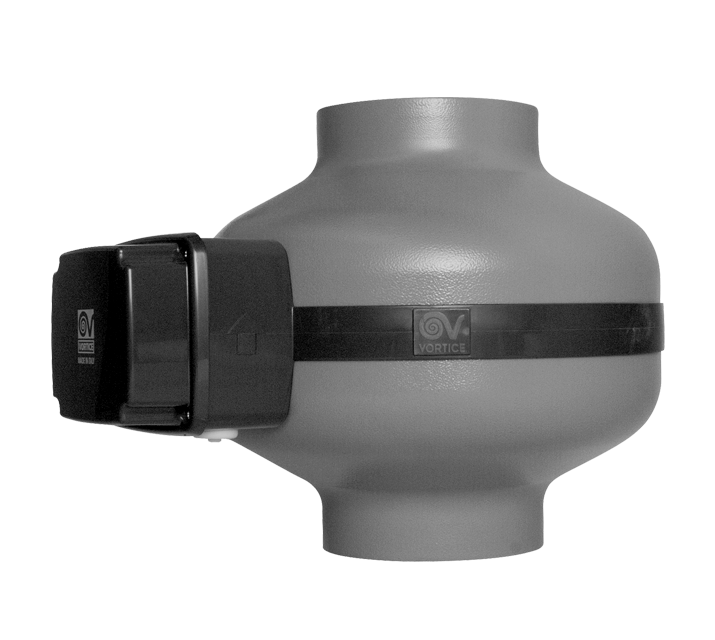

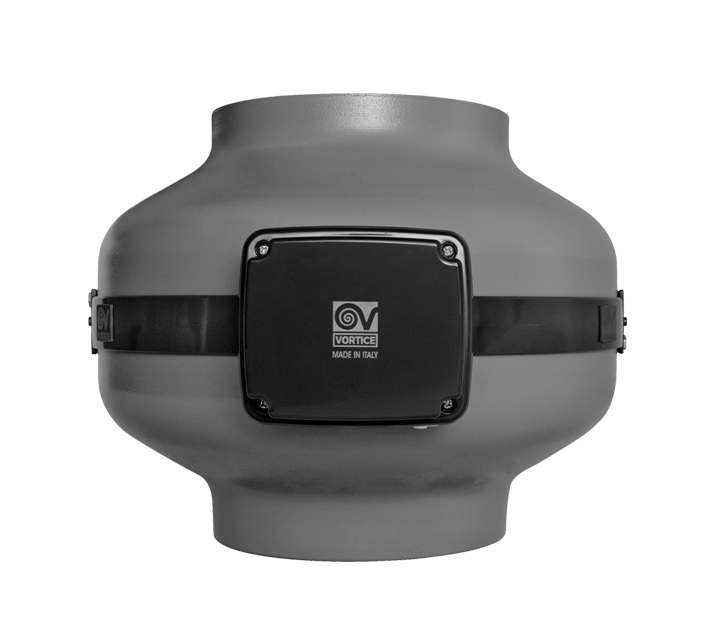

Description

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant against aggressive atmospheric agents.
• Nominal diameter: 200 mm
• High efficiency ES (brushless) motor coupled to a backward impeller.
• Possibility of connection to remote sensors.
• Zinc-coated steel brackets for wall mounting, supplied as standard.
• A dedicated dip-switch allows to choice:
o 2 speed product functioning, settable during the installation and adjustable through optional two-speed switch,
o 1 speed product functioning, adjustable through 0-10V signal potentiometer (supplied as optional).
Read full descriptionClose description

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    44
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal Current at max speed (A)
    1
  • Nominal Current at min speed (A)
    0,05
  • Nominal Diameter (mm)
    200
  • Nominal Power at max speed (W)
    120
  • Nominal Power at min speed (W)
    3
  • Voltage (V)
    220-240
  • Weight (Kg)
    6
  • Delivery 1st speed (l/s)
    35
  • Delivery 1st speed (m³/h)
    125
  • Max delivery at max speed (l/s)
    317
  • Max delivery at max speed (m³/h)
    1140
  • Pressure - 1st speed (mmH20)
    0,7
  • Pressure - 1st speed (Pa)
    7
  • Pressure max - max speed (mmH20)
    50
  • Pressure max - max speed (Pa)
    490
  • RPM max
    2280
  • RPM min
    300
  • Sound pressure level Lp in free field [dB(A)] 3 m max speed
    47,6
  • Supplier's name or trade mark
    Vortice
  • Declared typology
    UVNR-U
  • Type of drive
    con variatore di velocità: VSD
  • Type of heat recovery system HRS
    nessuno
  • SFPint [W/m3/s]
    51,37
  • Thermal efficiency of heat recovery [%]
    NA
  • Nominal NRVU flow rate [m3/s]
    0,142
  • Effective electic power input [kW]
    0,123
  • Face velocity at design flow rate [m/s]
    4,518
  • Nominal external pressure (?ps, ext) [Pa]
    238
  • Internal pressure drop of ventilation components (?ps,int) [Pa]
    15
  • Internal pressure drop of non-ventilation components (?ps,add) [Pa]
    0
  • Static efficiency of fans used in accordance with Regulation (EU) No 327/2011 [%]
    29,2
  • Declared maximum internal leakage rate of the casing of ventilation units [%]
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]
    3,8
  • Energy performance energy or classification of the filters
    NA
  • Description of visual filter warning
    NA
  • Casing sound power level (LWA) [dB(A)]
    NA

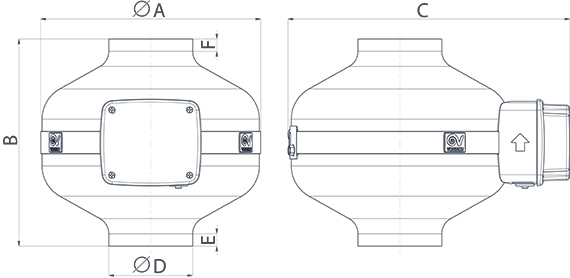

  • Size A (mm)
    ø 347
  • Size B (mm)
    275
  • Size C (mm)
    422
  • Size D (mm)
    ø 197
  • Size E (mm)
    20
  • Size F (mm)
    17
