Code 45279

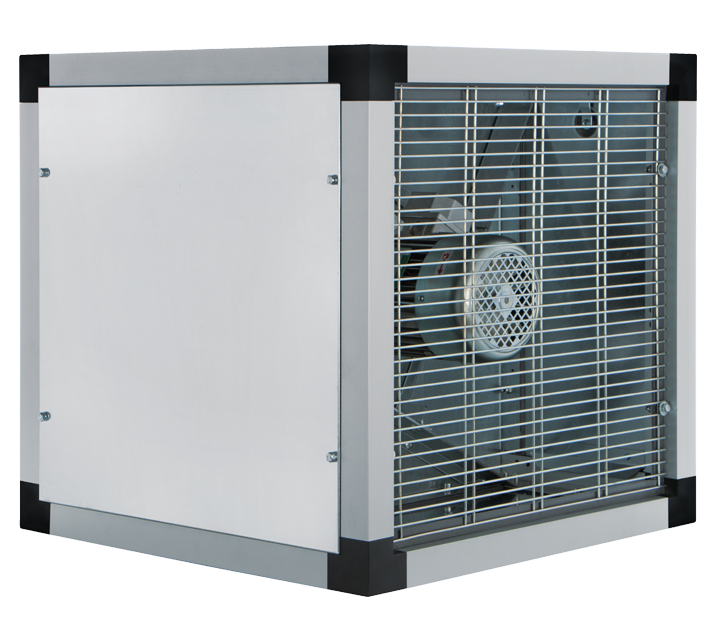

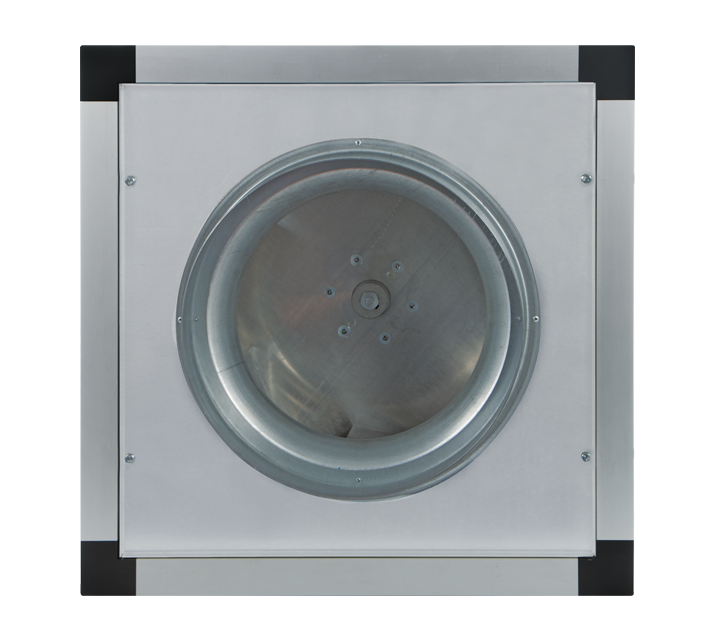

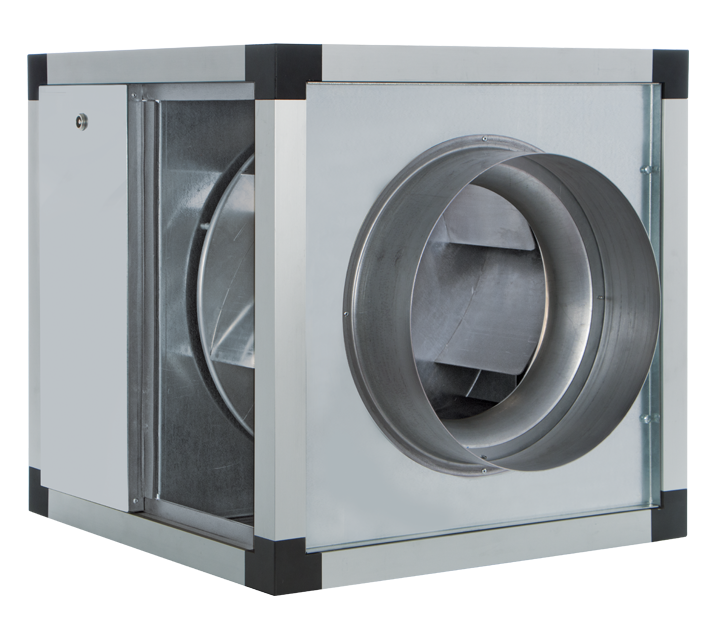

VORT QBK-SAL KC T 560

Cabinet fans designed to extract hot, humid and dirty air

Description

• Cabinet: frames made of aluminium profiles; sandwich panels made of zinc-coated, 0,6 mm thick steel plates, lined with 23 mm thick rockwool.
• Circular part of inlet.
• Rectangular outlet. A specific optional adapter allows connection to circular pipes.
• Nominal diameter 560 mm.
• Three-phase ball bearings AC motor, located outside the airflow and separated from the impeller by a metal panel.
• Backward curved centrifugal impeller, dynamically balanced (ISO 1940, 6.3 class).

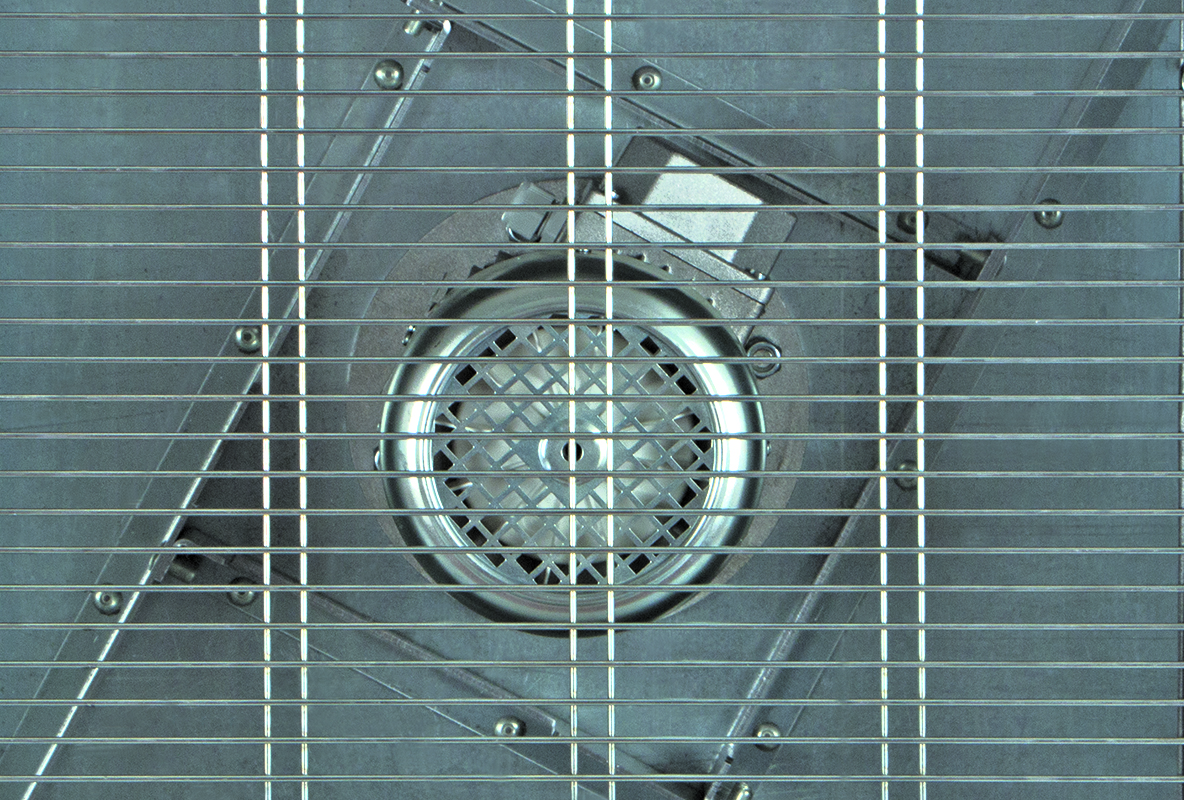

• Motor protection guard made of galvanised steel.

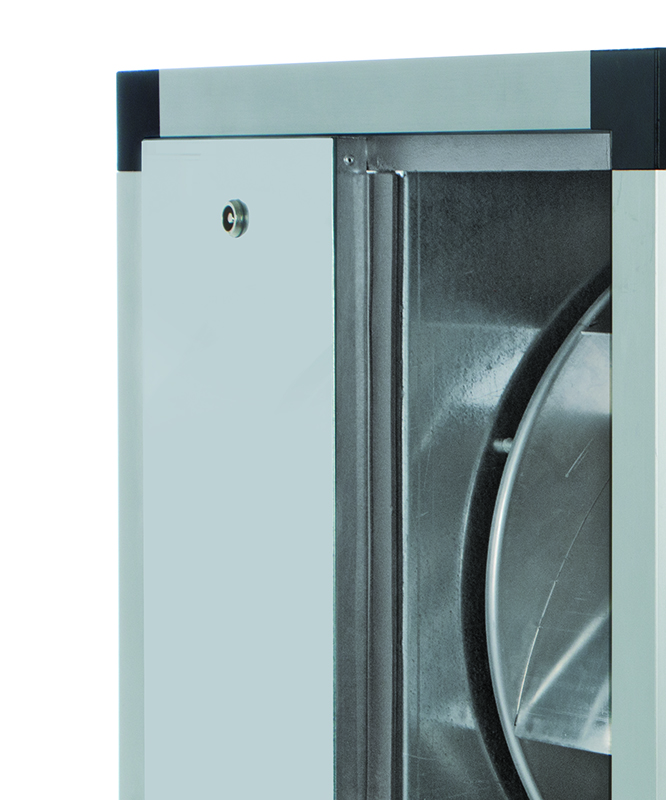

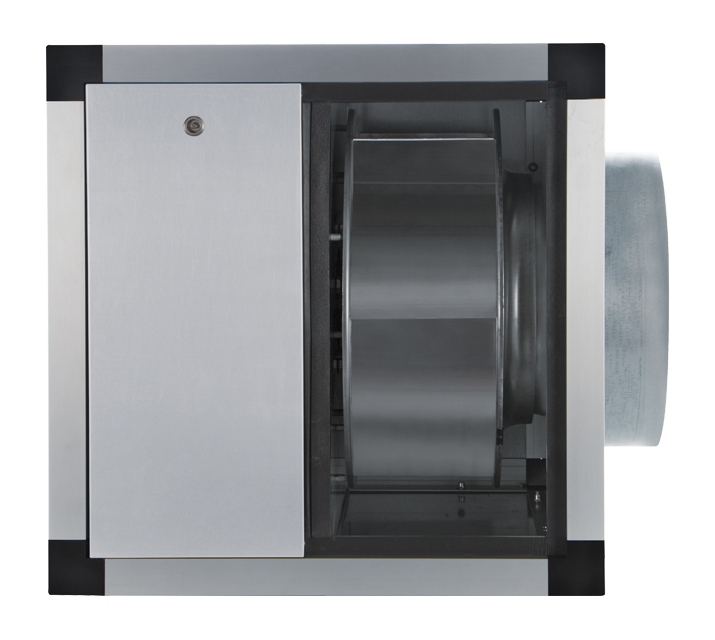

• Inspection panel with handle and triangular key.

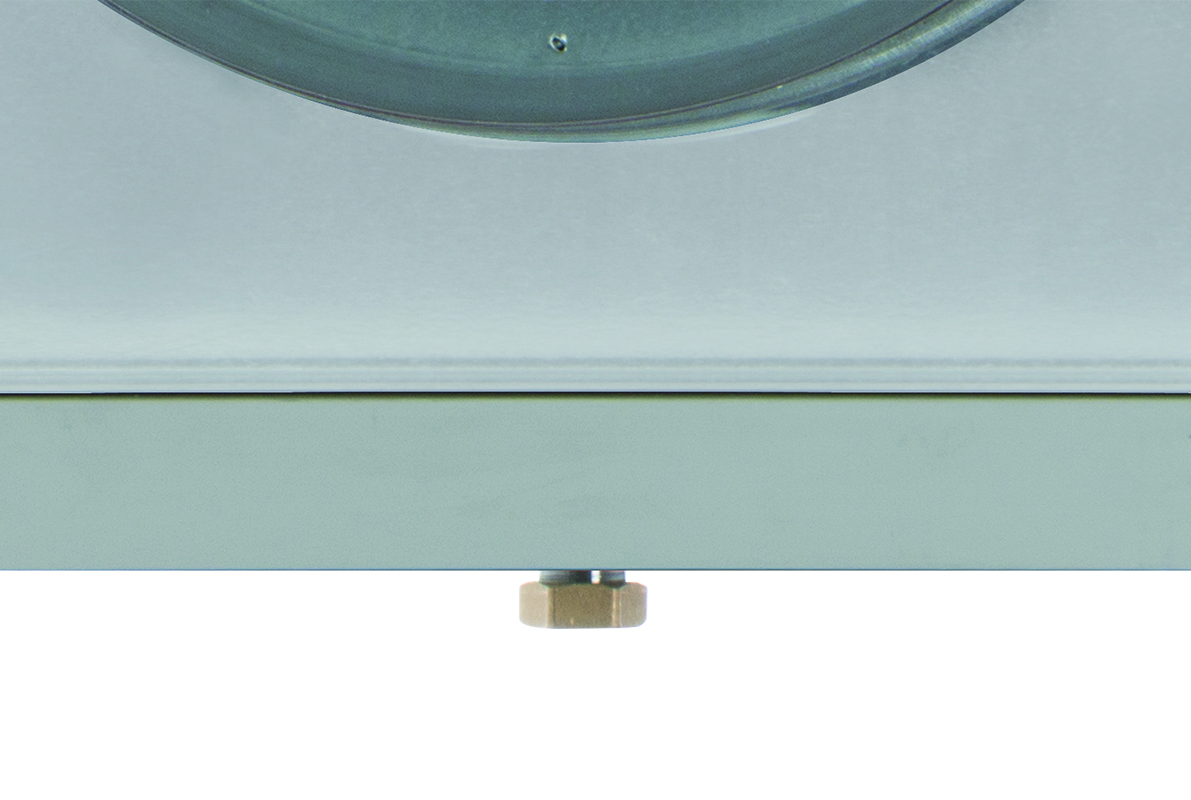

• Condensate tray made of galvanised steel with drain point and blank nut for draining.
• Temperature of extracted air up to 120°C.
• Maximum environment air temperature: 70 ° C (if controlled by IRT5 11 controller code 12857, the maximum temperature drops to 55 ° C).
• Speed adjustable through Vortice’s speed controllers.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current at 380 V (A)
    6.85
  • Absorbed Current at 415 V (A)
    6.87
  • Absorbed Power at 380 V (W)
    3520
  • Absorbed Power at 415 V (W)
    3630
  • Frequency (Hz)
    50
  • Insulation Class
  • IP
    55
  • Max ambient temperature for continuous operation (°C)
    50
  • Max Temperature of Exhaust Air (Continuous Operation)
    120
  • Motor Class
    H
  • Motor IP protection
    55
  • Nominal Diameter (mm)
    560
  • Number of Poles
    6
  • Voltage (V)
    380-415
  • Weight (Kg)
    100

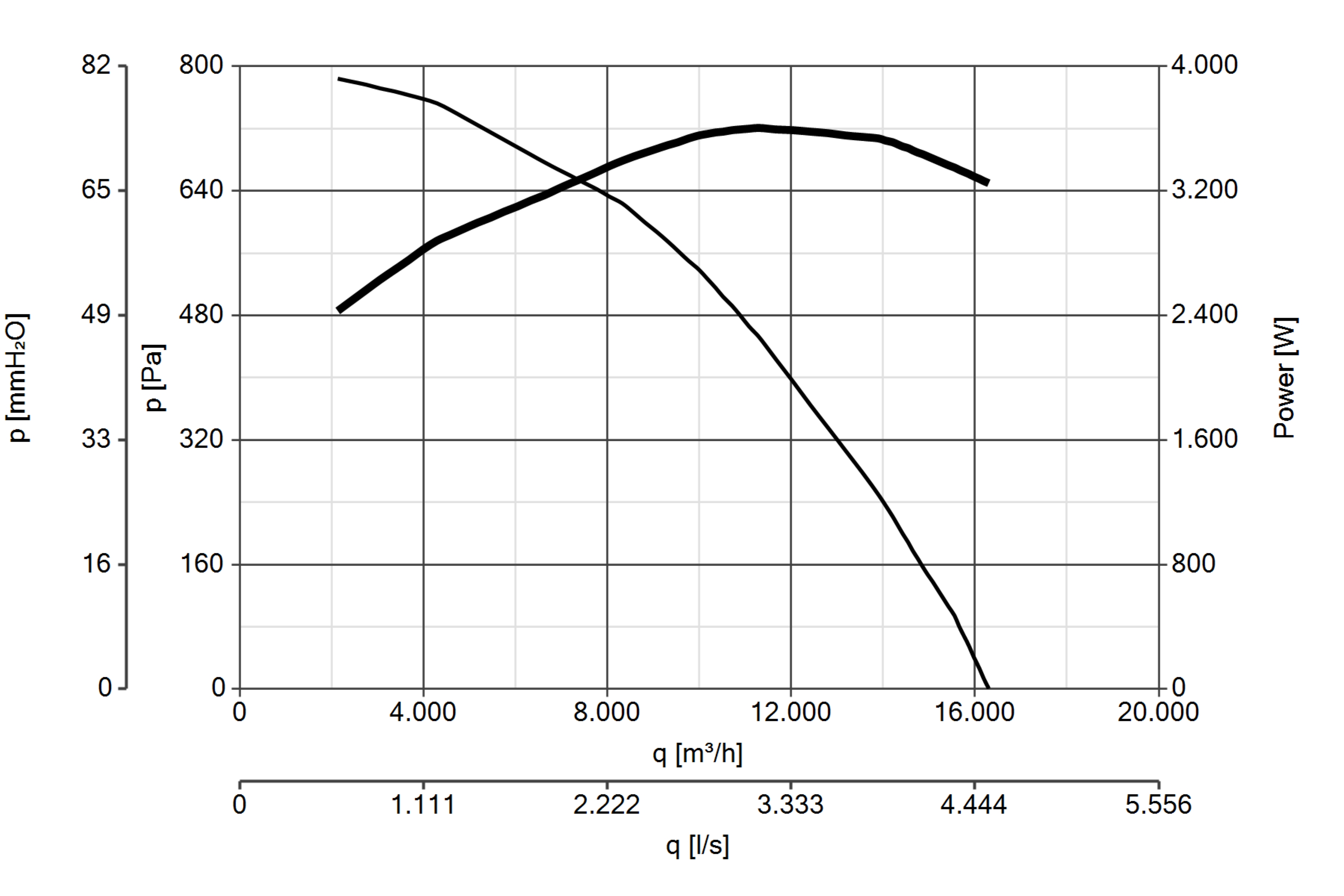

  • Delivery max (l/s)
    4500
  • Delivery max (m³/h)
    16300
  • Pressure max (mmH2O)
    80
  • Pressure max (Pa)
    785
  • RPM
    950
  • Sound power level Lw [dB(A)]
    86.2
  • Sound Pressure level Lp [dB (A)] 3m
    65.7

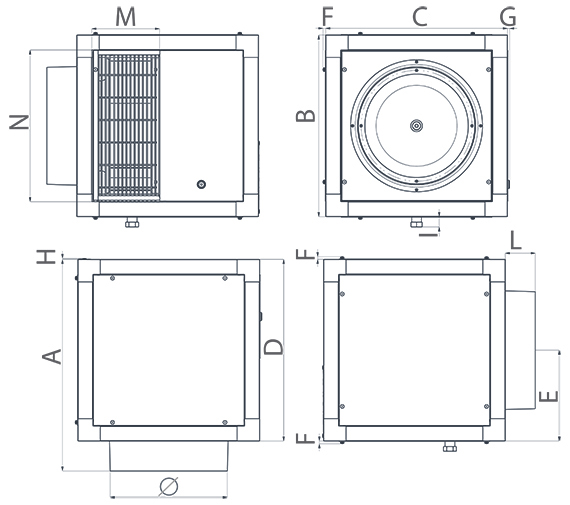

  • Size A (mm)
    1092
  • Size B (mm)
    1011
  • Size C (mm)
    1011
  • Size D (mm)
    1011
  • Size E (mm)
    505,5
  • Size F (mm)
    8
  • Size G (mm)
    6
  • Size H (mm)
    3
  • Size I (mm)
    28
  • Size L (mm)
    82
  • Size M (mm)
    408
  • Size N (mm)
    930
  • Size O (mm)
    Ø 498
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

TETTO PARAPIOGGIA 560
TETTO PARAPIOGGIA 560
TETTO PROTEZIONE SCARICO 560
TETTO PROTEZIONE SCARICO 560
IRET INVERTER 8 M
IRET INVERTER 8 M
POT
POT
Potentiometer for installation in Standard DIN box.
