Description

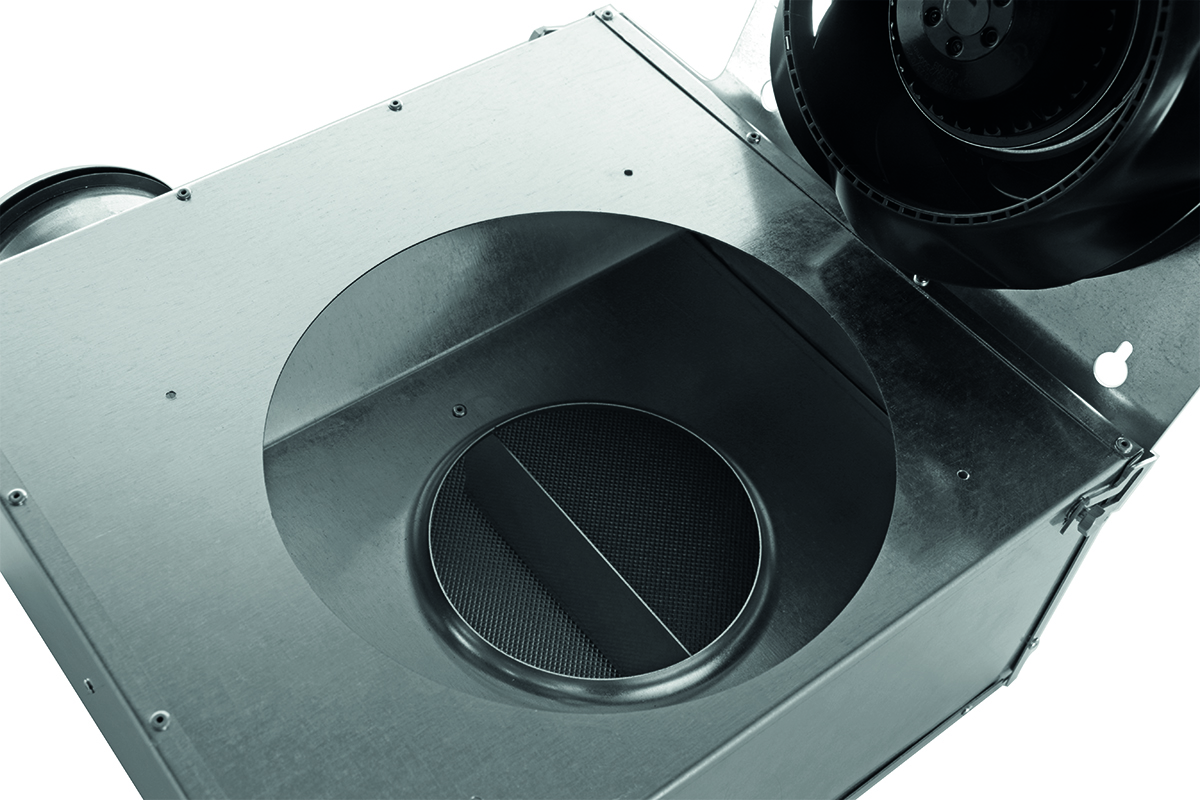

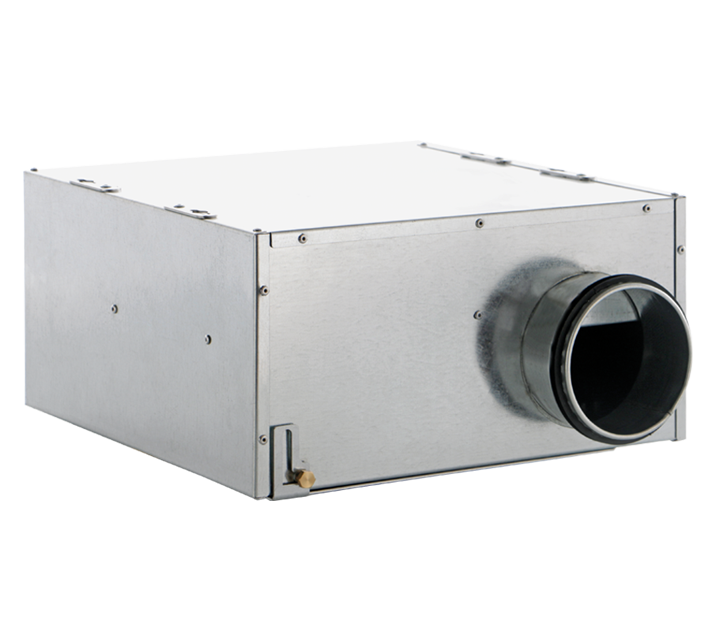

• Casing and motor-support made of galvanized sheet steel; lined internally with PE sound-proof panel (thickness 10 mm).
• Circular spigots for connection to standard tubes, equipped with double lip rubber seal for perfect air tightness.
• Nominal diameter: 100 mm.
• External rotor AC motorfan, with shaft turning in ball bearings, coupled to a backward curved centrifugal impeller.
• Galvanized steel sheet brackets, directly coupled to casing.
• Electric connection box accomodating capacitors, molded with shock-proof plastic resin resistant against aggressive agents, integrating cable cages and cable glands to ensure high protection (IP55) against dust and water.
• 3 alternative installation: wall, ceiling and false-ceiling.

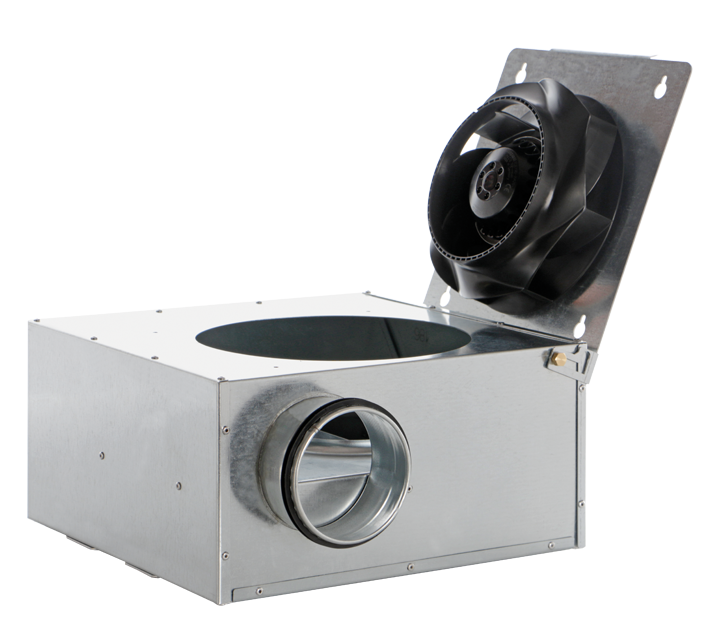

• Easy maintenance: motor is directly fixed to the cover, in turn hinged to the casing, allowing easy external rotation and motorfan direct access.
• Protection against dust and water: IP44.
• Electric insulation class: I (grounding is required).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation Class
  • Max ambient temperature for continuous operation (°C)
    40
  • Motor Class
    B
  • Motor IP protection
    44
  • Nominal Current at max speed (A)
    0,22
  • Nominal Current at min speed (A)
    0,16
  • Nominal Diameter (mm)
    100
  • Nominal Power at max speed (W)
    50
  • Nominal Power at min speed (W)
    18
  • Number of speeds
    3
  • Voltage (V)
    230
  • Weight (Kg)
    5,4

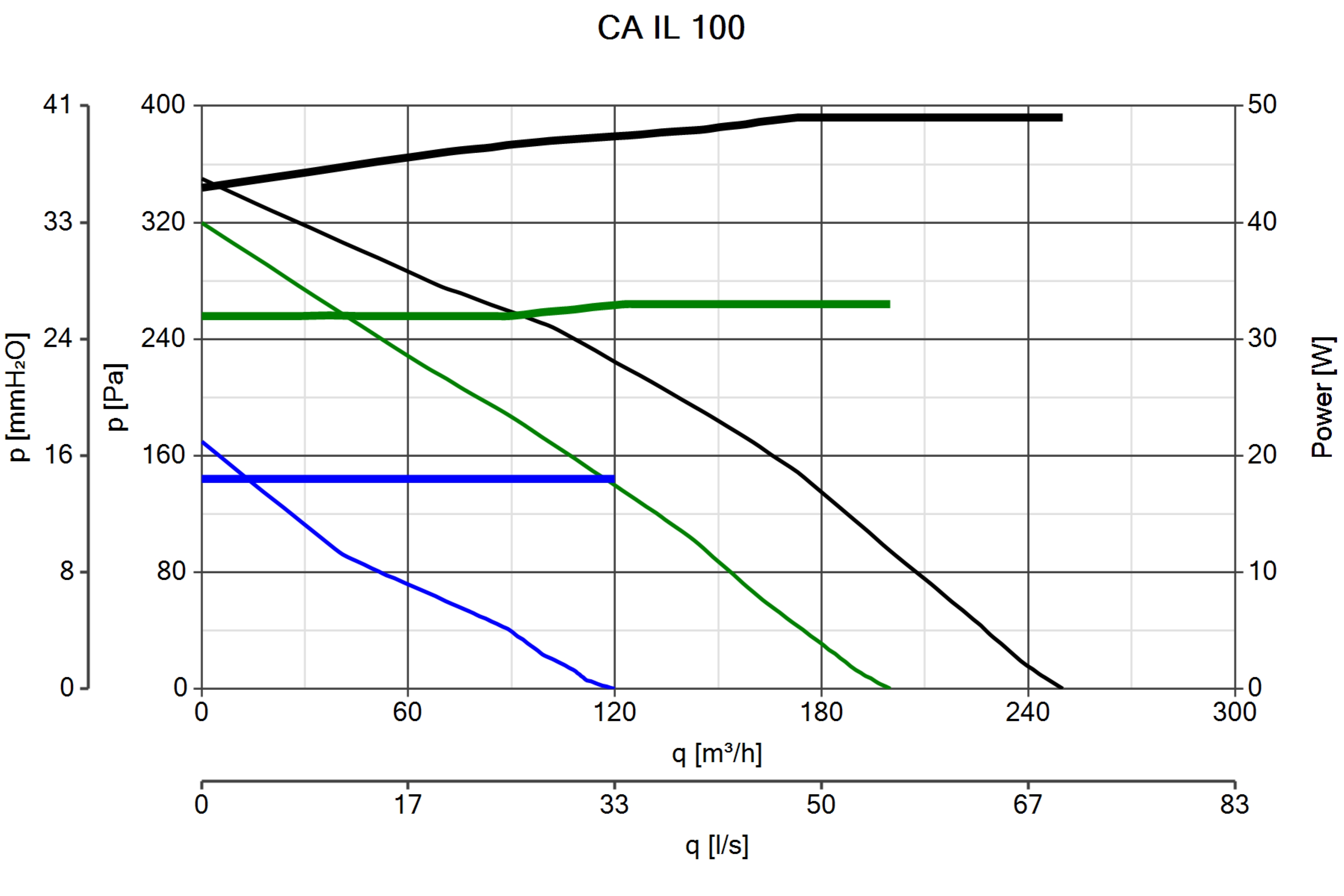

  • Delivery max (l/s)
    69
  • Delivery max (m³/h)
    250
  • Pressure max (mmH2O)
    35,7
  • Pressure max (Pa)
    350
  • Sound power level - radiated Lw [dB(A)]
    51
  • Sound power level exhaust inlet Lw [dB(A)]
    60
  • Sound power level supply outlet Lw [dB(A)]
    64
  • Supplier's name or trade mark
    Vortice
  • Supplier's name or trade mark:
    Vortice
  • Declared typology:
    UVNR-U
  • Declared typology
    UVNR-U
  • Type of drive
    a velocità multiple: VM
  • Type of drive:
    a velocità multiple: VM
  • Nominal NRVU flow rate [m3/s]
    0,0661
  • Portata nominale [m3/s]
    0,0661
  • Potenza elettrica assorbita effettiva [KW]
    0,050
  • Effective electic power input [kW]
    0,050
  • SFPint [W/m3/s]
    690,92
  • SFPint [W/m3/s]
    690,92
  • Face velocity at design flow rate [m/s]:
    8,417
  • Face velocity at design flow rate [m/s]
    8,417
  • Nominal external pressure (?ps, ext) [Pa]
    19
  • Pressione esterna nominale (?ps, ext) [Pa]
    19
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    200
  • Internal pressure drop of ventilation components (?ps,int) [Pa]
    200
  • Internal pressure drop of non-ventilation components (?ps,add) [Pa]
    0
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    0
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    29
  • Static efficiency of fans used in accordance with Regulation (EU) No 327/2011 [%]
    29
  • Declared maximum internal leakage rate of the casing of ventilation units [%]
    NA
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]
    NA
  • Energy performance energy or classification of the filters
    NA
  • Energy performance energy or classification of the filters:
    NA
  • Description of visual filter warning:
    NA
  • Description of visual filter warning
    NA
  • Casing sound power level (LWA) [dB(A)]:
    51
  • Casing sound power level (LWA) [dB(A)]
    51

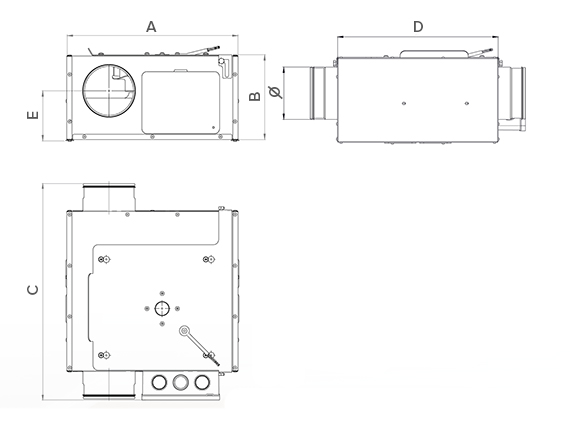

  • Diametro Ø (mm)
    100
  • Size A (mm)
    327
  • Size B (mm)
    163
  • Size C (mm)
    411,5
  • Size D (mm)
    307
  • Size E (mm)
    94
