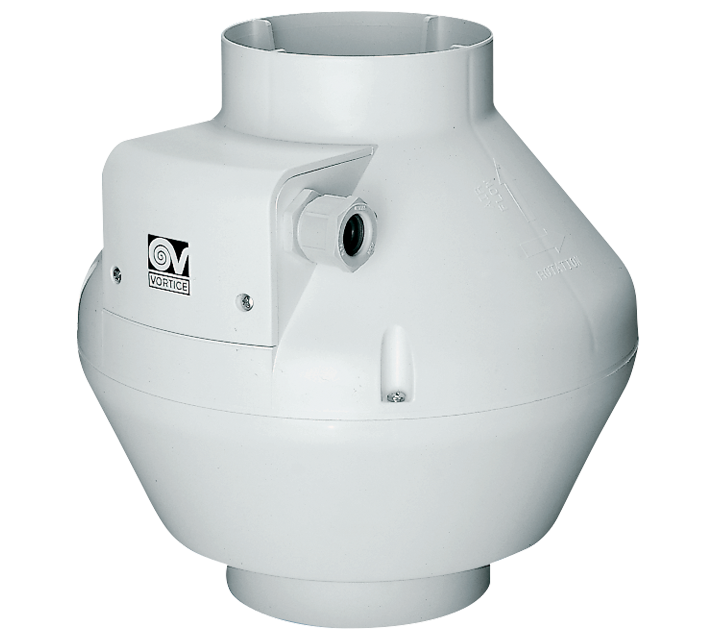

Description

• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 200 mm.
• 3 speed fan through TRIO-CA optional control (cod. 12869), consisting of:

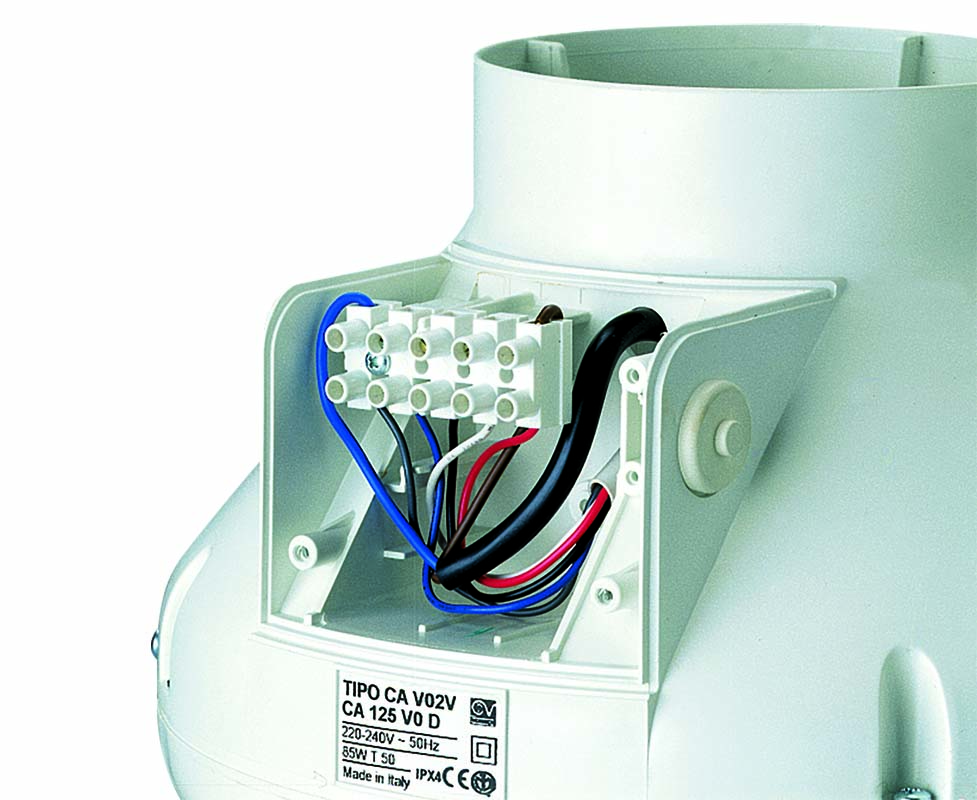

• AC motor with thermal overload cutout and shaft turning in ball bearings,

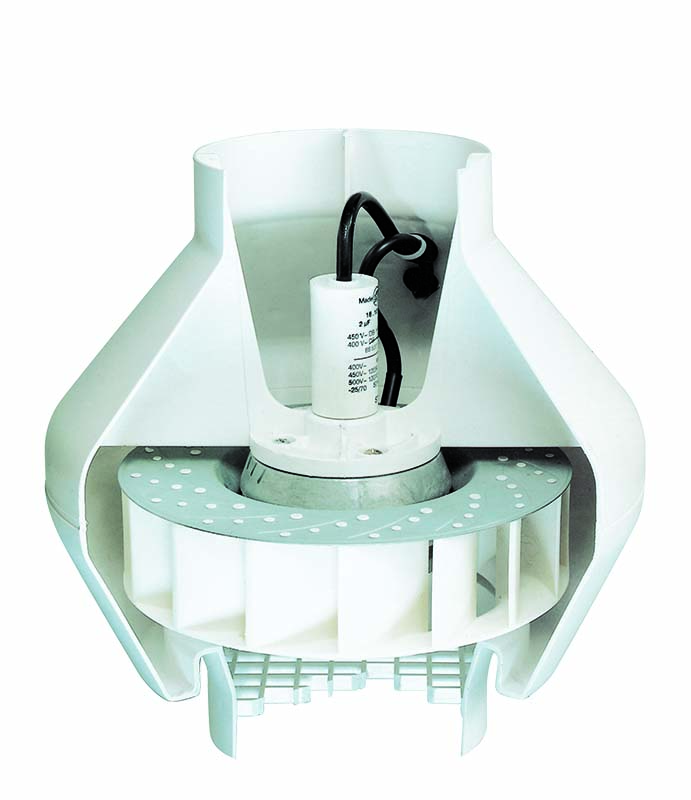

• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.

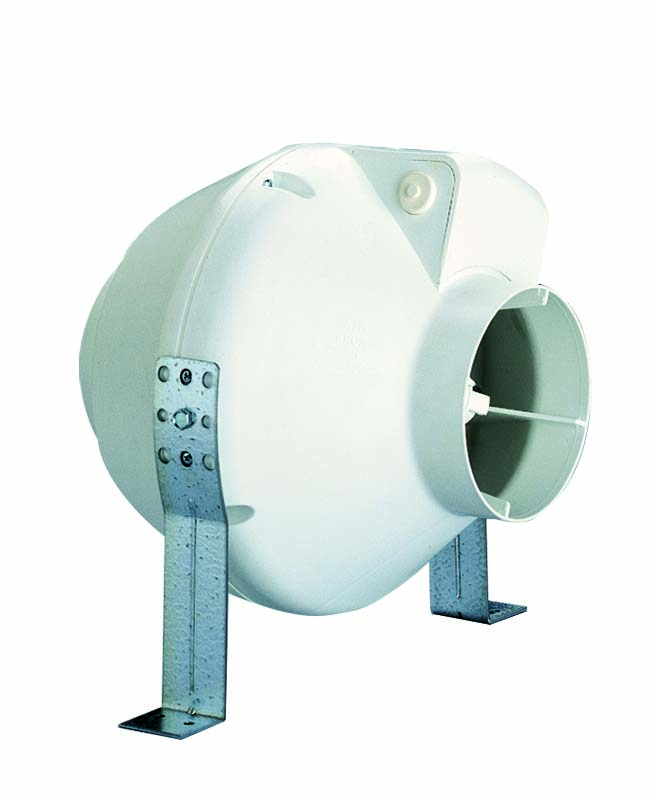

• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • IMQ Performance IMQ Performance
  • C Tick Mark C Tick Mark
  • EAC EAC

Technical Data Sheet

  • Absorbed Current max (A)
    0,45
  • Absorbed power 1st speed (W)
    35
  • Absorbed Power max (W)
    104
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • IP
    44
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at min. speed (A)
    0.35
  • Nominal Diameter (mm)
    200
  • Ø Discharge Hole (mm)
    197
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,1

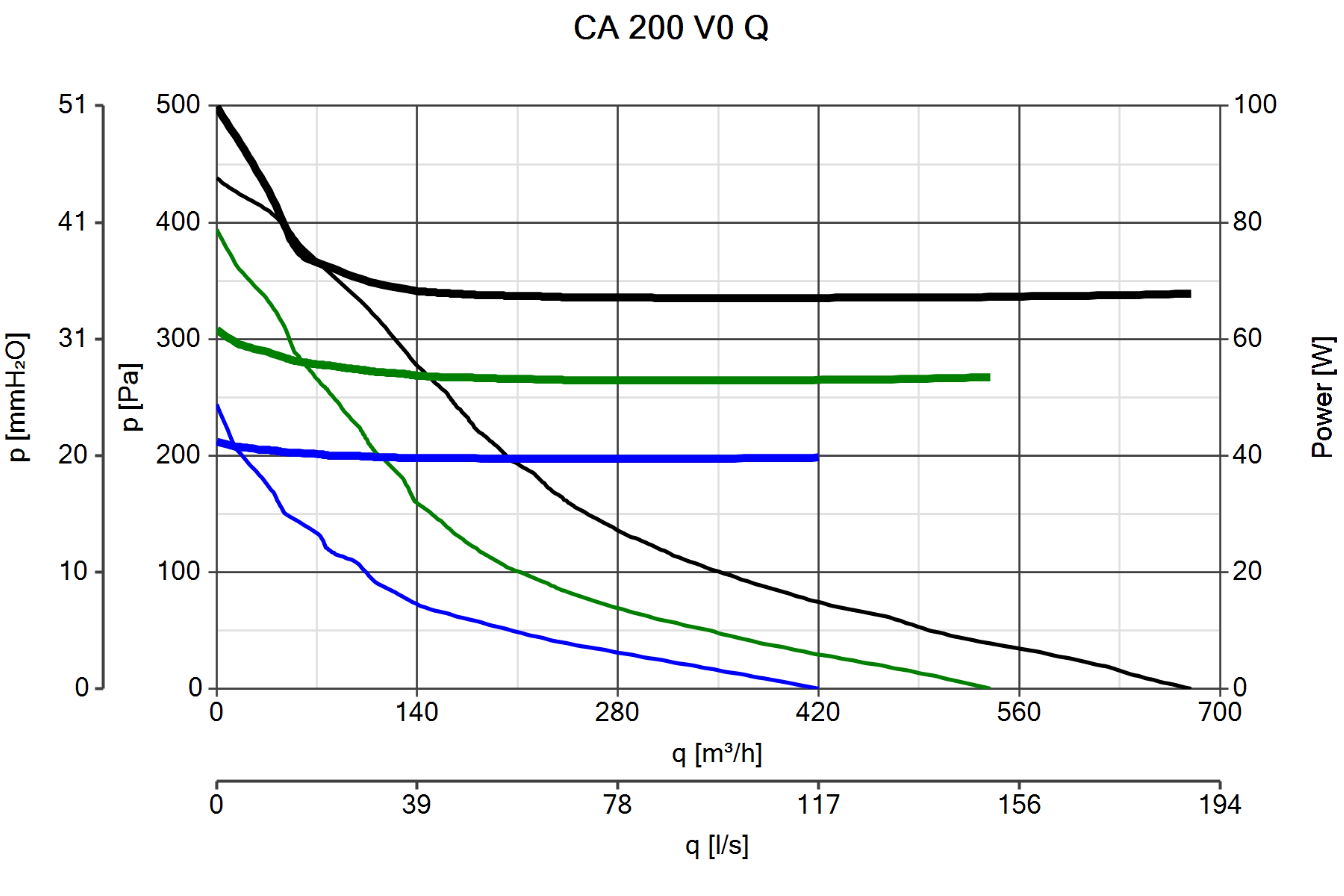

  • Delivery 1st speed (l/s)
    87
  • Delivery 1st speed (m³/h)
    310
  • Max delivery at max speed (l/s)
    224
  • Max delivery at max speed (m³/h)
    805
  • Pressure - 1st speed (mmH20)
    22
  • Pressure - 1st speed (Pa)
    215
  • Pressure max - max speed (mmH20)
    44,7
  • Pressure max - max speed (Pa)
    438
  • RPM max
    2355
  • Sound pressure level Lp [dB (A)] 3m - max speed
    59
  • Type of heat recovery system HRS:
    nessuno
  • Type of drive:
    a velocità multiple: VM
  • Declared typology:
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint [W/m3/s]
    349,48
  • Efficienza termica del recupero di calore [%]
    NA
  • Portata nominale [m3/s]
    0,21333
  • Potenza elettrica assorbita effettiva [KW]
    0,099
  • Face velocity at design flow rate [m/s]:
    6,7906
  • Pressione esterna nominale (?ps, ext) [Pa]
    36,3
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    147
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    0
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    31,7
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    0,7
  • Energy performance energy or classification of the filters:
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level (LWA) [dB(A)]:
    80

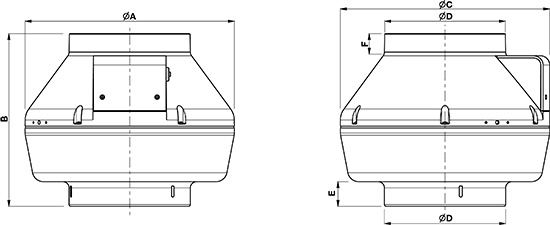

  • Size A (mm)
    340
  • Size B (mm)
    280
  • Size C (mm)
    340
  • Size D (mm)
    197
  • Size E (mm)
    40
  • Size F (mm)
    30
  • Size G (mm)
    390
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
CA-MU  (STAFFE DI SOSTEGNO)
CA-MU (STAFFE DI SOSTEGNO)
• Galvanized sheet-metal brackets for wall or ceiling mounting. Complete in packs of 2.
TRIO-CA
TRIO-CA
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
C 2.5 (COMANDO EL. 2.5 A)
C 2.5 (COMANDO EL. 2.5 A)
• Electronic speed controller.
• Maximum load 2.5 A.
