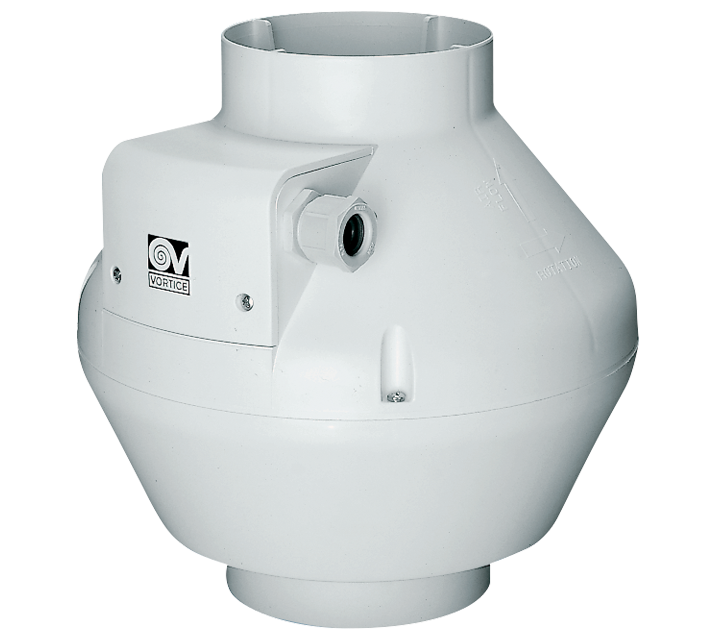

Description

• Material: self-extinguishing PP thermoplastic resin, rated V0.
• Nominal diameter 315 mm.

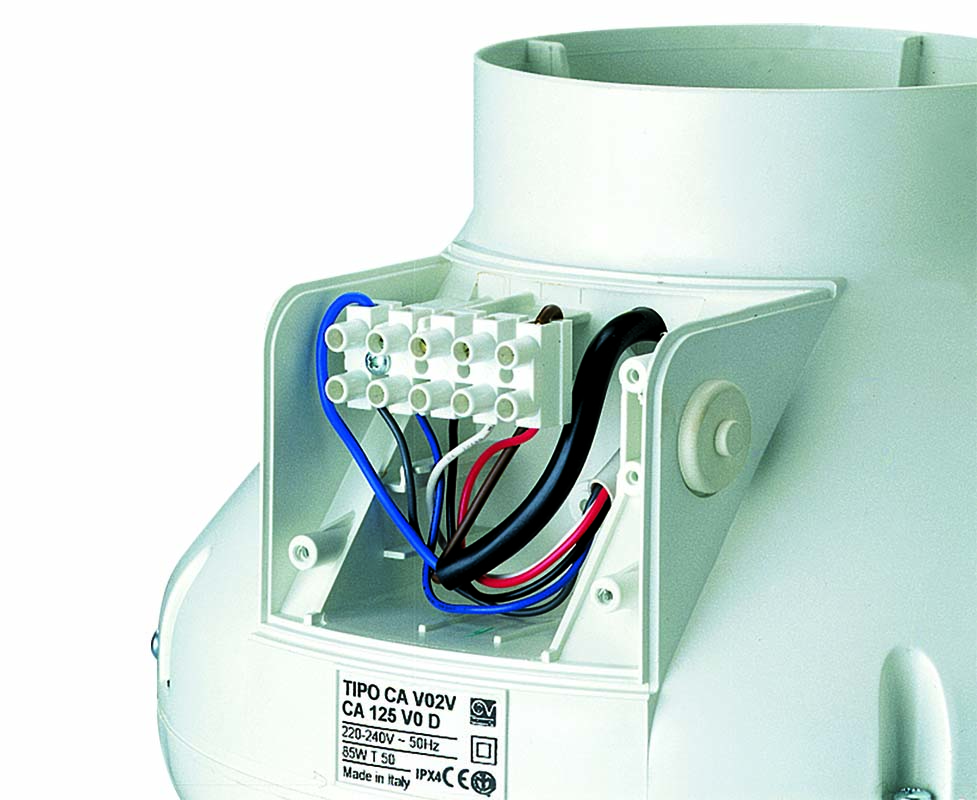

• 3 speed fan through TRIO-CA optional control (cod. 12869), consisting of:
• AC motor with thermal overload cutout and shaft turning in ball bearings,

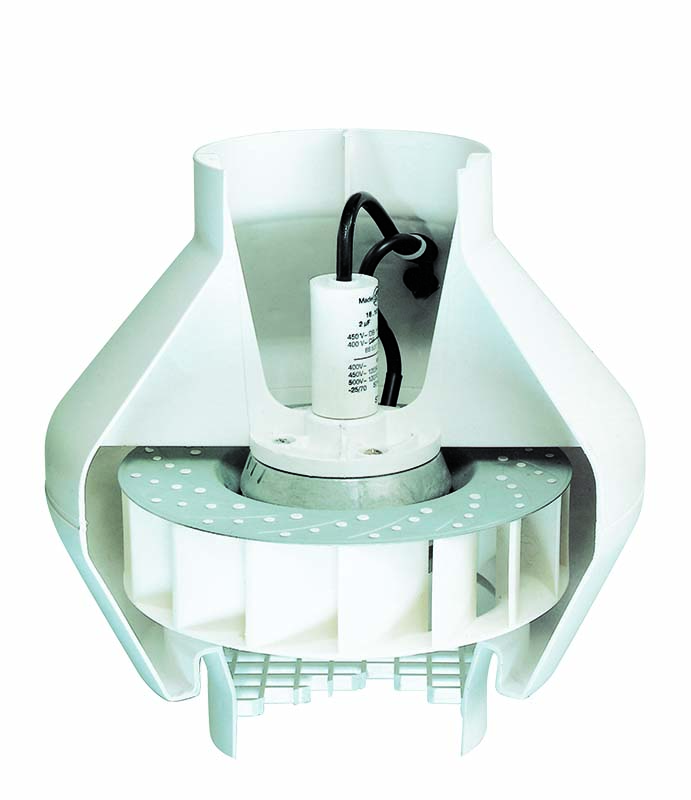

• backward curved impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.

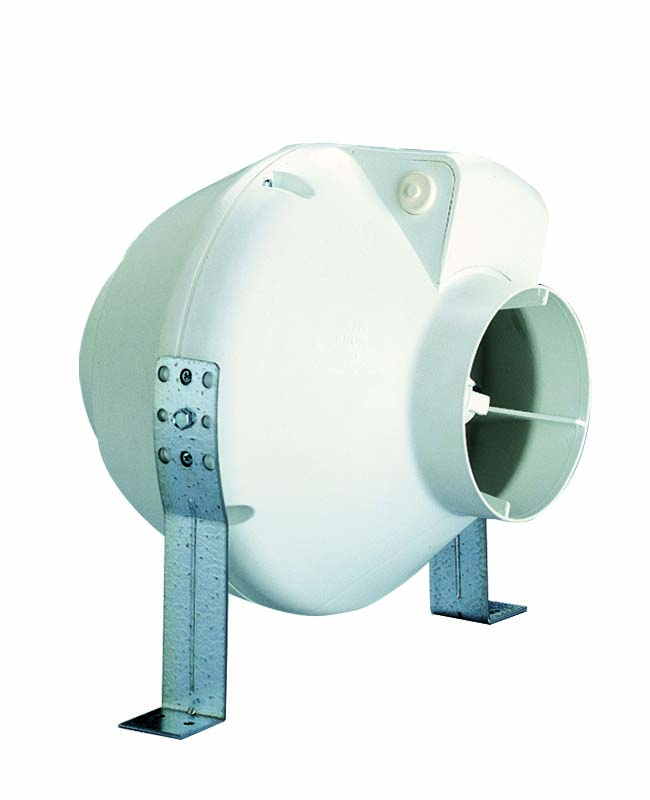

• Zinc-coated steel brackets for wall mounting.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • IMQ Performance IMQ Performance
  • EAC EAC
  • G-Mark G-Mark

Technical Data Sheet

  • Absorbed Current max (A)
    0,54
  • Absorbed power 1st speed (W)
    48
  • Absorbed Power max (W)
    120
  • Frequency (Hz)
    50/60
  • Insulation Class
    II°
  • IP
    44
  • Max absorbed Power at 60Hz (W)
    185
  • Max ambient temperature for continuous operation (°C)
    55
  • Max. absorbed Current at min. speed (A)
    0.48
  • Nominal Diameter (mm)
    315
  • Voltage (V)
    220-240
  • Weight (Kg)
    5,5
  • Delivery 1st speed (l/s)
    146.3
  • Delivery 1st speed (m³/h)
    527
  • Max delivery at max speed (l/s)
    305.5
  • Max delivery at max speed (m³/h)
    1100
  • Pressure - 1st speed (mmH20)
    27.5
  • Pressure - 1st speed (Pa)
    270
  • Pressure max - max speed (mmH20)
    56.6
  • Pressure max - max speed (Pa)
    554.7
  • RPM max
    2640
  • RPM min
    1280
  • Sound pressure level Lp [dB (A)] 3m - max speed
    54
  • Type of heat recovery system HRS:
    nessuno
  • Type of drive:
    a velocità multiple: VM
  • Declared typology:
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • SFPint [W/m3/s]
    131,5
  • Efficienza termica del recupero di calore [%]
    NA
  • Portata nominale [m3/s]
    0,2583
  • Potenza elettrica assorbita effettiva [KW]
    0,143
  • Face velocity at design flow rate [m/s]:
    3,3148
  • Pressione esterna nominale (?ps, ext) [Pa]
    147
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    193
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    0
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    34,9
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    0,5
  • Energy performance energy or classification of the filters:
    NA
  • Description of visual filter warning:
    NA
  • Casing sound power level (LWA) [dB(A)]:
    77

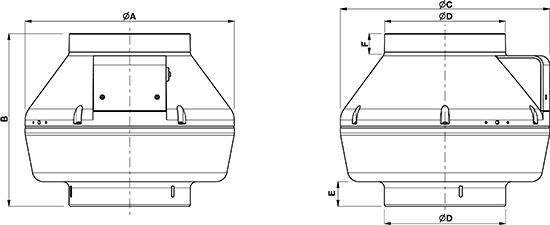

  • Size A (mm)
    400
  • Size B (mm)
    340
  • Size C (mm)
    400
  • Size D (mm)
    312
  • Size E (mm)
    75
  • Size F (mm)
    40
  • Size G (mm)
    438
