Description

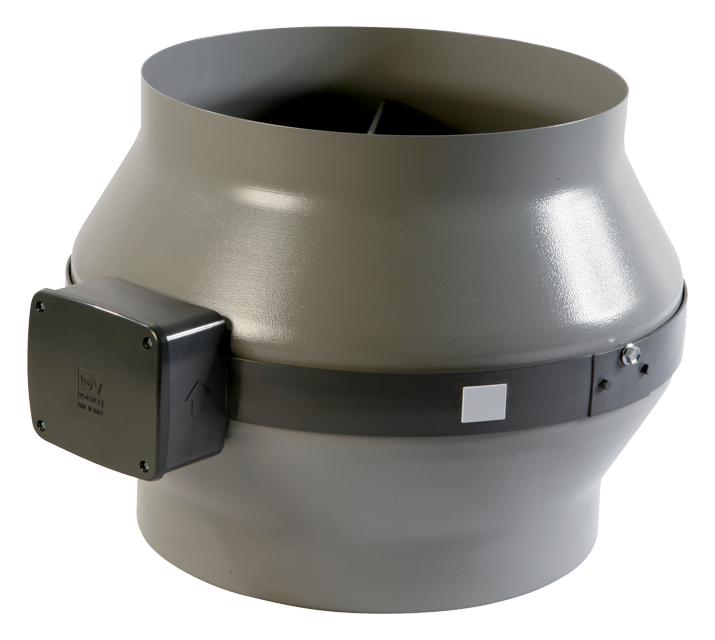

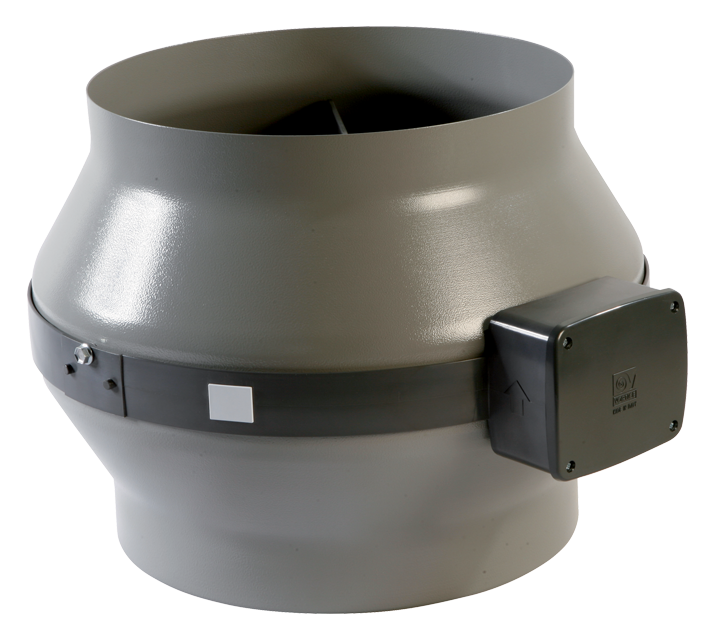

• Pickled and phosphated steel housing with polyester powder-coated finish, resistant to the aggressive action of atmospheric agents.
• Nominal diameter 150 mm.

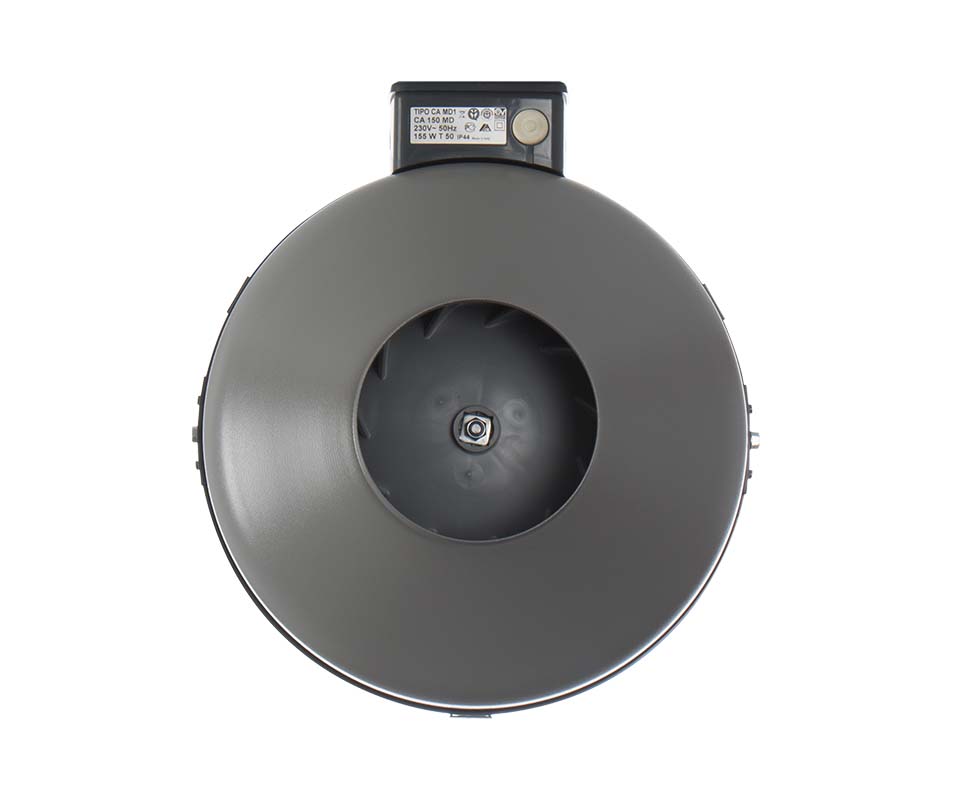

• 2 speed AC motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved centrifugal impeller.
• Operation controllable by remote sensors monitoring: Temperature, Relative Humidity, Smoke and Presence.
• Zinc-coated steel brackets for wall mounting.
• IMQ SAFETY and IMQ PERFORMANCE certifications.
• Speed adjustable through Vortice speed control.
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • IMQ Performance IMQ Performance
  • G-Mark G-Mark

Technical Data Sheet

  • Absorbed power 1st speed (W)
    60
  • Frequency (Hz)
    50/60
  • Insulation Class
    II°
  • IP
    44
  • Max absorbed Power at 60Hz (W)
    105
  • Max ambient temperature for continuous operation (°C)
    50
  • Max. absorbed Current at max. speed (A)
    0,40
  • Max. absorbed Current at min. speed (A)
    0,30
  • Max. absorbed power at max speed (W)
    85
  • Nominal Diameter (mm)
    150
  • Voltage (V)
    220-240
  • Weight (Kg)
    2,98
  • Delivery 1st speed (l/s)
    83
  • Delivery 1st speed (m³/h)
    300
  • Max delivery at max speed (l/s)
    139
  • Max delivery at max speed (m³/h)
    500
  • Pressure - 1st speed (mmH20)
    21
  • Pressure - 1st speed (Pa)
    206
  • Pressure max - max speed (mmH20)
    35
  • Pressure max - max speed (Pa)
    343
  • RPM max
    2350
  • RPM min
    1430
  • Sound pressure level Lp [dB (A)] 3m - max speed
    48,1
  • Sound pressure level Lp [dB (A)] 3m - min speed
    34,7

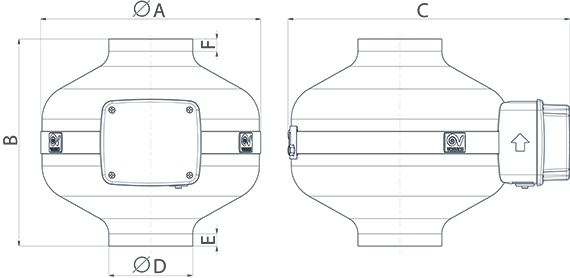

  • Size A (mm)
    255
  • Size B (mm)
    239
  • Size C (mm)
    300
  • Size D (mm)
    147
  • Size E (mm)
    30
  • Size F (mm)
    30
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

KIT SCB (TRASF.E.C.)
KIT SCB (TRASF.E.C.)
• Built-in controller adaptor.
CA-MU  (STAFFE DI SOSTEGNO)
CA-MU (STAFFE DI SOSTEGNO)
• Galvanized sheet-metal brackets for wall or ceiling mounting. Complete in packs of 2.
C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
C 2.5 (COMANDO EL. 2.5 A)
C 2.5 (COMANDO EL. 2.5 A)
• Electronic speed controller.
• Maximum load 2.5 A.
TRIO-CA
TRIO-CA
Speed selector for recessed standard UNI503 box. Equipped with 3-position control knob and ON / OFF slider button.
