Code 16275

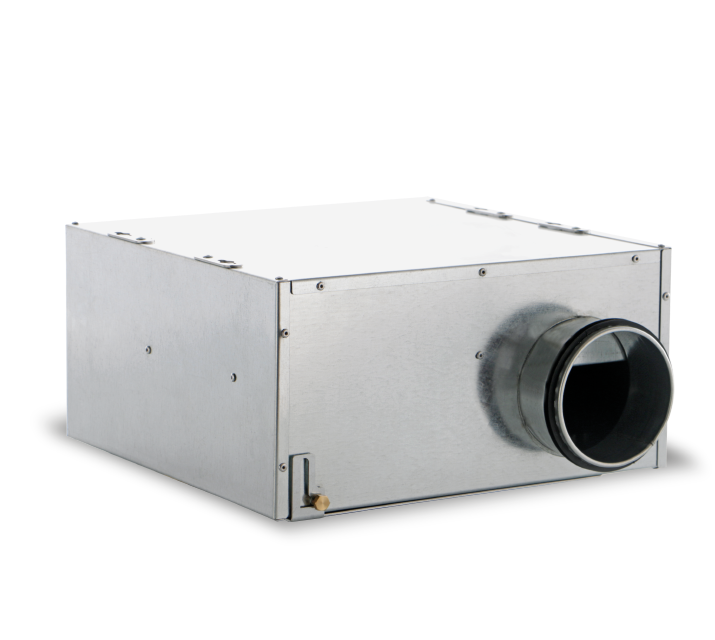

CA IL 160 QUIET ES

Low profile sound proof and energy saving in-line centrifugal fans

Description

• Casing and motor-support made of galvanized sheet steel; lined internally with melamine sound-proof panel (thickness 50 mm).
• Circular spigots for connection to standard tubes, equipped with double lip rubber seal for perfect air tightness.
• Nominal diameter: 160 mm.
• External rotor EC (brushless) motorfan, with shaft turning in ball bearings, coupled to a backward curved centrifugal impeller; speed adjustable through potentiometer (0-10V signal).
• Galvanized steel sheet brackets, directly coupled to casing.
• 3 alternative installation: wall, ceiling and false-ceiling.

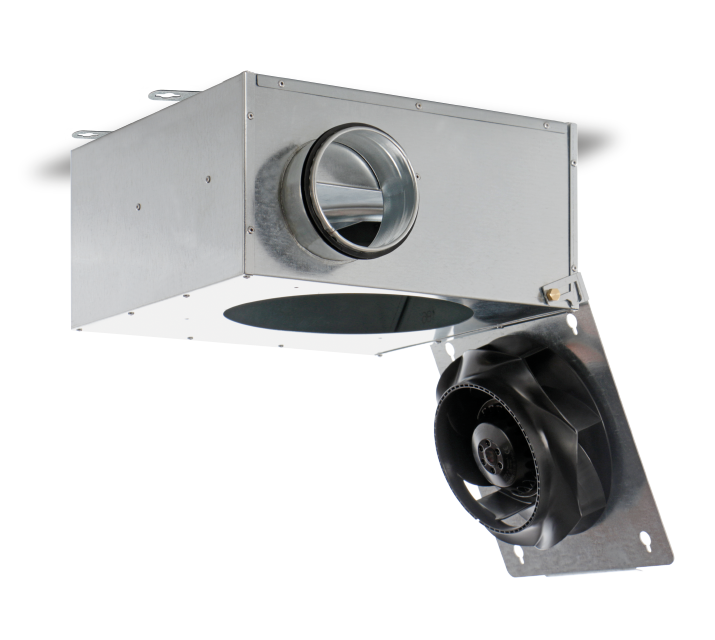

• Easy maintenance: motor is directly fixed to the cover, in turn hinged to the casing, allowing easy external rotation and motorfan direct access.
• Protection against dust and water: IP44.
• Electric insulation class: I (grounding is required).
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation Class
  • Max ambient temperature for continuous operation (°C)
    40
  • Motor Class
    B
  • Motor IP protection
    44
  • Nominal Current at max speed (A)
    0,74
  • Nominal Diameter (mm)
    160
  • Nominal Power at max speed (W)
    85
  • Voltage (V)
    230
  • Weight (Kg)
    6

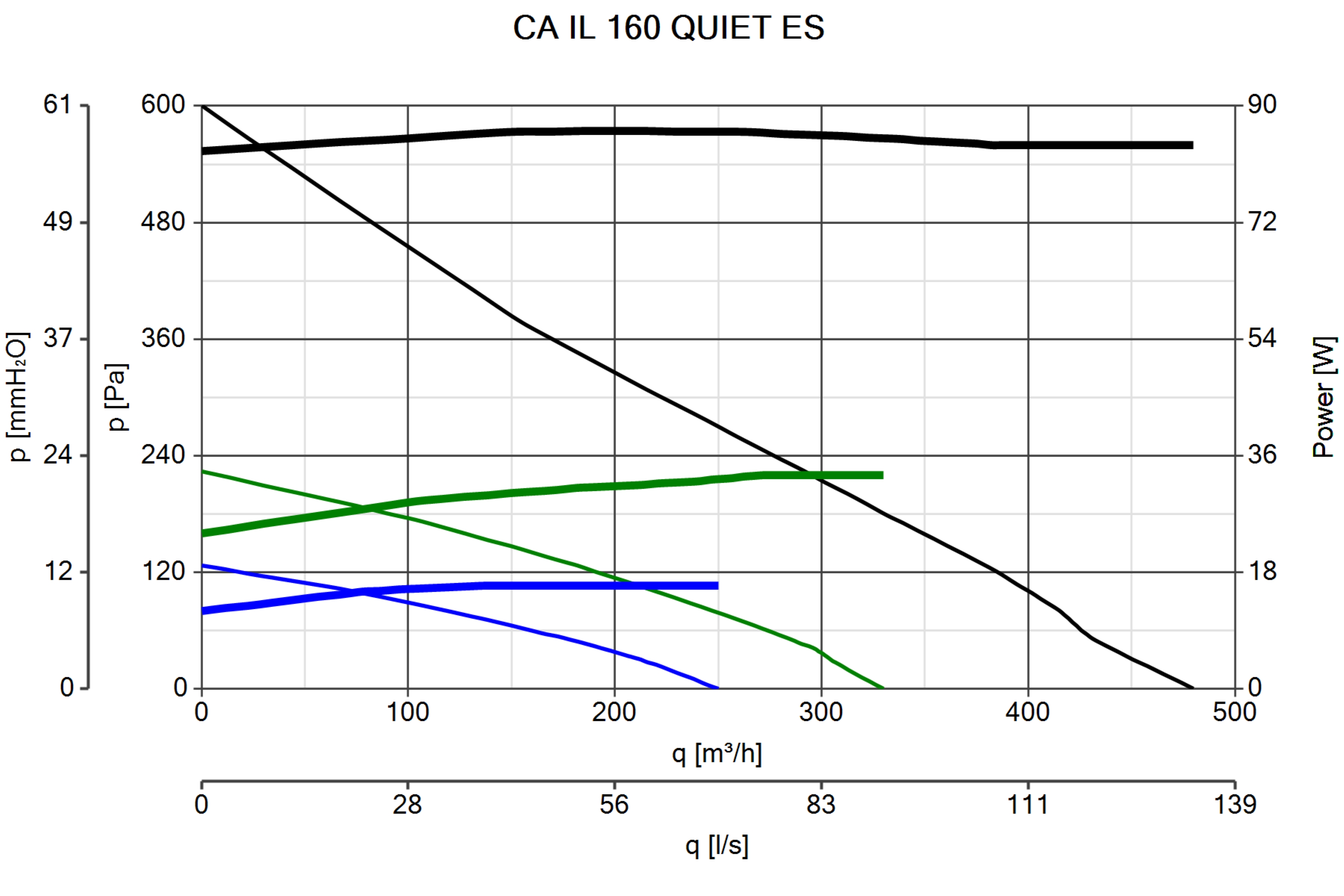

  • Delivery max (l/s)
    133
  • Delivery max (m³/h)
    480
  • Pressure max (mmH2O)
    61,2
  • Pressure max (Pa)
    600
  • Sound power level - radiated Lw [dB(A)]
    56
  • Sound power level exhaust inlet Lw [dB(A)]
    58
  • Sound power level supply outlet Lw [dB(A)]
    68
  • Supplier's name or trade mark
    Vortice
  • Declared typology
    UVNR-U
  • Type of drive
    con variatore di velocità: VSD
  • Type of drive:
    con variatore di velocità: VSD
  • Declared typology:
    UVNR-U
  • Supplier's name or trade mark:
    Vortice
  • Nominal NRVU flow rate [m3/s]
    0,1197
  • Portata nominale [m3/s]
    0,1197
  • Potenza elettrica assorbita effettiva [KW]
    0,084
  • Effective electic power input [kW]
    0,084
  • SFPint [W/m3/s]
    585,45
  • SFPint [W/m3/s]
    585,45
  • Face velocity at design flow rate [m/s]:
    5,9545
  • Face velocity at design flow rate [m/s]
    5,9545
  • Nominal external pressure (?ps, ext) [Pa]
    52
  • Pressione esterna nominale (?ps, ext) [Pa]
    52
  • Caduta di pressione interna dei componenti della ventilazione (?ps, int) [Pa]
    262
  • Internal pressure drop of ventilation components (?ps,int) [Pa]
    262
  • Internal pressure drop of non-ventilation components (?ps,add) [Pa]
    0
  • Caduta di pressione interna dei componenti estranei alla ventilazione (?ps, add) [Pa]
    0
  • Efficienza statica dei ventilatori usati secondo Regolamento 327/2011/UE [%]
    44,8
  • Static efficiency of fans used in accordance with Regulation (EU) No 327/2011 [%]
    44,8
  • Declared maximum internal leakage rate of the casing of ventilation units [%]
    NA
  • Declared maximum internal leakage rate of the casing of ventilation units [%]:
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]:
    NA
  • Declared maximum external leakage rate of the casing of ventilation units [%]
    NA
  • Energy performance energy or classification of the filters
    NA
  • Energy performance energy or classification of the filters:
    NA
  • Description of visual filter warning:
    NA
  • Description of visual filter warning
    NA
  • Casing sound power level (LWA) [dB(A)]:
    56
  • Casing sound power level (LWA) [dB(A)]
    56

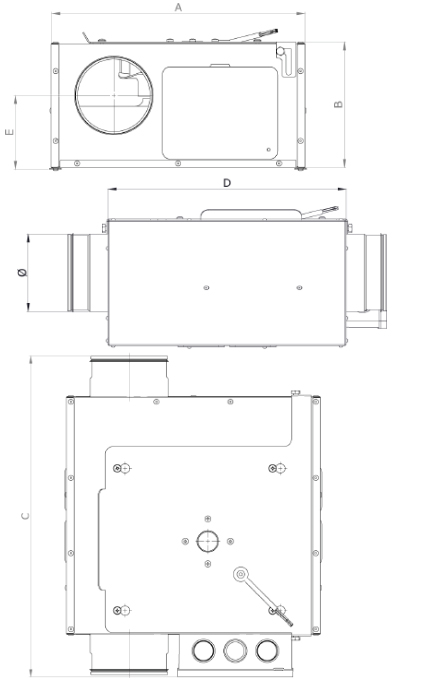

  • Diametro Ø (mm)
    160
  • Size A (mm)
    138
  • Size B (mm)
    238
  • Size C (mm)
    490
  • Size D (mm)
    362
  • Size E (mm)
    467
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

TRA 250 (TELAIO CON RETE ANTINF.)
TRA 250 (TELAIO CON RETE ANTINF.)
Grille with protection net for ventilation ducts with 160 and 200 mm diameters.
PGR 250 (PERSIANA GRAVITA')
PGR 250 (PERSIANA GRAVITA')
Gravity shutter for 160 and 200 mm diameter ventilation ducts.
POT
POT
Potentiometer for installation in Standard DIN box.
GR 160
GR 160

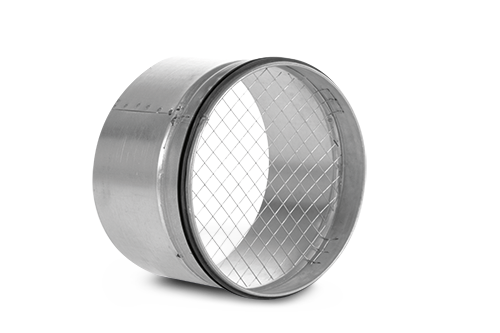

Protection metal grill, directly coupled to the product, diam. 160 mm.
FS 160
FS 160

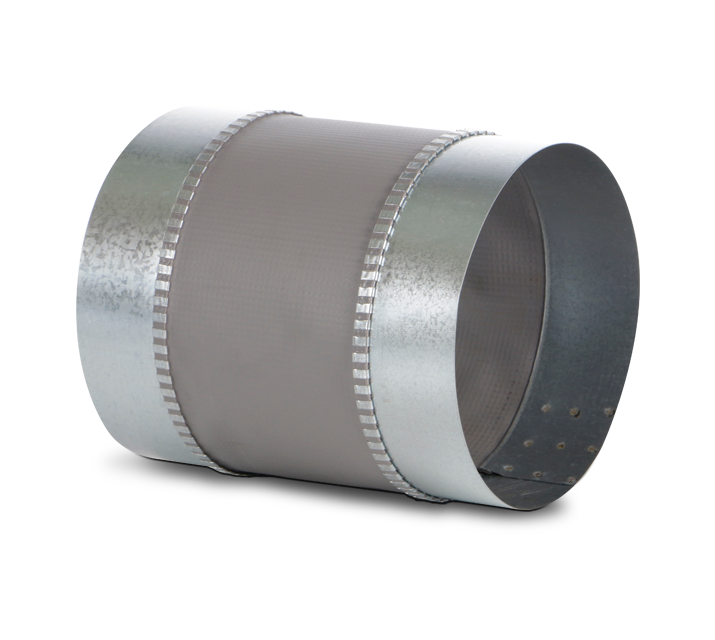

Flexible sleeve complete with hose clamps for pipe fixing, diam. 160 mm.
POT-IT
POT-IT
Potentiometer equipped with On/Off switch, for installation in 503 Standard Box.
