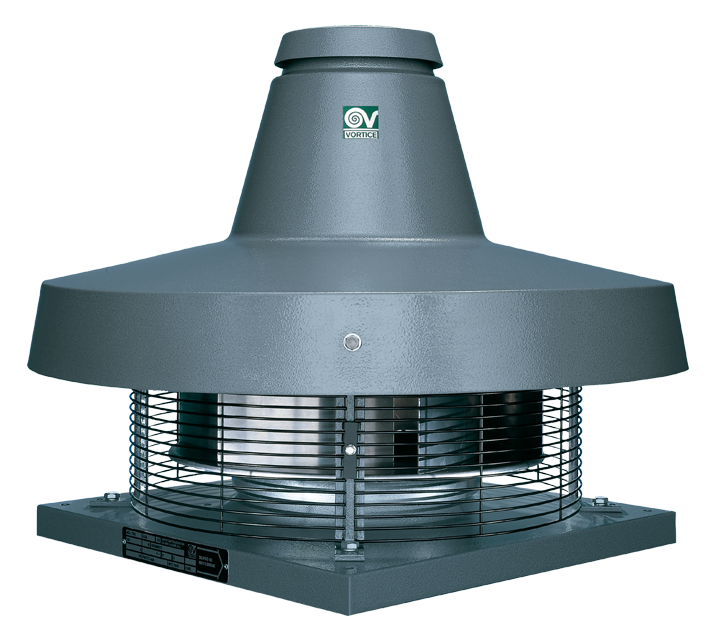

Description

• Base manufactured from phosphated pressed steel, epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Aerodynamically contoured inlet port for optimum performance, fashioned as a single unit with the base and gauged to optimize air flow.
• Pressed steel motor cover: pickled and phosphated surface, polyester powder coated and oven baked finish, colour grey, with hammered texture.

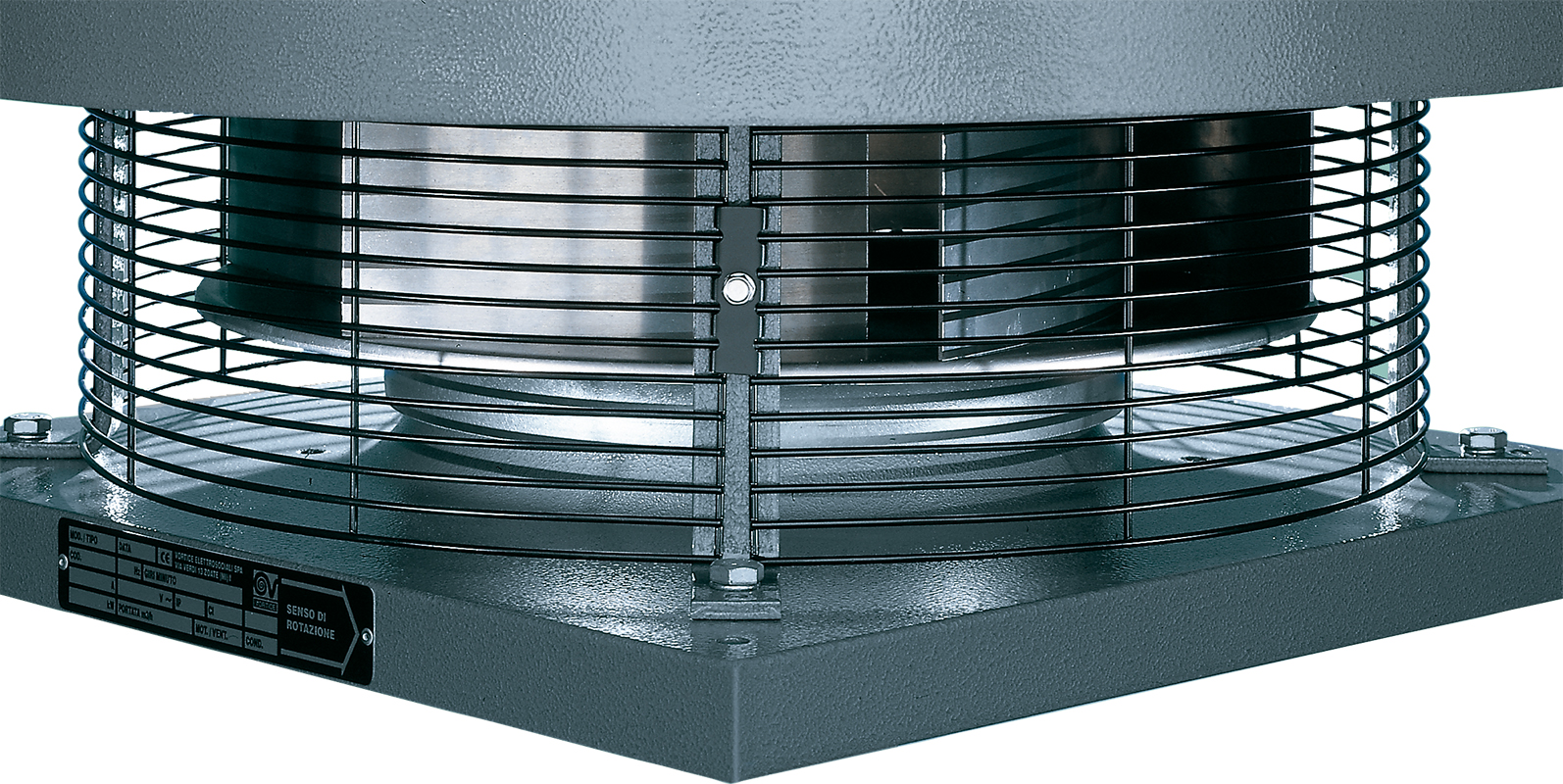

• Accident prevention and anti-bird grilles (to UNI ISO 13857 standard), consisting of electrically welded steel rings with epoxy powder coated finish, colour black.
• Centrifugal impeller with self-cleaning backward curved steel blades, hot-dip galvanized and dynamically balanced (UNI ISO 1940, Point 1 – Class 6.3), and splined aluminium hub.
• 1 speed single phase AC motor, insulation class F, with shaft turning in double shielded ball bearings.
• Maximum airflow: 6400 m3/h
• Motor and fan designed for operation in ambient temperatures higher than 65 °C.
• Equipped with capacitor to EN 60252-1 standard, IMQ certified.
• Cooling fan for better dissipation of heat
• Galvanized steel eye lugs for transport and lifting/handling operations.
• Cable guaranteeing continuity of earth connection.
• Steel safety wire for anchoring the appliance once installed.
• Vortice speed controller.

Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    4,35
  • Absorbed Power max (W)
    1000
  • Frequency (Hz)
    50
  • Insulation Class
  • Max ambient temperature for continuous operation (°C)
    90
  • Motor IP protection
    55
  • Nominal Diameter (mm)
    350
  • Number of Phases (Ph)
    1
  • Number of Poles
    4
  • Voltage (V)
    230
  • Weight (Kg)
    79
  • Delivery max (l/s)
    1778
  • Delivery max (m³/h)
    6400
  • Pressure max (mmH2O)
    67,5
  • Pressure max (Pa)
    662
  • RPM
    1415
  • Sound Pressure level Lp [dB (A)] 3m
    77
  • Size A (mm)
    1015
  • Size B (mm)
    830
  • Size C (mm)
    750
  • Size D (mm)
    449
  • Size E (mm)
    283
  • Size F (mm)
    38
  • Size G (mm)
    40
  • Size H (mm)
    770
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

IREM 5                       CD 99250081
IREM 5 CD 99250081
• Single-phase electronic speed controller
TR-G 70/100 (GRIGLIA DI PROTEZIONE)
TR-G 70/100 (GRIGLIA DI PROTEZIONE)
• <b>Intake port protection grille for use when the unit is mounted within reach.</b>
TR-B 70/100 (BOCCAGLIO ASPIRAZIONE)
TR-B 70/100 (BOCCAGLIO ASPIRAZIONE)
• <b>Intake nozzle to fit on intake side for optimizing intake and reducing noise level.</b>
TR-CU 70/100    (CONTROTELAIO DI BASE U)
TR-CU 70/100 (CONTROTELAIO DI BASE U)
• <b>Installation base counter-frame.</b>
IREM INVERTER 6 M
IREM INVERTER 6 M
<b>Single-phase speed controller</B>
