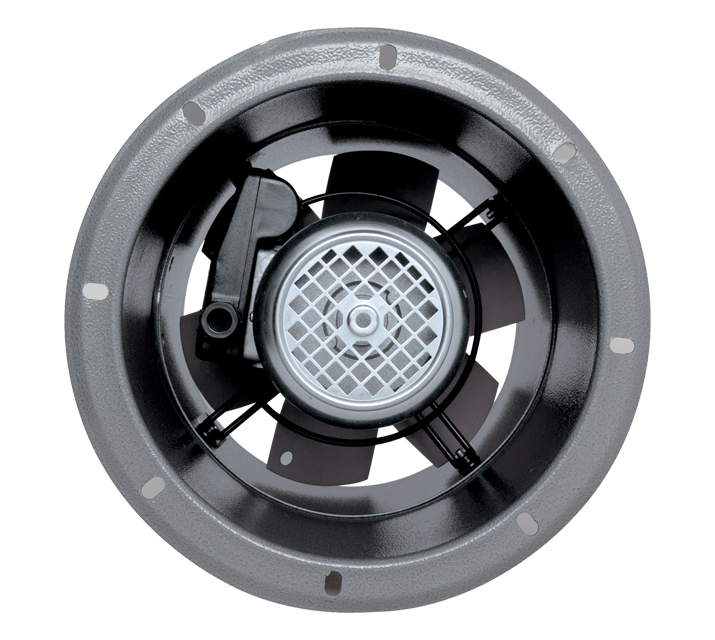

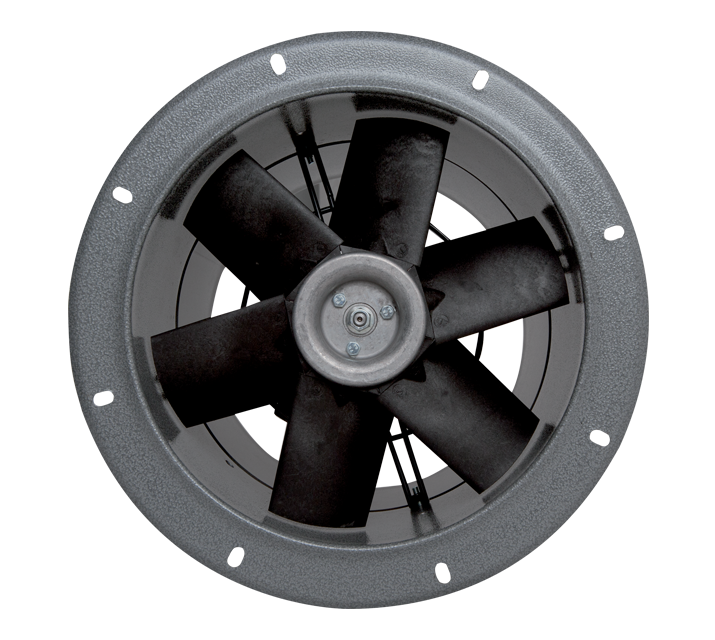

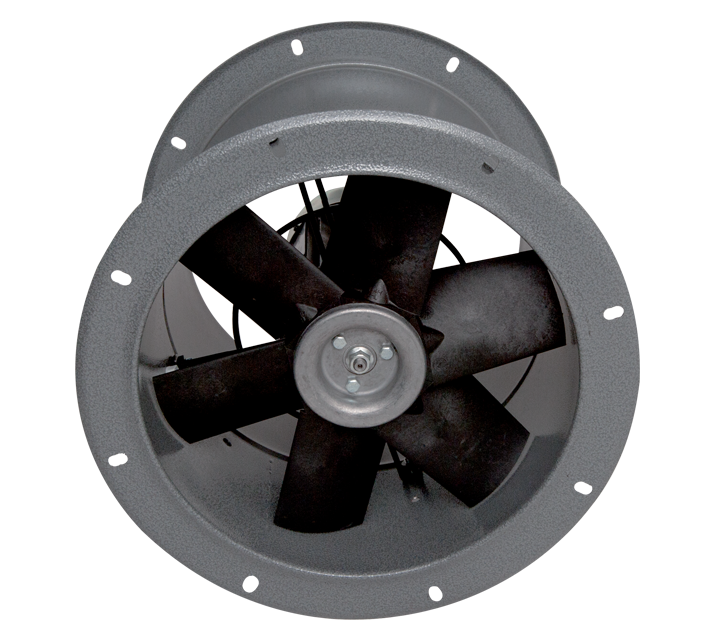

Description

• Nominal diameter 350 mm
• 2 rolled steel flange sections, welded, phosphated and polyester powder coated in practical grey colour with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• 1 speed single phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 3,500 m3/h.
• Impeller with 6 wing profile blades, dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents, and keyed to a diecast aluminium hub.
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    0,70
  • Absorbed Power max (W)
    152
  • Frequency (Hz)
    50
  • Insulation Class
  • IP
    X4
  • Max ambient temperature for continuous operation (°C)
    70
  • Min ambient temperature for continuous operation (°C)
    -25
  • Nominal Diameter (mm)
    350
  • Number of Phases (Ph)
    1
  • Number of Poles
    4
  • Voltage (V)
    230
  • Weight (Kg)
    13,4

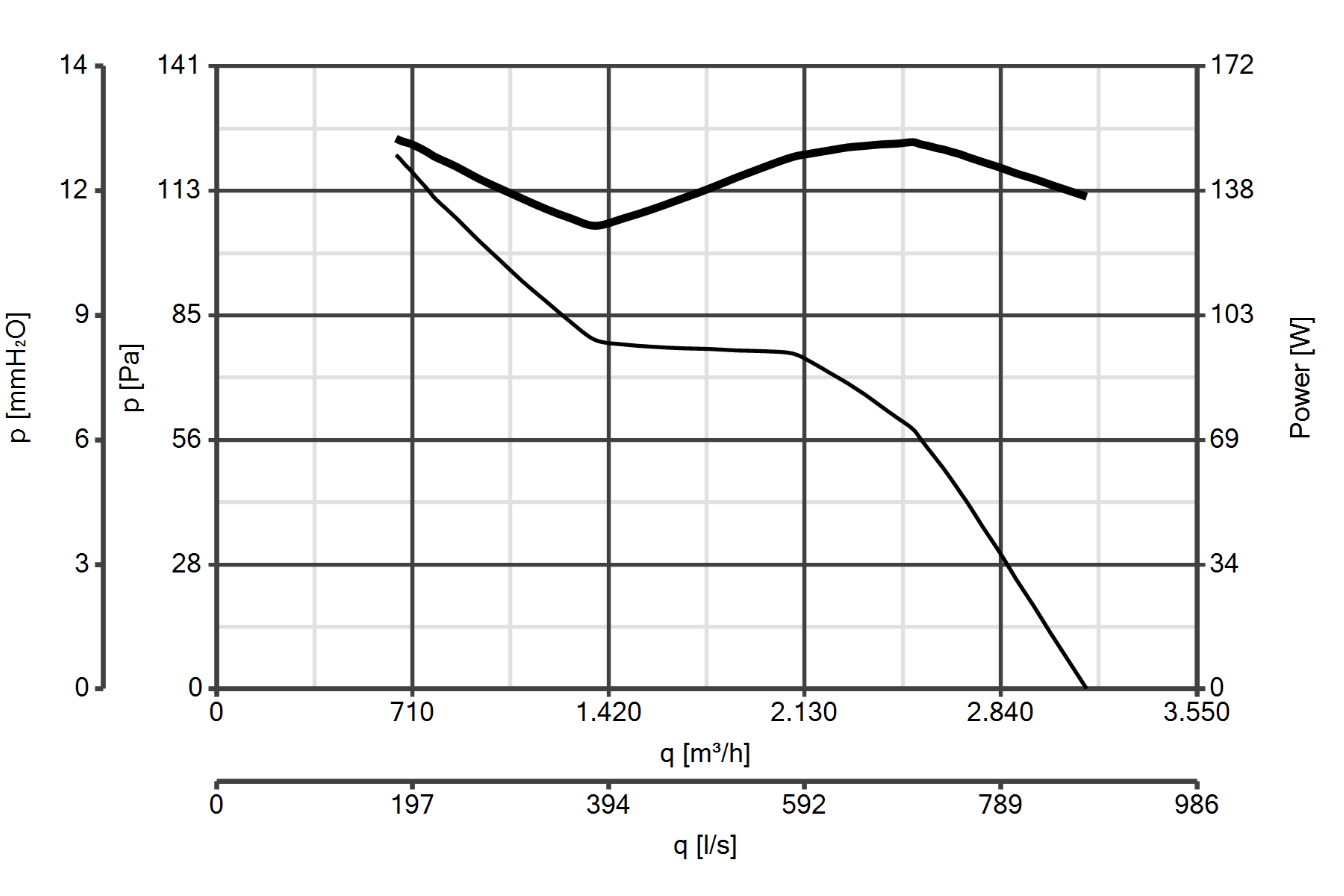

  • Delivery max (l/s)
    875
  • Delivery max (m³/h)
    3150
  • Pressure max (mmH2O)
    17.2
  • Pressure max (Pa)
    169
  • RPM
    1450
  • Sound power level Lw [dB(A)]
    57.3
  • Sound Pressure level Lp [dB (A)] 3m
    36.8

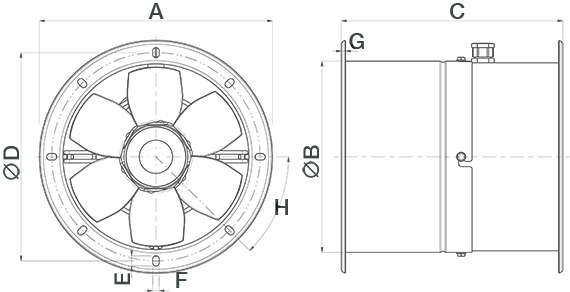

  • Size A (mm)
    ø 432
  • Size B (mm)
    ø 368
  • Size C (mm)
    330
  • Size D (mm)
    ø 405
  • Size E (mm)
    14
  • Size F (mm)
    9
  • Size G (mm)
    4
  • Size H (mm)
    45°
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

IREM 3                       CD 99250080
IREM 3 CD 99250080
• Single-phase electronic speed controller
MPC BO 350 (BOCCAGLIO)
MPC BO 350 (BOCCAGLIO)
• <b>Intake nozzle for fixing to the intake side to optimize intake and reduce noise level.</b>
MPC RA 350 (RACCORDO FLESSIBILE)
MPC RA 350 (RACCORDO FLESSIBILE)
• <b>Flexible fitting for making a non-rigid connection to compensate for distance or for reducing vibration.</b>
MPC SU 350 (SUPPORTO)
MPC SU 350 (SUPPORTO)
• <b>Mounting feet.</b>
MPC FL 350 (FLANGIA)
MPC FL 350 (FLANGIA)
• <b>Flange fitting to replace the one supplied with the unit, for reducing the unit’s size and permitting normal anchoring to the duct.</b>
MPC RP 350 (RETE DI PROTEZIONE)
MPC RP 350 (RETE DI PROTEZIONE)
• <b>Protection grille for use when the unit is mounted within reach.</b>

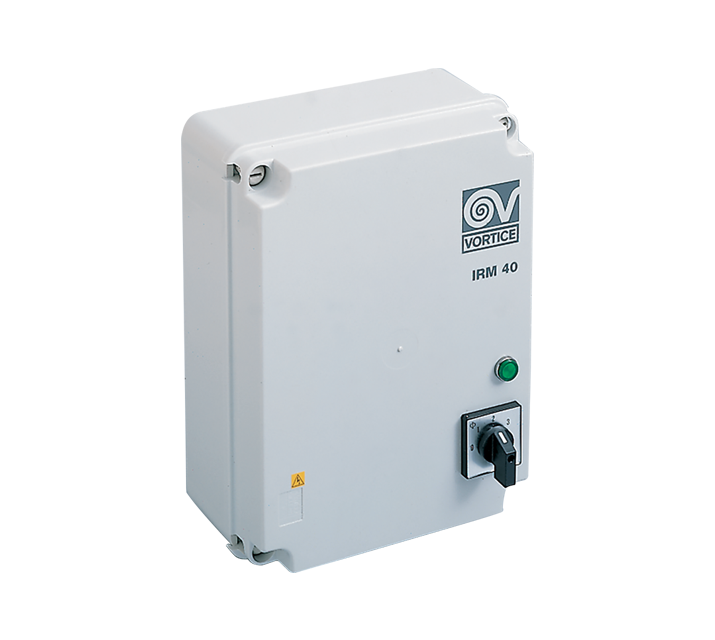

IRM 40
IRM 40
• Single phase speed controller.
