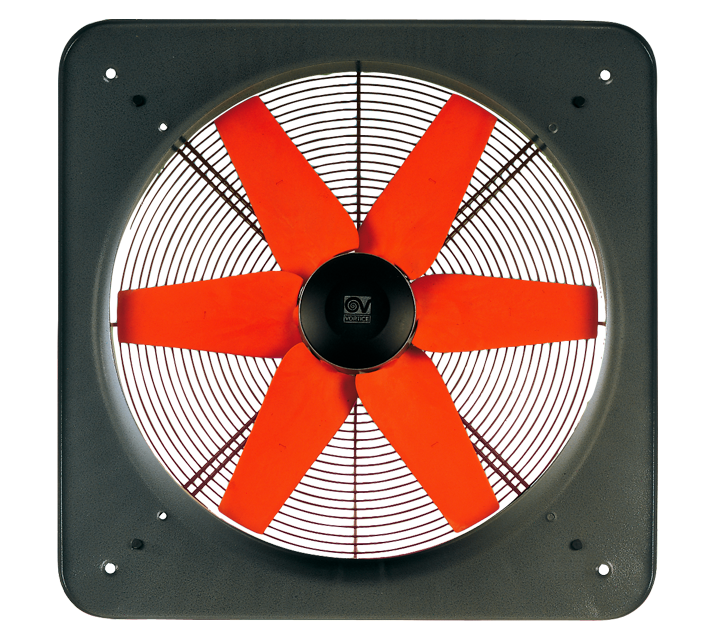

Description

• Nominal diameter 250 mm
• Wall-mounting panel manufactured from phosphated pressed steel, polyester powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Ventilation port fashioned in one piece with the panel and gauged to optimize air flow.
• Protective grille (in accordance with UNI ISO 13857 standard) combining the function of motor bracket, made of electrically welded steel with epoxy paint finish, colour black. Easy removal simplifies maintenance and cleaning of the fan.
• 1 speed asynchronous single phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow: 1,000 m3/h.
• Impeller with 6 wing profile blades keyed to a diecast aluminium hub and dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents.
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current at 220 V (A)
    0,31
  • Absorbed Current at 240 V (A)
    0,39
  • Absorbed Current max (A)
    0,39
  • Absorbed Power at 220 V (W)
    55
  • Absorbed Power at 240 V (W)
    65
  • Absorbed Power max (W)
    65
  • Frequency (Hz)
    50
  • Insulation Class
  • Max ambient temperature for continuous operation (°C)
    60
  • Max Temperature of Exhaust Air (Continuous Operation)
    60
  • Motor IP protection
    44
  • Nominal Diameter (mm)
    250
  • Number of Poles
    4
  • Voltage (V)
    220-240
  • Weight (Kg)
    3

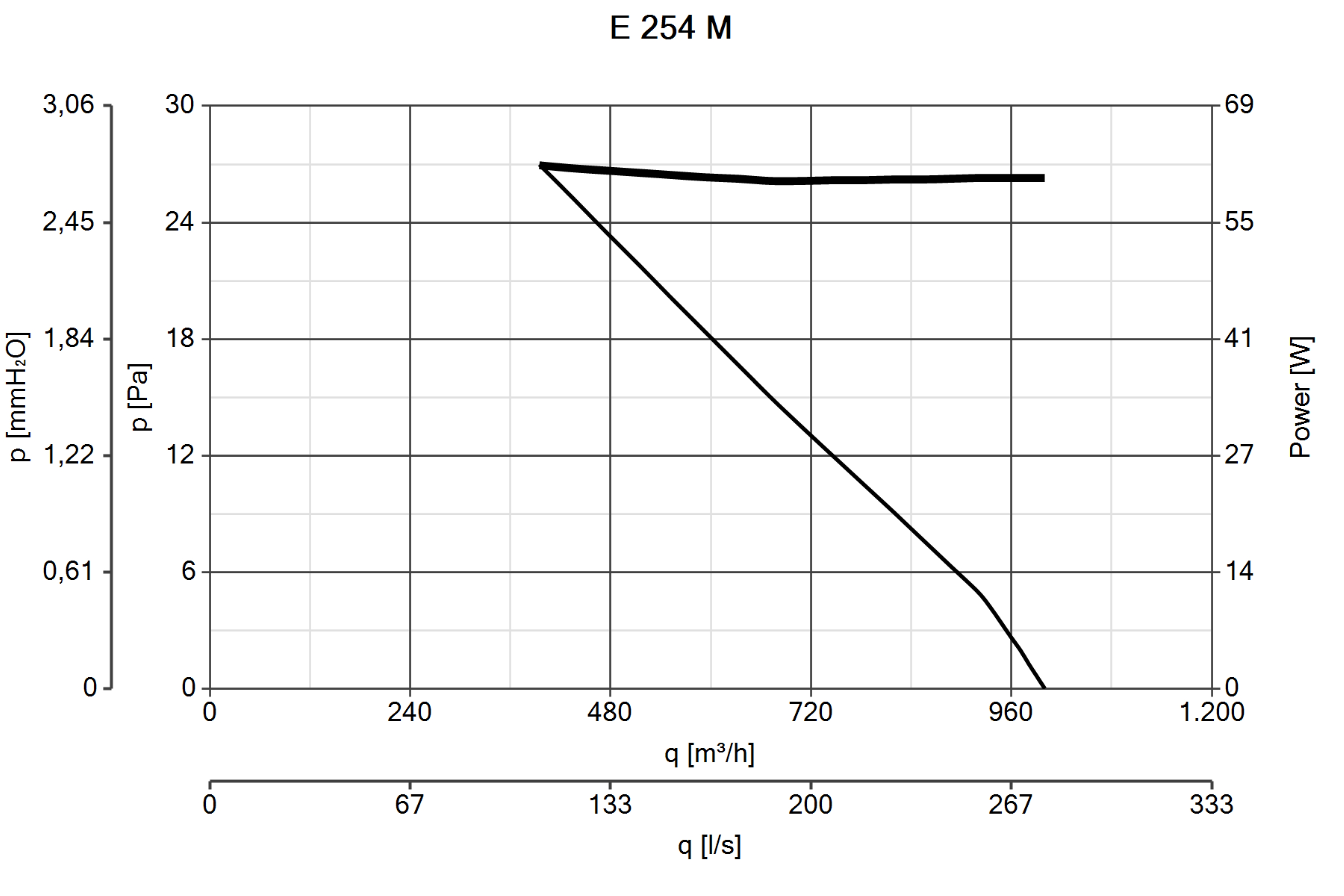

  • Delivery max (l/s)
    277,8
  • Delivery max (m³/h)
    1000
  • Pressure max (mmH2O)
    6,7
  • Pressure max (Pa)
    66
  • RPM
    1400
  • Sound Pressure level Lp [dB (A)] 3m
    50,5

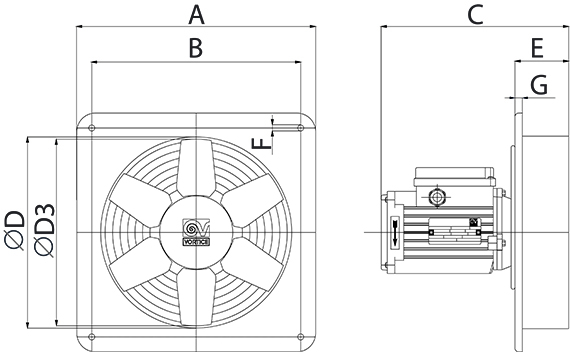

  • Diametro Ø (mm)
    250
  • Size A (mm)
    320
  • Size B (mm)
    280
  • Size C (mm)
    201
  • Size D (mm)
    Ø 256
  • Size D3 (mm)
    Ø 250
  • Size E (mm)
    68
  • Size F (mm)
    8
  • Size G (mm)
    10
