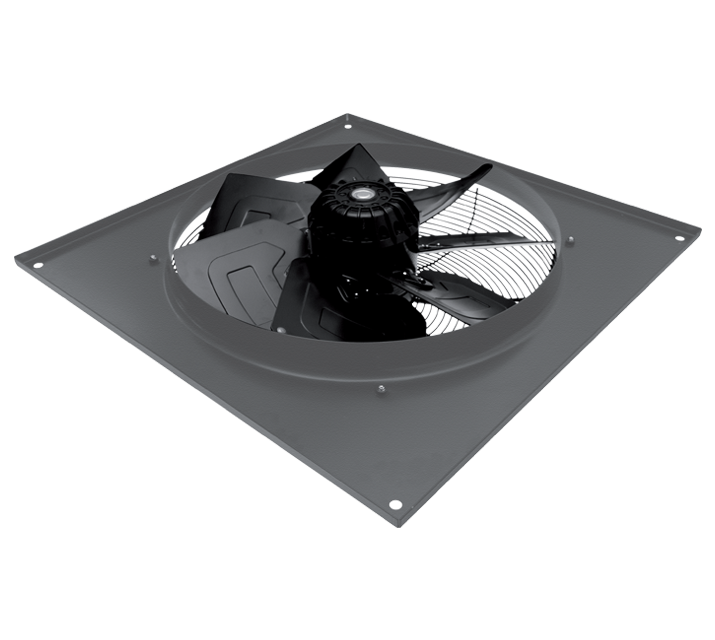

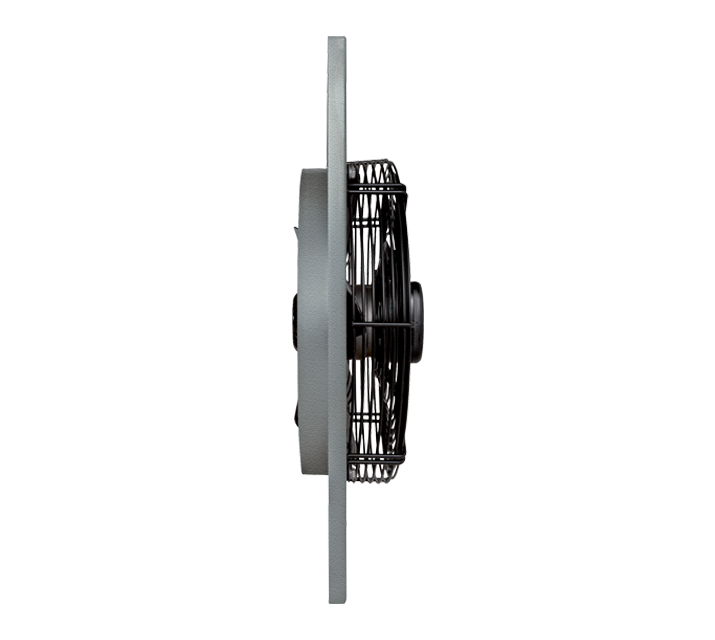

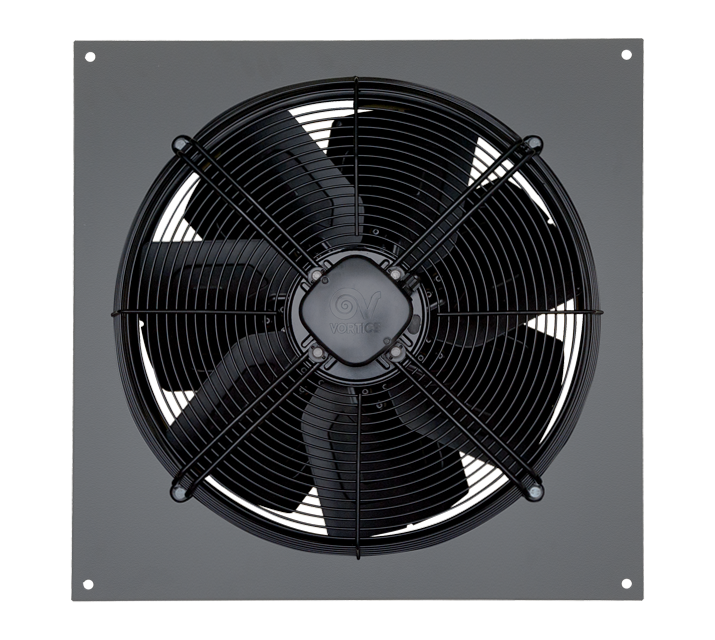

Description

• Nominal diameter 500 mm
• Panels made of pressed steel, phosphated and epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Ventilation port fashioned in one piece with the panel, gauged to optimize air flow, aerodynamically contoured and elongated to optimize performance and facilitate connection to the relative duct.
• Protective grille (in accordance with UNI ISO 13857 standard) combining the function of motor bracket, made of electrically welded steel with epoxy paint finish, colour black. Easy removal simplifies maintenance and cleaning of the fan.
• 1 speed single phase AC motor of external rotor type designed to minimize axial dimensions, with shaft turning in ball bearings, insulation class F, thermal overload protection.
• Maximum air flow 4977 m3/h
• Dynamically balanced impeller (UNI ISO 1940, Point 1 – Class 6.3); 7 pressed steel blades, electrolytically galvanized and polyester powder-coated, colour black.
• Vortice speed controller.
Read full descriptionClose description

Certifications


Technical Data Sheet

  • Absorbed Current max (A)
    1.27
  • Absorbed Power max (W)
    290
  • Frequency (Hz)
    50
  • Insulation Class
  • IP
    54
  • Max ambient temperature for continuous operation (°C)
    50
  • Motor IP protection
    54
  • Nominal Diameter (mm)
    500
  • Number of Phases (Ph)
    1
  • Number of Poles
    6
  • Voltage (V)
    220-240
  • Weight (Kg)
    17.6
  • Delivery max (l/s)
    1335
  • Delivery max (m³/h)
    4805
  • Pressure max - max speed (mmH20)
    15.5
  • Pressure max (Pa)
    152
  • RPM
    1000
  • Sound power level Lw [dB(A)]
    77.7
  • Sound pressure level Lp in free field [dB(A)] 1 m
    66.7
  • Sound pressure level Lp in free field [dB(A)] 3 m
    57.2

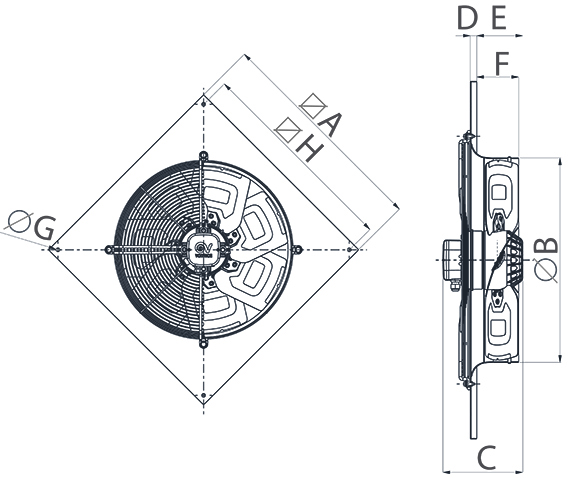

  • Size A (mm)
    630
  • Size B (mm)
    508
  • Size C (mm)
    218
  • Size D (mm)
    16
  • Size E (mm)
    134
  • Size F (mm)
    105
  • Size G (mm)
    11
  • Size H (mm)
    530
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

IRM 30
IRM 30
• Single phase speed controller.
IREM INVERTER 4 M
IREM INVERTER 4 M
<b> Single-phase speed controller</B>
PGR 450/500 (PERSIANA GRAVITA')
PGR 450/500 (PERSIANA GRAVITA')
• Gravity type shutter for preventing air backdraught or rain penetration when the unit is turned off.
TRA 450/500  (TELAIO CON RETE ANTINF.)
TRA 450/500 (TELAIO CON RETE ANTINF.)
• Outlet port protection grille for use when the unit is mounted within reach.
IREM 3                       CD 99250080
IREM 3 CD 99250080
• Single-phase electronic speed controller
