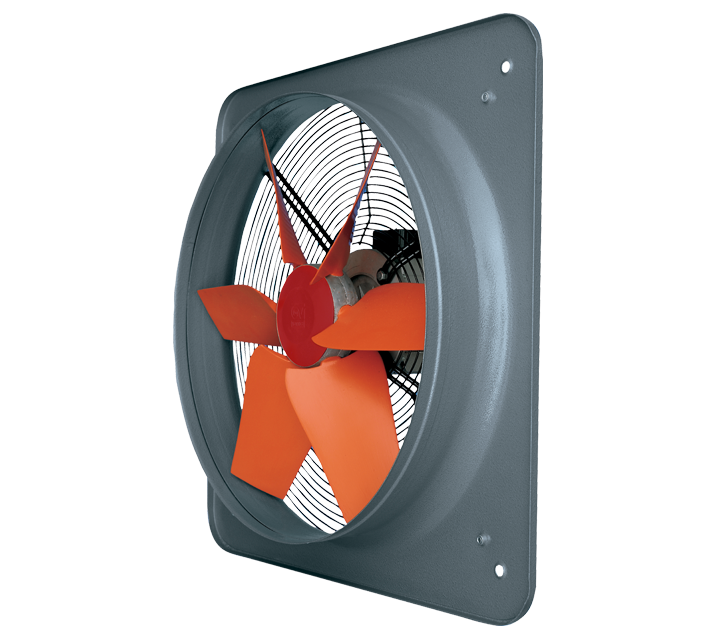

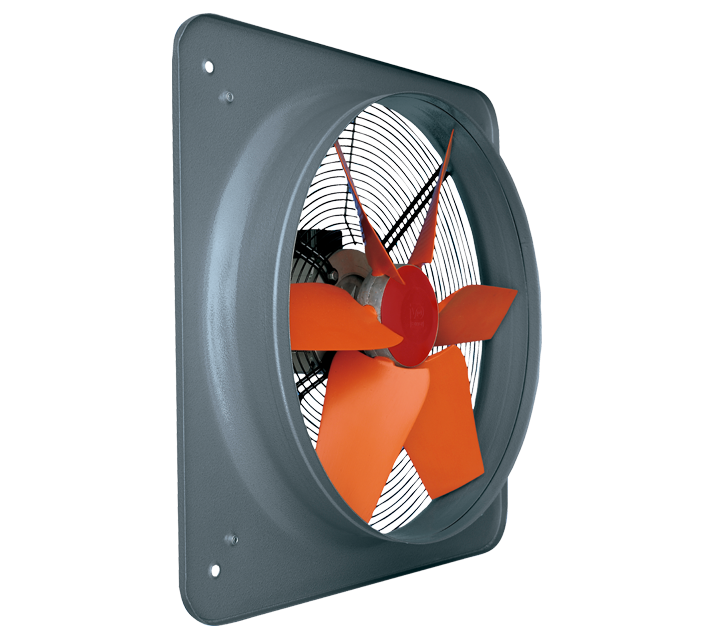

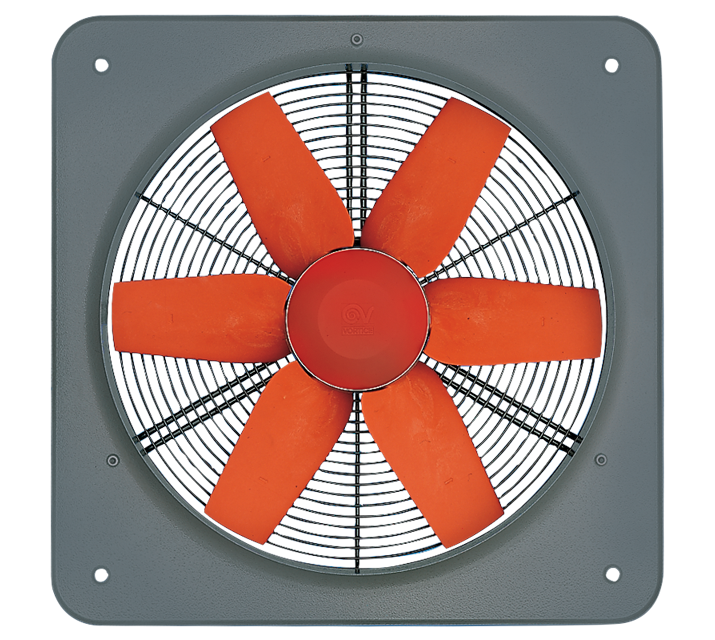

Description

• Nominal diameter 250 mm
• Wall-mounting panel manufactured from phosphated pressed steel, polyester powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Ventilation port fashioned in one piece with the panel and gauged to optimize air flow.
• Protective grille (in accordance with UNI ISO 13857 standard) combining the function of motor bracket, made of electrically welded steel with epoxy paint finish, colour black. Easy removal simplifies maintenance and cleaning of the fan.
• 1 speed asynchronous single phase AC motor with shaft turning in double shielded ball bearings, insulation class F.
• Maximum air flow 2,000 m3/h
• Impeller with 6 wing profile blades keyed to a diecast aluminium hub and dynamically balanced (UNI ISO 1940 – Balancing class 6.3), optimized to deliver maximum performance and low noise levels, moulded from filled polypropylene for superior dimensional stability and resistance to atmospheric agents.
• Vortice speed controllers.
Read full descriptionClose description

Certifications

  • EAC EAC

Technical Data Sheet

  • Absorbed Current at 220 V (A)
    1
  • Absorbed Current at 240 V (A)
    1
  • Absorbed Current max (A)
    1
  • Absorbed Power at 220 V (W)
    205
  • Absorbed Power at 240 V (W)
    230
  • Absorbed Power max (W)
    230
  • Frequency (Hz)
    50
  • Insulation Class
  • IP
    55
  • Max ambient temperature for continuous operation (°C)
    70
  • Nominal Diameter (mm)
    250
  • Number of Poles
    2
  • Voltage (V)
    220-240
  • Weight (Kg)
    6,1
  • Delivery max (l/s)
    556
  • Delivery max (m³/h)
    2000

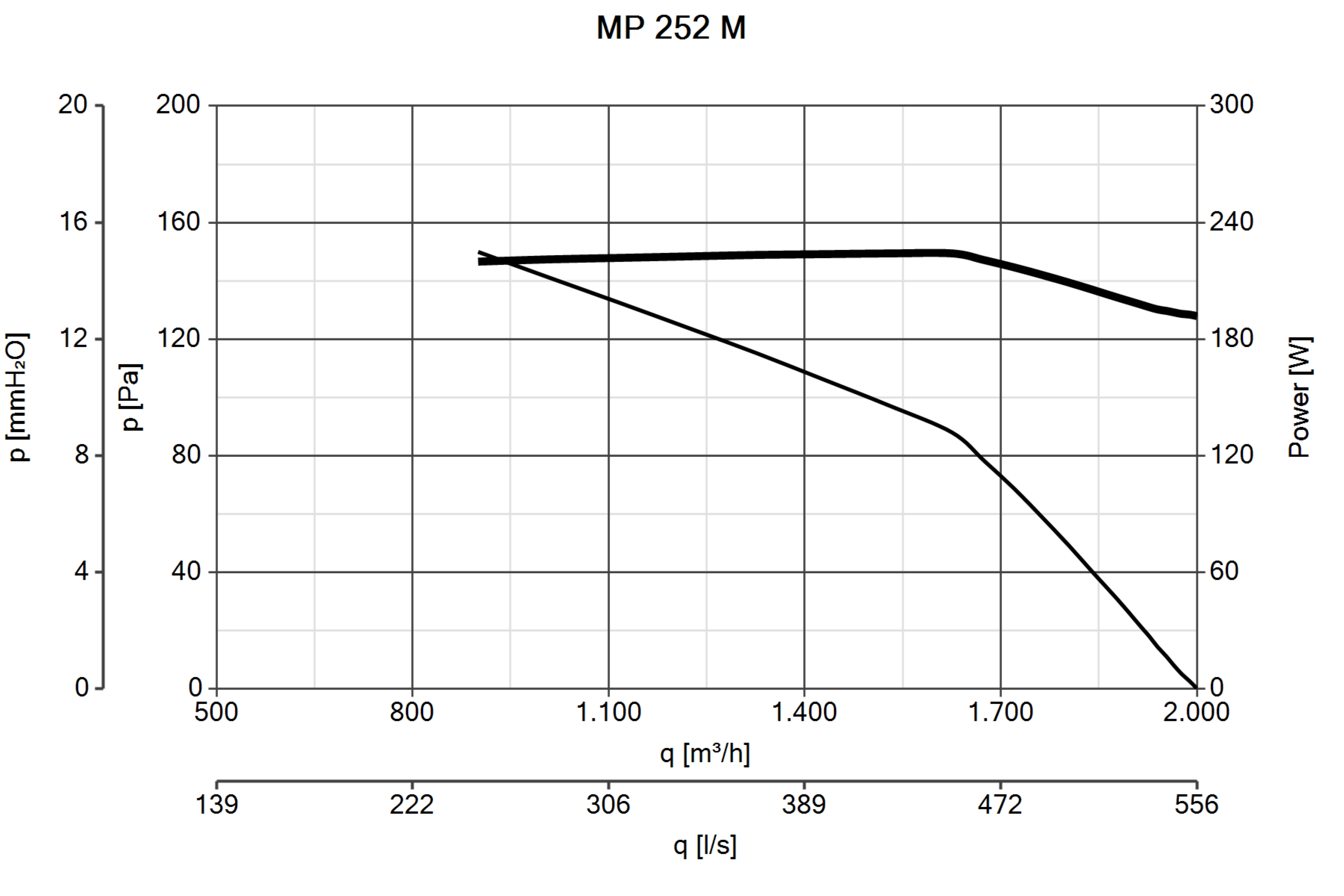

  • Pressure max (mmH2O)
    41
  • Pressure max (Pa)
    402
  • RPM
    2800
  • Sound Pressure level Lp [dB (A)] 3m
    70

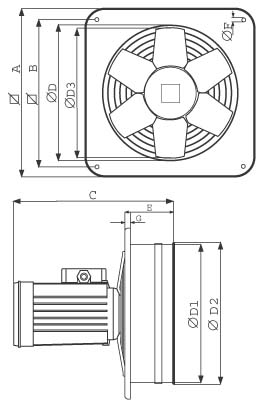

  • Size A (mm)
    320
  • Size B (mm)
    280
  • Size C (mm)
    279
  • Size D (mm)
    Ø 256
  • Size D1 (mm)
    Ø 258,5
  • Size D2 (mm)
    Ø 264
  • Size D3 (mm)
    Ø 250
  • Size E (mm)
    92
  • Size F (mm)
    Ø 8
  • Size G (mm)
    10
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

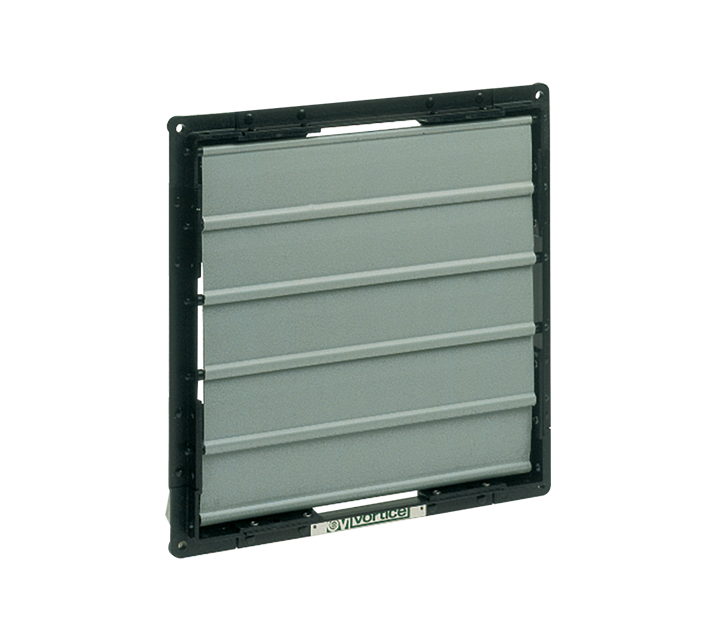

PGR 250 (PERSIANA GRAVITA')
PGR 250 (PERSIANA GRAVITA')
Gravity shutter for 160 and 200 mm diameter ventilation ducts.
TRA 250 (TELAIO CON RETE ANTINF.)
TRA 250 (TELAIO CON RETE ANTINF.)
Grille with protection net for ventilation ducts with 160 and 200 mm diameters.

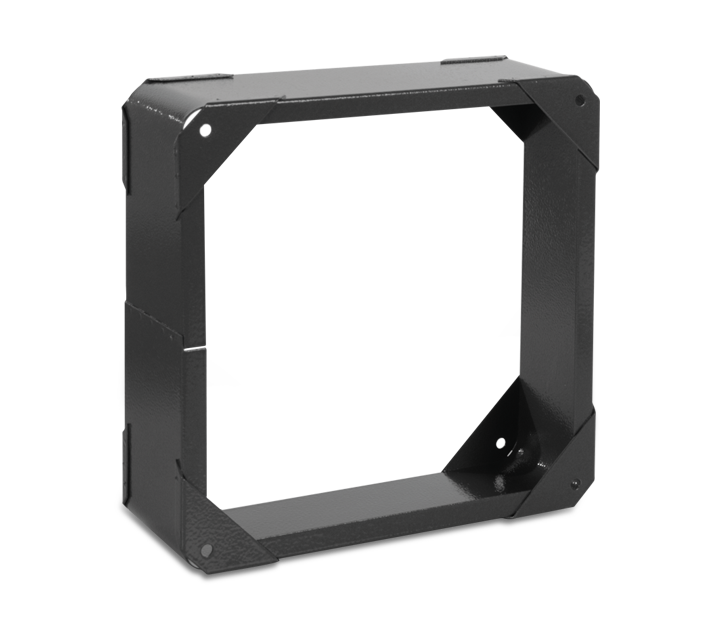

DPU 250 (DISTANZIATORE)
DPU 250 (DISTANZIATORE)
• Spacer for panel installation to reduce unit overhang towards the outside; especially useful in case of gratings, roller shutters, etc.
IREM 3                       CD 99250080
IREM 3 CD 99250080
• Single-phase electronic speed controller
IREM 5                       CD 99250081
IREM 5 CD 99250081
• Single-phase electronic speed controller

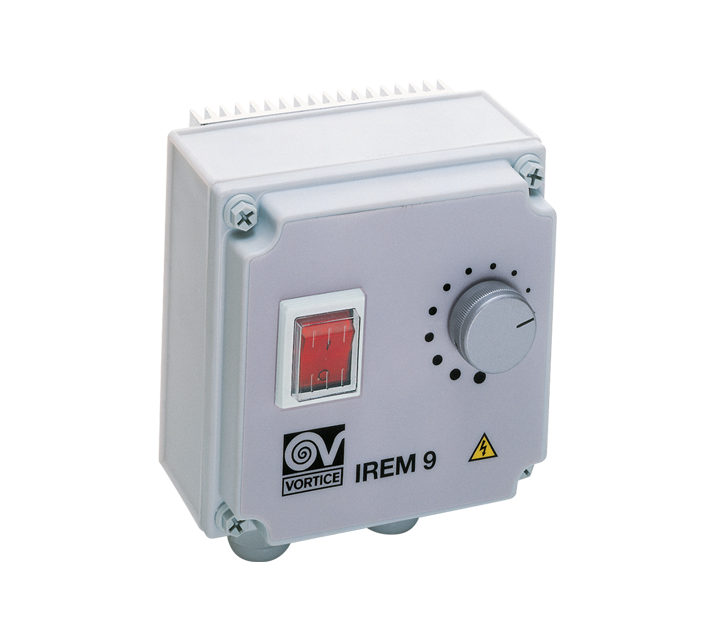

IREM 9                       CD 99250082
IREM 9 CD 99250082
• Single-phase electronic speed controller
IREM INVERTER 4 M
IREM INVERTER 4 M
<b> Single-phase speed controller</B>
