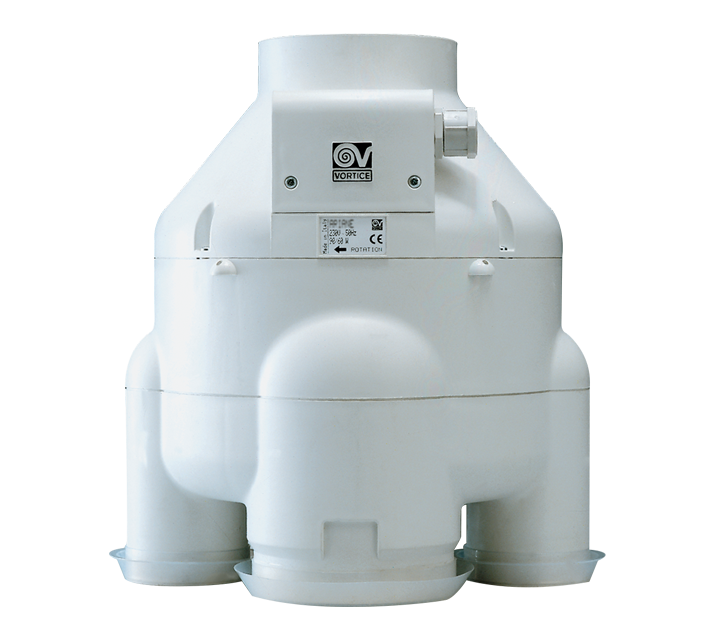

Description
• Material: self-extinguishing V0 plastic, colour white, resistant to ageing.
• 5 ports for connection to extractor ducts, nominal diameter 80 mm;
• 1 port for connection to exhaust duct, nominal diameter 125 mm
• 2 speed AC motor with shaft turning in ball bearings, coupled to a single centrifugal impeller
• Air flow between 200 m3/h and 385 m3/h
• Equipped with 2 x Ø80mm spigot incorporating flow regulators rated 30 m3/h, and 3 plugs. (option of additional regulators)
• IMQ SAFETY and IMQ PERFORMANCE certifications
• 5 ports for connection to extractor ducts, nominal diameter 80 mm;
• 1 port for connection to exhaust duct, nominal diameter 125 mm
• 2 speed AC motor with shaft turning in ball bearings, coupled to a single centrifugal impeller
• Air flow between 200 m3/h and 385 m3/h
• Equipped with 2 x Ø80mm spigot incorporating flow regulators rated 30 m3/h, and 3 plugs. (option of additional regulators)
• IMQ SAFETY and IMQ PERFORMANCE certifications
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current at Max speed (A)0,44
-
Max absorbed current at Min speed (A)0,40
-
Max absorbed power at Max speed (W)90
-
Power absorbed at 1st speed (W)60
-
Voltage (V)230
-
Weight (Kg)3,2
-
Airflow at 1st speed (l/s)55,6
-
Airflow at 1st speed (m³/h)200
-
Max airflow at Max speed (l/s)106,9
-
Max airflow at Max speed (m³/h)385
-
Max pressure at Max speed (mmH20)37,7
-
Max pressure at Max speed (Pa)370
-
Max RPM2550
-
Min RPM1350
-
Pressure at 1st speed (mmH20)25
-
Pressure at 1st speed (Pa)245
-
Size A (mm)125
-
Size B (mm)80
-
Size C (mm)270
-
Size D (mm)330
