Description

• Casing moulded from plastic resin able to withstand aging induced by exposure to sunlight (UV-resistant), and formulated with an antistatic compound to prevent accumulation of dust.
• Nominal diameter: 300 mm

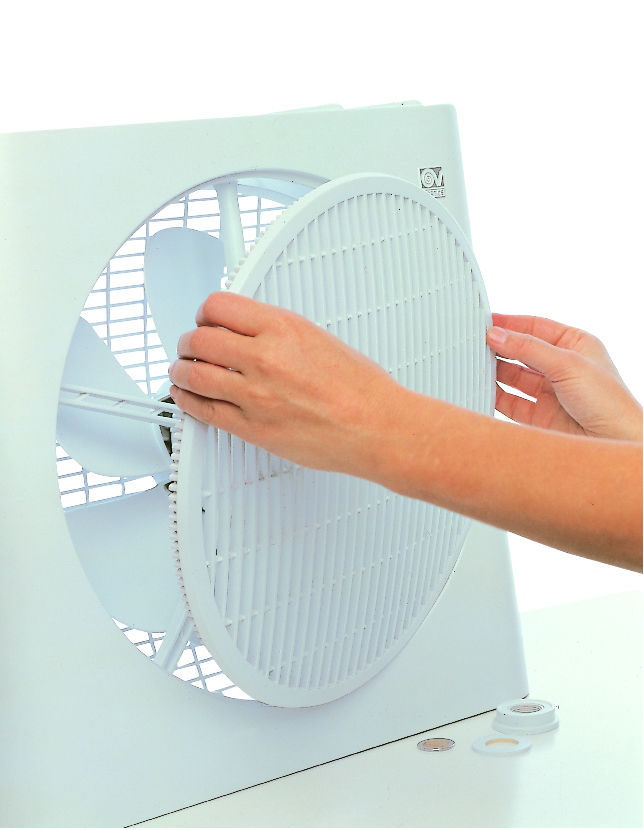

• Protective grilles made of ABS impact- and UV-resistant thermoplastic resin: front grille rotatable, rear grille fixed.
• Fan rotor moulded from ABS thermoplastic resin.
• 3 speed asynchronous motor with shaft turning in self-aligning and self-lubricating bushings; thermal overload protection.
• Air flow 1300 m3/h
• Front grille rotation mechanism incorporating synchronous motor with rubber gear housed in the front part of the casing.
• Provided with two rotary switches:
o The first switch, which has 4 positions (OFF-1-2-3), is used to turn the fan on and off and select the three speeds of the rotor
o The second switch, which has 2 positions (ON and OFF), is used to control the rotation of the front grille by turning the synchronous drive motor on or off.

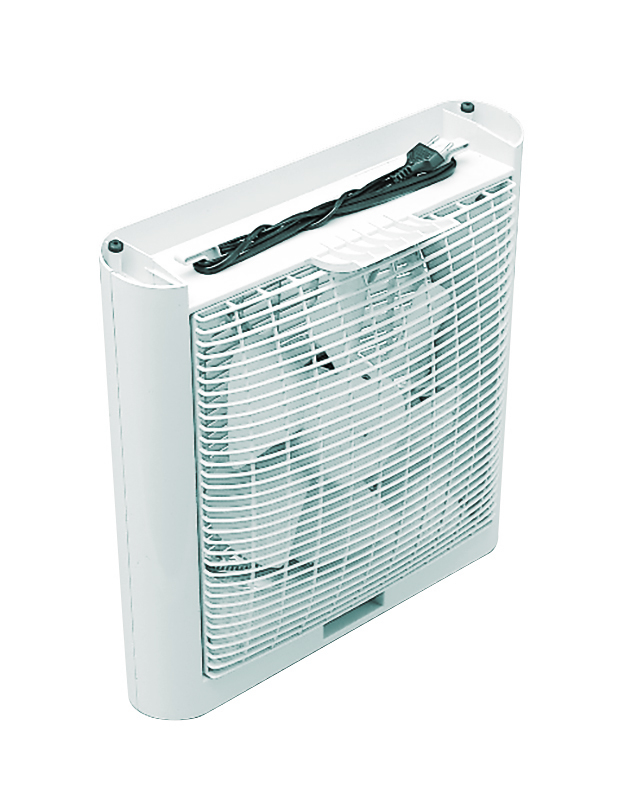

• PVC power cord, length 1.80 m, with 10A moulded plug conforming to the requirements of the EU Machinery Directive.
• IMQ safety and performance certifications
• Recipient of the Compasso D’oro award for product design
Read full descriptionClose description

Certifications

  • IMQ IMQ
  • CE CE
  • EAC EAC

Technical Data Sheet

  • Absorbed Current max (A)
    0,17
  • Absorbed Power max (W)
    35
  • Frequency (Hz)
    50
  • Insulation Class
    II°
  • Max. absorbed power at max speed (W)
    35
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,5
  • Airflow speed at max speed (m/s)
    2,03
  • Delivery max (m³/h)
    1306
  • Delivery max (m³/min)
    21,77
  • giri_minuto
    1075
  • RPM
    1075
  • Service value (m³/min)/W
    0,622
  • Sound power level Lw [dB(A)]
    54,5
  • Size A (mm)
    440
  • Size B (mm)
    162
  • Size C (mm)
    90
  • Size D (mm)
    175
  • Size E (mm)
    440
  • Size F (mm)
    Ø 350
