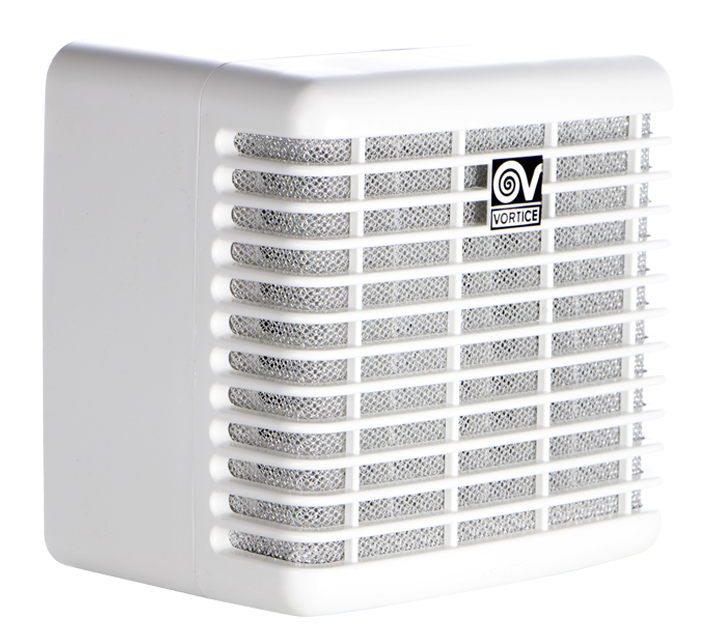

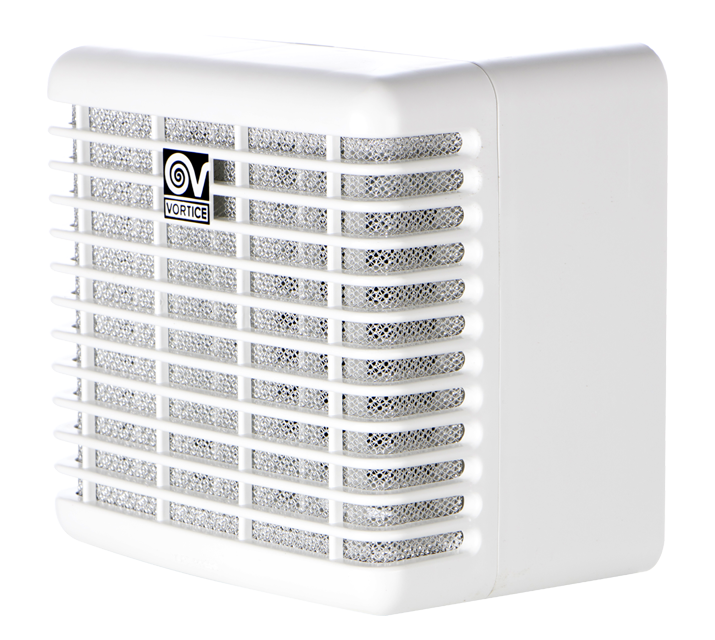

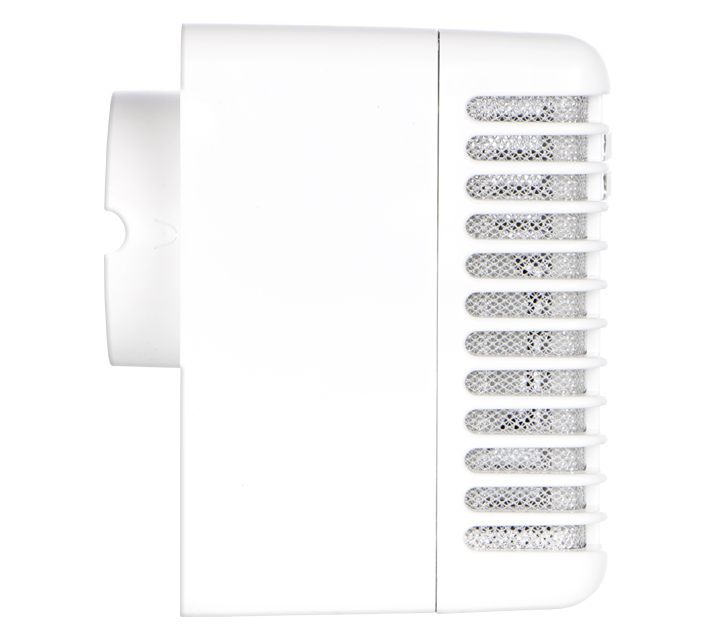

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm
• 2 speed motor with shaft turning in ball bearings, coupled to a forward-bladed centrifugal impeller.
• Minimum air flow: 55 m3/h
Maximum air flow: 110 m3/h
• Equipped with “smart” timer: when lights are switched on, the fan will start up after 40”approx; when lights are switched off, the fan stays on for between 30” and 30’ (adjustable), running at minimum speed.
• Double motor-fan enclosure, antivibration mounts and non-return damper combining to ensure extremely quiet operation.
• Removable and washable metal mesh filter (dishwasher safe).
• Closure with silicone diaphragm designed to prevent backdraughts when the appliance is off.
• Vertical outlet port supplied as standard with spigot positionable horizontally by means of diverter.

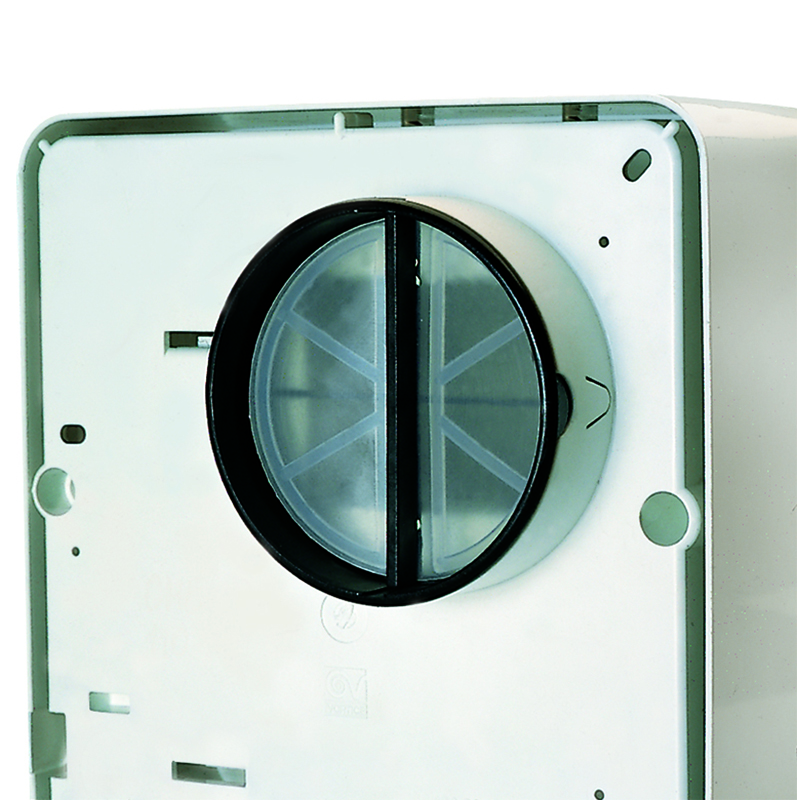

• Outlet port equipped with non-return damper.
• Vortice speed controller.
Read full descriptionClose description

Certifications

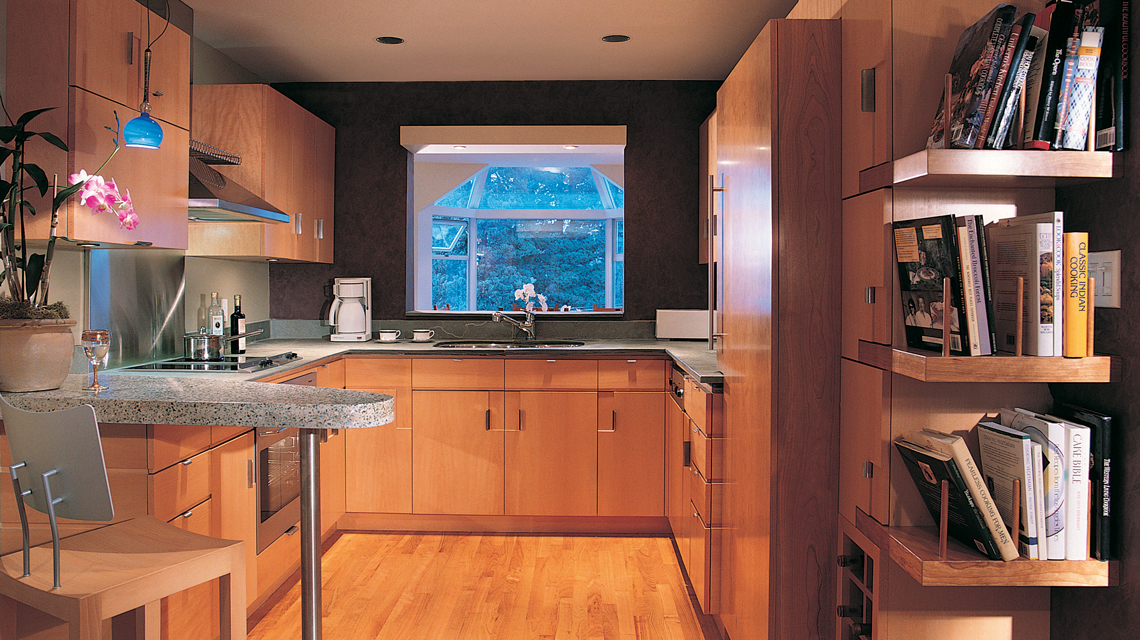

vort_press_ambiente01

Technical Data Sheet

  • Frequency (Hz)
    50
  • Insulation class
    II°
  • IP
    X4
  • Max absorbed current at Max speed (A)
    0,22
  • Max absorbed current at Min speed (A)
    0,07
  • Max absorbed power at Max speed (W)
    24
  • Max ambient temperature for continuous operation (°C)
    40
  • Nominal diameter (mm)
    100
  • Ø Discharge hole (mm)
    97
  • Power absorbed at 1st speed (W)
    12
  • Voltage (V)
    220-240
  • Weight (Kg)
    1,95
  • Airflow at 1st speed (l/s)
    15,3
  • Airflow at 1st speed (m³/h)
    55
  • Max airflow at Max speed (l/s)
    30,6
  • Max airflow at Max speed (m³/h)
    110
  • Max pressure at Max speed (mmH20)
    16
  • Max pressure at Max speed (Pa)
    157
  • Max RPM
    1760
  • Min RPM
    925
  • Pressure at 1st speed (mmH20)
    10
  • Pressure at 1st speed (Pa)
    98
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    30
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    41
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    NA
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    -2,7
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -16,0
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    5,0
  • Declared type
    UVR-U: unidirezionale
  • Type of heat recovery system HRS
    assente
  • Thermal efficiency of heat recovery at reference airflow [%]
    NA
  • Max airflow [m3/h]
    109
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    29,0
  • Sound power LWA [dB(A)]
    62
  • Reference airflow [m3/s]
    0,0212
  • Reference ? pressure [Pa]
    95
  • SPI [W/(m3/h)]
    0,32765
  • Control factor CTRL
    1
  • Control type
    manuale
  • Max internal leakage rate [%]
    NA
  • Max external leakage rate [%]
    NA
  • Mixing rate
    NA
  • Position and description of visual filter warning
    NA
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    451
  • AHS temperate annual energy saved [kWh primary energy/y]
    1397
  • AHS cold annual energy saved [kWh primary energy/y]
    2732
  • AHS warm annual energy saved [kWh primary energy/y]
    632
  • Size A (mm)
    202
  • Size B (mm)
    147
  • Size C (mm)
    30
  • Size D (mm)
    Ø 97
  • Size E (mm)
    73
quota
Curva_JPG_11968-Curve_per_Catalogo
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

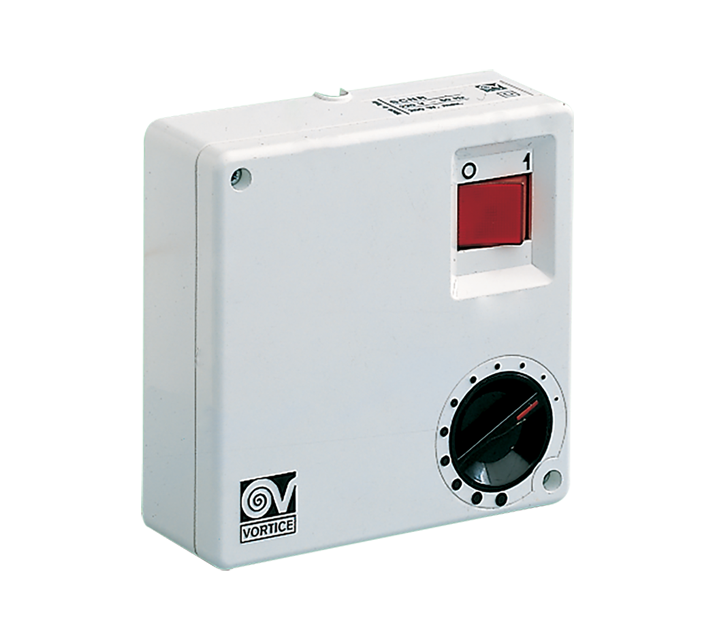

C 1.5 (COMANDO EL. 1.5 A)
C 1.5 (COMANDO EL. 1.5 A)
Electronic speed controller. Maximum load: 1.5 A.
