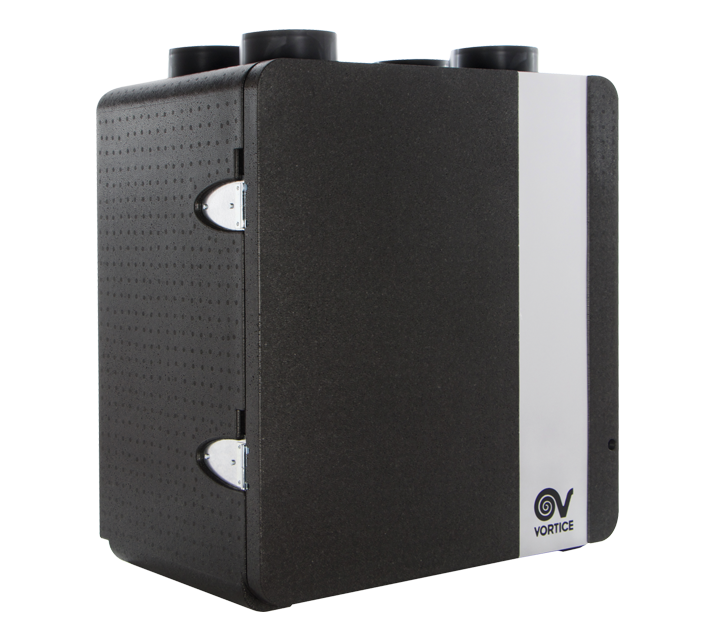

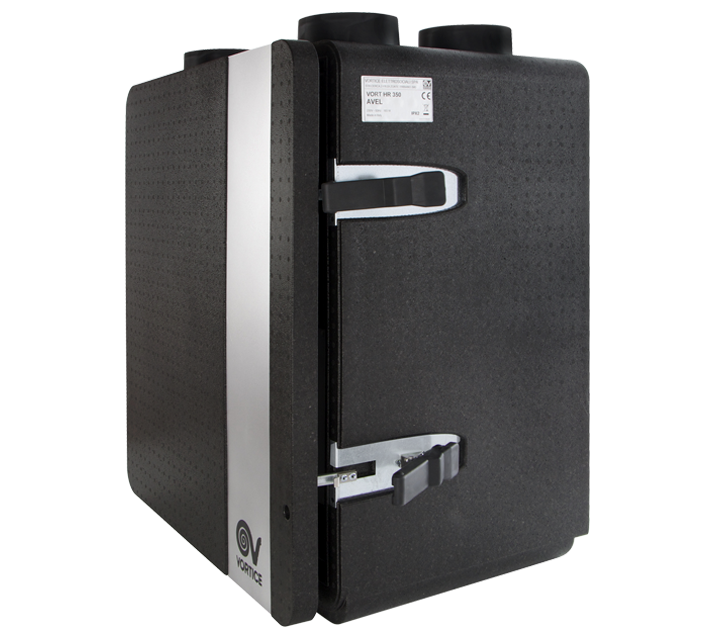

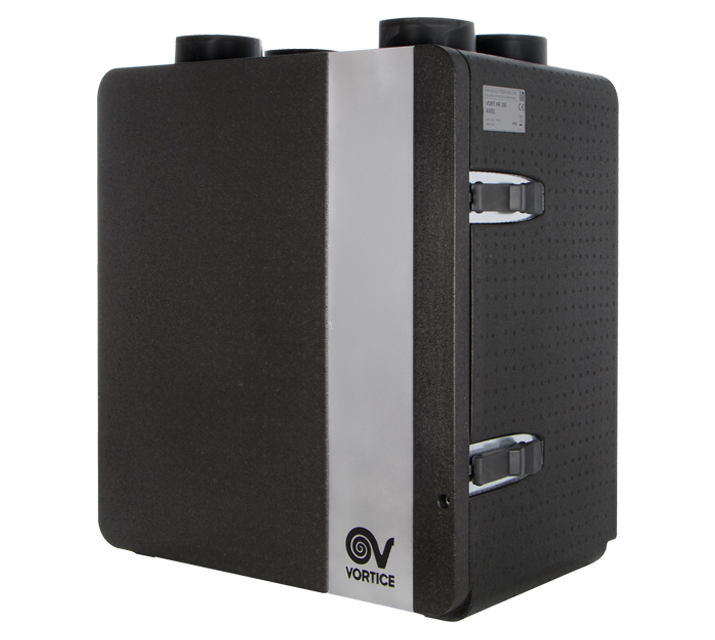

Description

• Plastic (PPE) enclosure
• Duct connection ports of nominal diameter 150 mm.
• 2 EC (brushless) motors with shaft turning in ball bearings, each coupled to a backward curved centrifugal impeller; 3 speeds, selectable independently at the moment of installation.
• Air flow settable between 50 m3/h and 350 m3/h.
• Very high-efficiency counter-flow heat exchanger in PS resin.
• Automatic, filtered 100% by-pass
• Integrated frost protection.
• 2 x ePM10 50% (M5) filters. ePM1 70% (F7) filter available as optional.
• Electronic control with LCD display.
• Brackets for wall mounting included.
Read full descriptionClose description

Technical Data Sheet

  • Filter class
    F5
  • Frequency (Hz)
    50
  • Insulation class
  • IP
    X2
  • Max absorbed current (A)
    1,4
  • Max absorbed power (W)
    165
  • Max ambient temperature for continuous operation (°C)
    25
  • Max temperature of exhaust air (continuous operation)
    40
  • Min continuous operation room temperature (°C)
    0
  • Voltage (V)
    230
  • Weight (Kg)
    24,80
  • Breakout sound power LWA [dB(A)]
    57,3
  • Breakout sound pressure at 3m at Max speed Lp [dB (A)]
    36,8
  • Max airflow (l/s)
    100
  • Max airflow (m³/h)
    350
  • Max pressure (mmH2O)
    90
  • Max pressure (Pa)
    880
  • Max thermal efficiency (%)
    90,5
  • Sound power at exhaust inlet LWA [dB(A)]
    43,6
  • Sound power at supply outlet LWA [dB(A)]
    60,2
  • Sound pressure at 3m at Max speed at extraction side Lp [dB (A)]
    23,1
  • Sound pressure at 3m at Max speed at supply side Lp [dB (A)]
    39,7
  • Ø (mm)
    150
  • Size A (mm)
    719
  • Size B (mm)
    845
  • Size C (mm)
    480
  • Size D (mm)
    700
  • Size E (mm)
    790
  • Size F (mm)
    410
  • Size G (mm)
    220
  • Size H (mm)
    215
  • Size I (mm)
    1130
