Description

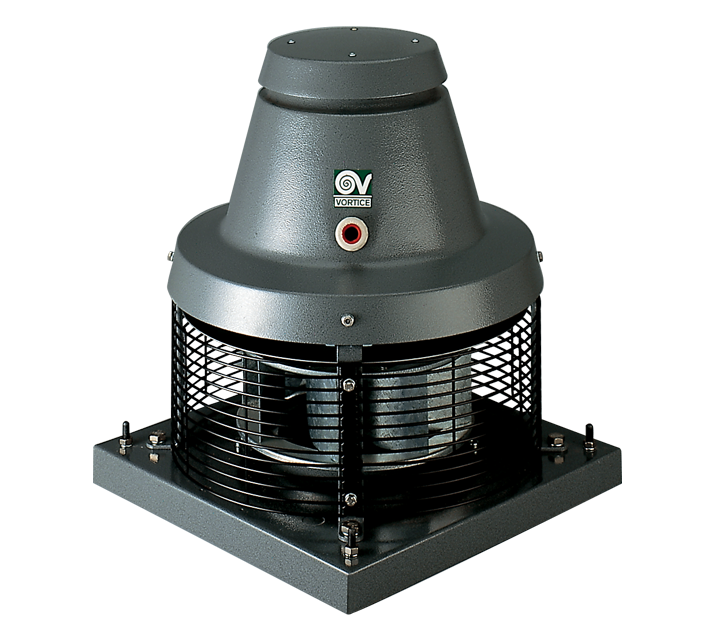

• Base manufactured from phosphated pressed steel, epoxy powder coated with hammered effect finish, guaranteeing long-term resistance to atmospheric agents.
• Aerodynamically contoured inlet port for optimum performance, fashioned as a single unit with the base and gauged to optimize air flow.
• Pressed steel motor cover: pickled and phosphated surface, polyester powder coated and oven baked finish, colour grey, with hammered texture.
• Asynchronous motor with thermal overload cutout and shaft turning in ball bearings, coupled to backward curved impeller with dynamically balanced self-cleaning aluminium blades (UNI ISO 1940, Point 1 – Class 6.3).
• Maximum airflow: 750 m3/h.
• Protection grille with anti-bird rings (in accordance with UNI ISO 13857 standard), made of electrically welded steel; epoxy paint finish, colour black.
• Sub-frame for fixing the appliance to the flue stack.
• Equipped with steel safety wire for anchoring the appliance once installed.
• Designed for use at a continuous operating temperature of 200 °C.
• Variable speed controller supplied as standard.

Read full descriptionClose description

Certifications

CE
Download
EAC
UKCA

Technical Data Sheet

Frequency (Hz)

50-60
Insulation class

I°
IP

X4
Max absorbed current (A)

0,5
Max absorbed power (W)

120
Max absorbed Power at 60 Hz (W)

150

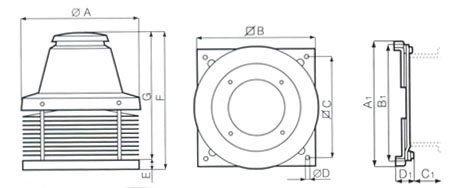

Nominal diameter (mm)

180
Voltage (V)

220-240
Weight (Kg)

14,3
Max airflow (l/s)

208

Max airflow (m³/h)

750
Max airflow at 60 Hz (l/s)

252
Max airflow at 60 Hz (m³/h)

910
Max pressure (mmH2O)

19
Max pressure (Pa)

186
Max pressure at 60 Hz (mmH2O)

26
Max pressure at 60 Hz (Pa)

255
Max RPM

1400
RPM

1400
Sound pressure Lp [dB (A)] at 3 m

52

* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
