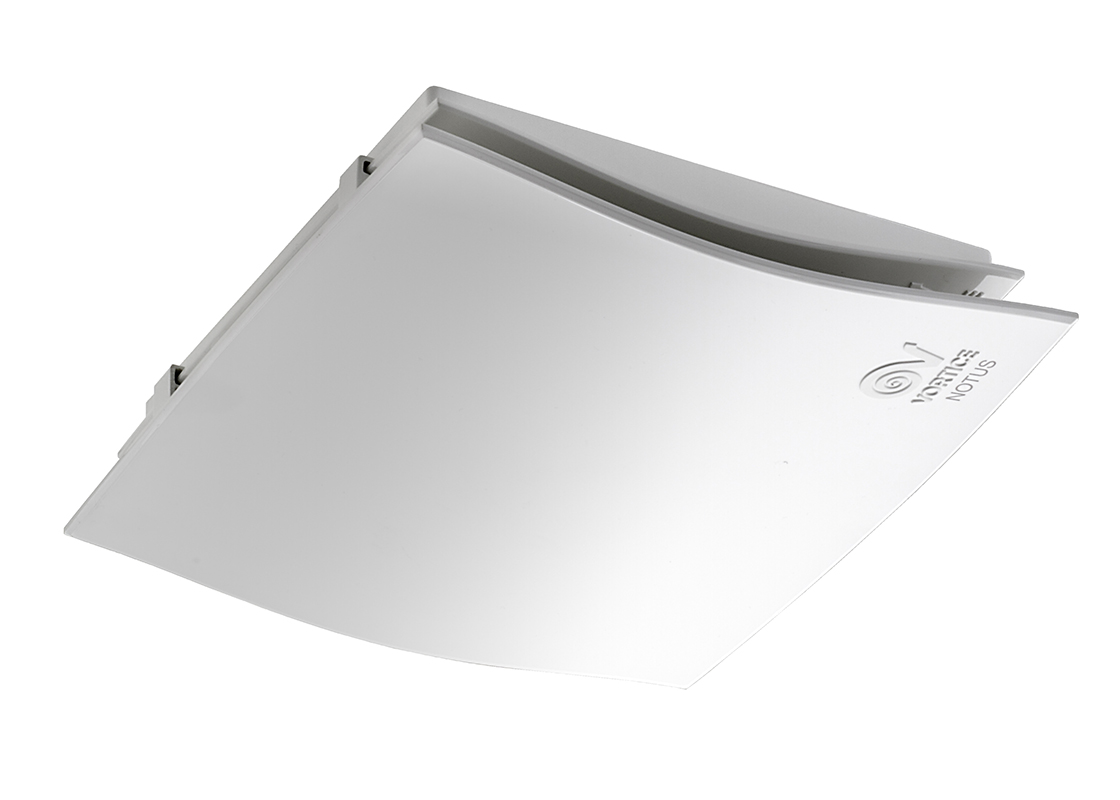

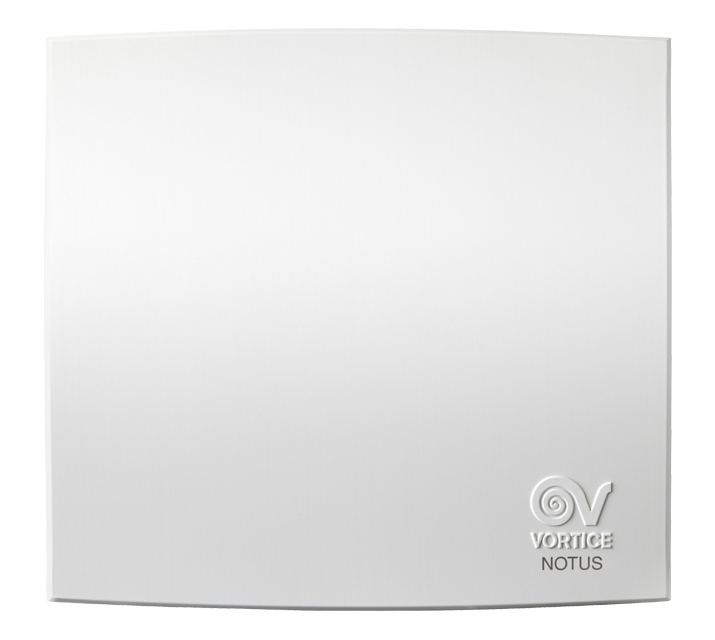

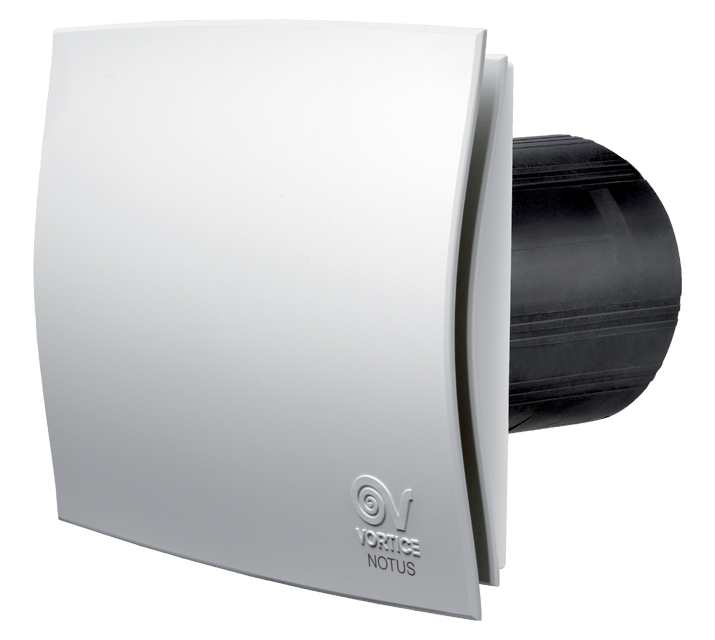

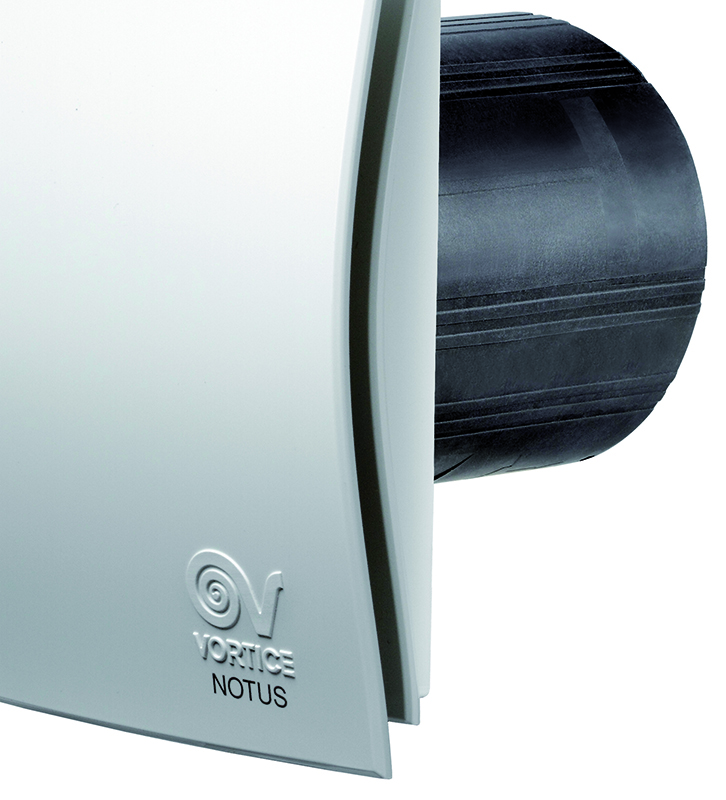

VORT NOTUS

Description

• Material: UV resistant plastic (prevents ageing caused by exposure to sunlight).
• Nominal diameter 100 mm
• Three-phase EC brushless motor of external rotor type with shaft turning in ball bearings, designed to guarantee notably low energy consumption and to provide 3 different air flow rates (the first two of which can be selected at the moment of installation)
• Air flow between 11.7 m3/h and 42 m3/h

Read full descriptionClose description

Certifications

CE
Download
CCC
SAP Q
EAC
UKCA

Technical Data Sheet

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,025
Max absorbed current at Min speed (A)

0,018
Max absorbed power at Max speed (W)

2,8
Max ambient temperature for continuous operation (°C)

50
Nominal diameter (mm)

100
Power absorbed at 1st speed (W)

1,5
Voltage (V)

220-230
Weight (Kg)

0,8

Airflow at 1st speed (l/s)

3,3
Airflow at 1st speed (m³/h)

11,7
Max airflow at Max speed (l/s)

11,7
Max airflow at Max speed (m³/h)

42
Max pressure at Max speed (mmH20)

8,8
Max pressure at Max speed (Pa)

86,3
Pressure at 1st speed (mmH20)

2,4
Pressure at 1st speed (Pa)

23,5
Sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]

17.3
Sound pressure at 3m at Min speed calculated in free field Lp [dB(A)]

10.1

Supplier's name or trade mark

Vortice
Specific Energy Consumption (SEC) class in temperate climate zone

NA
Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]

-6,2
Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]

-19,5
Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]

1,5
Declared type

UVR-U: unidirezionale
Type of drive

NA
Type of heat recovery system HRS

assente
Thermal efficiency of heat recovery at reference airflow [%]

NA
Max airflow [m3/h]

43
Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]

3,5
Sound power LWA [dB(A)]

32,4
Reference airflow [m3/s]

0,0084
Reference ? pressure [Pa]

62
SPI [W/(m3/h)]

0,22591
Control factor CTRL

1
Control type

manuale
Max internal leakage rate [%]

NA
Max external leakage rate [%]

NA
Mixing rate

NA
Position and description of visual filter warning

NA
Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa

NA
Indoor/outdoor air tightness [m3/h]

NA
Annual electricity consumption (AEC) [kWh electricity/y]

311
AHS temperate annual energy saved [kWh primary energy/y]

1397
AHS cold annual energy saved [kWh primary energy/y]

2732
AHS warm annual energy saved [kWh primary energy/y]

632

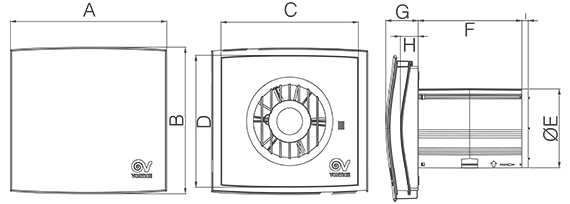

Size A (mm)

194,6
Size B (mm)

182
Size C (mm)

171
Size D (mm)

164
Size E (mm)

97,8
Size F (mm)

129
Size G (mm)

40,5
Size H (mm)

22,2
Size I (mm)

8
