Description

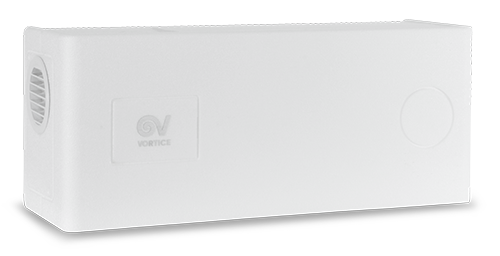

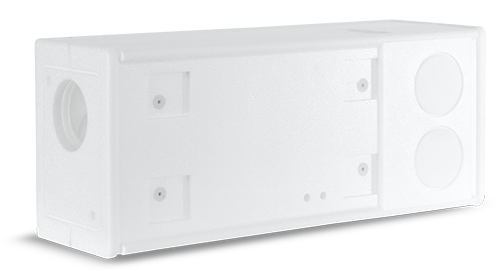

Positive input ventilation system aimed at continuously supply fresh, filtered outdoor air to the dwelling. Fresh air entering through an aerodynamically optimized front or left spigot (or both, if needed) prevents mold growth caused by high humidity levels, so preserving the integrity of the building and ensuring the comfort of the occupants.
VORT PIV W LH highly efficient EC motorfan assures low energy consumptions. A washable ISO Coarse 40% (G3) retains the impurities in the supplied air.
An on-board control panel with a LCD display and a set of buttons allows the unit setting at installation and shows the filter remaining life, while a data logger recaps the total operation time.
An integrated pre-heater prevents annoying cold air supply.
A wired controller, wall mounted and compatible with recessed installation, allows the unit proper settings.
VORT PIV W LH highly efficient EC motorfan assures low energy consumptions. A washable ISO Coarse 40% (G3) retains the impurities in the supplied air.
An on-board control panel with a LCD display and a set of buttons allows the unit setting at installation and shows the filter remaining life, while a data logger recaps the total operation time.
An integrated pre-heater prevents annoying cold air supply.
A wired controller, wall mounted and compatible with recessed installation, allows the unit proper settings.
Certifications
-
CE
-
UKCA
Technical Data Sheet
-
Filter classISOCoarse 30%
-
Frequency (Hz)50-60
-
Insulation classI°
-
IPX2
-
Max absorbed current (A)2,4
-
Max absorbed power (W)520,00
-
Max fan absorbed current (A)0,19
-
Potenza assorbita (W) - Vset1_Boost9,30
-
Potenza assorbita (W) - Vset1_Normal6,80
-
Potenza assorbita (W) - Vset2_Boost13,20
-
Potenza assorbita (W) - Vset2_Normal9,30
-
Potenza assorbita (W) - Vset3_Boost17,00
-
Potenza assorbita (W) - Vset3_Normal13,20
-
Potenza assorbita (W) - Vset4_Boost20,00
-
Potenza assorbita (W) - Vset4_Normal17,00
-
Potenza Assorbita Heater (W)500,00
-
Voltage (V)220-240
-
Weight (Kg)4,5
-
Portata (l/s) - Vset1_ Boost19
-
Portata (l/s) - Vset1_Normal13
-
Portata (l/s) - Vset2_ Boost25
-
Portata (l/s) - Vset2_Normal19
-
Portata (l/s) - Vset3_ Boost25
-
Portata (l/s) - Vset3_Normal31
-
Portata (l/s) - Vset4_ Boost36
-
Portata (l/s) - Vset4_Normal31
-
Portata (m3/h) - Vset1_Boost68,4
-
Portata (m3/h) - Vset1_Normal46,8
-
Portata (m3/h) - Vset2_Boost90
-
Portata (m3/h) - Vset2_Normal68,4
-
Portata (m3/h) - Vset3_Boost111,6
-
Portata (m3/h) - Vset3_Normal90
-
Portata (m3/h) - Vset4_Boost133,2
-
Portata (m3/h) - Vset4_Normal111,6
-
Potenza sonora Lw [dB (A)] - OUTLET - Vset1_Normal40,1
-
Pressione sonora Lp [dB (A)] 3m - OUTLET - Vset1_Normal19,6
* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.
-

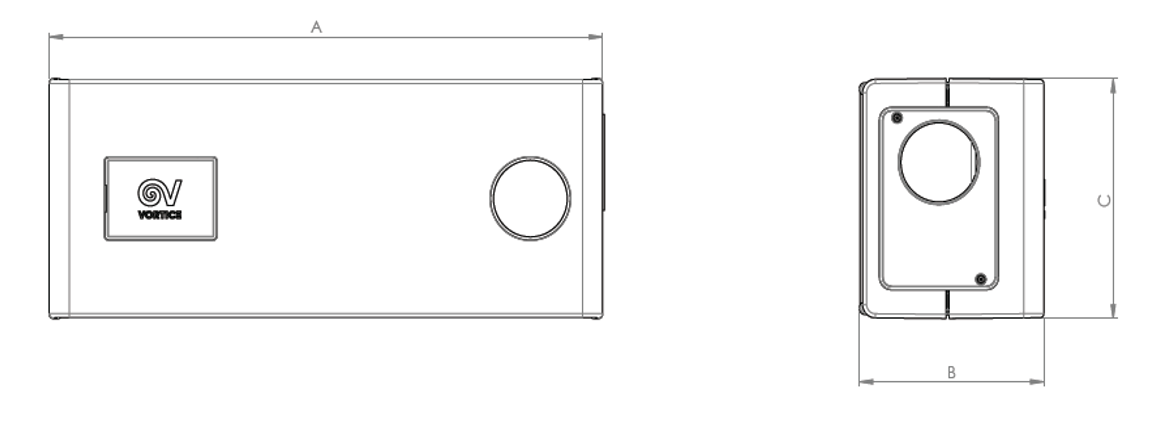

Size A (mm)690
-
Size B (mm)229
-
Size C (mm)290
