Description
Energy label
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current at Max speed (A)0,25
-
Max absorbed current at Min speed (A)0,21
-
Max absorbed power at Max speed (W)56
-
Max ambient temperature for continuous operation (°C)60
-
Nominal diameter (mm)80-125
-
Number of speeds3
-
Power absorbed at 1st speed (W)23
-
Voltage (V)230
-
Weight (Kg)5,4
-
Airflow at 1st speed (l/s)48.8
-
Airflow at 1st speed (m³/h)176
-
Max airflow at Max speed (l/s)95.2
-
Max airflow at Max speed (m³/h)343
-
Max pressure at Max speed (mmH20)41.9
-
Max pressure at Max speed (Pa)411.7
-
Max RPM2610
-
Min RPM1300
-
Pressure at 1st speed (mmH20)26.6
-
Pressure at 1st speed (Pa)261
-
Sound power Lw [dB(A)]34.9
-

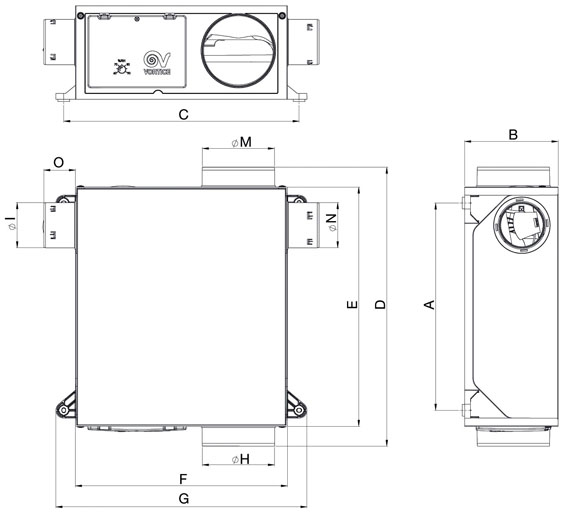

Size A (mm)355
-
Size B (mm)160
-
Size C (mm)403
-
Size D (mm)478
-
Size E (mm)410
-
Size F (mm)363
-
Size G (mm)430
-
Size H (mm)Ø 124,5
-
Size I (mm)Ø 77,5
-
Size M (mm)Ø 124,5
-
Size N (mm)Ø 77,5
-
Size O (mm)54
