Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current at Max speed (A)0.34
-
Max absorbed current at Min speed (A)0,19
-
Max absorbed power at Max speed (W)73
-
Max ambient temperature for continuous operation (°C)40
-
Nominal diameter (mm)125
-
Number of speeds3
-
Power absorbed at 1st speed (W)21
-
Voltage (V)230
-
Weight (Kg)4,4
-
Airflow at 1st speed (l/s)59.9
-
Airflow at 1st speed (m³/h)205
-
Max airflow at Max speed (l/s)94.4
-
Max airflow at Max speed (m³/h)340
-
Max pressure at Max speed (mmH20)43
-
Max pressure at Max speed (Pa)421.9
-
Max RPM2160
-
Min RPM1245
-
Pressure at 1st speed (mmH20)24.4
-
Pressure at 1st speed (Pa)240.1
-
Sound power Lw [dB(A)]31.9
-

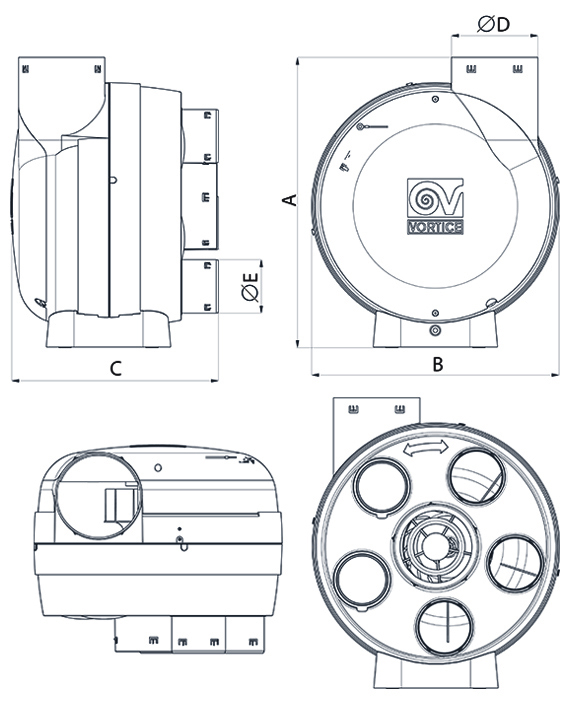

Size A (mm)420
-
Size B (mm)Ø 358
-
Size C (mm)300
-
Size D (mm)Ø 125
-
Size E (mm)Ø 77.5
