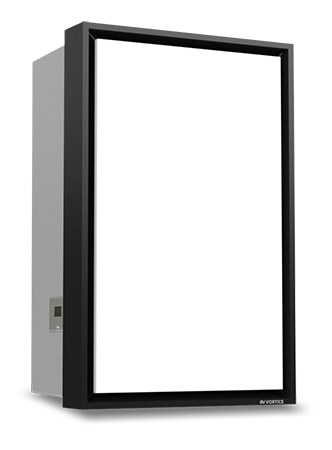

Technical Data Sheet

  • Filter class on extract
    G4
  • Filter class on supply
    ePM1 60%
  • Frequency (Hz)
    50/60
  • IP
    22
  • Max ambient temperature for continuous operation (°C)
    40
  • Min continuous operation room temperature (°C)
    -5
  • Motor class
    B
  • Number of phases (Ph)
    1
  • Number of speeds
    5
  • Potenza assorbita (W) - Vset1_Normal
    8
  • Potenza assorbita (W) - Vset2_Normal
    12
  • Potenza assorbita (W) - Vset3_Normal
    19
  • Potenza assorbita (W) - Vset4_Normal
    39
  • Potenza assorbita (W) - Vset5_Boost
    58
  • Range of nominal voltages (V)
    220-240
  • Weight (Kg)
    16,5
  • Airflow (m3/h) - Boost mode
    130
  • Airflow (m3/h) - High Performance mode
    110
  • Airflow (m3/h) - Performance mode
    70
  • Airflow (m3/h) - Quiet mode
    53
  • Portata (m3/h) - Super Quiet
    31
  • Potenza sonora Lw [dB(A)] - Super Quiet
    24
  • Pressione (Pa) – Super Quiet
    59
  • Pressure (Pa) – Boost mode
    296
  • Pressure (Pa) – High Performance mode
    220
  • Pressure (Pa) – Performance mode
    104
  • Pressure (Pa) – Quiet mode
    26
  • Sound power LWA [dB (A)] – Boost mode
    50
  • Sound power LWA [dB(A)] – High Performance mode
    45
  • Sound power LWA [dB(A)] – Performance mode
    36
  • Sound power LWA [dB(A)] – Quiet mode
    31
  • Sound pressure at 3m Lp [dB (A)] – Quiet mode
    14
  • Sound pressure at 3m Lp [dB (A)] 3m – Boost mode
    33
  • Sound pressure at 3m Lp [dB (A)] 3m – High Performance mode
    28
  • Sound pressure at 3m Lp [dB (A)] 3m – Performance mode
    19
  • Sound pressure Lp [dB (A)] 1m – Boost
    42
  • Sound pressure Lp [dB (A)] 1m – Hight performance
    37
  • Sound pressure Lp [dB (A)] 1m – performance
    28
  • Sound pressure Lp [dB (A)] 1m – Quiet
    23
  • Sound pressure Lp [dB (A)] 1m – Super Quiet
    16
  • Sound pressure Lp [dB (A)] 3m – Super Quiet
    <10


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

  • Size A (mm)
    595
  • Size B (mm)
    400
  • Size C (mm)
    217
  • Size D (mm)
    675
  • Size E (mm)
    Ø 97
  • Size F (mm)
    Ø 96

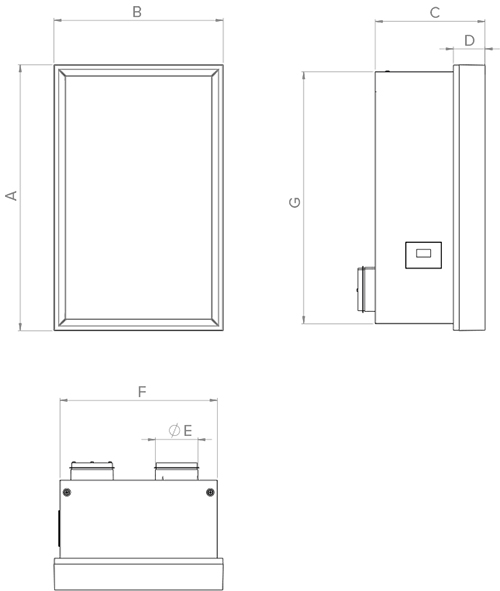

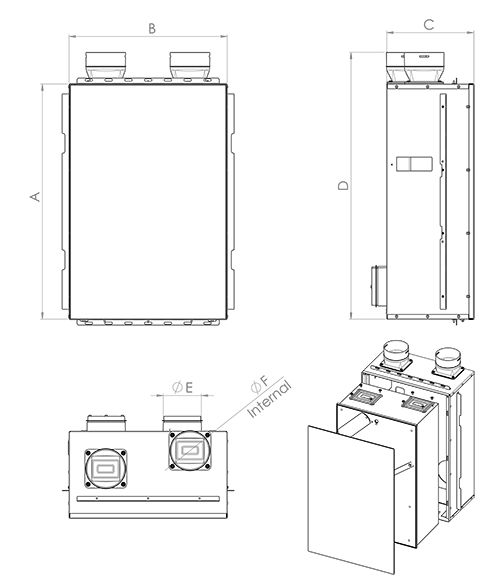

quota

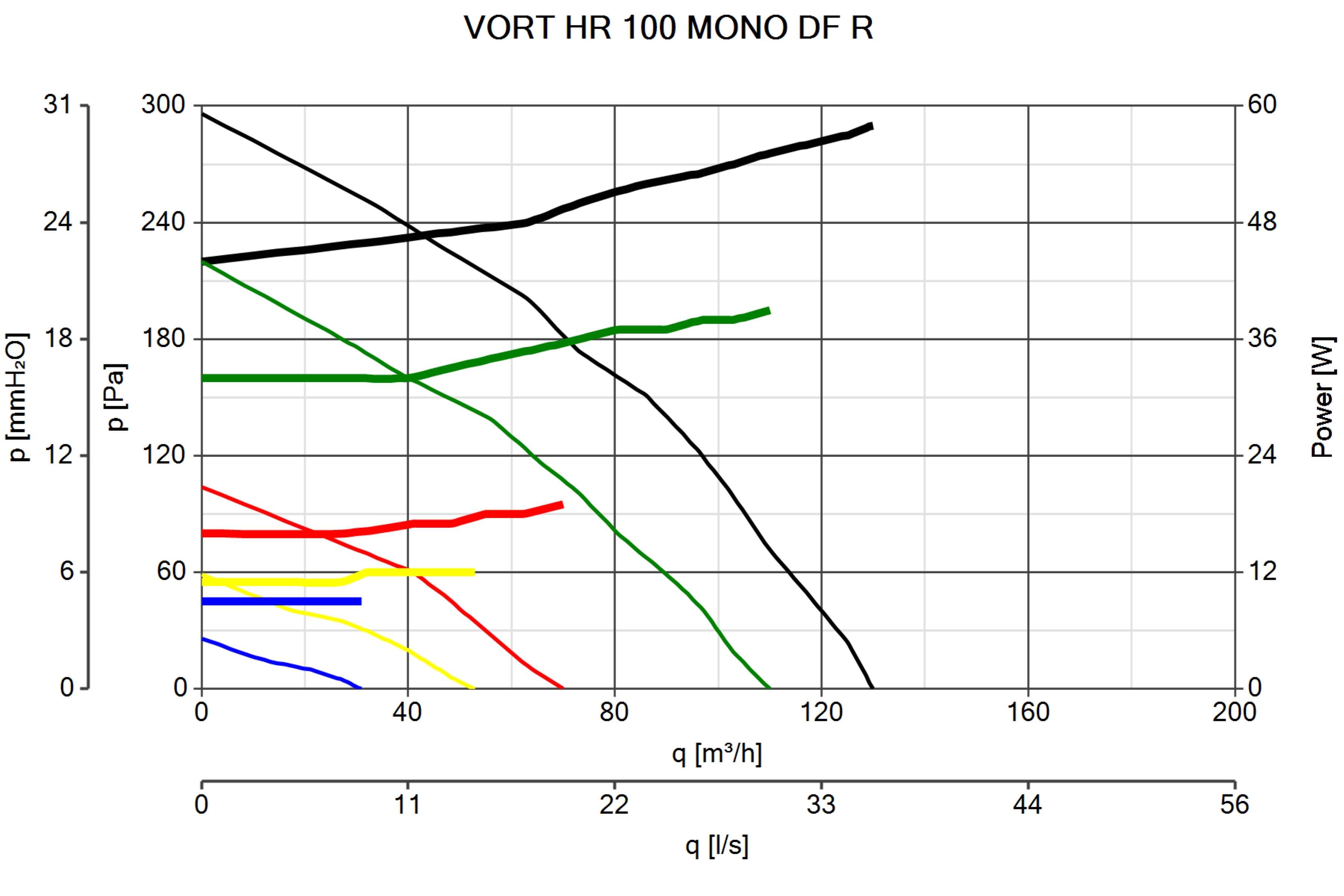

Curva_JPG_12486-Curve_per_Catalogo

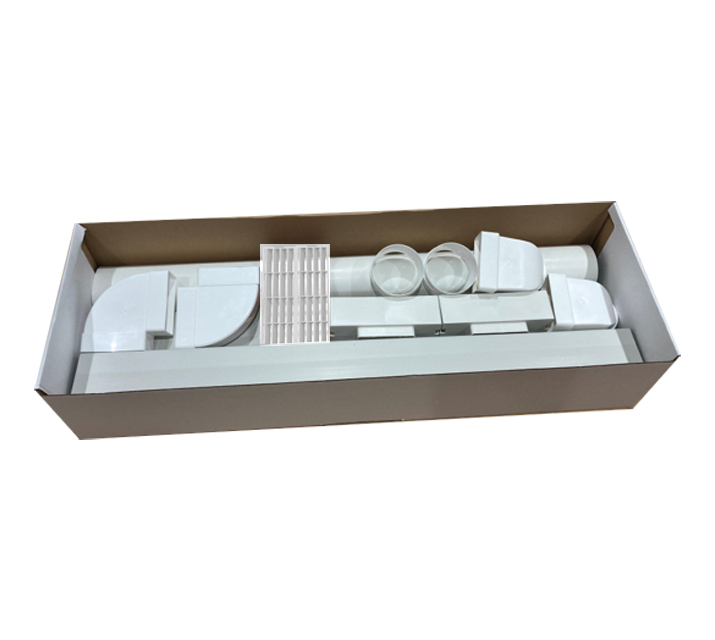

Accessories

Discover accessories related to the product

SCI503
SCI503
Flush mounting 503 box able to house the control unit.
SCP503
SCP503
Wall mounting 503 box able to house the control unit.
CB LCD R
CB LCD R

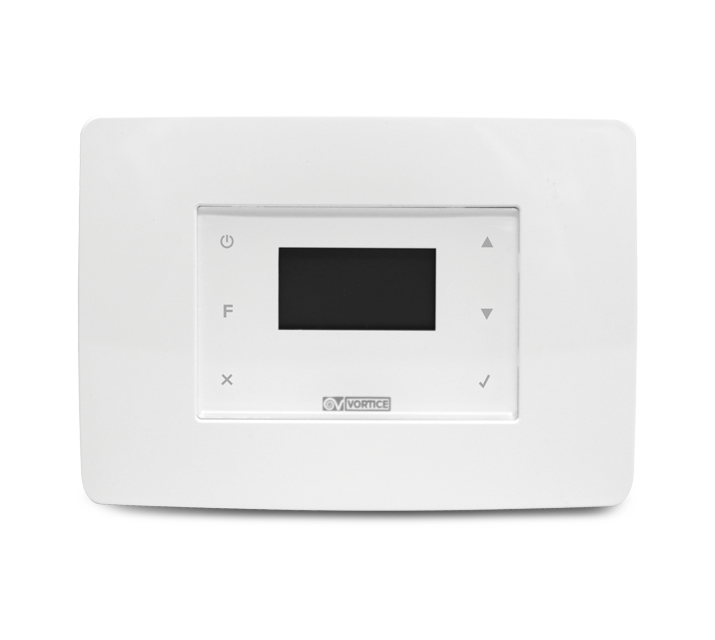

Remote control panel with LCD display for flush mounting in wall box code 22732.
