Description

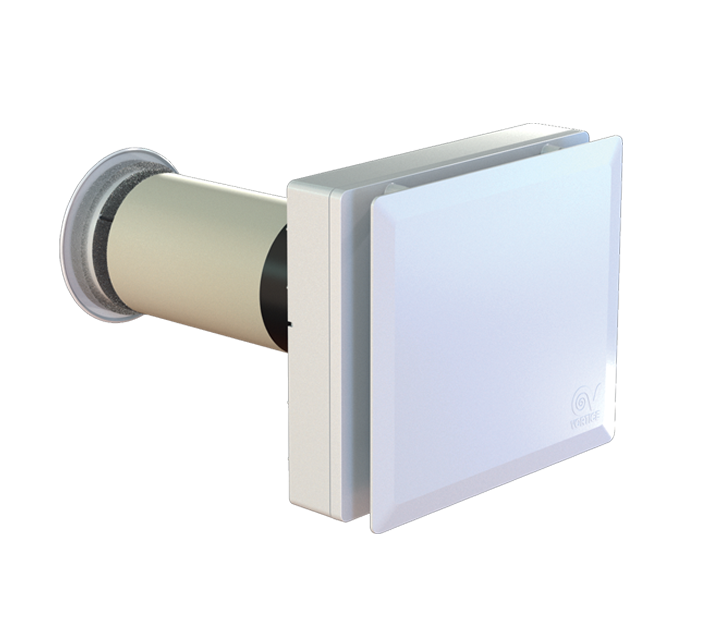

Decentralized heat recovery unit, for installation in residential and commercial premises of new buildings or those subject to renovation for energy efficiency. Ideal, as well as to ensure proper air exchange, also to prevent excess humidity in the room and mold growth on the walls.

• Shockproof and anti-UV plastic resin structure.
• Nominal diameter: 100 mm.
• Ceramic exchanger with hexagonal cells. High heat exchange efficiency (up to 90% at minimum airflow).
• High efficiency EC motor fan; five operating speeds, to maximize performance when needed, or to minimize noise and consumption.
• Integrated relative humidity probe.
• One-way remote control that allows to set parameters or to view useful product information. In detail:
• to switch on/off the machine,
• to select the operating mode (4 different choices),
• to set fan speed,
• to select the relative humidity threshold value that activates the Boost speed (three pre-defined levels that can be set at 50%, 65% and 80%),
• to activate “Night Mode”,
• to show filter status.
• Five different operating modes:
• Continuous ventilation with heat recovery: the product cyclically extracts and introduces air to and from the room, recovering the energy stored in the exchanger;
• Ventilation with air extraction only: stale air is extracted from the environment;
• Ventilation with air intake only: the product introduces fresh air into the environment;
• Automatic ventilation: the heat recovery unit automatically manages the airflows based on the relative humidity sensor readings;
• “Night” ventilation: when the light in the room goes down, the product automatically forces the fan to run at minimum speed, regardless of the relative humidity values detected.
• Two air filters, a 65% IsoCoarse and a pre-filter for dust, both easily removable for washing.
• Mechanical quick closing system of the air delivery integrated into the product chassis.
• External rubber grille, which can be installed from the outside using plugs or from the inside, through the hole in the wall.
• Insect mesh, which can be installed into the duct from inside.
Read full descriptionClose description

Certifications

Energy label Energy label

Technical Data Sheet

  • Filter class
    ISOCoarse 65%
  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • Max absorbed current (A)
    0,04
  • Max absorbed power (W)
    4
  • Max ambient temperature for continuous operation (°C)
    30
  • Nominal diameter (mm)
    100
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,10
  • Airflow at 1st speed (l/s)
    1,7
  • Airflow at 1st speed (m³/h)
    6
  • Max airflow at Max speed (l/s)
    10,5
  • Max airflow at Max speed (m³/h)
    38
  • Max pressure at Max speed (mmH20)
    13,7
  • Max pressure at Max speed (Pa)
    130
  • Max thermal efficiency (%)
    90
  • Pressure at 1st speed (mmH20)
    1
  • Pressure at 1st speed (Pa)
    10
  • Sound power LWA at Max speed [dB (A)]
    66,8
  • Sound power LWA at Min speed [dB (A)]
    36,6
  • Sound power at Mid speed LWA [dB(A)]
    49,5
  • Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed
    19,1
  • Sound pressure at 3m at Max speed Lp [dB (A)]
    49,2
  • Sound pressure Lp at 3m at Mid speed [dB (A)]
    32,0


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

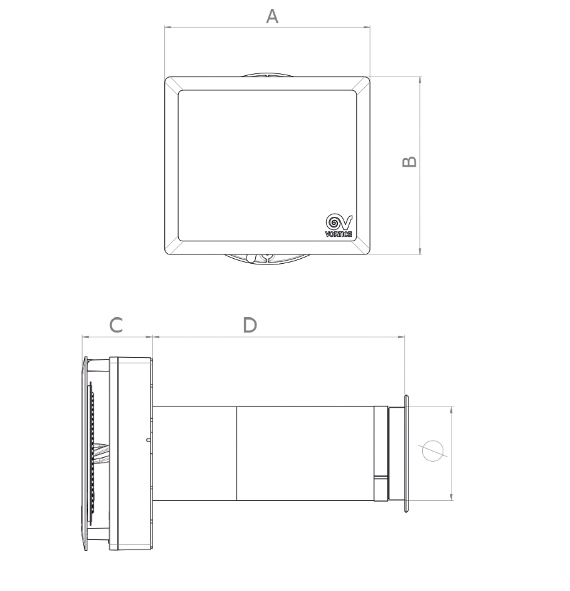

  • Ø (mm)
    97
  • Size A (mm)
    231
  • Size B (mm)
    200
  • Size C (mm)
    73
  • Size D (mm)
    260
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

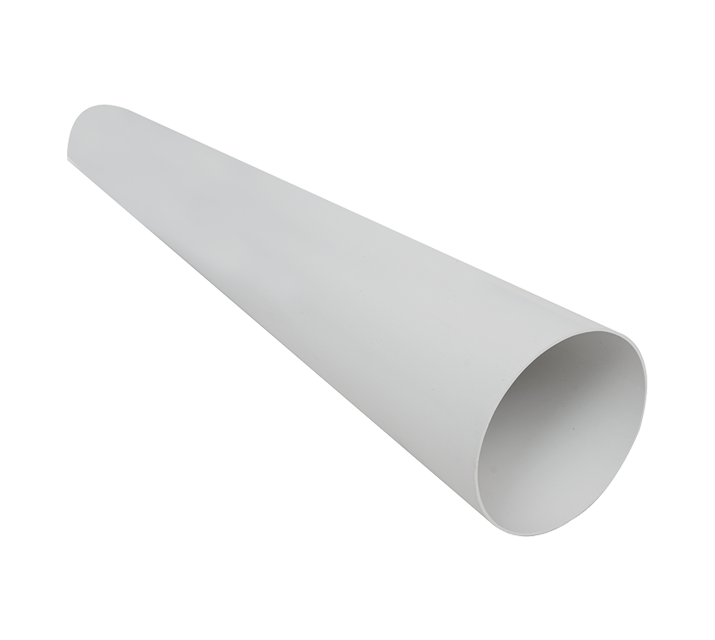

TUBO PVC D.100 L=700 (HRW 30)
TUBO PVC D.100 L=700 (HRW 30)

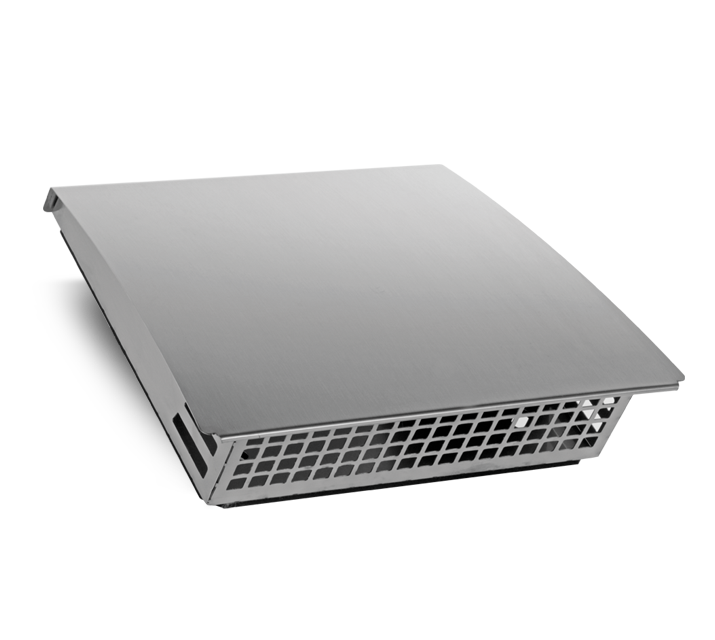

MWS D.100
MWS D.100
Outside stainless steel windshield panel. Rear connection diameter: 100 mm.

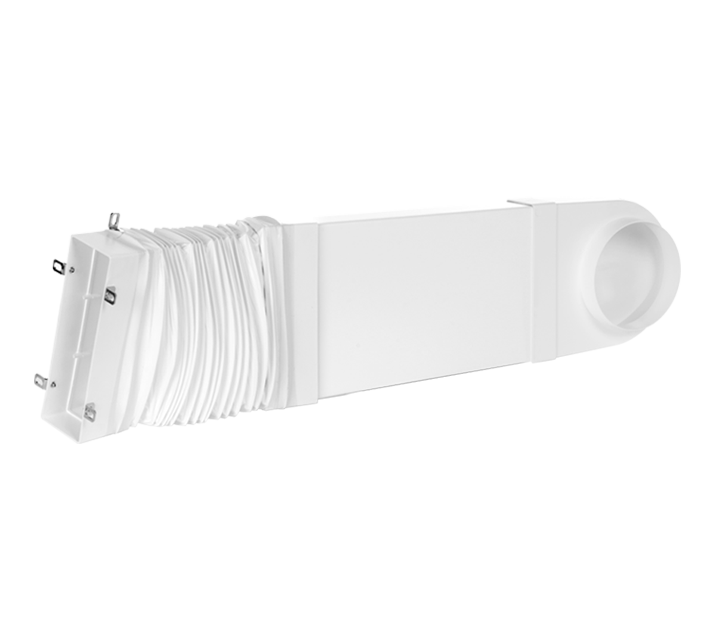

WA Ø 100
