Description

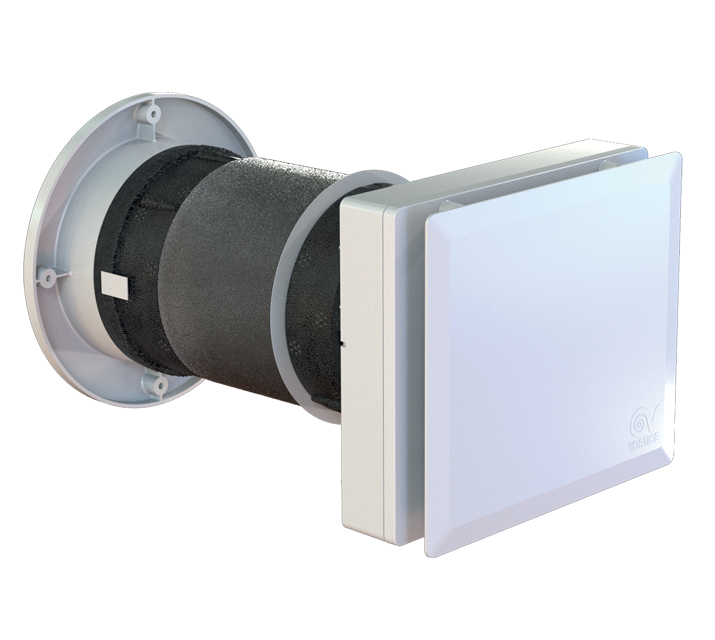

Decentralized heat recovery unit, equipped with a Wi-Fi module that allows communication between all other installed devices without the need for traditional wiring, promoting coordinated system operation to ensure balanced airflow. Particularly suitable for installation in residential and commercial spaces in new or renovated buildings for energy efficiency, it is ideal not only for ensuring proper air exchange but also for preventing excess humidity in the room and the formation of mold on the walls.

• Shock-resistant and UV-resistant plastic resin structure.
• Nominal diameter: 160 mm.
• Ceramic heat exchanger with hexagonal cells. High heat exchange efficiency (up to 90% at minimum air flow).
• Wi-Fi module capable of establishing mutual communication between products through a local "mesh" network, creating a system composed of units that operate in a coordinated and coherent manner.
• High-efficiency EC fan motor; Five operating speeds to maximize performance when needed or minimize noise and energy consumption.
• Built-in relative humidity sensor.
• One-way remote control allows you to set parameters or view useful product information. In detail:
• On/off;
• Selection of 5 operating modes;
• Selection of fan speeds;
• Selection of the relative humidity threshold that activates the Boost speed (three predefined levels settable at 60%, 75%, and 90%);
• Activation of "Night" mode;
• Filter saturated status indicator.
• Five different operating modes:
• Continuous ventilation with heat recovery: the product cyclically extracts and releases air to and from the room, recovering the energy accumulated in the exchanger;
• Air extraction only: stale air is extracted from the room;
• Air supply only ventilation: the product introduces fresh air into the room.
• Automatic: the recovery unit automatically manages air flow based on the readings of the relative humidity sensor;
• "Night": when the light in the room fades, the product automatically forces the fan to run at minimum speed, regardless of the relative humidity values ??detected.
• Two air filters, an IsoCoarse 65% and a coarser pre-filter for dust, both easily removable for cleaning.
• Mechanical quick-release air outlet closure system integrated into the product chassis.
• External rubber grille, can be installed from the outside using bolts or inserted from the inside, through a hole in the wall, without the need for external scaffolding.
• Insect net, can be inserted into the duct from inside the room.
Read full descriptionClose description

Certifications

  • CE CE
    Download
  • UKCA UKCA
  • CB TEST CERTIFICATE CB TEST CERTIFICATE
  • CB TEST REPORT CB TEST REPORT
Energy label Energy label

Technical Data Sheet

  • Frequency (Hz)
    50-60
  • Insulation class
    II°
  • Max absorbed current (A)
    0,08
  • Max absorbed power (W)
    8
  • Max ambient temperature for continuous operation (°C)
    50
  • Nominal diameter (mm)
    160
  • Voltage (V)
    220-240
  • Weight (Kg)
    3,30
  • Airflow (m3/h) - Boost mode
    60
  • Airflow (m3/h) - High Performance mode
    45
  • Airflow (m3/h) - Night mode
    10
  • Airflow (m3/h) - Performance mode
    35
  • Airflow (m3/h) - Quiet mode
    25
  • Max thermal efficiency (%)
    90
  • Pressure (mmH2O) – Boost mode
    12,2
  • Pressure (mmH2O) – High Performance mode
    10,2
  • Pressure (mmH2O) – Night mode
    1,5
  • Pressure (mmH2O) – Performance mode
    6,1
  • Pressure (mmH2O) – Quiet mode
    4,1
  • Pressure (Pa) – Boost mode
    120
  • Pressure (Pa) – High Performance mode
    100
  • Pressure (Pa) – Night mode
    15
  • Pressure (Pa) – Performance mode
    60
  • Pressure (Pa) – Quiet mode
    40
  • Sound power LWA [dB (A)] – Boost mode
    62,1
  • Sound power LWA [dB(A)] – High Performance mode
    56,5
  • Sound power LWA [dB(A)] – Night mode
    31,8
  • Sound power LWA [dB(A)] – Performance mode
    51,5
  • Sound power LWA [dB(A)] – Quiet mode
    44,6
  • Sound pressure at 3m Lp [dB (A)] - Night mode
    14,3
  • Sound pressure at 3m Lp [dB (A)] – Quiet mode
    27,1
  • Sound pressure at 3m Lp [dB (A)] 3m – Boost mode
    44,6
  • Sound pressure at 3m Lp [dB (A)] 3m – High Performance mode
    39
  • Sound pressure at 3m Lp [dB (A)] 3m – Performance mode
    33,9


* Technical datas above refer to the product powered at 50 Hz.
For values for 60 Hz power supply, please contact the VORTICE Presales Service at prevendita@vortice-italy.com.

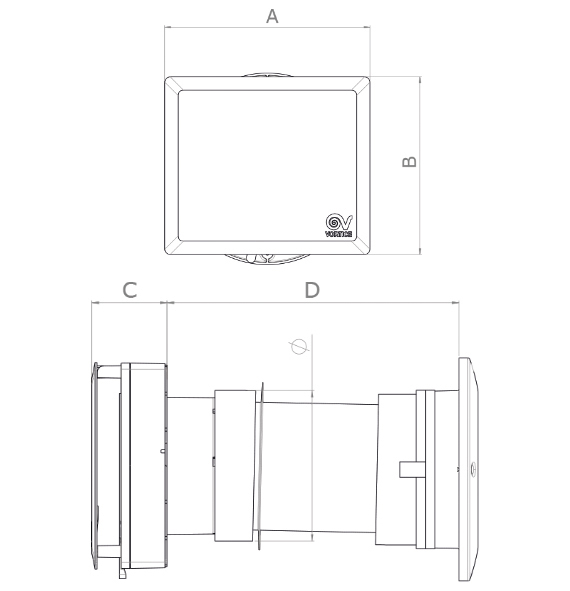

  • Ø (mm)
    146
  • Size A (mm)
    231
  • Size B (mm)
    200
  • Size C (mm)
    73
  • Size D (mm)
    283
quota

Accessories

Discover accessories related to the product

C TEMP
C TEMP
Environmental sensor for temperature control.
C HCS
C HCS
Environmental sensor for relative humidity control.
TUBO PVC D.160 L=700 (HRW 20)
TUBO PVC D.160 L=700 (HRW 20)
PVC hose for wall mounting on 400 mm up to 700 mm walls
KIT FTR D.127X10
KIT FTR D.127X10
MWS
MWS
Outside stainless steel windshield panel.
RGR
RGR
Rubber exterior grill to be installed from inside, without using scaffolding.
WA
WA
90 ° round / square adapter for intake and discharge through the window jamb.
WSG-INOX
WSG-INOX
Rectangular stainless steel grille for WA kit.
WSG-W
WSG-W
Rectangular stainless steel powder coated grille, white RAL 9003, for WA kit.
