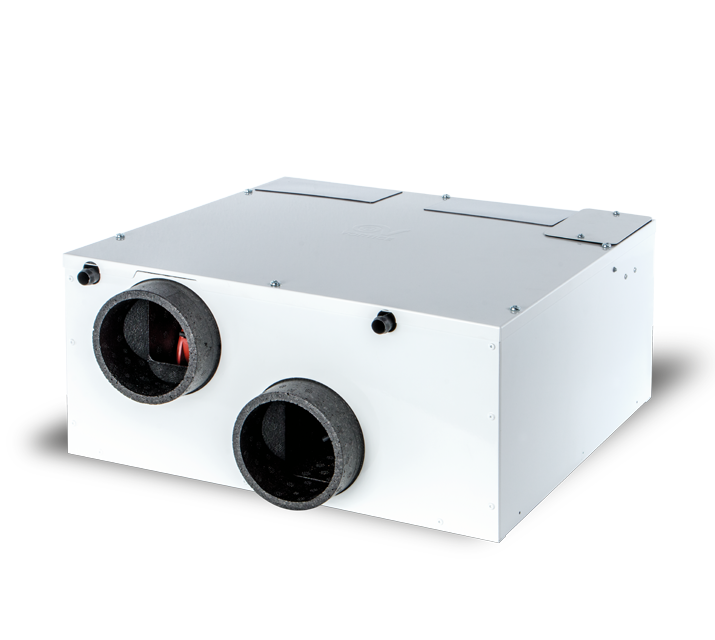

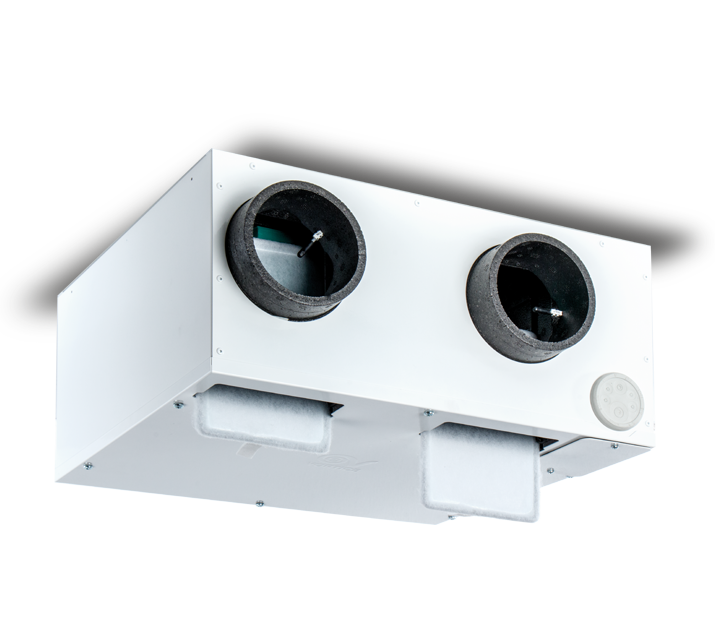

Description

• Steel sheet enclosure, white painted; internal components made of EPP.
• Inlet and outlet duct connection ports compatible with nominal diameters of 100 mm and 125 mm.
• 2 x EC brushless motors, each coupled to a centrifugal impeller; 3 speeds.
• High-efficiency counter-flow type heat exchanger.
• Mechanical automatic by-pass, 100% filtered.
• Advanced electronic suite, easily accessible for first setting and ordinary maintenance operations; functions offered:
• operating parameters setting (fan speed, relative humidity threshold, etc.),
• automatic management of the by-pass,
• no-frost protection of the heat exchanger,
• automatic management of the (optional) pre-heater, if installed,
• operation at Vmax inhibition in a pre-set time slot, which can be set at installation (QUIET function); a back-up battery ensures constant updating of the time marked by the clock (RTC - Real Time Clock), even in case of power failure,
• possibility to automatically switch to Vmax, linking it to bathroom lighting (BOOST ROOM LIGHT function),
• possibility of managing the automatic switch to a reduced speed (30% less than Vmin), useful to grant the correct air exchange during the long absence of occupants, also limiting consumption (HOLIDAY function),
• filter status monitoring: the need for cleaning / maintenance is shown on the remote control panel display,
• possibility of connection to a presence sensor (PIR), able to automatically manage the switch to Vmax,
• 2 x ISO COARSE 45% (G3) filters, on extracted air (stale) and on (fresh) air supply; ISO COARSE 65% (G4) filter for extraction port, ePM10 50% (M5), ePM1 55% (F7) and ePM1 80% (F9) filters for supply port are available as optional.
• Condensate collection vessel with overflow protection.
Read full descriptionClose description

Certifications

Energy label Energy label

Technical Data Sheet

  • Diametro nominale (m)
    100/125
  • Filter class for extract air
    ISO COARSE 45% (G3)
  • Filter class for supply air
    ISO COARSE 45% (G3)
  • Frequency (Hz)
    50
  • Insulation Class
  • IP
    X2
  • Max. absorbed Current at max. speed (A)
    0,65
  • Max. absorbed Current at min. speed (A)
    0,30
  • Motor Class
    B
  • Nominal Power at max speed (W)
    64
  • Nominal Power at min speed (W)
    16
  • Number of Phases (Ph)
    1
  • Voltage (V)
    220-240
  • Weight (Kg)
    14

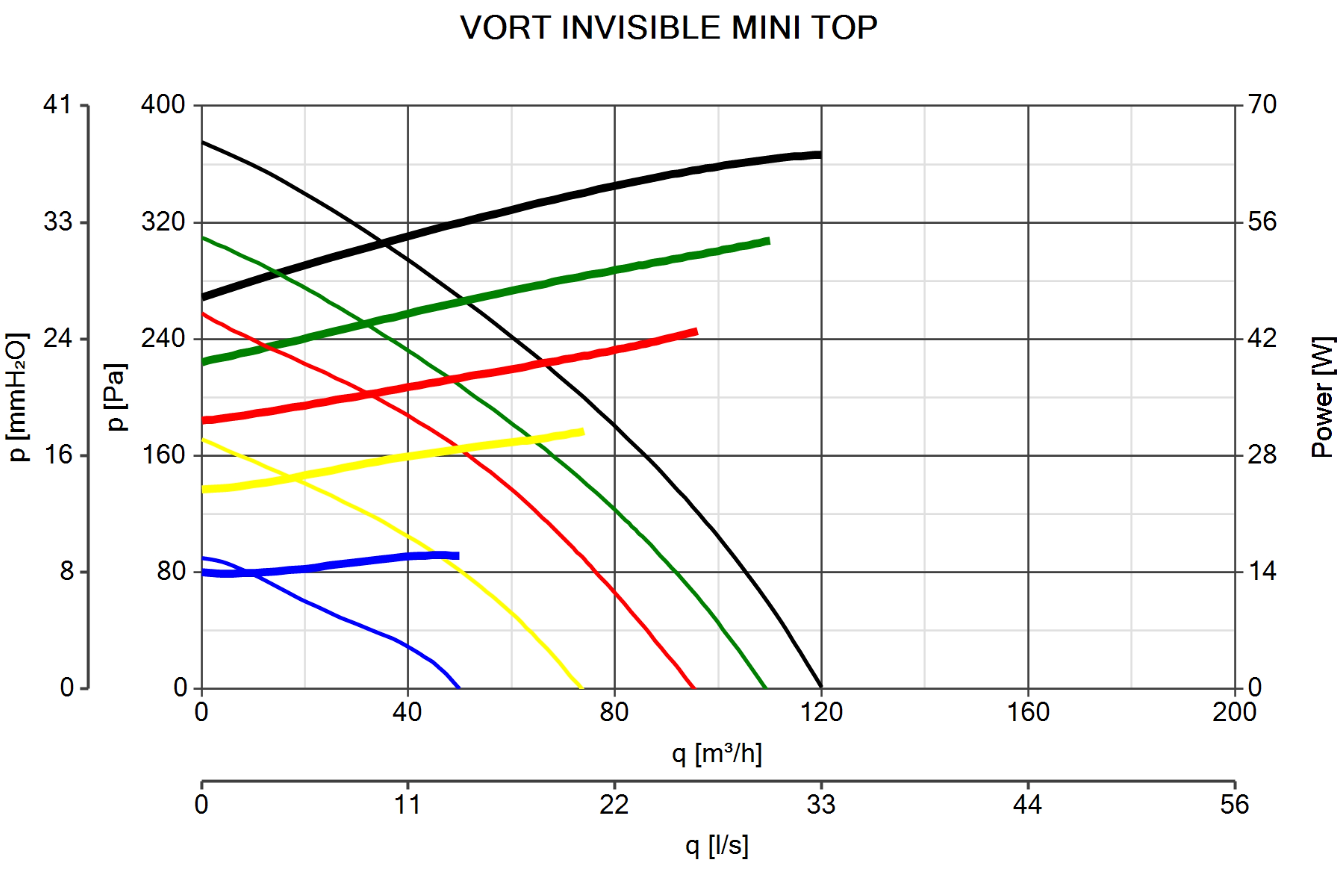

  • Delivery 1st speed (l/s)
    13,9
  • Delivery 1st speed (m³/h)
    50
  • Max delivery at max speed (l/s)
    33,3
  • Max delivery at max speed (m³/h)
    120
  • Maximum thermal efficiency (%)
    87,0
  • Pressure max (mmH2O)
    38,2
  • Pressure max (Pa)
    375
  • RPM max
    3900
  • RPM min
    1830
  • Sound power level - radiated Lw [dB(A)]
    53
  • Sound power level exhaust inlet Lw [dB(A)]
    53
  • Sound power level supply outlet Lw [dB(A)]
    69
  • Sound pressure level air extraction Lp [dB (A)] 3m - max speed
    35
  • Sound pressure level air supply Lp [dB (A)] 3m - max speed
    52
  • Sound pressure level radiated Lp [dB (A)] 3m - max speed
    36
  • Size A (mm)
    484
  • Size B (mm)
    440,5
  • Size C (mm)
    218
  • Size D (mm)
    40
  • Size E (mm)
    5
  • Size F (mm)
    250
  • Size G (mm)
    158
  • Size H (mm)
    69
  • Size I (mm)
    69
  • Size J (mm)
    92
  • Size K (mm)
    333
  • Size L (mm)
    513
  • Size M (mm)
    361
Interested?
If you are interested in this product, contact us or locate your nearest Vortice dealer.
Documentation
You can see all the documentation relating to this product: price list, information booklet and wiring diagram.

Accessories

Discover accessories related to the product

FTR G3 206X132X5
FTR G3 206X132X5
Filter, class ISO Coarse 45% (G3), for heat recovery units. Dimensions: 206x132x5 mm.
FTR G4 206X132X5
FTR G4 206X132X5
Filter, class ISO Coarse 65% (G4), for heat recovery units. Dimensions: 206x132x5 mm.
FTR M5 208X127X25
FTR M5 208X127X25
Filter, class ePM10 50% (M5), for heat recovery units. Dimensions: 208x127x25 mm.
FTR F7 208X127X25
FTR F7 208X127X25
Filter, class ePM1 55% (F7), for heat recovery units. Dimensions: 208x127x25 mm.
FTR F9 208X127X25
FTR F9 208X127X25
Filter, class ePM1 80% (F9), for heat recovery units. Dimensions: 208x127x25 mm.
C SMOKE
C SMOKE
Environmental sensor for air quality.
C HCS
C HCS
Environmental sensor for relative humidity control.

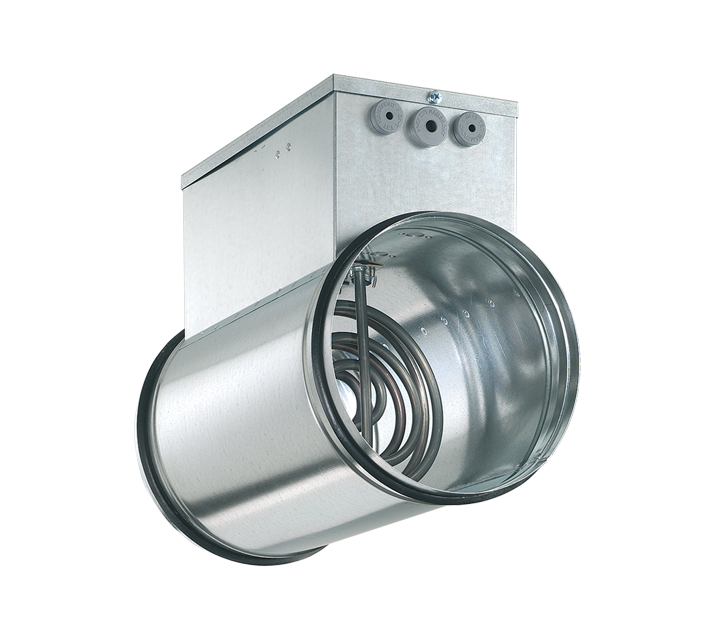

AH 125 (RISCALDATORE ARIA)
