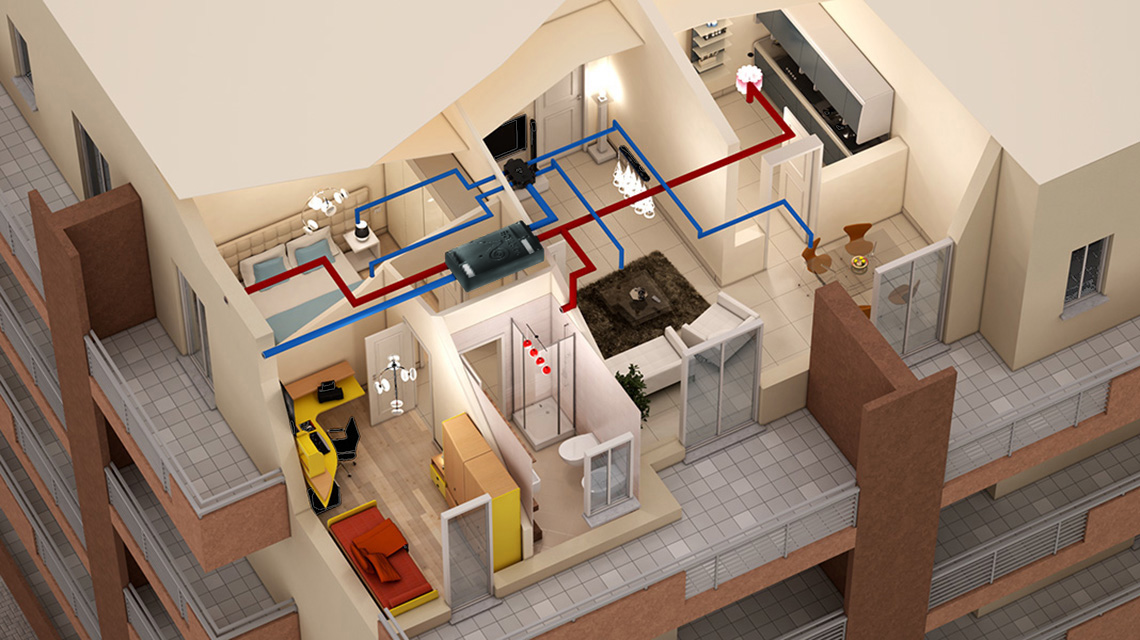

Description

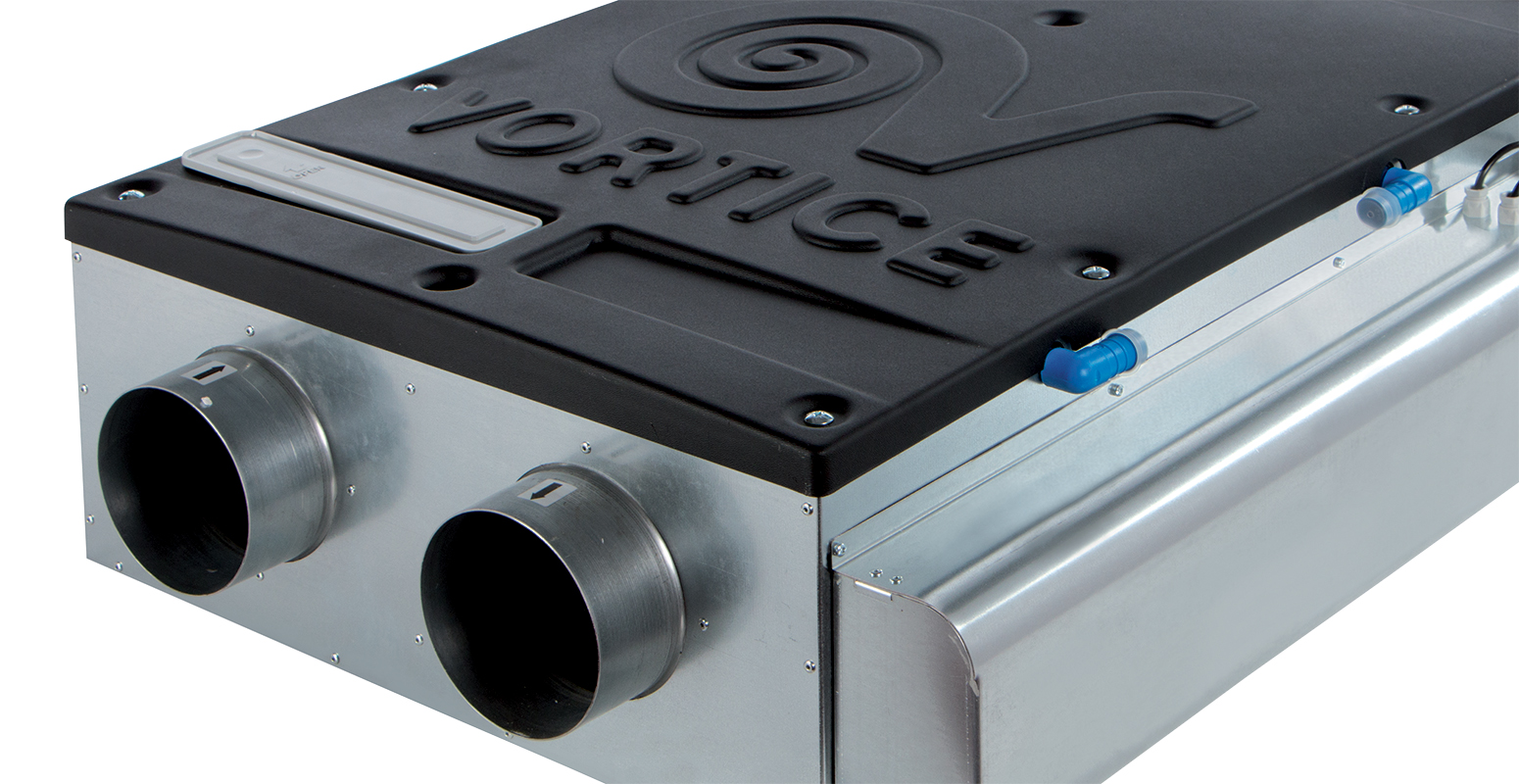

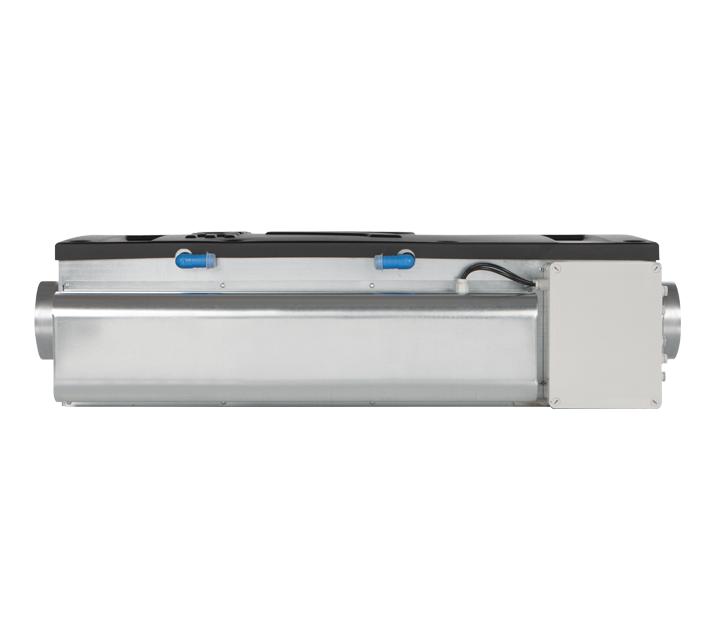

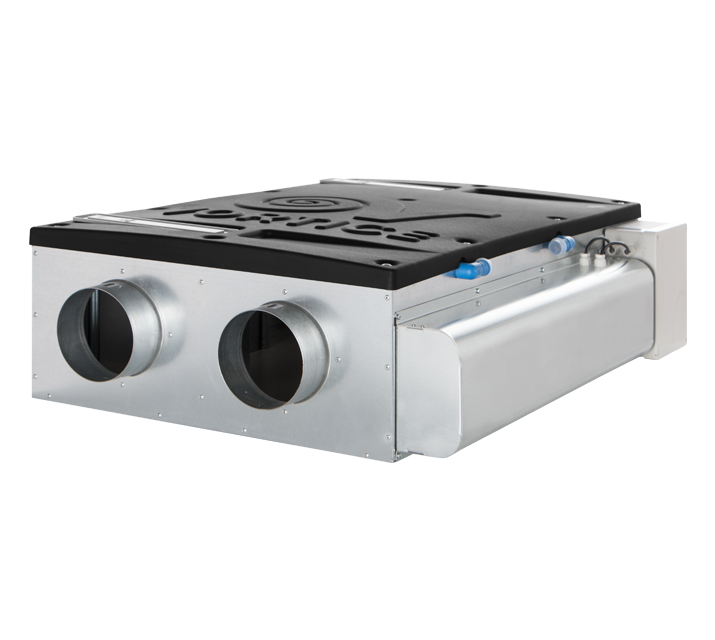

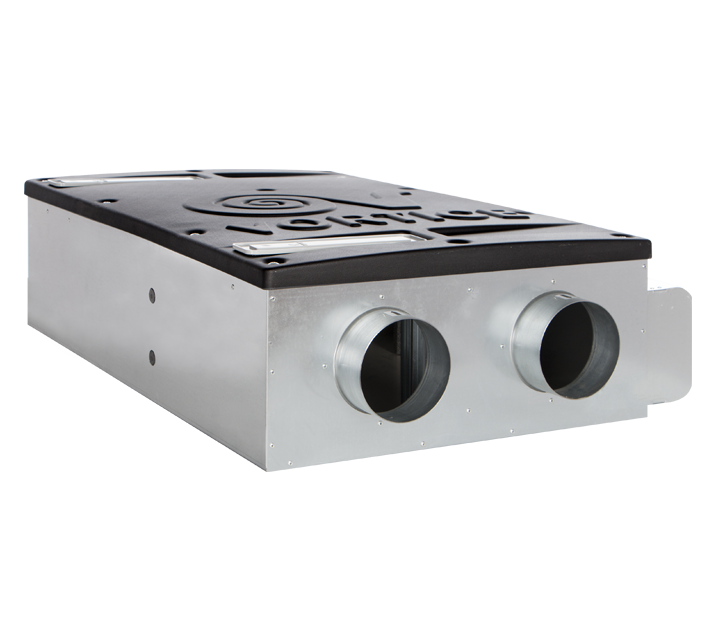

• Zinc-coated pressed steel enclosure; interior lined with sound-absorbent and fire-resistant material (DIN 13501)

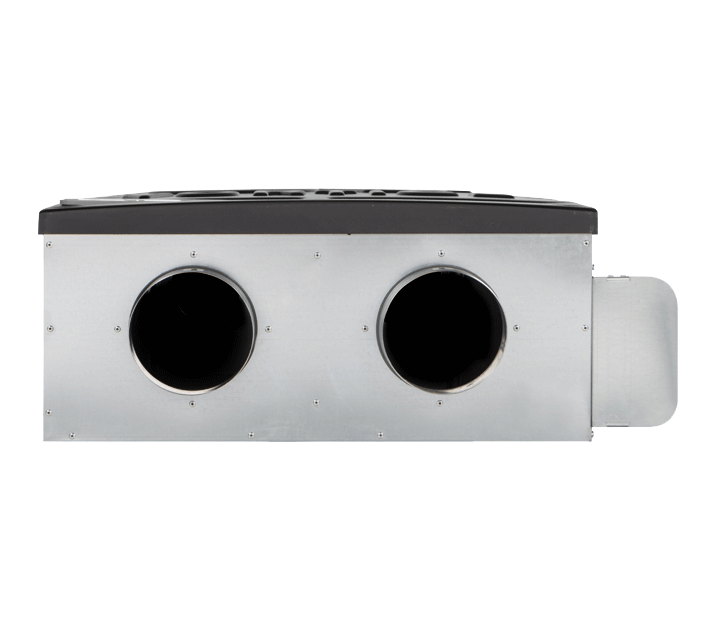

• Nominal diameter for duct connections: 125 mm.
• EC brushless motors with shafts turning in ball bearings, coupled directly to centrifugal impellers; 3 speeds selectable at the moment of installation.
• Ultra high efficiency cross-flow type heat recovery unit manufactured in plastic (polyethylene).
• 100% by-pass, automatically operated.
• Automatically activated system designed to prevent icing of the heat exchanger.
• 2 x ePM10 50% (F5) filters; ePM1 70% (F7) filter for the supply port, available as optional.
• Electronic control system.
• Tie-bolts for suspended installation supplied as standard.
Read full descriptionClose description

Certifications

Energy label Energy label

Technical Data Sheet

  • Frequency (Hz)
    50
  • Max absorbed current (A)
    1,0
  • Max absorbed power (W)
    102
  • Nominal diameter (mm)
    125
  • Voltage (V)
    220-240
  • Weight (Kg)
    27
  • Breakout sound power LWA [dB(A)]
    43,1
  • Breakout sound pressure at 3m at Max speed calculated in free field Lp [dB(A)]
    22,6
  • Max airflow (l/s)
    57,2
  • Max airflow (m³/h)
    206
  • Max pressure (mmH2O)
    43,5
  • Max pressure (Pa)
    426
  • Sound power at exhaust inlet LWA [dB(A)]
    36,5
  • Sound power at supply outlet LWA [dB(A)]
    43,3
  • Sound pressure at 3m at extraction at Max speed calculated in free field Lp [dB(A)]
    16,0
  • Sound pressure at 3m at supply at Max speed calculated in free field Lp [dB(A)]
    22,8
  • Supplier's name or trade mark
    Vortice
  • Specific Energy Consumption (SEC) class in temperate climate zone
    A
  • Specific Energy Consumption (SEC) class in temperate climate zone [kWh/m2y]
    -36,3
  • Specific Energy Consumption class SEC in cold climate zone [kWh/m2y]
    -74,7
  • Specific Energy Consumption class SEC in warm climate zone [kWh/m2y]
    -11,7
  • Declared type
    UVR-B: bidirezionale
  • Type of drive
    variatore di velocità: VSD
  • Type of heat recovery system HRS
    a recupero
  • Thermal efficiency of heat recovery at reference airflow [%]
    87,8
  • Max airflow [m3/h]
    163
  • Fan drive electric power input, including any motor control equipment, at maximum flow rate [W]
    100,0
  • Sound power LWA [dB(A)]
    43
  • Reference airflow [m3/s]
    0,0317
  • Reference ? pressure [Pa]
    50
  • SPI [W/(m3/h)]
    0,39474
  • Control factor CTRL
    0,85
  • Control type
    amb. centralizzato
  • Max internal leakage rate [%]
    8,5
  • Max external leakage rate [%]
    8,5
  • Mixing rate
    NA
  • Position and description of visual filter warning
    Vedi libretto istruzioni
  • Airflow sensitivity to pressure variations at + 20 Pa and – 20 Pa
    NA
  • Indoor/outdoor air tightness [m3/h]
    NA
  • Annual electricity consumption (AEC) [kWh electricity/y]
    402
  • AHS temperate annual energy saved [kWh primary energy/y]
    4570
  • AHS cold annual energy saved [kWh primary energy/y]
    8940
  • AHS warm annual energy saved [kWh primary energy/y]
    2067
  • Ø (mm)
    125
  • Size A (mm)
    868
  • Size B (mm)
    643
  • Size C (mm)
    248
  • Size D (mm)
    963,5
  • Size E (mm)
    551
