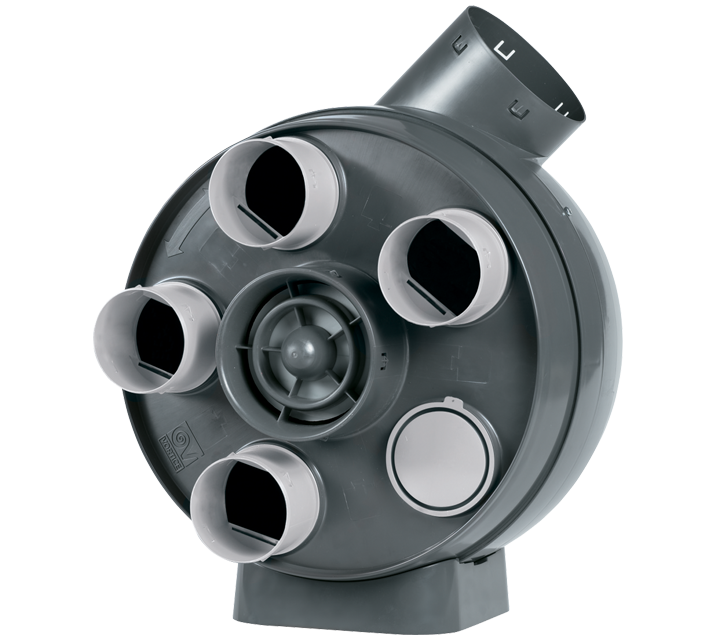

VORT PENTA ES - Vortice

Description

• Material: plastic resin, colour black, resistant to ageing.
• 5 ports for connection to extractor ducts, nominal diameter 80 mm;
• 1 port for connection to exhaust duct, nominal diameter 125 mm
• 2 speed EC motor with shaft turning in ball bearings, coupled to a centrifugal impeller; facility of selecting 5 different configurations (min/max) by way of a dip switch mounted on the appliance.
• Minimum air flow 250 m3/h
• Maximum air flow 375 m3/h
• Equipped as standard with 3 x Ø80 mm spigot and 4 plugs (regulators not available) and with a 30 minute maximum speed timer (after 30 minutes operation at maximum speed, the fan reverts automatically to operation at the minimum setting).
• IMQ SAFETY certification.

Read full descriptionClose description

Frequency (Hz)

50
Insulation class

II°
IP

X4
Max absorbed current at Max speed (A)

0,31
Max absorbed current at Min speed (A)

0,13
Max absorbed power at Max speed (W)

35
Max ambient temperature for continuous operation (°C)

50
Power absorbed at 1st speed (W)

13
Voltage (V)

230
Weight (Kg)

4
Airflow at 1st speed (l/s)

69,5

Airflow at 1st speed (m³/h)

250
Max airflow at Max speed (l/s)

104
Max airflow at Max speed (m³/h)

375
Max pressure at Max speed (mmH20)

26
Max pressure at Max speed (Pa)

255
Max RPM

2000
Min RPM

1350
Pressure at 1st speed (mmH20)

11,5
Pressure at 1st speed (Pa)

113
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed

35
Sound pressure at 3m at Max speed Lp [dB (A)]

43

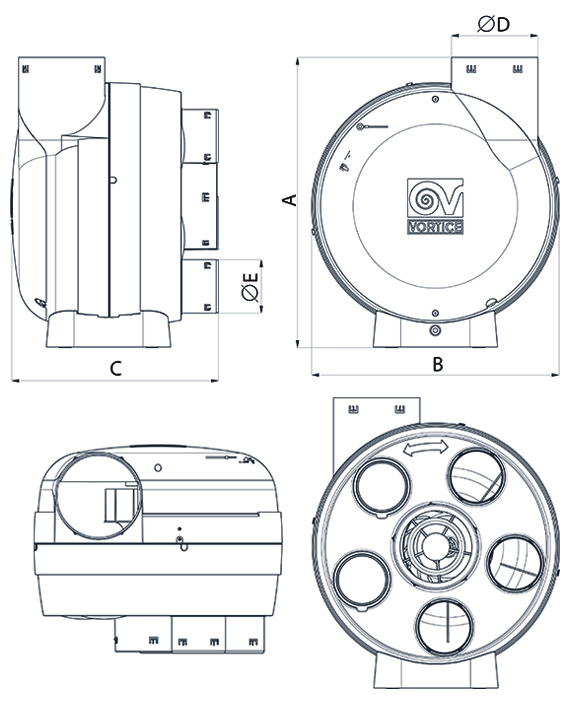

Size A (mm)

420
Size B (mm)

358
Size C (mm)

300
