Description

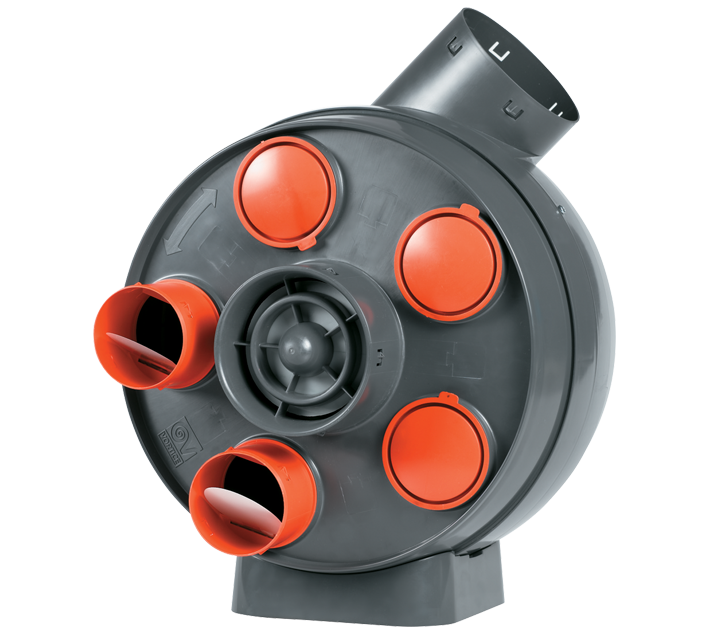

• Material: plastic resin, colour black, resistant to ageing.

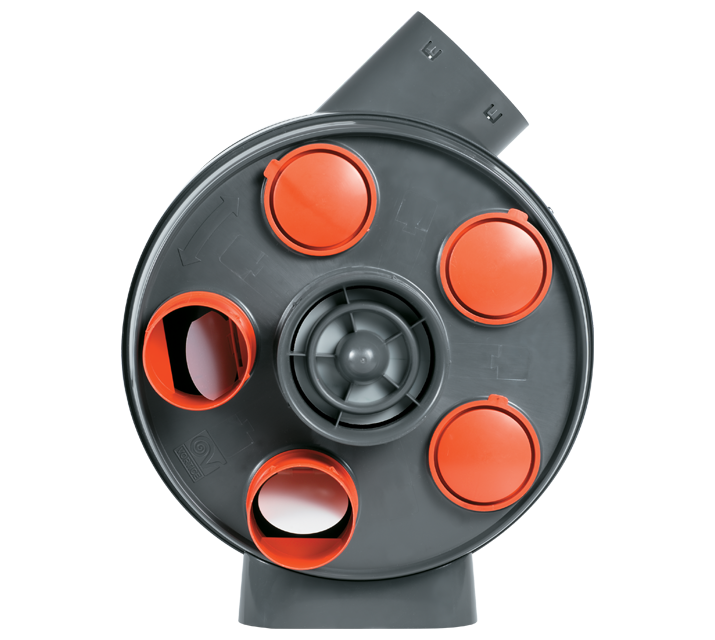

• 5 ports for connection to extractor ducts, nominal diameter 80 mm;
• 1 port for connection to exhaust duct, nominal diameter 125 mm
• 3 speed EC motor with shaft turning in ball bearings, coupled to a centrifugal impeller; facility of selecting 5 different configurations (min/max) by way of a dip switch mounted on the appliance.
• Equipped as standard with 3 x Ø80 mm spigot and 4 plugs (regulators not available) and with a 30 minute maximum speed timer (after 30 minutes operation at maximum speed, the fan reverts automatically to operation at the minimum setting).
• 5 ports for connection to extractor ducts, nominal diameter 80 mm;
• 1 port for connection to exhaust duct, nominal diameter 125 mm
• 3 speed EC motor with shaft turning in ball bearings, coupled to a centrifugal impeller; facility of selecting 5 different configurations (min/max) by way of a dip switch mounted on the appliance.
• Equipped as standard with 3 x Ø80 mm spigot and 4 plugs (regulators not available) and with a 30 minute maximum speed timer (after 30 minutes operation at maximum speed, the fan reverts automatically to operation at the minimum setting).
Technical Data Sheet
-
Frequency (Hz)50
-
Insulation classII°
-
IPX4
-
Max absorbed current at Max speed (A)0,31
-
Max absorbed current at Min speed (A)0.13
-
Max absorbed power at Max speed (W)35
-
Max ambient temperature for continuous operation (°C)50
-
Power absorbed at 1st speed (W)5
-
Voltage (V)230
-
Weight (Kg)5,6
-
Airflow at 1st speed (l/s)34.1
-
Airflow at 1st speed (m³/h)123
-
Max airflow at Max speed (l/s)105.5
-
Max airflow at Max speed (m³/h)380
-
Max pressure at Max speed (mmH20)28
-
Max pressure at Max speed (Pa)275.5
-
Max RPM2018
-
Min RPM750
-
Pressure at 1st speed (mmH20)3.6
-
Pressure at 1st speed (Pa)35.42
-
Sound pressure at 3 m - min speed Lp [dB (A)] 3m - min speed35
-
Sound pressure at 3m at Max speed Lp [dB (A)]43
-

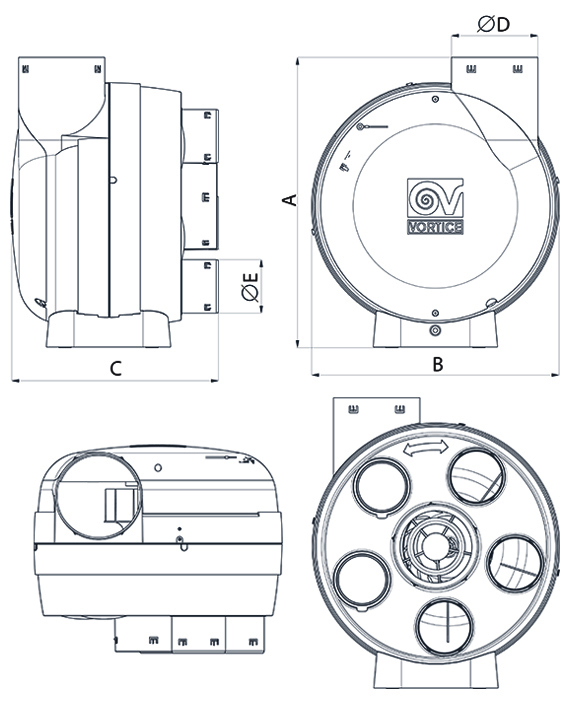

Size A (mm)420
-
Size B (mm)358
-
Size C (mm)300
-
Size D (mm)125
-
Size E (mm)77.5
